CNC  Drier Filter Copper Tube Spinning Machine



Main features of the CNC drier filter copper tube spinning machine:

-- Two axis CNC control, small error, high speed

-- Hydraulic system is equipped with water cooling system

-- High speed mandrel speed 3000rpm, inverter control, speed adjustable

-- Automatic loading & unloading

-- When seal the finished workpiece and fill compressed air 3.0MPa keeping for 3 minutes, there will be no leakage and workpiece will not be deformed.

|drier filter copper tube spinning machine| drier filter copper tube spinning machine|

Main technical data of the CNC drier filter copper tube spinning machine:

No.	Item	Data
1	Max. tube outer diameter	Φ30 (copper)
2	Min. tube outer diameter	Φ4mm (copper)
3	Copper tube wall thickness	Less than 1mm
4	Max. workpiece length	200mm
5	Min. workpiece length	60mm
6	Average working efficiency	About 12s per end
7	Control method	CNC double-axis control
8	X, Y axis positioning precision	±0.05mm
9	X axis stroke	200mm
10	X axis stroke speed	300mm/s
11	Y axis stroke	100mm
12	Y axis stroke speed	150mm/s
13	Loading/unloading method	Automatic
14	Capacity of storage hopper	More than 20 pieces workpiece
15	Driving method	Hydraulic + pneumatic
16	Main spindle speed	3000 rpm
17	Total power consumption	6.5kW
18	Air source	0.5-0.6MPa
19	Hydraulic pressure	5MPa
20	Machine dimension	About 2400 x 1400 x 1700mm
21	Machine weight	About 1400kg

Sructure and configuration of the CNC drier filter copper tube spinning machine:

1) Loading/unloading device: pneumatic cylinder automatic separating workpiece, loading & unloading, storing capacity 20 pieces.

2) Spinning device: servo motor drive, ball screw transmitting, hydraulic cylinder clamping workpiece, spinning ball high precision spinning; In straight line section, automatic chamfering.

3) Clamping device: chucks and rotating cylinders special for lathe.

4) Control system: Special CNC control system for spinning (from Taiwan); servo motor from Taiwan (Delta); Manual/auto method, error alarming & displaying, automatic counting, program saving and recalling; World famous brand electric/electronic components such as Fuji, Schneider, Omron, etc.

|drier filter copper tube spinning machine| drier filter copper tube spinning machine|

Supplying range of the CNC drier filter copper tube spinning machine:

1) Complete machine

2) One set of spinning die (according to Buyer’s drawing)

3) Operation manual, electric drawing, hydraulic drawing

4) Tool kit   |drier filter copper tube spinning machine| drier filter copper tube spinning machine|

|drier filter copper tube spinning machine| drier filter copper tube spinning machine|

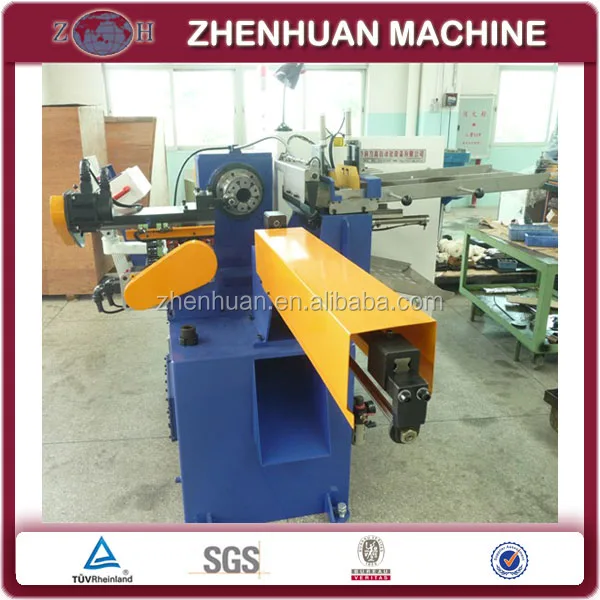

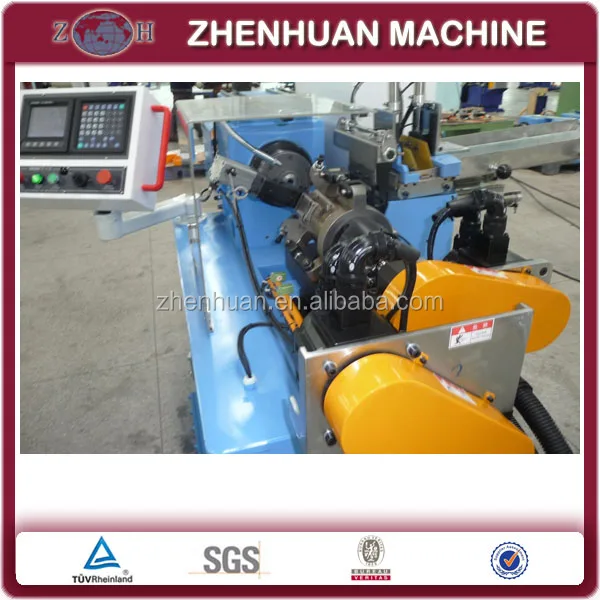

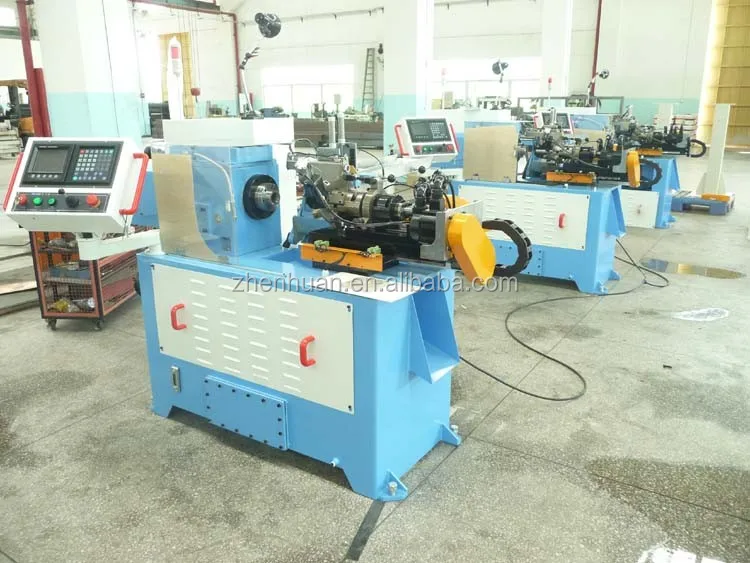

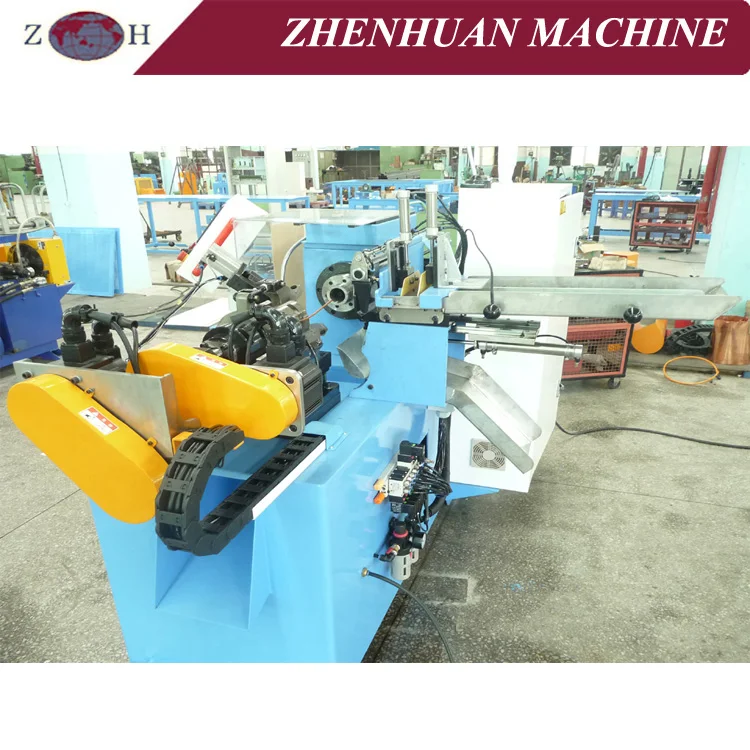

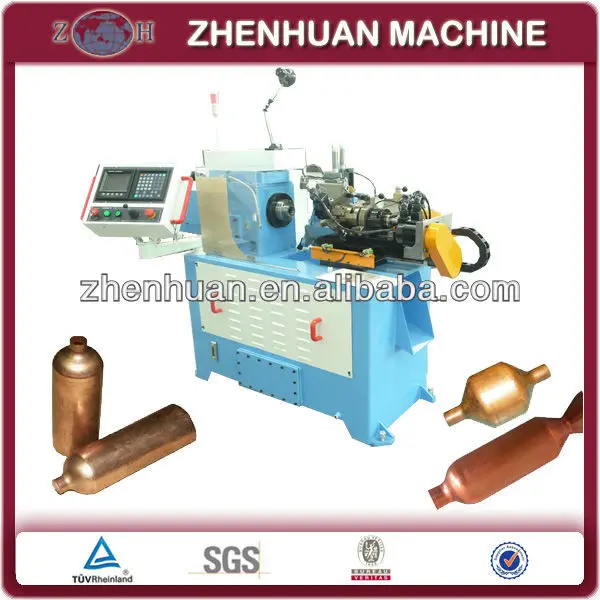

Photos of the CNC drier filter copper tube spinning machine:

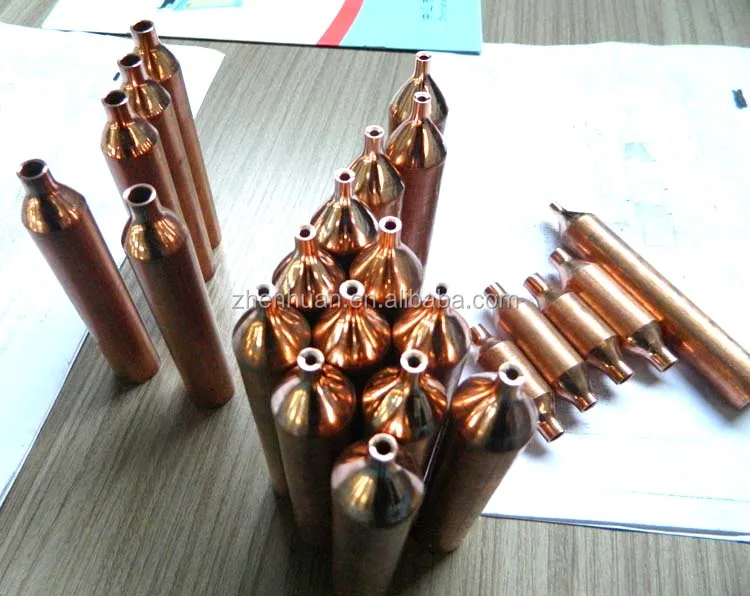

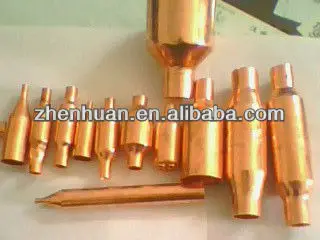

Finished spun copper drier filter tubes by the CNC drier filter tube spinning machine:

 |drier filter copper tube spinning machine| drier filter copper tube spinning machine|

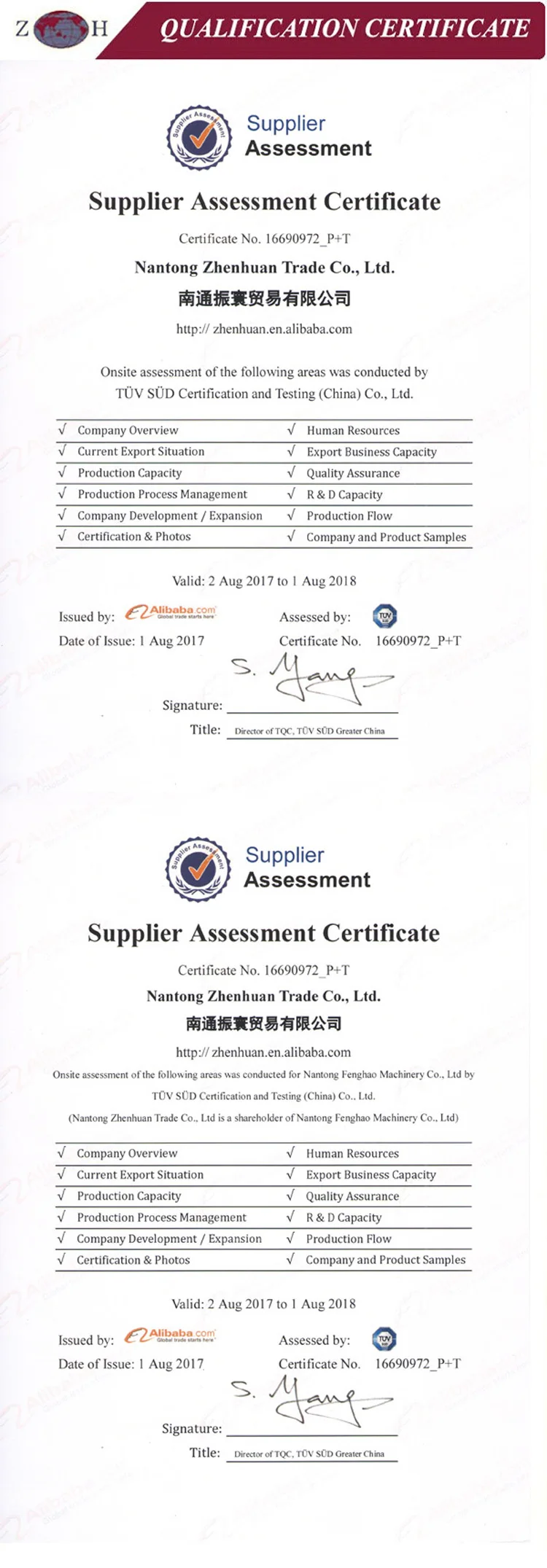

Our Nantong Zhenhuan Trade Co., Ltd. is certified by TUV, BV, SGS, good reputation and credit, specialized in machines for more than 14 years. We can provide you not only good quality CNC drier filter copper tube spinning machines but also good after-sale service.
