ZL U05AM, control board universal air conditioner, universal a/c control system, universal control board, Lilytech, u05a
- Category: >>>
- Supplier: Suzhou Lily Tech. Co. Ltd.
Share on (1092415513):
Product Overview
Description
Product Description
Attention:
1. Please leave a message in the order for option:
Power supply voltage: 220Vac or 110Vac ?
Power supply frequency: 50Hz or 60Hz ?
2. If need start capacitor, please visit:
Universal AC Controller
ZL-U05AM
Selection Table:

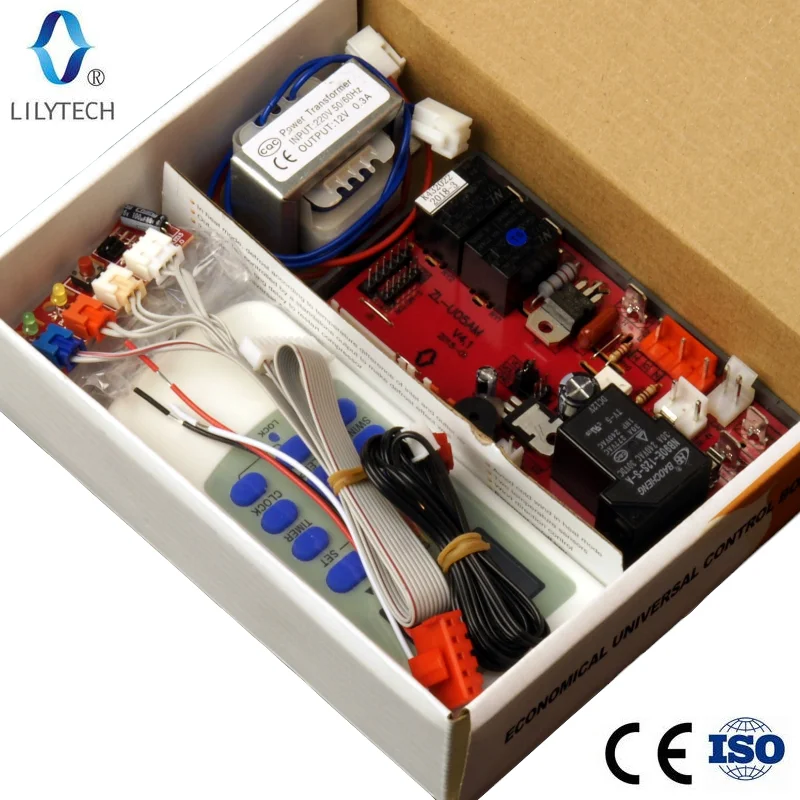

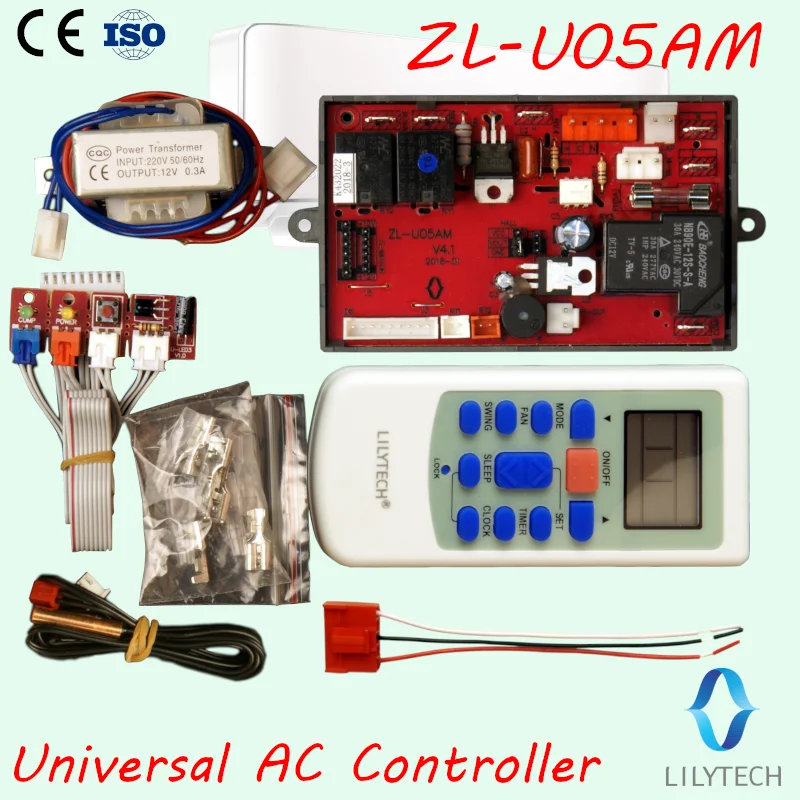

Photo:

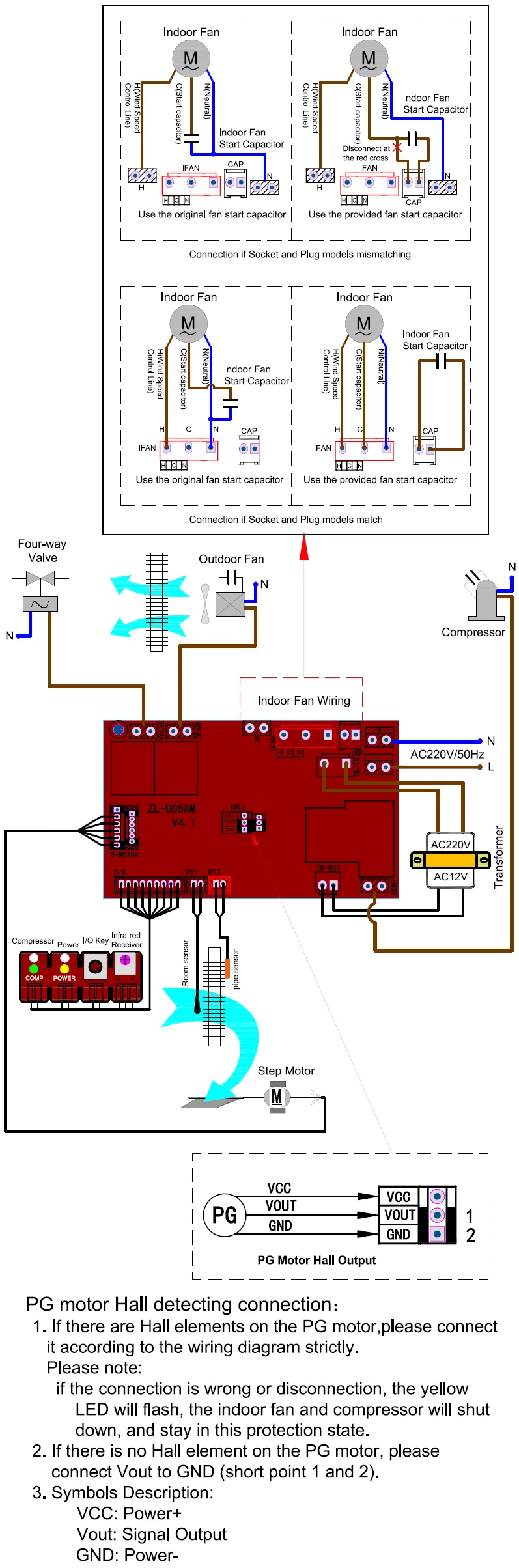

Wire Diagram:

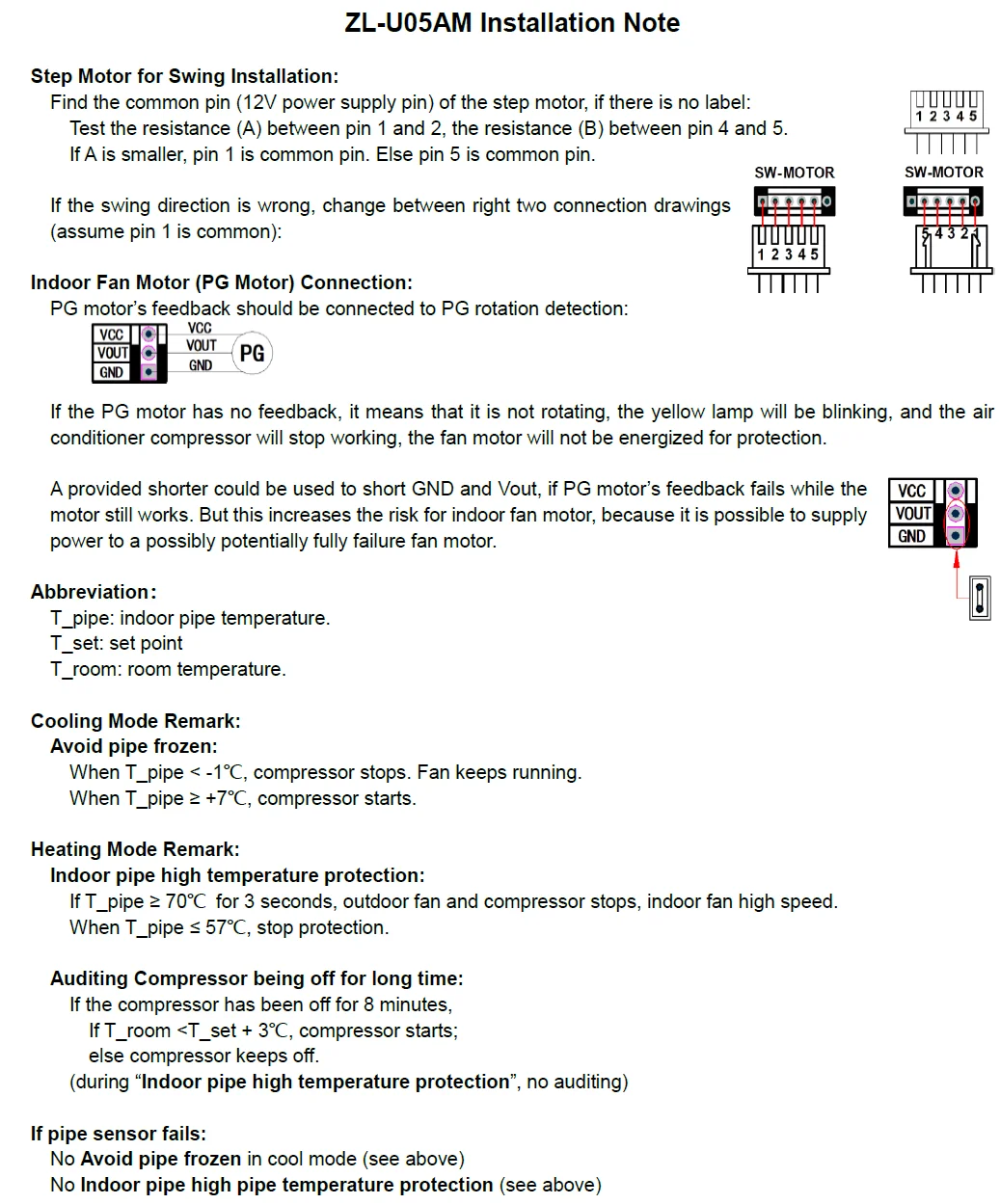

For Installation:
Pdf Manual File Doanload (Could be translated by google translation)
(copy and paste to browser address to view and downlaod):
https://cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-U05AM_Installation.pdf?34
For User:
Pdf Manual File Doanload (Could be translated by google translation)
(copy and paste to browser address to view and downlaod):
https://cdn.shopify.com/s/files/1/0028/5032/4545/files/ZL-U05AM_IM.pdf?34
CE:
ISO:
Packaging & Shipping
One piece packing: 18 * 14 * 4 cm, 0.496 kg
One carton packing: 40 pcs in one carton, 19.8 kg
