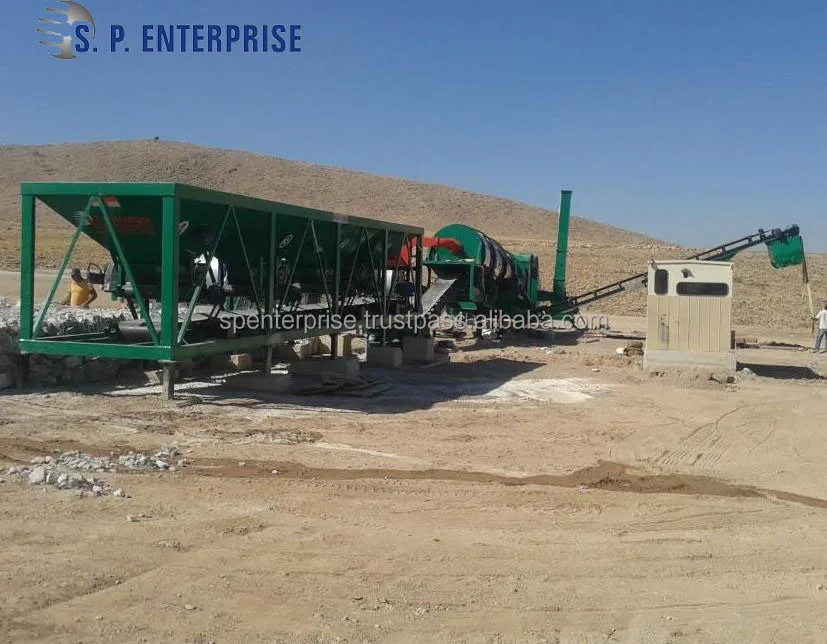

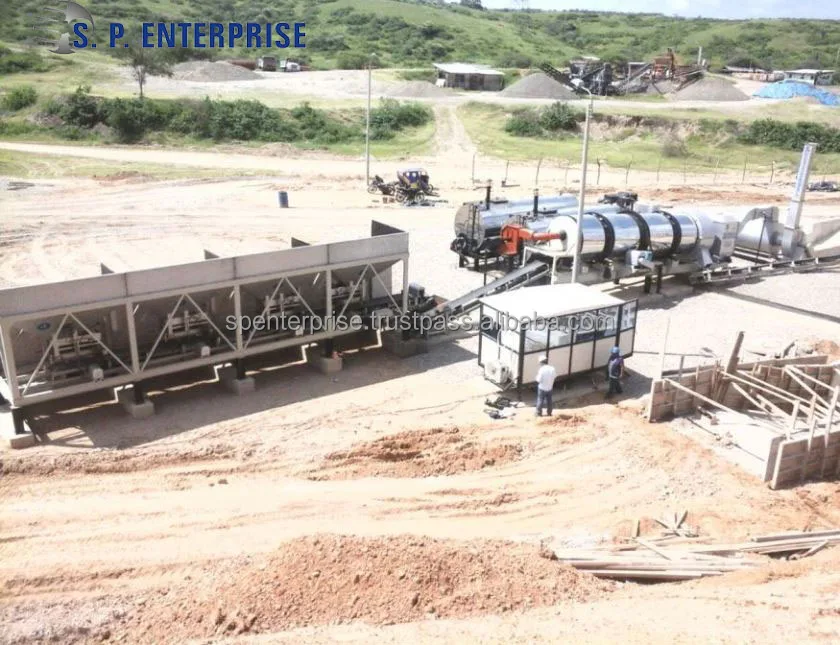

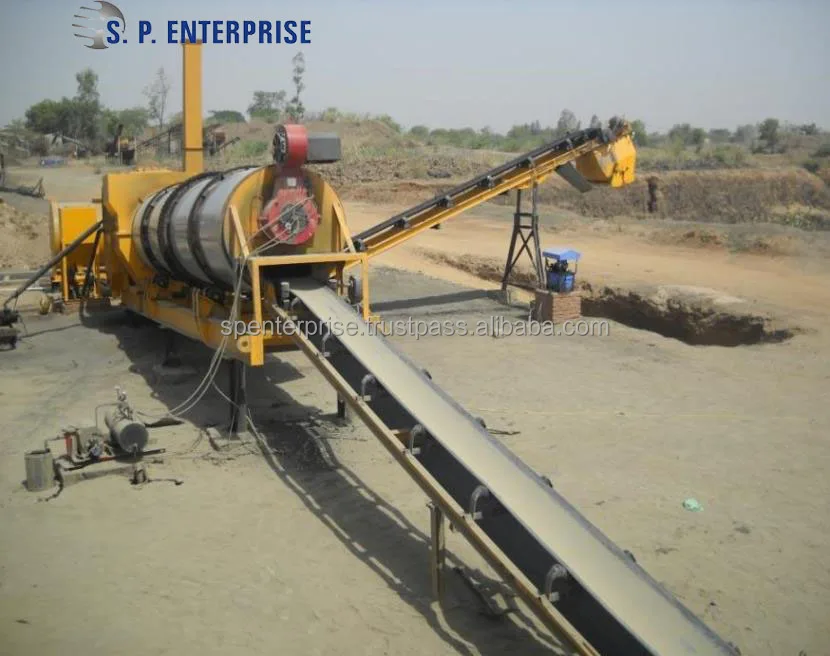

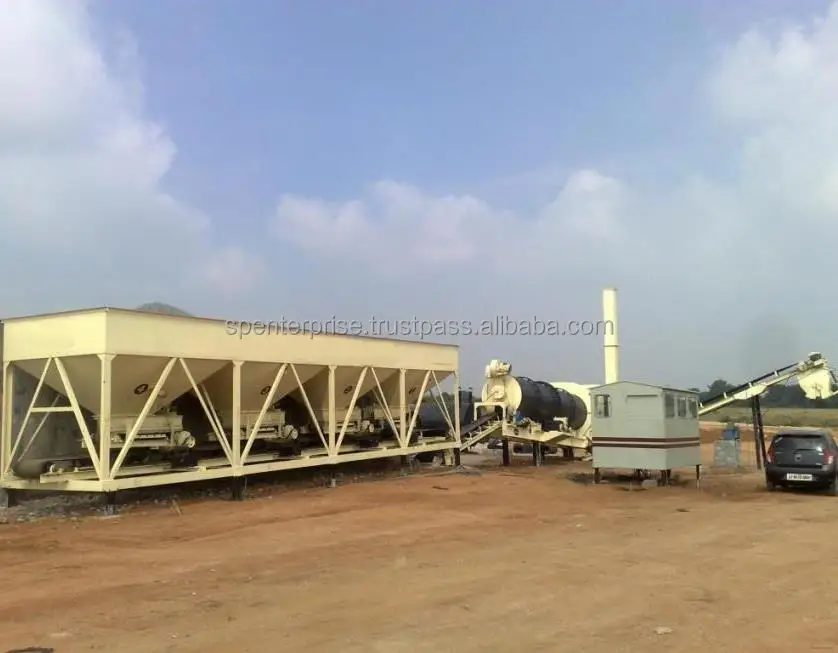

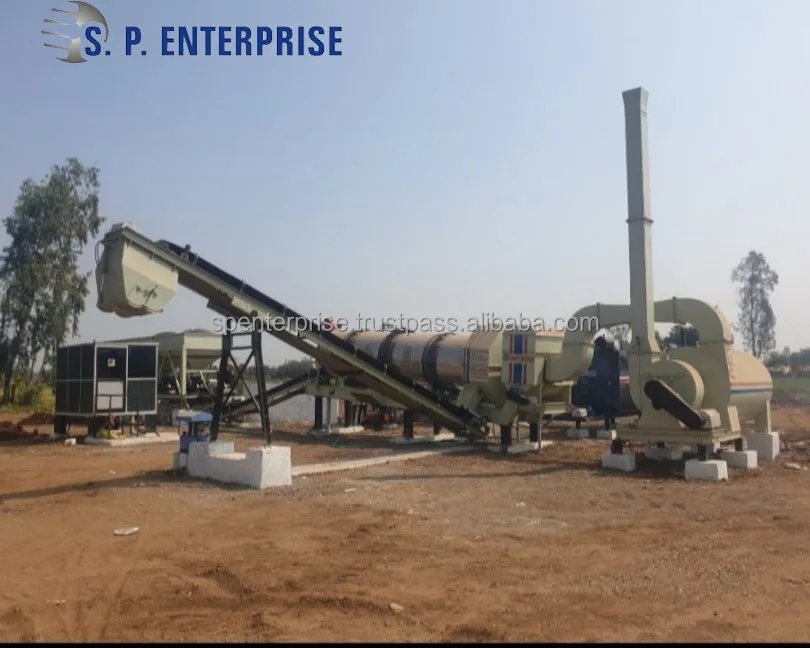

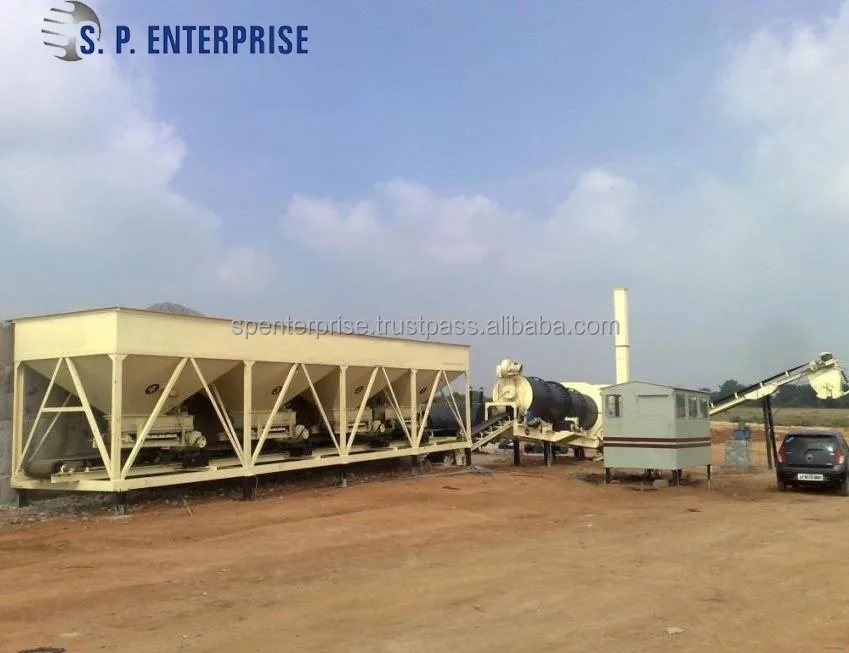

Asphalt Mixing Plant in output capacities of 20 TPH to 150 TPH
S.P. Enterprise offers Continuous type parallel flow Drum Mix type Asphalt Factory in output capacities ranging from 20 TPH to 120 TPH in standard models as below and other capacity plants as per customer’s specific requirement.
Standard Models:
Model: SDM-20 - output capacity 20 to 25 TPH
Model: SDM-30 – output capacity 30 to 40 TPH
Model: SDM-40 – output capacity 40 to 60 TPH
Model: SDM-60 – output capacity 60 to 90 TPH
Model: SDM-90 – output capacity 90 to 120 TPH
Model: SDM-40 – output capacity 40 to 60 TPH
Model: SDM-60 – output capacity 60 to 90 TPH
Model: SDM-90 – output capacity 90 to 120 TPH
Note: Other capacity plant can be offer against specific enquiries
SALIENT FEATURES
* Available in Stationary & Mobile (Portable) versions.
* Manufactured as per the international market standard to produce best quality hot mix asphalt.
* Low dust emission and low fuel consumption.
* Fully automatic as per modern drum mix technology.
* Operated by user friendly electronic control panel.
* Modular construction ensures ease of operation & maintenance.
* Manufactured as per the international market standard to produce best quality hot mix asphalt.
* Low dust emission and low fuel consumption.
* Fully automatic as per modern drum mix technology.
* Operated by user friendly electronic control panel.
* Modular construction ensures ease of operation & maintenance.
ASPHALT PLANT COMPONENTS:
* Cold Aggregate Feeder Bins

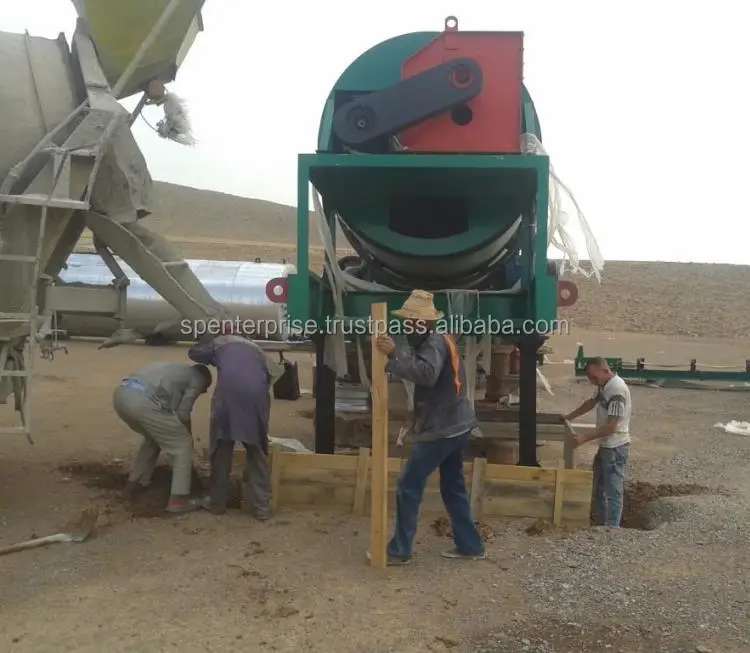

* Single Deck Vibratory Screen
* Slinger Conveyor
* Drying cum Mixing Drum fitted with Automatic Burner & Multi cone Primary Dust Collector
* Hot mix Load Out Conveyor with Gob Hopper & Power Pack
* Asphalt Tank with Pumping Unit, Piping & Automatic Burner
* Mineral Filler Unit
* Wet filter type Secondary Dust Collector
* Electronic Control Panel with printer
* Control Cabin.
* Single Deck Vibratory Screen
* Slinger Conveyor
* Drying cum Mixing Drum fitted with Automatic Burner & Multi cone Primary Dust Collector
* Hot mix Load Out Conveyor with Gob Hopper & Power Pack
* Asphalt Tank with Pumping Unit, Piping & Automatic Burner
* Mineral Filler Unit
* Wet filter type Secondary Dust Collector
* Electronic Control Panel with printer
* Control Cabin.

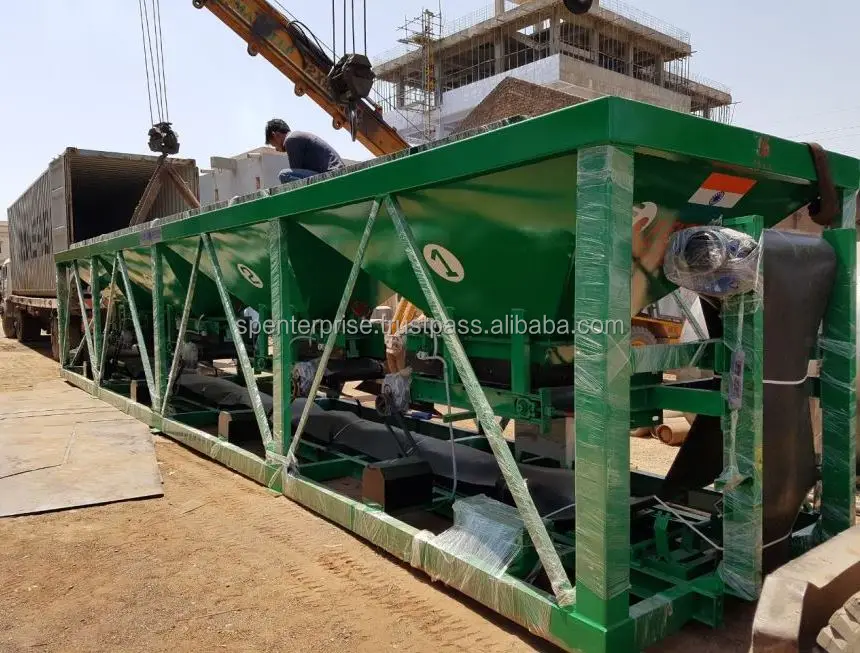

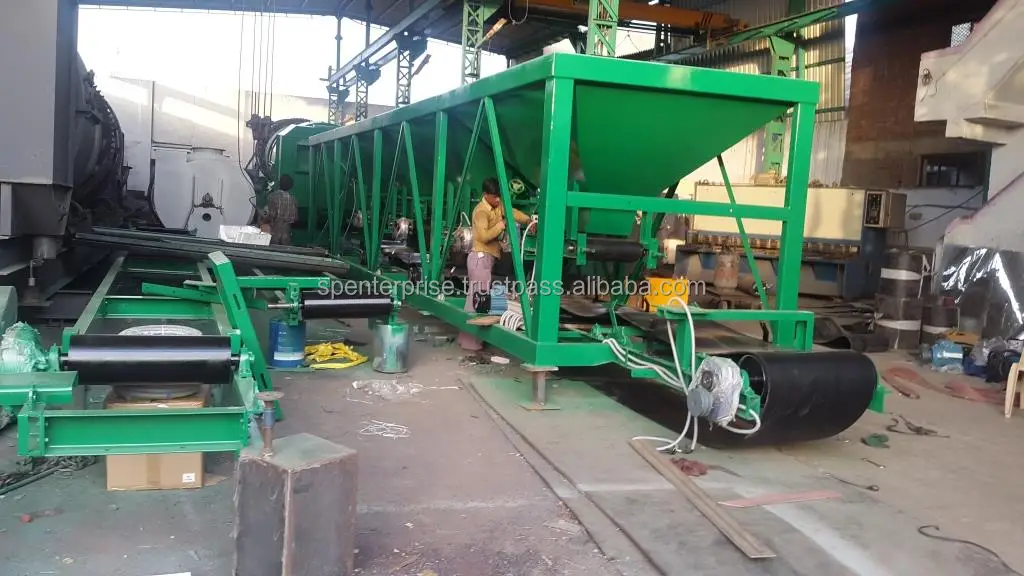

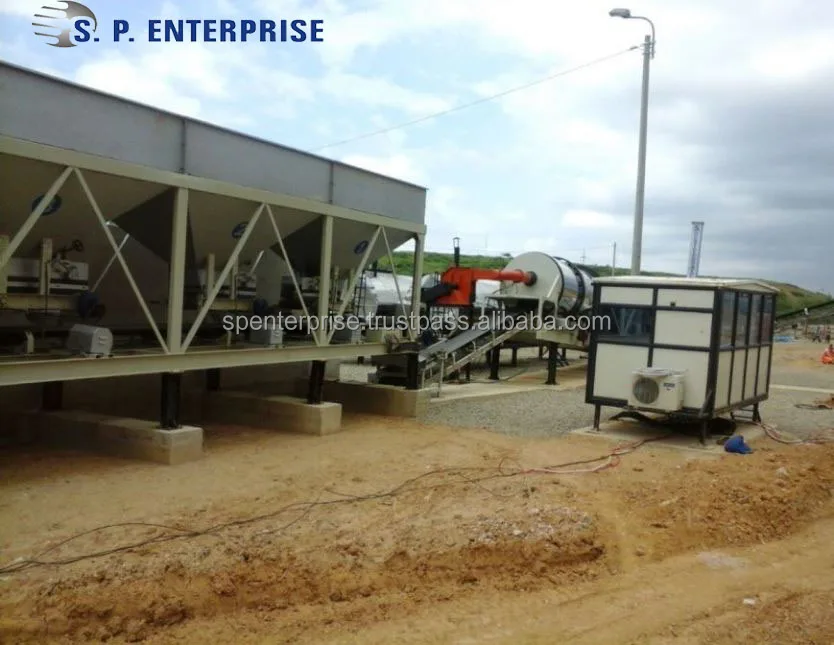

Cold Aggregates Four Bin Feeder with Variable Speed Drive for Each Bin

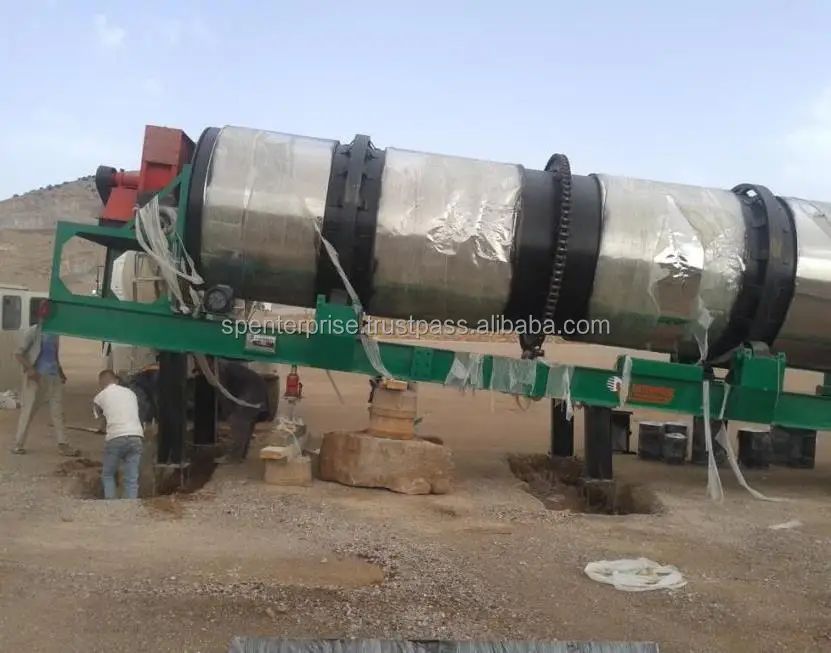

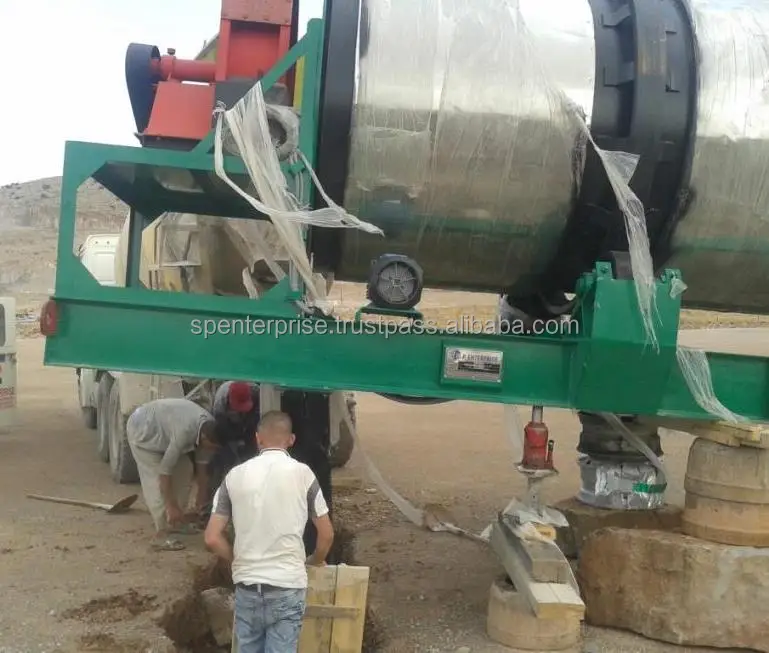

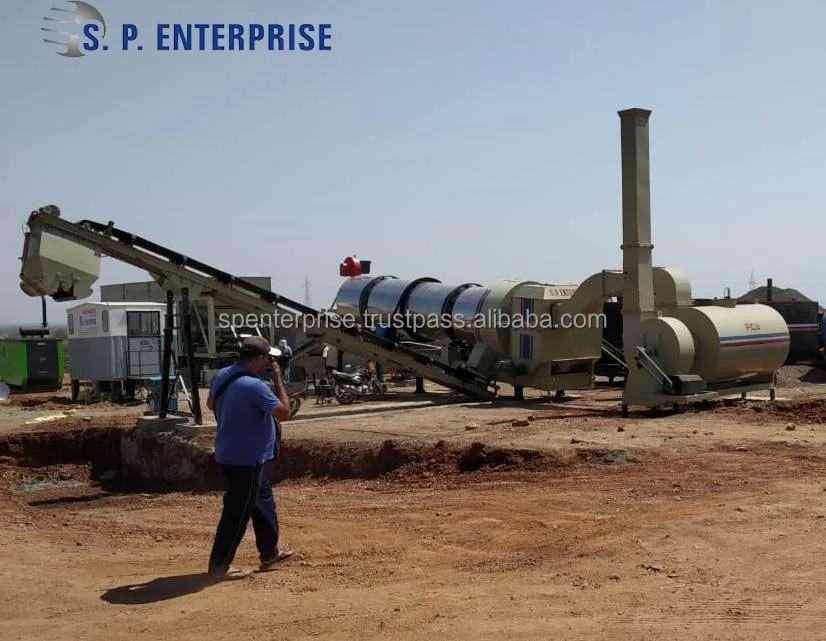

Insulated Dryer Drum for Drying and Mixing with High Pressure Jet Burner
Fully Insulated Direct Heating type Bitumen / Asphalt Tanks
High Pressure Jet Oil Burner with High and Low Nozzles
Hot Mix Load Out Conveyor with Heat Resistant Belt and Gob Hopper
Wet Scrubber type Secondary Dust Collector
ASPHALT MIXING PLANT LAYOUT
Product Specifications
MODEL | SDM-30 | SDM-40 | SDM-60 | SDM-90 | ||||
Rated Output Capacity | 30-40 TPH | 40-60 TPH | 60 to 90 TPH | 90 to 120 TPH | ||||
COLD AGGREGATE FEEDER BINS | ||||||||
No. of Bins | 4 | 4 | 4 | 4 | ||||
Total Storage Capacity | 28 tons | 40 tons | 48 tons | 60 tons | ||||
Bin Auxiliary Conv. Belt Drive Motor | 1.5 HP x 4 Pole – 4 nos. | 2.0 HP x 4 Pole – 4 nos. | 2.0 HP x 4 Pole – 4 nos. | 3.0 HP x 4 Pole – 4 nos. | ||||
Bin Auxiliary Conveyor Belt Size | 450 mm x 3 ply | 450 mm x 3 ply | 450 mm x 3 ply | 500 mm x 3 ply | ||||
Bin Auxiliary Conveyor Gear Box | 20:1 – 4 Nos. | 20:1 – 4 Nos. | 20:1 – 4 Nos. | 20:1 – 4 Nos. | ||||
Gathering Conveyor Belt Size | 500 mm x 3 Ply | 600 mm x 3 Ply | 600 mm x 3 Ply | 800 mm x 3 Ply | ||||
Gathering Conveyor Drive Motor | 5.0 HP x 4 Pole | 5.0 HP x 4 Pole | 7.5 HP x 4 Pole | 7.5 HP x 4 Pole | ||||
Gathering Conveyor Gear Box | 20 : 1 | 20 : 1 | 20 : 1 | 20 : 1 | ||||
Bin Vibrator Motor | 1.0 HP | 1.0 HP | 1.0 HP | 1.5 HP | ||||
SINGLE DECK VIBRATORY SCREEN | ||||||||
Drive Motor | 1.0 HP | 3.0 HP | 3.0 HP | 3.0 HP | ||||
SLINGER (COLD) CONVEYOR | ||||||||
Conveyor Drive Motor | 5.0 HP x 4 Pole | 5.0 HP x 4 Pole | 7.5 HP x 4 Pole | 7.5 HP x 4 Pole | ||||
Conveyor Gear Box | 5:1 | 5:1 | 5:1 | 5:1 | ||||
Conveyor Belt Size | 500 mm x 3 Ply | 500 mm x 3 Ply | 500 mm x 3 Ply | 600 mm x 3 Ply | ||||
DRYING CUM MIXING (THERMODRUM) UNIT | ||||||||
Thermodrum Diameter | 1000 mm | 1200 mm | 1500 mm | 1800 mm | ||||
Thermodrum Length | 5500 mm | 6000 mm | 7000 mm | 7200 mm | ||||
Thermodrum Drive Motor | 15.0 HP X 4 Pole | 20.0 HP X 4 Pole | 30.0 HP x 4 Pole | 40.0 HP x 4 Pole | ||||
Exhaust Drive Motor | 15.0 HP X 4 Pole | 20.0 HP X 4 Pole | 30.0 HP x 4 Pole | 40.0 HP x 4 Pole | ||||
Dust Collector Screw Motor | 1.0 HP x 4 Pole | 1.5 HP x 4 Pole | 1.5 HP x 4 Pole | 2.0 HP x 4 Pole | ||||
LOAD OUT CONVEYOR | ||||||||
Conveyor Belt Size | HR 500 mm x 3 Ply | HR 600 mm x 3 Ply | HR 600 mm x 3 Ply | HR 800 mm x 3 Ply | ||||
Conveyor Drive Motor | 5.0 HP x 4 Pole | 5.0 HP x 4 Pole | 7.5 HP x 4 Pole | 7.5 HP x 4 Pole | ||||
Conveyor Drive Gear Box | 13 : 1 | 13 : 1 | 13 : 1 | 13 : 1 | ||||
Gob Hopper Capacity | 800 Kgs. | 1000 Kgs. | 1500 Kgs. | 1500 Kgs. | ||||
Hydraulic Power Pack Motor | 2.0 HP | 3.0 HP | 5.0 HP | 5.0 HP | ||||
BITUMEN TANK | ||||||||
Tank Capacity | 12,000 Ltrs. | 20,000 Ltrs. | 20,000 Ltrs. | 20,000 Ltrs.– 2 Nos. | ||||
Bitumen Pump Drive Motor | 3.0 HP x 4 Pole | 5.0 HP x 4 Pole | 5.0 HP x 4 Pole | 5.0 HP – 1 No. | ||||
MINERAL FILLER UNIT | ||||||||
Drive Motor | 1.5 HP x 4 Pole | 2.0 HP x 4 Pole | 2.0 HP x 4 Pole | 2.0 HP x 4 Pole | ||||
Hopper Capacity | 0.8 Cum | 1.0 Cum | 1.5 Cum | 2.0 Cum | ||||
Air Blower | 3.0 HP | 5.0 HP | 5.0 HP | 7.5 HP | ||||
FUEL STORAGE TANK | 2500 Liters | 4000 Liters | 4000 Liters | 4000 Liters | ||||
TOTAL CONNECTED HP | 75 HP | 100 HP | 140 HP | 175 HP | ||||
RECCOMMENDED D.G. SET | 80 KVA | 100 KVA | 150 KVA | 200 KVA | ||||
OPEN LAND REQUIRED | 35 m. x 30 m. | 35 m x 35 m | 40 m x 40 m | 40 m x 40 m. | ||||
POWER SUPPLY | 415 V / 380 V, 50 Hz / 60 Hz, 3 Phase, A.C. | |||||||
Note: Due to continuous development policy, specifications are subject to change. | ||||||||

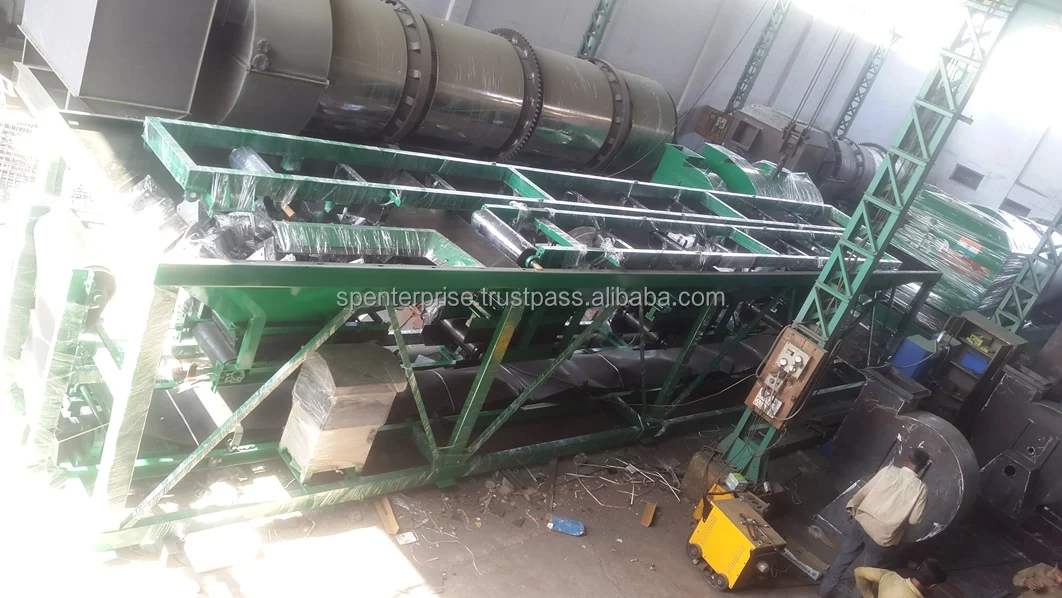

Packing & Delivery

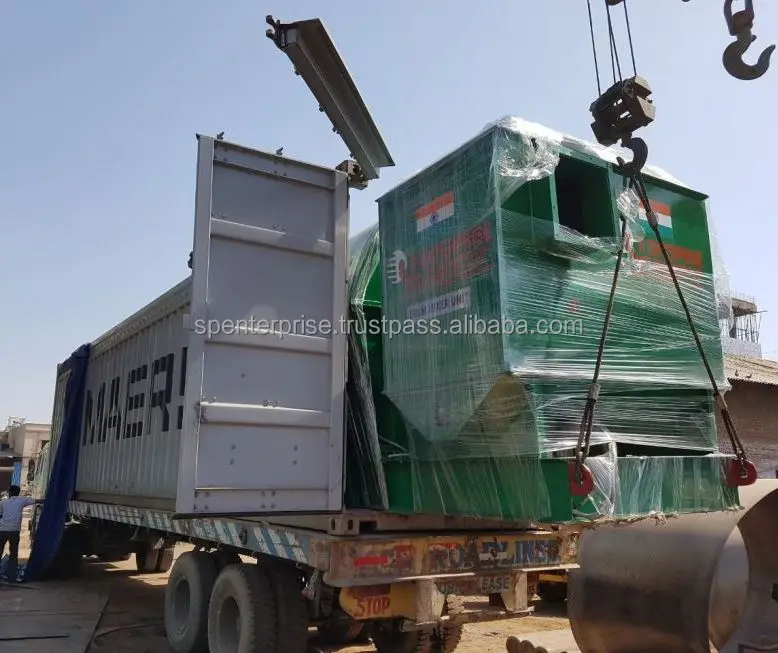

Main assemblies are feeder bins, dryer, tanks etc. are wrapped in plastic and stuffed loose in containers. Wooden Boxes,
Corrugated Boxes, Plastic Bags etc. are also used for packing small parts and assemblies. All such boxes are marked and with the list of items packed in.
Corrugated Boxes, Plastic Bags etc. are also used for packing small parts and assemblies. All such boxes are marked and with the list of items packed in.
