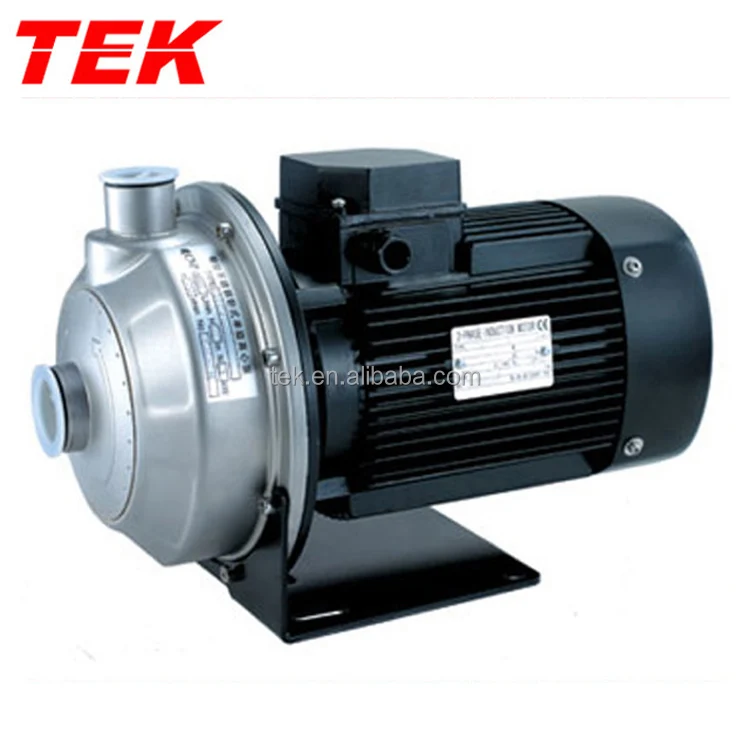

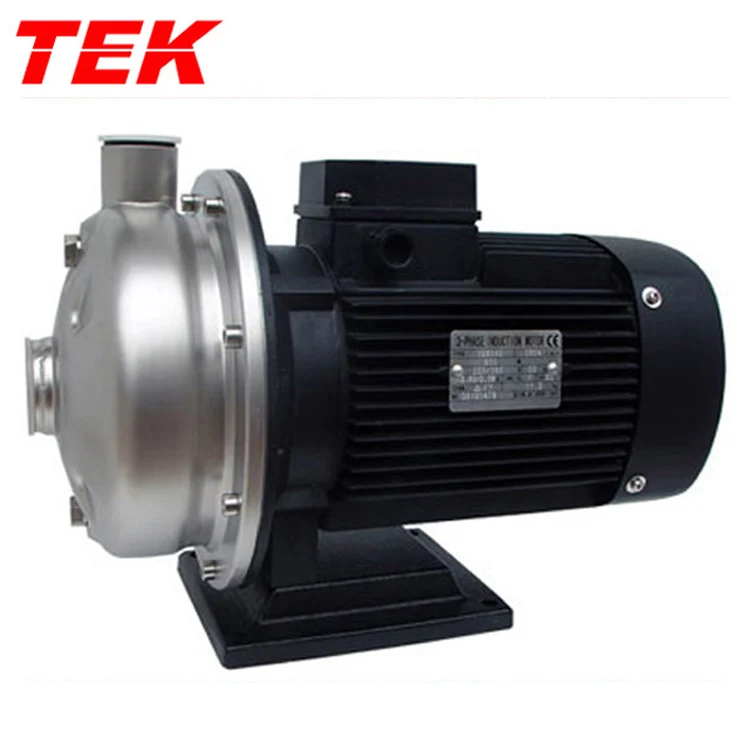

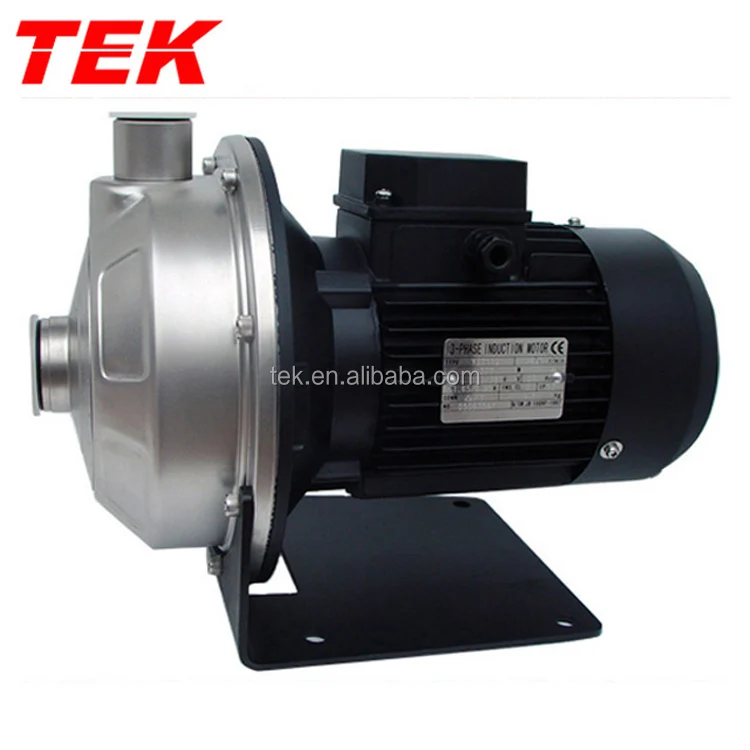

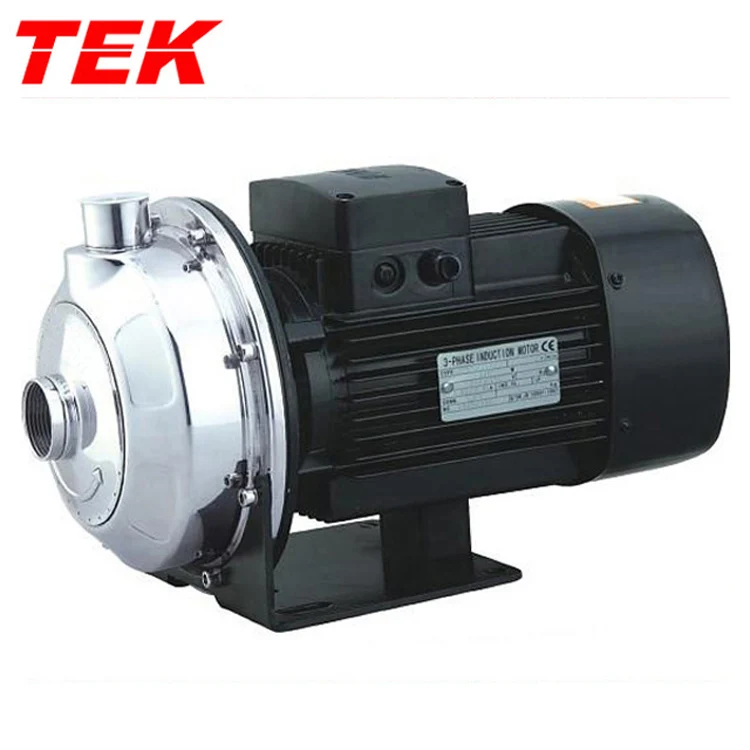

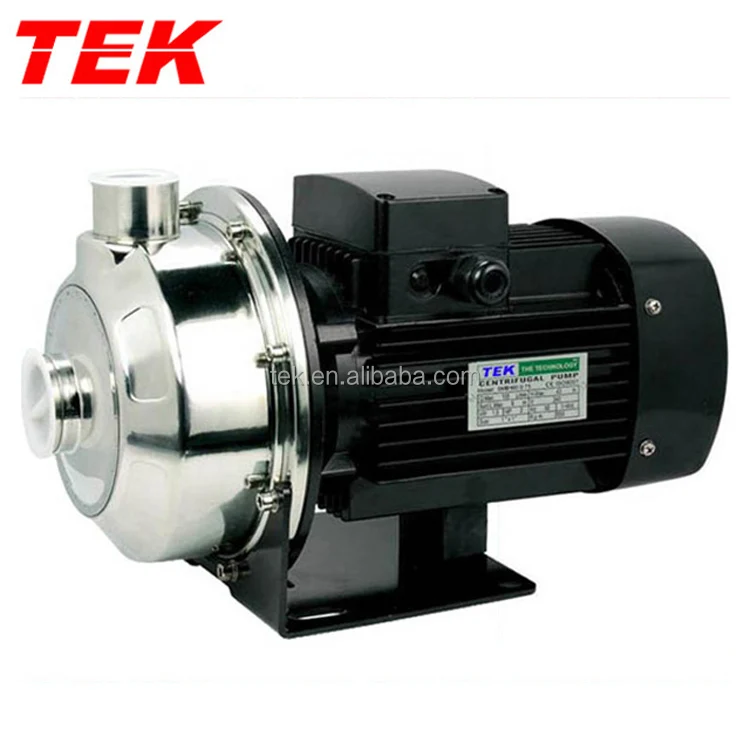

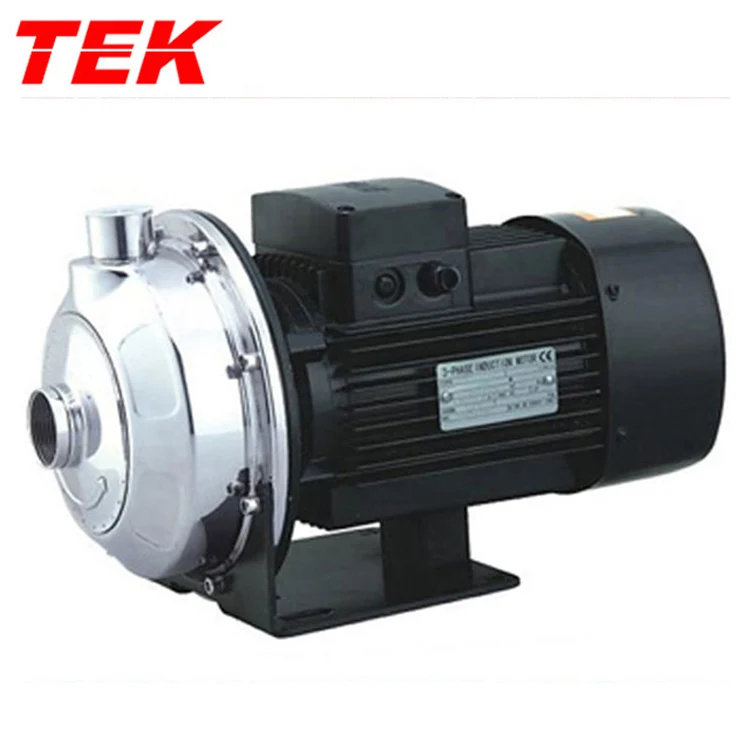

MS330/1.5 MS330 1.5 1.5kw 330L/min Copper Wire Motor Stainless Steel Body Horizontal Single stage Centrifugal MS Pump OEM

Product Overview

Description

MS330/1.5 MS330-1.5 1.5kw 330L/min Copper Wire Motor Stainless Steel Body Horizontal Single-stage Centrifugal MS Pump OEM



Definition of model
MS 330 / 1.5
MS stainless steel horizontal single-stage centrifugal pump
330 Rated flow (1/min)
1.5 Rated power(kW)
Application
1,Pressurization and pumping of industrial and civilian clean water of other liquids;
2,Water treatment;
3,Water circulating system;
4,Agricultural irrigation;
5,Other fields.
Structure features
1,MS Series of pump is single-stage centrifugal pump and features axial suction and radial discharge ;
2,Compact structure ,The pump is directly connected with the motor ,coaxial installation ;
3,Convenient installation ,screw thread water inlet and outlet ;
4,Light weight ,thin plate pressing structure for main parts and components ;
5,Corrosion resistance ,components passing the flow use AISI 304 or AISI 316 stainless steel.
Pumping liquids
1,thin ,clean ,non-flammable and explosive ,not containing the liquid with solid particle and fiber ;
2,Able to transmit light corrosive medium (have a bearing on the content of chloride ion in the medium ,thickness of acid or alkali ,whether generate corrosion on the rubber and mechanical seal materials );
3,The density of transmitted medium is less than that of clean water ,viscosity close to that of water .Otherwise the motor of large power is required.
Operating condition
1,Liquid temperature :-10°C~+85°C
2,Ambient temperature :up to +40°C
3,Altitude :up to 1000m
4,Max. pressure of the system is 8 bar
Installation requirements
1,The pump shall be fastened on the stable horizontal base ;
2,The installation of the pump shall ensure that the pump will not be influenced by the tension of the pipeline ;
3,The pump shall be installed on the ventilating and anti-freezing place to ensure normal operation of the motor ;
4,Electric wiring device shall guarantee that the pump will not be damaged by lack of phase , unstable voltage ,current leakage and overload.

Product Power: 1.5kw



Model	Delivery head	Rated flow	Driving Motor	Rotate speed
	m	m3/h	KW	r/min
MS60/0.37	14.6	3.6	0.37	2850
MS60/0.55	19.5	3.6	0.55	2850
MS60/0.75	25	3.6	0.75	2850
MS100/0.55	14	6	0.55	2850
MS100/1.1	23.4	6	1.1	2850
MS160/0.75	13.8	9.6	0.75	2850
MS160/1.1	18.2	9.6	1.1	2850
MS250/1.1	13	15	1.1	2850
MS250/1.5	19.8	15	1.5	2850
MS250/2.2	24.6	15	2.2	2850
MS330/1.5	14	20	1.5	2850
MS330/2.2	17.5	20	2.2	2850
