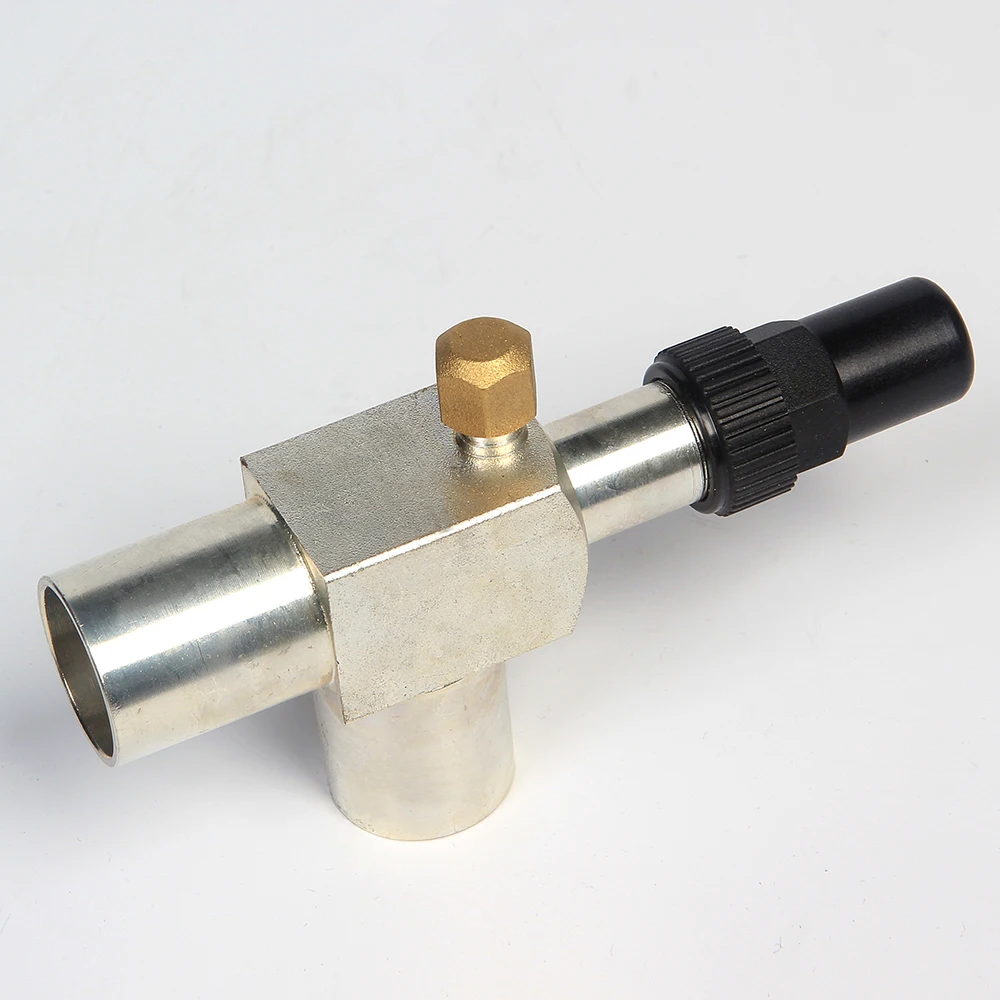

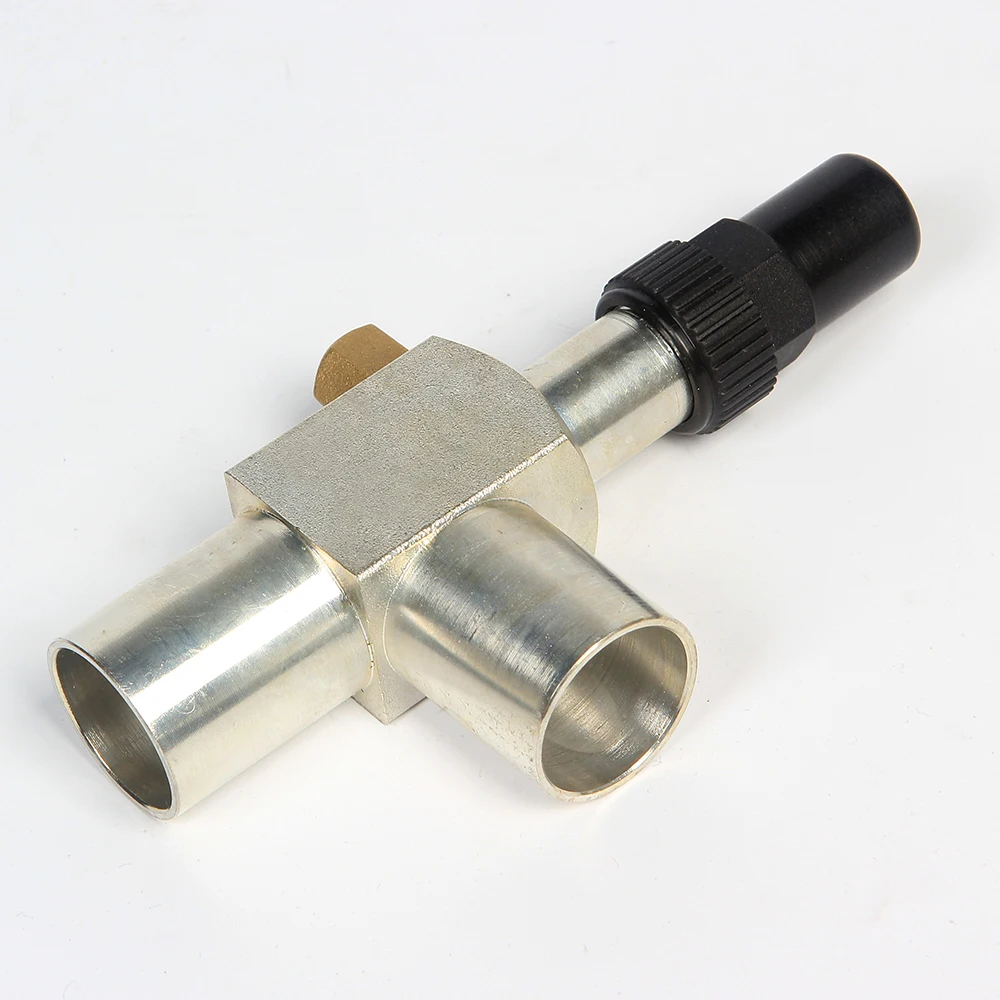

used for refrigeration compressor unit pipe of the angle welding steel valve

Product Overview

Description

Notes:



1.The maximum operating pressure of the valve body pressure 4.8mpa,

2.Suitable medium:R22.R502.R407c.R134a.R404a.R410a etc. Refrigerants and other refrigerating oil;

3.Suitable temperature:-40°C+150°C

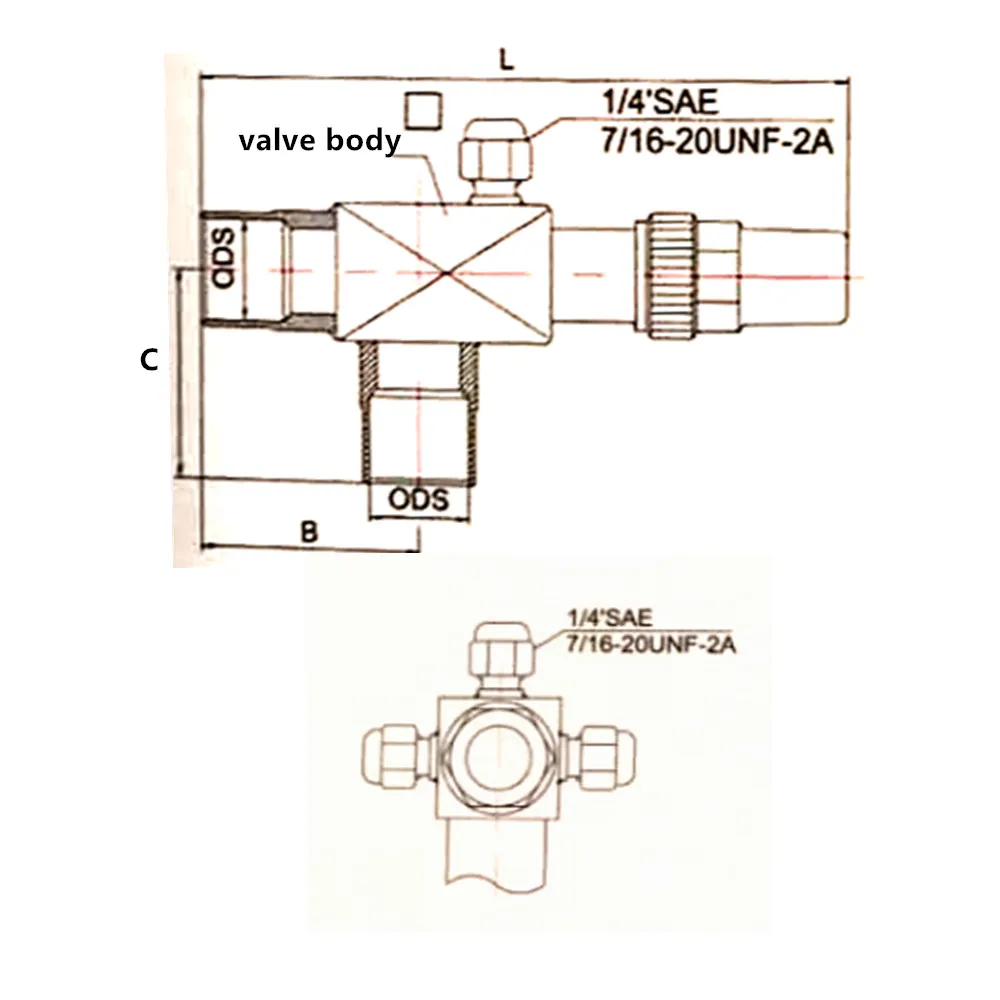

Product Structure:



Model	valve body mm*mm	ODS inch	B mm	C mm	L mm
TA01	◊20	3/8"	34	32.5	106
TA02		1/2"
TA03		5/8"
TA04	◊22	5/8"	36	33.5	109
TA05		3/4"	39	36.5	112
TA06	◊30	3/4"	48	46	139
TA07		7/8"
TA08		1-1/8"	51	49	142
TA09	◊36	1-1/8"	57	53	182
TA10		1-3/8"	59	55	184
TA11		1-5/8"	63	59	188
TA12	◊40	1-3/8"	64	59.5	187
TA13		1-5/8"	67	62.5	190
TA14	◊50	1-5/8"	73	67.5	200
TA15		2-1/8"	75	69.5	202
TA16	◊60	2-1/8"	76	70	228
TA17		2-5/8"	86	80	238
