BR 800/800 Coil Winding Machine for Transformer
- Category: >>>
- Supplier: Shanghai Trihope International Co. Ltd.
Share on (1095533186):
Product Overview
Description
PRODUCT INTRODUCTION

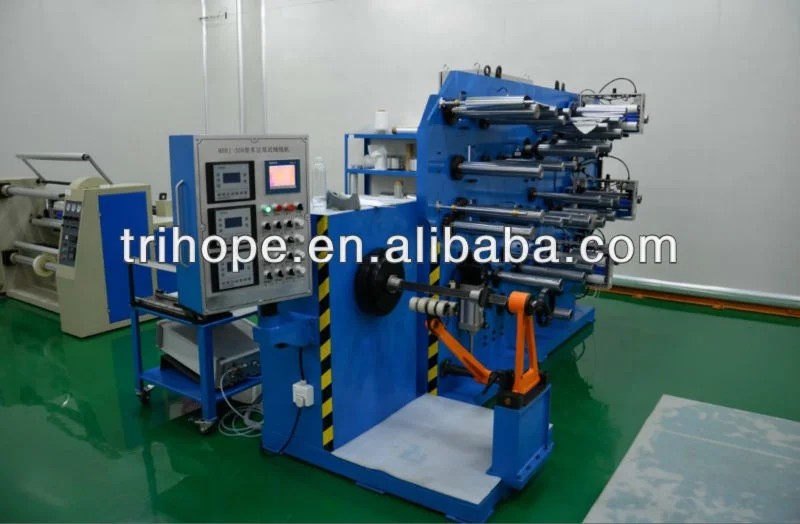

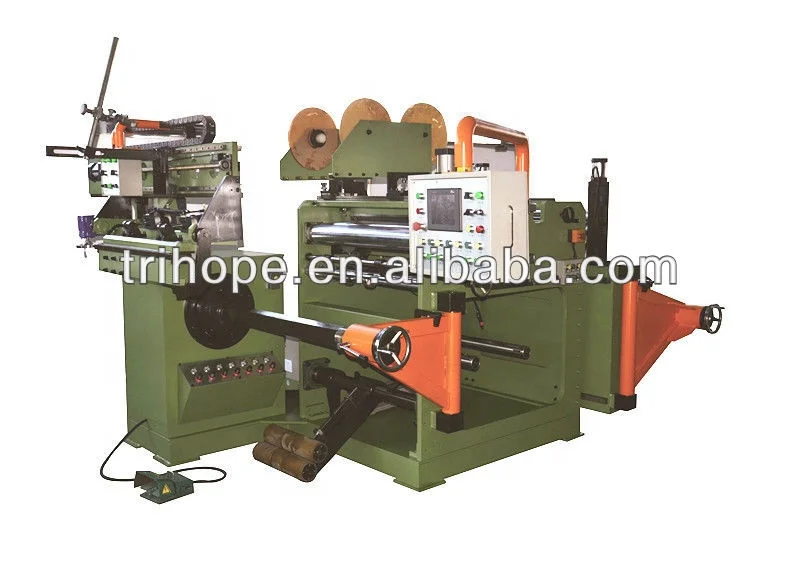

BR-800/800 Coil Winding Machine for Transformer
1.General Description
1)Used for transformer and electrical industry foil coils winding.
2) Foil coil based on different thickness of copper and aluminum foil, with wide strips insulation material as layer insulation, narrow strips for end insulation, completes the winding process, and finish lead welding and surface dressing
at the same time.
3) Each function of equipment provides enough support.
2. Components of the device of Winding Machine
1)Foil decoiler 2 sets
2)Conducting device
3)Expanding device
4)Press device, shearing device
5)Insulation decoiler
6)Winding device
7)Auto welding device
8)Layer insulation decoiler
9)Rectify device
10)Electrical device

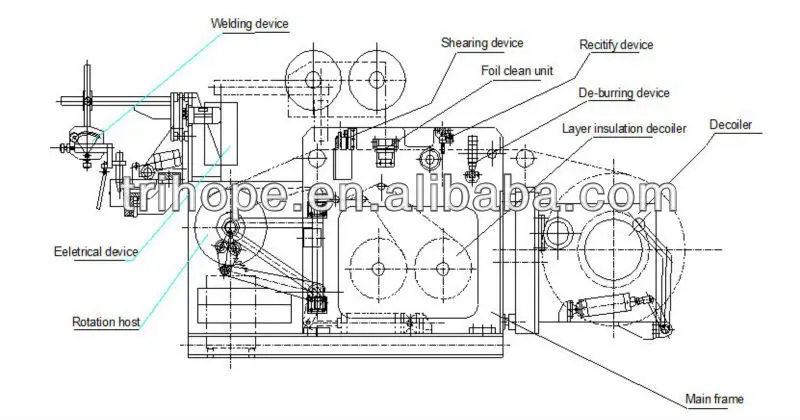

11)Drawing reference
3. Main technical parameters of Winding Machine
| ITEM | SPECIFICATION |
| 1.Coil range | |
| Axial length | 180~800 mm |
| Axial length(with lead) | 200~950 mm |
| Outside diameter (exclude wires) | Φ700 mm |
| Outside diameter(max) | Φ800 mm |
| Inside diameter(min) | Φ130 mm |
| Coil type | Round, rectangle |
| 2.Coil material | |
| Material of conductor | CU(Copper) or Al(aluminum) |
| Conductor Width | 180~800 mm |
| Thickness | Au 0.35~2 mm, Al 0.6~2 mm |
| Coil inside diameter | Φ400 ~Φ500 mm |
| Coil outside diameter | Φ1000 mm |
| 3.Decoiler | |
| Useful mandrel length | 850 mm |
| Mandrel diameter(with secondary supplement) | Φ370 ~Φ 420 mmΦ 470 ~Φ 520 mm |
| Mandrel load(max) | 2000 KG |
| Expanding force | 0~10000 N |
| Tension working force | 0~0.6 Mpa |
| Centering way(deviation Recertify) | Manual/ Auto |
| 4.Winding device | |
| Mandrel rotation speed | 0~20 m/min |
| Mandrel torque(max) | ≥ 6000 N-M |
| Winding Motor | 11 KW |
| Speed regulation | Inverter stepless speed regulation |
| 5.Welding device | |
| Welding way | TIG |
| Welding speed | Inverter speed regulation 0~1m/min |
| 6.Shearing device | |
| Shearing way | Circular blade |
| Shearing speed | 1.5 m / min |
| Shearing length | 1150 mm |
| 7.Layer insulation Decoiler device | |
| Layer insulation installation mandrel | 2 sets |
| Insulation Layer coil outside diameter | ≤Φ400 mm |
| Insulation Layer coil inside diameter | Φ76 mm |
| Layer insulation coil width | 180~800 mm |
| installation mandrel expansion way | Pneumatic |
| Decoil expansion force | Pneumatic, step-less regulation |
| 8.End insulation decoil device | |
| End insulation paper rolleroutside diameter | ≤Φ350 mm |
| End insulation paper rollerinside diameter | Φ56 mm |
| End insulation roller width | 10~40 mm |
| 9.Rectify device | |
| Rectify method | Servo system |
| Rectify precision | ±0 .4 mm |
Company Introduction
Shanghai TRIHOPE International Co., Ltd was registered in Shanghai China in the year of 2003. Its total investment is about USD 2 Million. Being a professional foreign trading company, TRIHOPE is also the marketing institute of its sister company M/s SENERGE Electric Equipment Co., Ltd,which was established in 2009, located in Shanghai Zhang Jiang Pinghu Hi-Tech Zone. The total investment of SENERGE is more than 5 million USD.
