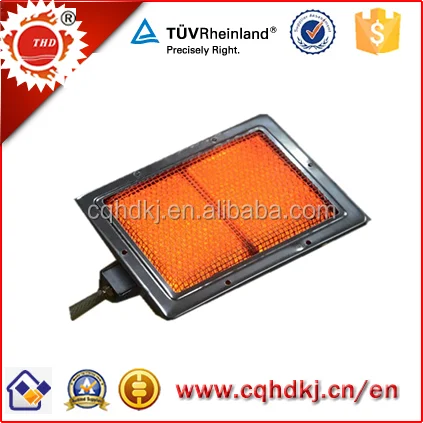

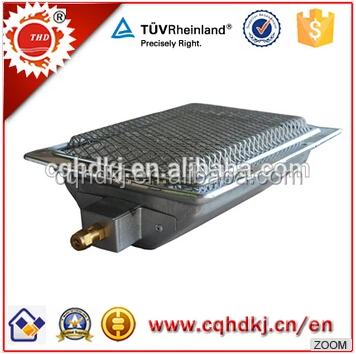

Shawarma Kebab equipment parts Ceramic Gas Infrared Burner

Product Overview

Description

Company profiles :

Established in 2005 ,Chongqing  Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.

 `

The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now they have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat  preservaton,Now we mainly sell infrared gas burner,room heater ,chain,and other products





Shawarma Kebab equipment parts Ceramic Gas Infrared Burner

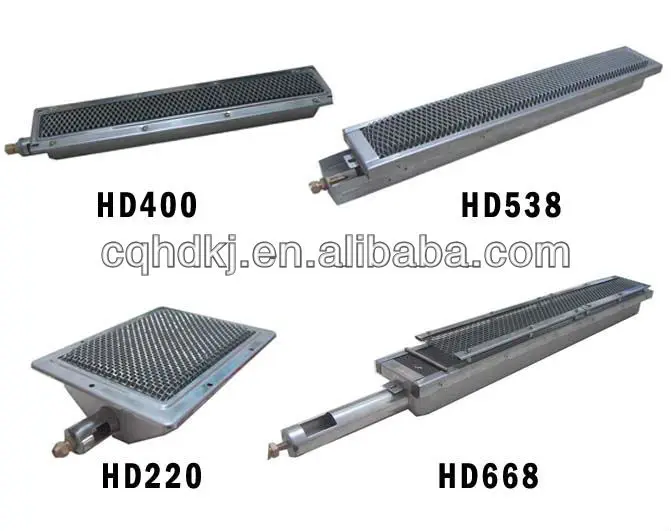

MODEL	Dimension	Weight	Gas Type	Heat Output		Power
	mm	kg		BTU/h	Kcal/hr	Kw

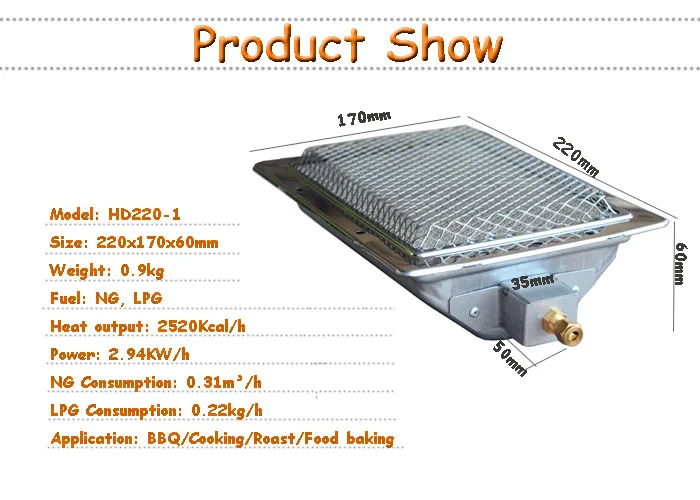

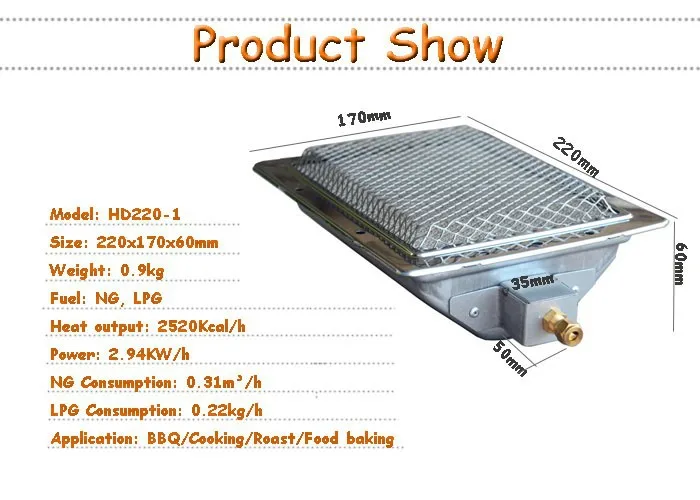

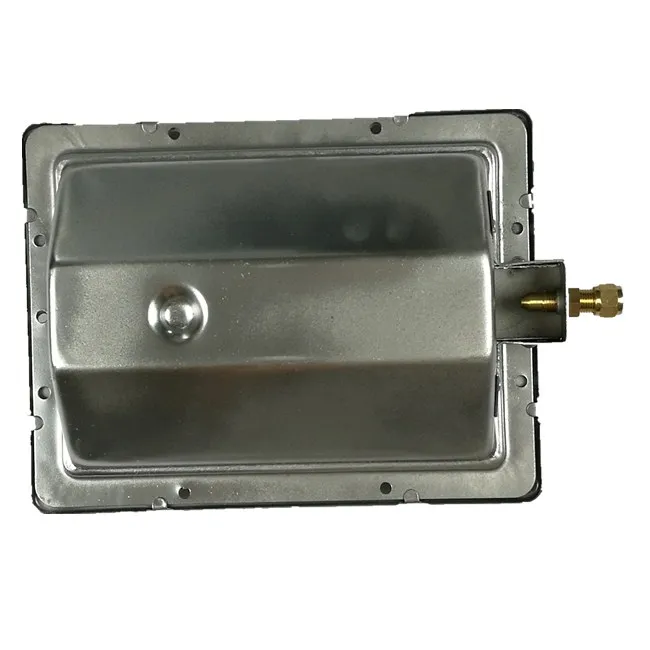

HD220	220*170*60	0.9	NG/LPG	10000		2.94
HD400	400*80*60	0.7	NG/LPG	9030	2300	2.72
HD538	538*85*65	1.4	NG/LPG	13500	3400	3.9
HD668	668*85*65	1.7	NG/LPG	166000	4180	4.8



 Material:

1. Shell: galvanized sheet

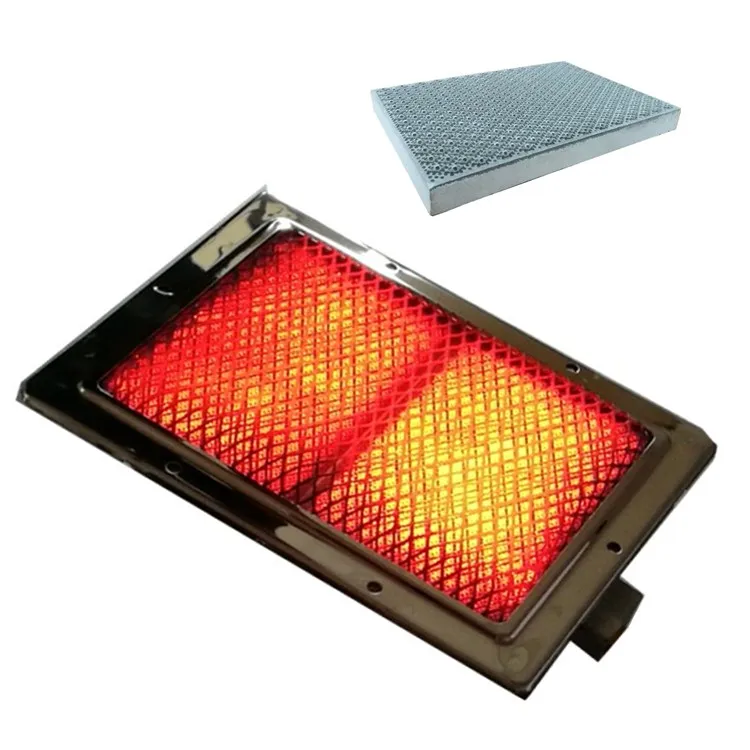

2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated

3. Nozzle: brass

4. Up cover: stamped stainless iron

Nozzle:

Every burner have a nozzle with 6mm connector. It has a sealing ring inside, can be conneted to gas pipe directly.



Advantages:

1. Energy saving: conversion rate:≥90%

2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm

3. Whole combustion: 95% of energy released in the form of infrared ray;heating the objects directly

4. Long life:≥11000hr

5. Easily installed

6. Flameless & smokeless

Application

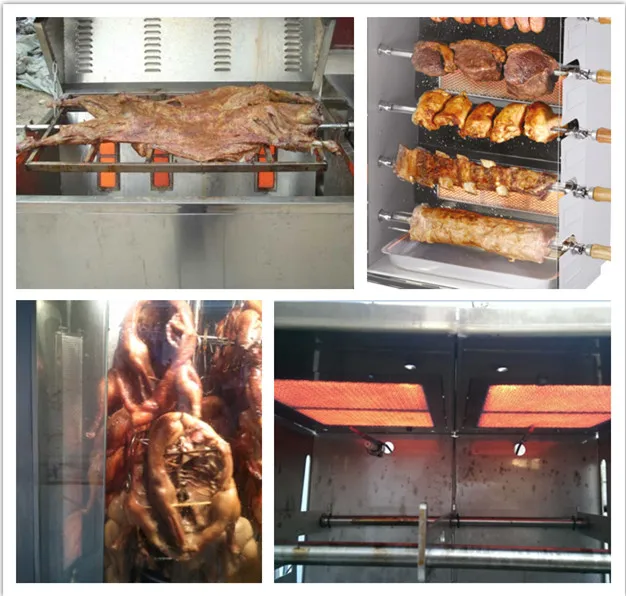

 This series is specially make for bbq, kebab grill machine , chicken, poultry roaster,shawarma machine,gas cooker and so on.
