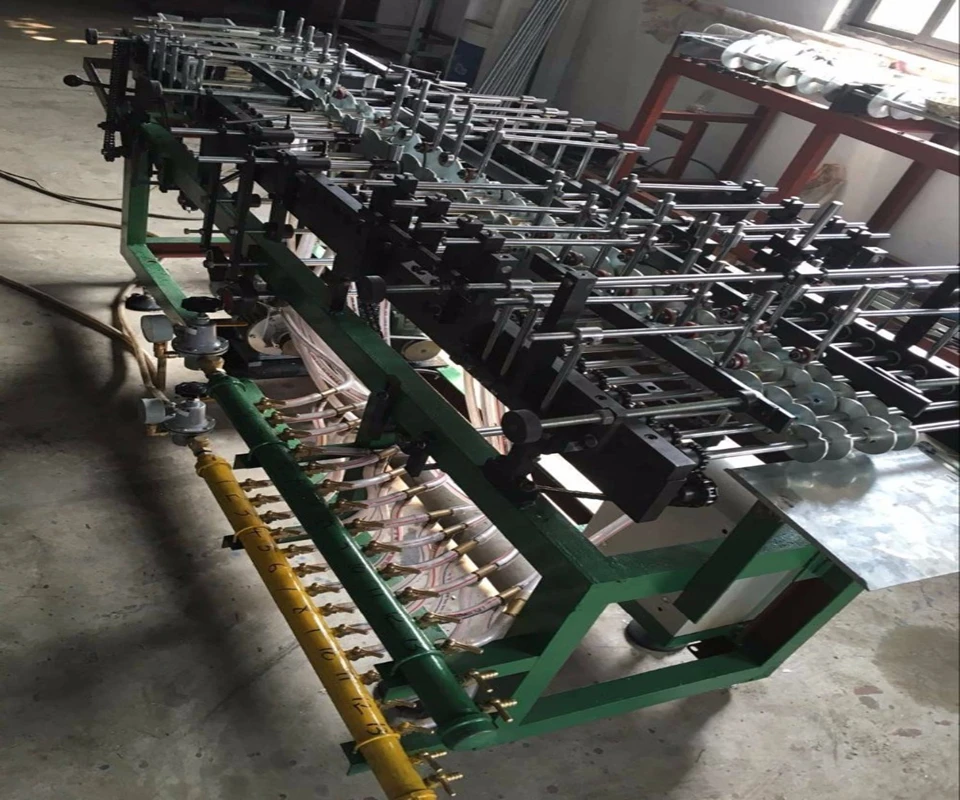

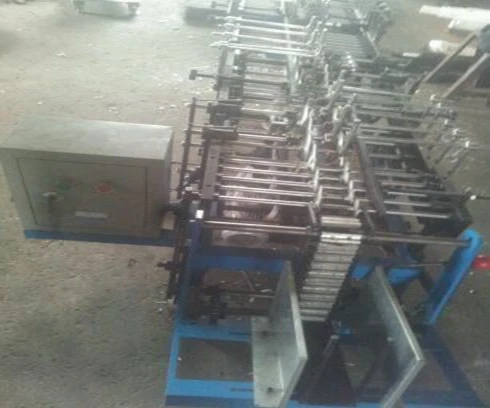

glass dropper forming machine

Product Overview

Description

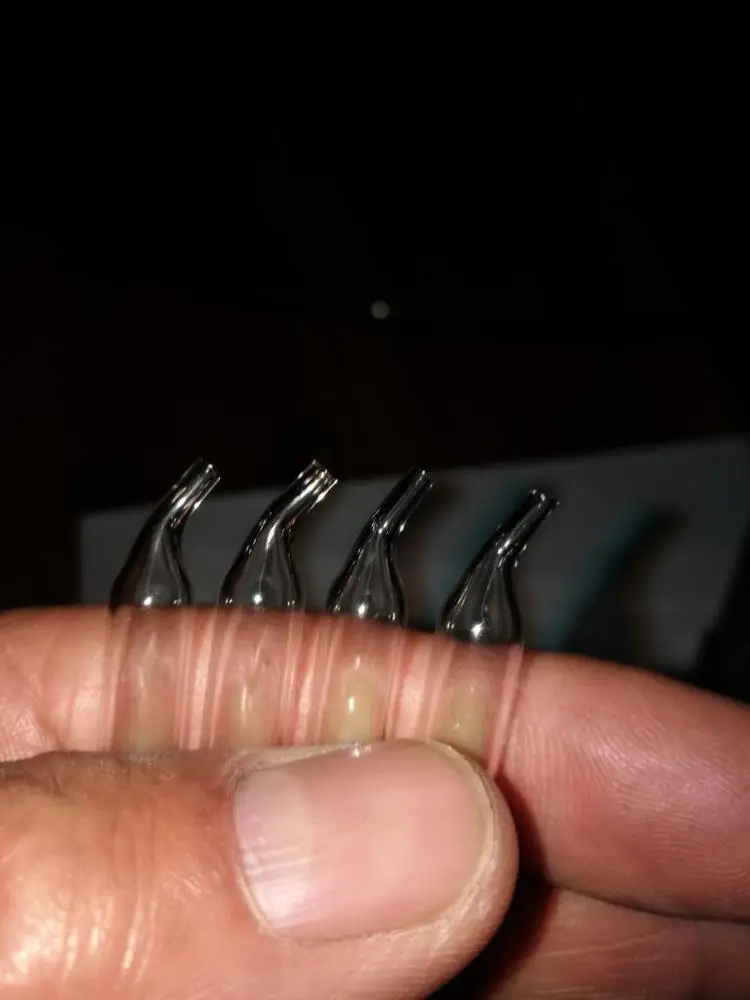

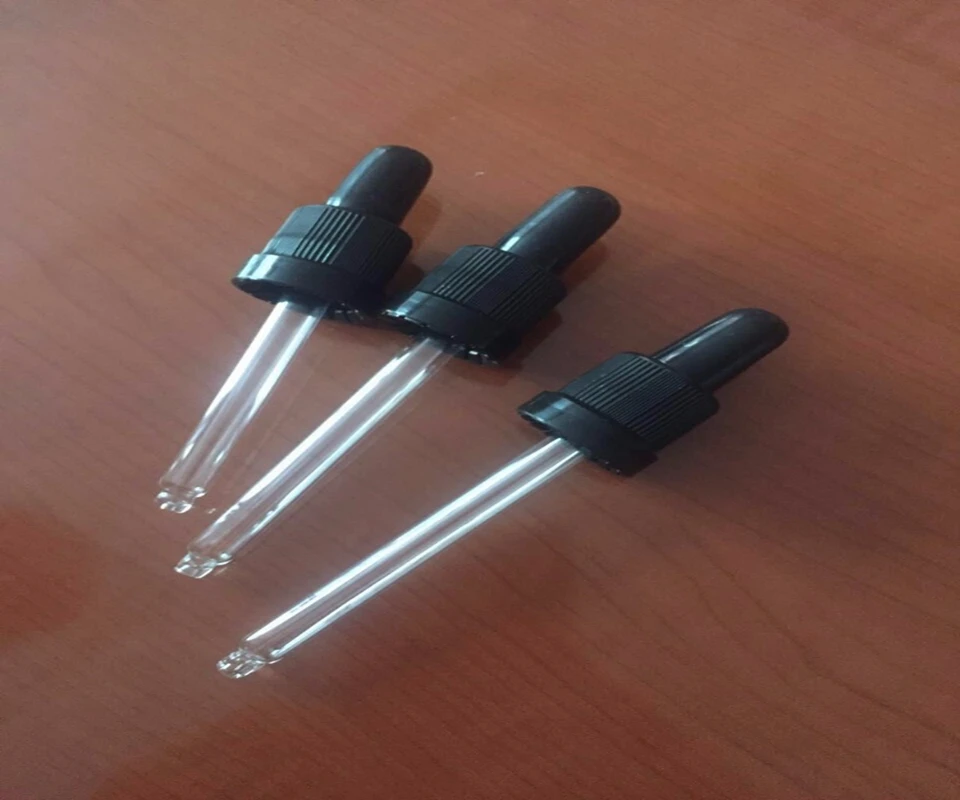

we can manufacture the glass pipette ( dropper ) forming machine !



Working principle

Feed the proper glass tube, load in the hopper, controlled by transduction and operated by the robot , work step by step to do the round mouth and neck on one end, and do the round mouth,mould processing ,do round head,colling,receive material,check quality ,packaging,..etc, make the product to be formed qualified oncely !



Working parameter:

1.Producing ability: 13800pcs/8h

2. applicable  range :diameter 6mm—9mm,thickness:0.6mm—0.9mm,low borosilicate theriacal glass tube

3. power :working voltage :220V, motor power 0.55KW, controlled by transductor and operated by robot

4. energy consumption: liquid gas : 3.6kg/8h,oxygen :2 botles/8h

5.weight :500KG

6,Size: 1930mmX680mmX1150mm

7.operation people : 1



auxiliary projects

1 . fuel gas:output with stable pressure, eaquipment pressure : 0.2MPA

2. oxygen : output with stable pressure, eaquipment pressure : 0.2MPA

3. air: output with stable pressure, eaquipment pressure : 0.45MPA

4. electricity : 220V,0.55KW



we also can manufacture the special style according to your request, if you need it, please contact us for further details !



there is a vedio at the website link ------



https://m.youtube.com/watch?v=iDXcwTCkRCg
