KSD303 A SERIES SNAP ACTION THERMOSTATS FOR REFRIGERATORS AS DEFROST CONTROL
- Category: >>>
- Supplier: Foshan Tongbao Huayu Industrial Ltd.
Share on (1097615225):
Product Overview
Description
Parameter of Thermostat
KSD303-A SERIES

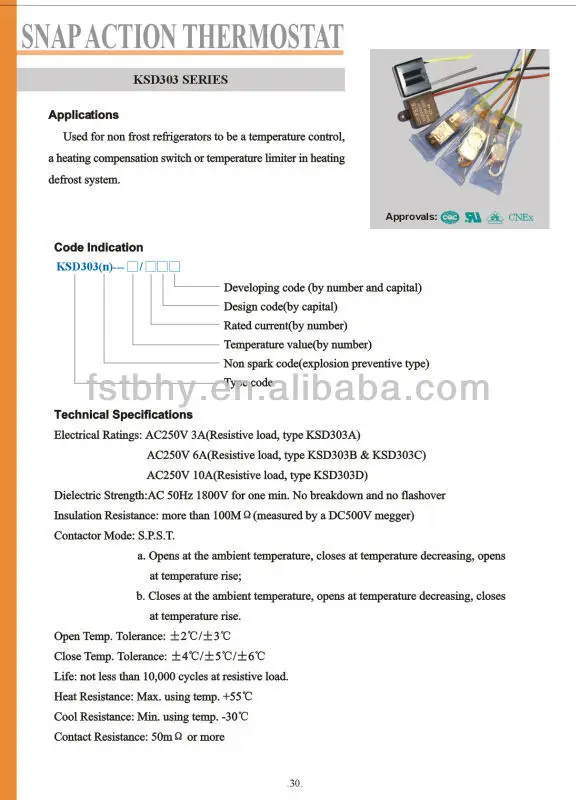

Applications:
Used for non frost refrigerators to be a temperature control, a heating compensation switch or temperature limiter in heating defrost system.
Technical Specifications
Use | Defrost |
Appliance | Refrigerators(water thermostat, refrigerator thermostat) |
Reset type | Automatic |
Basematerial | resin heat resin base |
Amperage | 3A/6A/10A |
Max. Operating Temperature | 20℃ |
Differential | Refer to the regulation |
Min. Diff | 8℃ |
Tolerance | Refer to the regulation |
Cold-resistant Temperature | -40℃ |
Limit of the tolerance(OFF) | ±2℃ |
Limit of the tolerance(ON) | ±4℃ |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover.. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MΩ. |
Resistance Between Terminals | Below 50mΩ |
Temp.characteristics | Normal close, Normal open |
Maximum ambient temperature | 60℃ |
Diameter of bimetal disc | Φ12.8mm(1/2″) |
Approvals | UL/CQC/TUV |
Line | Color: red/brown/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
model | code | Leading wire length(mm) | Leading wire color | Leading wire type | terminal | Sealing bag size(mm) |
KSD303-8/3A3 | A | 700 | Red brown | RV | JST 3.96M | 80 |
KSD303-6/A7 | A | 830 | Blue brown | RV | JST SLF-01T-2.0 | 70 |
KSD303-8/6B2 | B | 220 | Blue, gray | Resis PS | JST 3.96M 3.96F | 95 |
KSD303-8/6C1 | C | 550 | White, brown | Resis PS | ---- | 85 |
KSD303-8/10D1 | D | 300 | Gray, blue | RV | JST SLF-01T2.0 | --- |

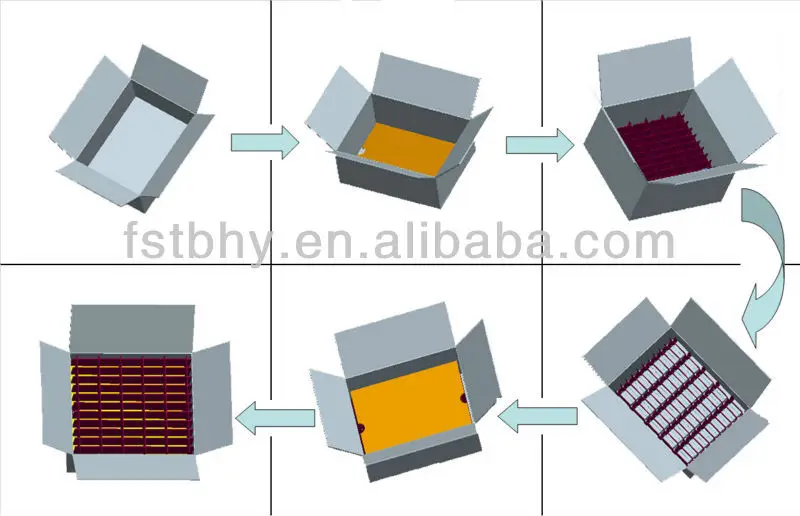

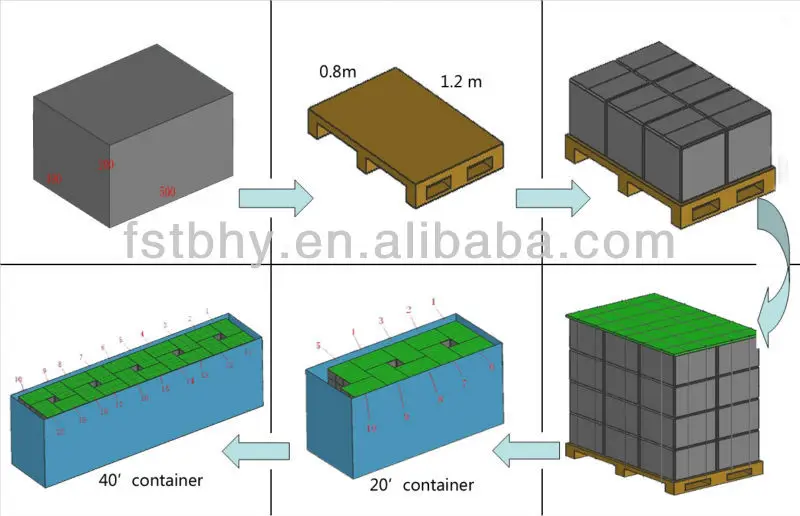

Package of thermostat
