Product Overview
Description

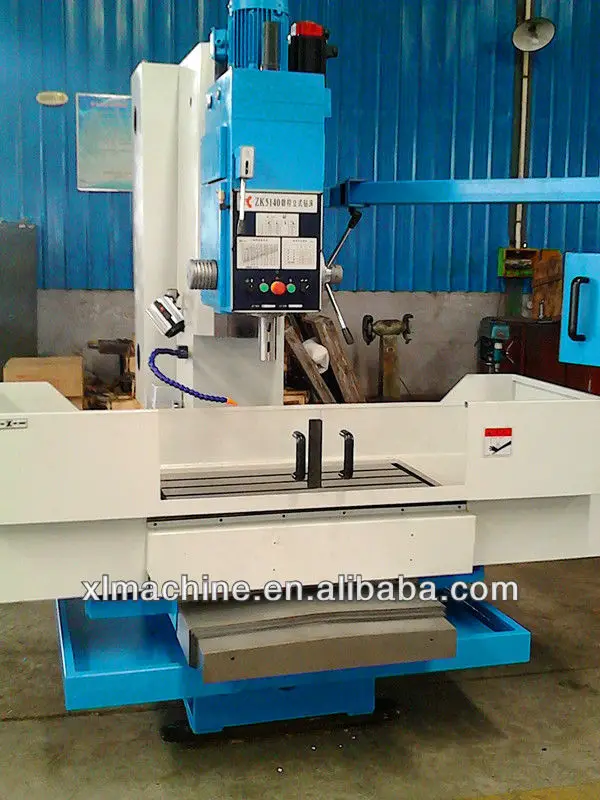

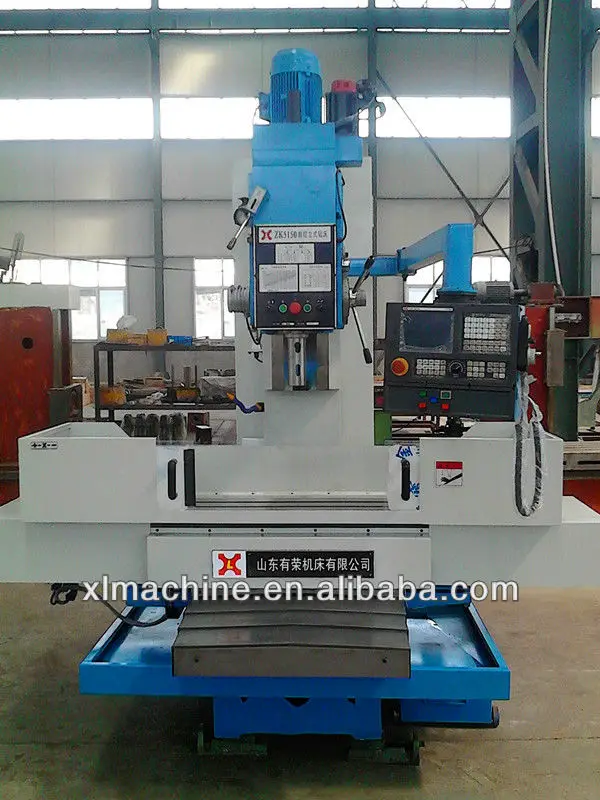

CNC Vertical Bench Drill Press
Get the ISO9001:2008 Certificate
High rigidity, High accuracy, High efficiency, Flexibility
Model | Unit | ZK5140 | ZK5150 |
Max drilling diameter | mm | 40 | 50 |
Spindle hole taper |
| Morse4# | Morse5# |
T-slot N/W | mm | 18/3 | 18/3 |
Spindle box travel(manual) | mm | 360 | 360 |
Distance from spindle center line to column | mm | 335 | 335 |
Distance from spindle to worktable | mm | 100-700 | 65-665 |
Spindle speed range | rpm | 31.5-1400 | 31.5-1400 |
Spindle speed step |
| 12 | 12 |
Table size | mm | 850*400 | 850*400 |
Longitudinal/cross travel | mm | 850/400 | 850/400 |
Vertical travel | mm | 240 | 240 |
CNC system |
| KND | KND |
Main motor power | kw | 3 | 3 |
Positioning accuracy | mm | ±0.025 | ±0.025 |
Repeatability accuracy | mm | ±0.015 | ±0.015 |
Suitable for machining medium and small size plates, discs, shells, complex work pieces, moulds etc. in batch production.
