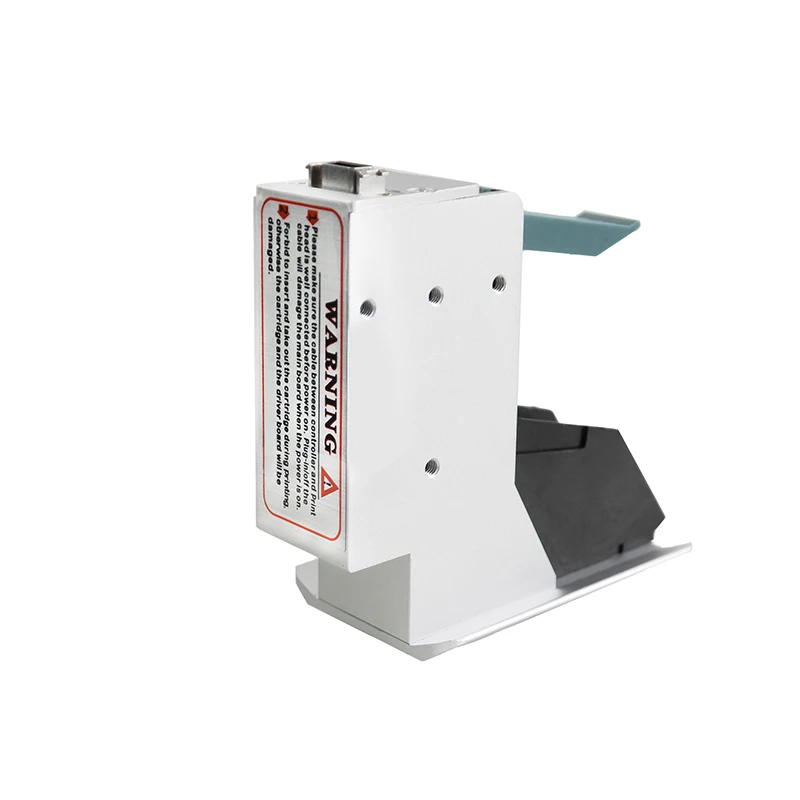

12.7mm and 25.4mm cartridge compatible Online TIJ printer for PVC pipe and all surfaces printing
- Category: >>>
- Supplier: Wuhan ETM Automation Packaging Machinery Co. Ltd.
Share on (11000000028415):
Product Overview
Description

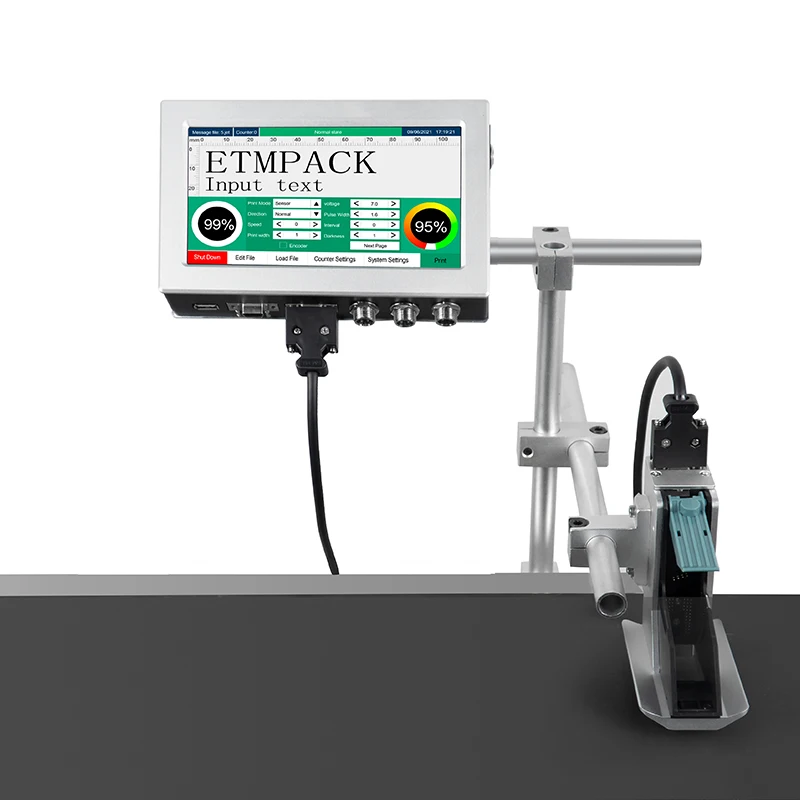

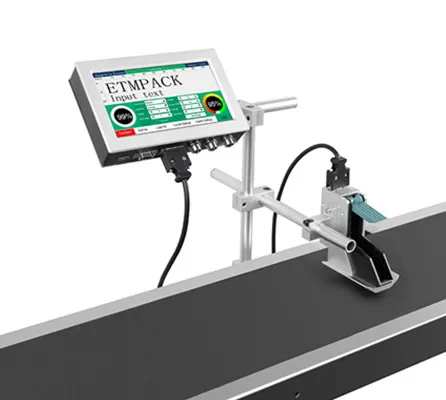

Newly Designed Online TIJ printer
1) 12.7mm and 25.4mm nozzle can be switched freely,
2) In the system setting part, you can freely set nozzles height for both nozzle 1 and nozzle 2 to achieve different printing demands (double head printer)
3) When nozzle 1 is broken, the nozzle 2 still work well without any influence (double head printer)
Parameters
Model | TD1/TD2 |
Nozzle | HP45/IUT300S/IUT308S/IUT309S |
Operating system | Linux |
DPI | 300 Maximum |
Screen size | 7 inch |
Language | English, Chinese,Turkish,Arabic, Korean, Italian,Portugue,Russian, Spanish |
Shape features | Aluminum alloy |
Dimension | Controller: 185*125*34mm Print nozzle: 138*100*136mm |
Net Weight | Controller: 0.58KG, Print Nozzle:0.5KG |
Printing Height | 12.7mm/25.4mm(TD1) 50.8mm(TD2) |
Printing distance | 2-5mm |
Printing content | Text, time, batch number, serial number, logo, QR code, barcode |
Storage capacity | The system can store more than 1000 message (external USB make the information transfer in a free way) |
Printing length | 2000 characters for each message, no limitation on length |
Printing speed | 70m/min |
External interface | USB, Sensor interface, Encode interface |
Power consumption | 48 W |
Voltage | 110-240VAC, 50-60Hz input, 12VDC 4A output |
Working environment | Temperature:0-45°C (best 20-30°C); Humidity: 40% - 60% Rh |
Printing material | board, carton,stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc. |
Details

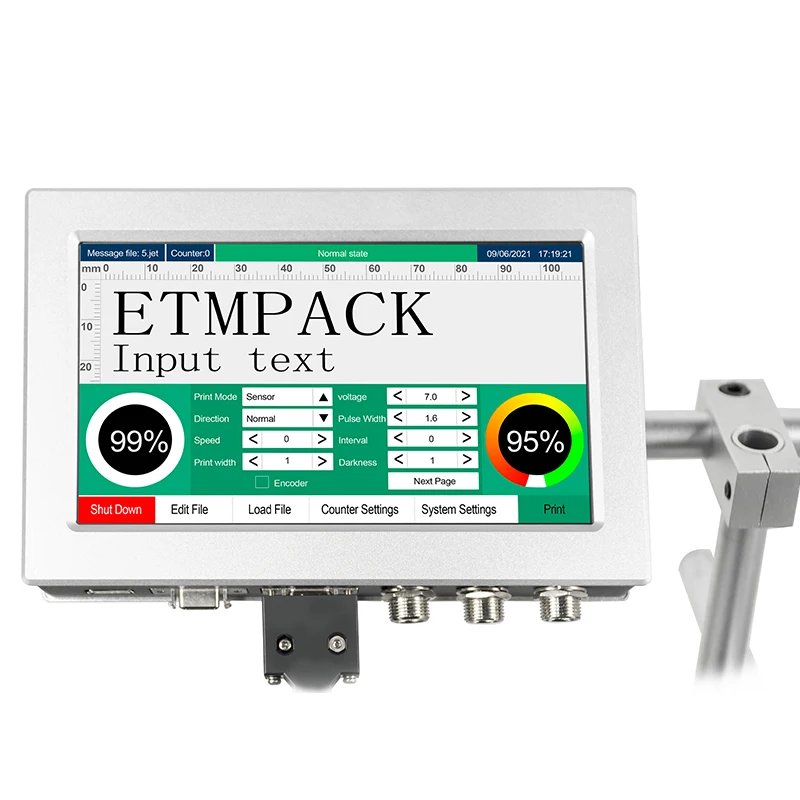

1. Seven-inch resistive touch screen
2. Aluminum alloy nested stainless steel Steel body

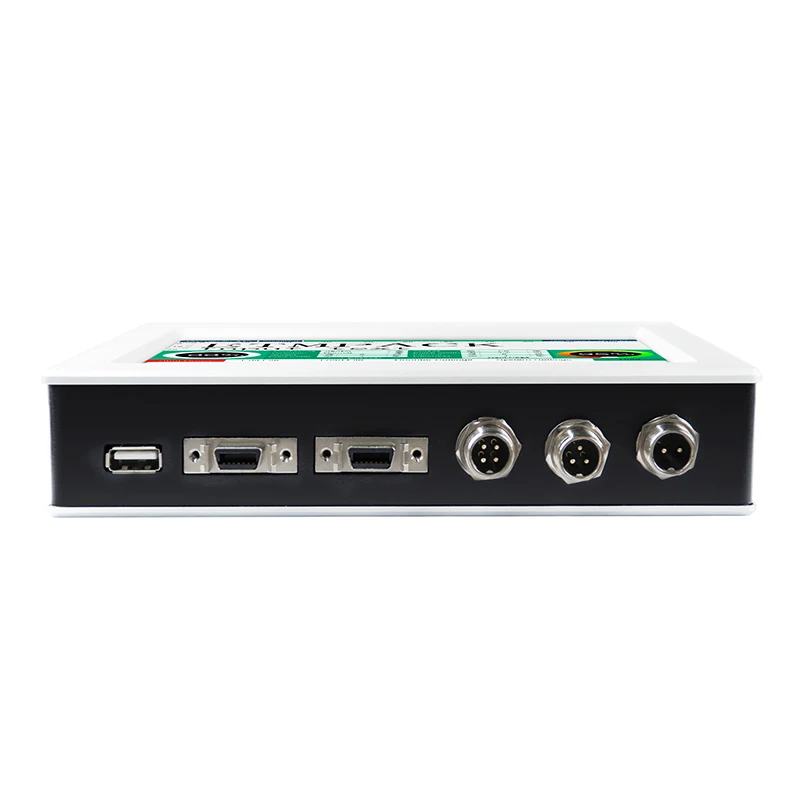

3. Single-sided wiring design

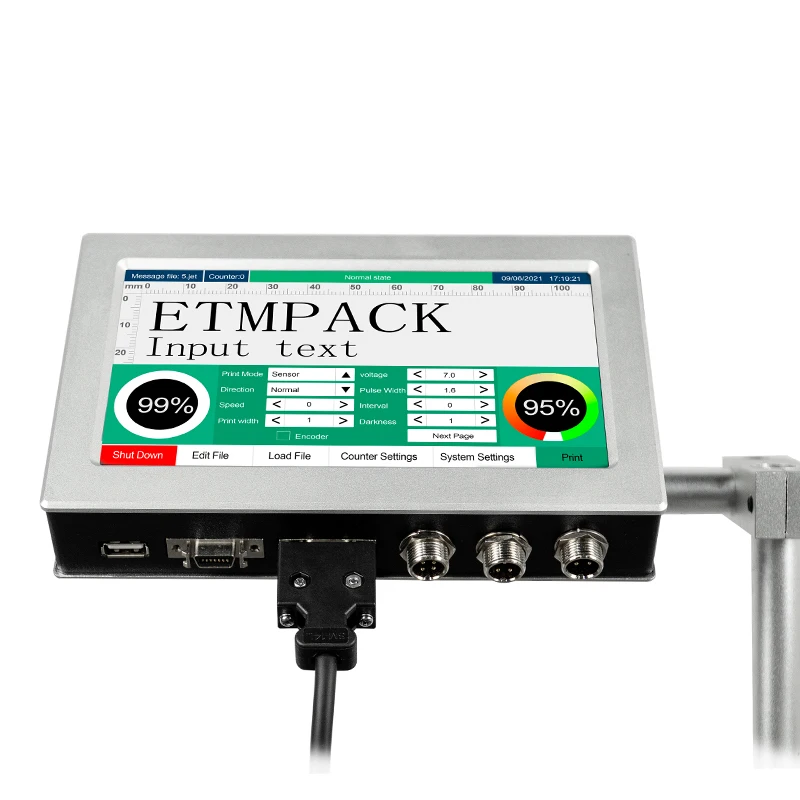

4. Brand new SCSI print head Connection port design

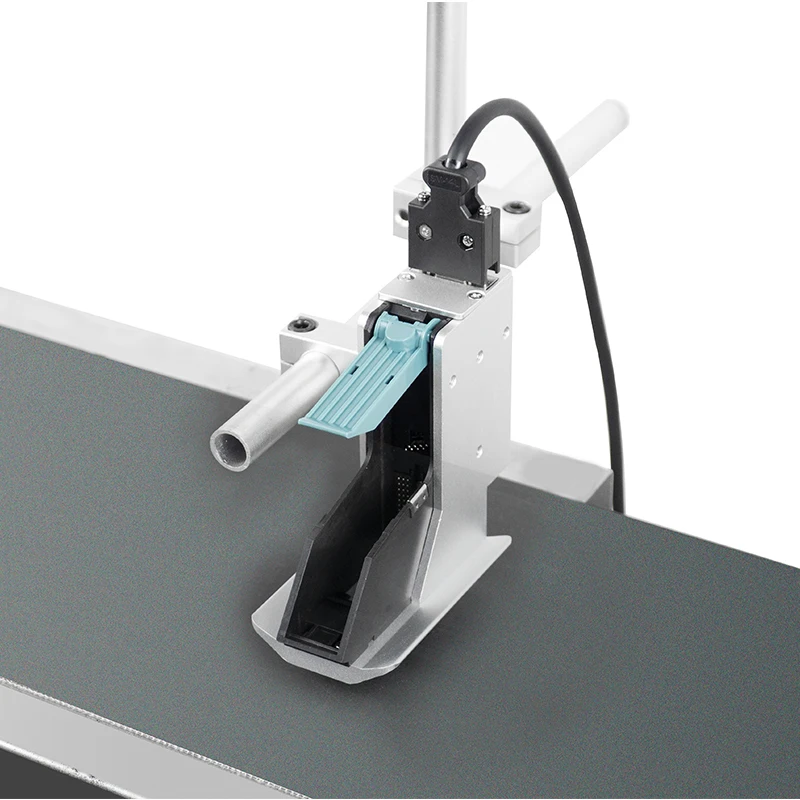

12.7mm and 25.4mm nozzle compatible design
Just replace the front baffle to achieve Switch between 12.7mm and 25.4mm machines, no need to change the entire nozzle

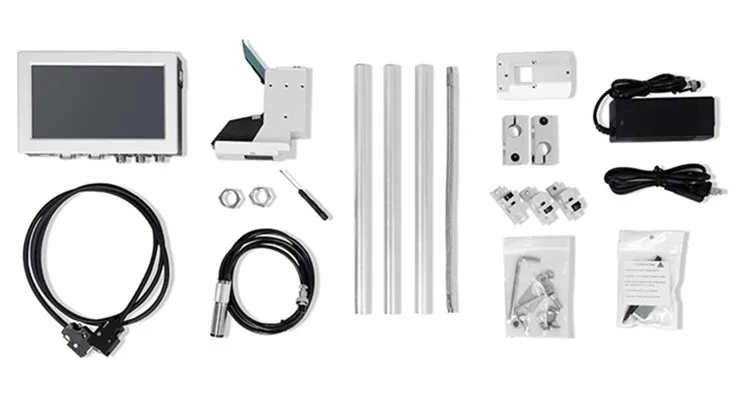

Packaging
NO. | Items | Quantity | ||
1 | Control Panel | 1 | 1PC | |
2 | Spray nozzle | 1 | 1PC | |
3 | Adapter +AC power cord | 1 | 1PC | |

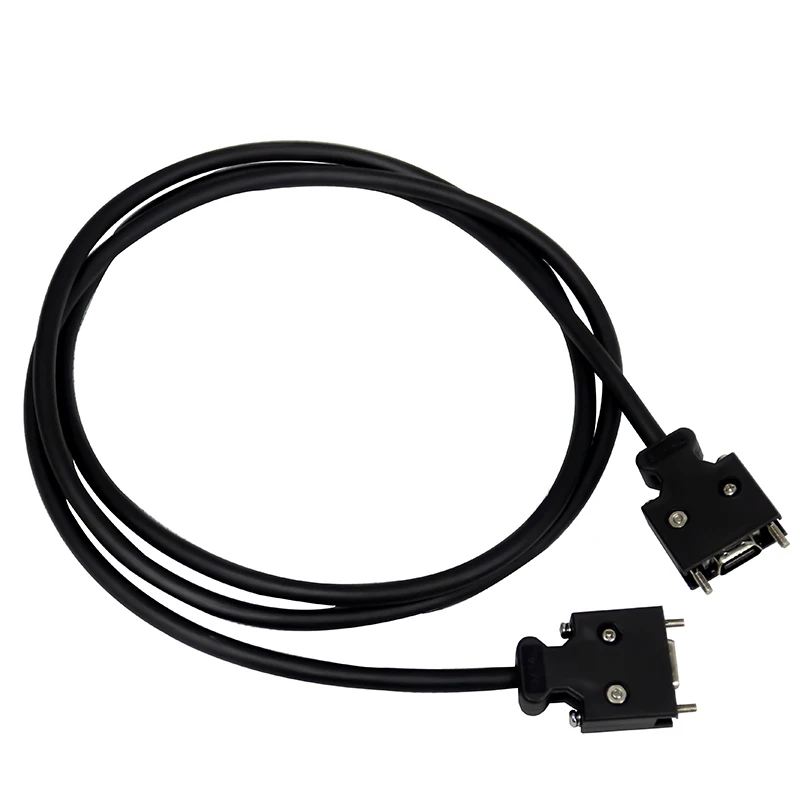

4 | Connecting cable | 4PCS | ||
5 | Sensor | 1PC | ||
6 | Spare parts bag | 1PC | ||
7 | Diameter 16mm aluminum pipe (30cm*3) | 3PCS | ||
8 | Bearing support*3, nozzle fixture*2, conveyor connector*1 | 6PCS | ||
9 | Sensor stand*1 | 1PC | ||
10 | M8 Hexagon screw*12, M4 round head | 20PCS | ||
11 | M8 Hexagon spanner*1 | 1PC | ||
