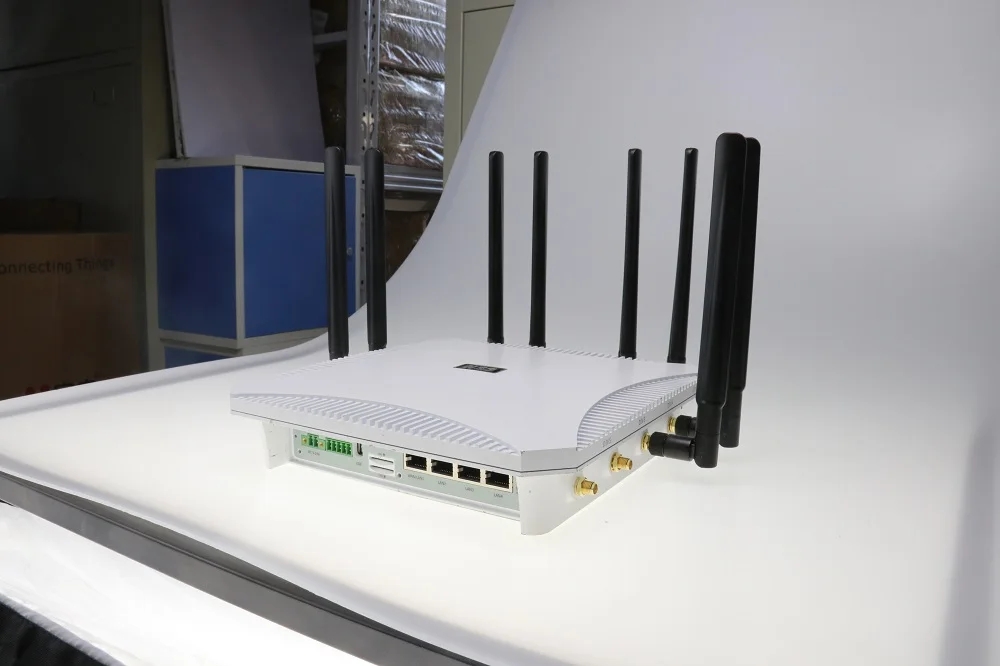

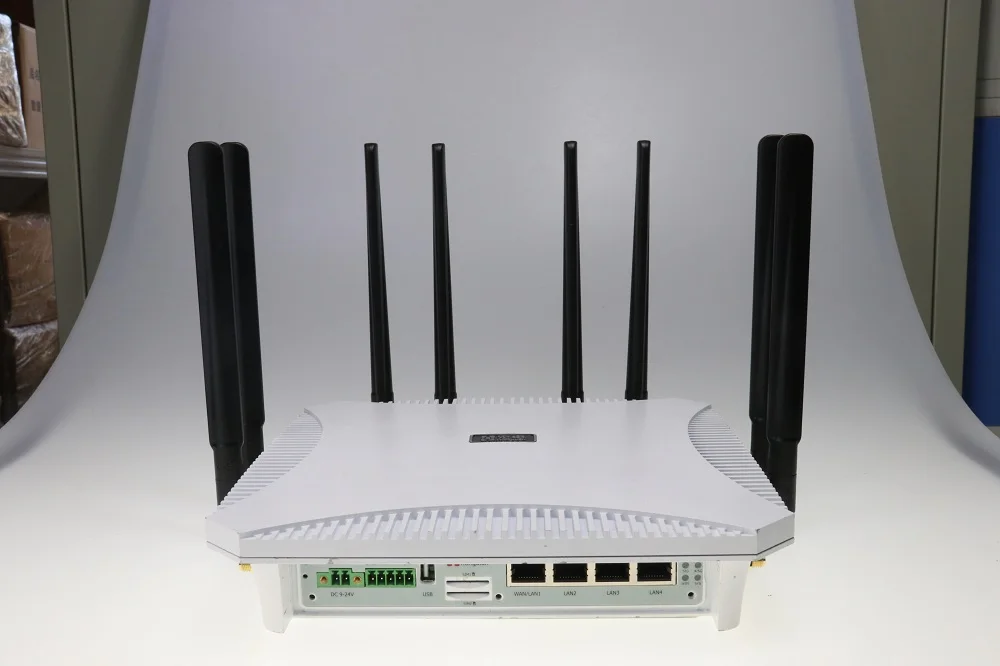

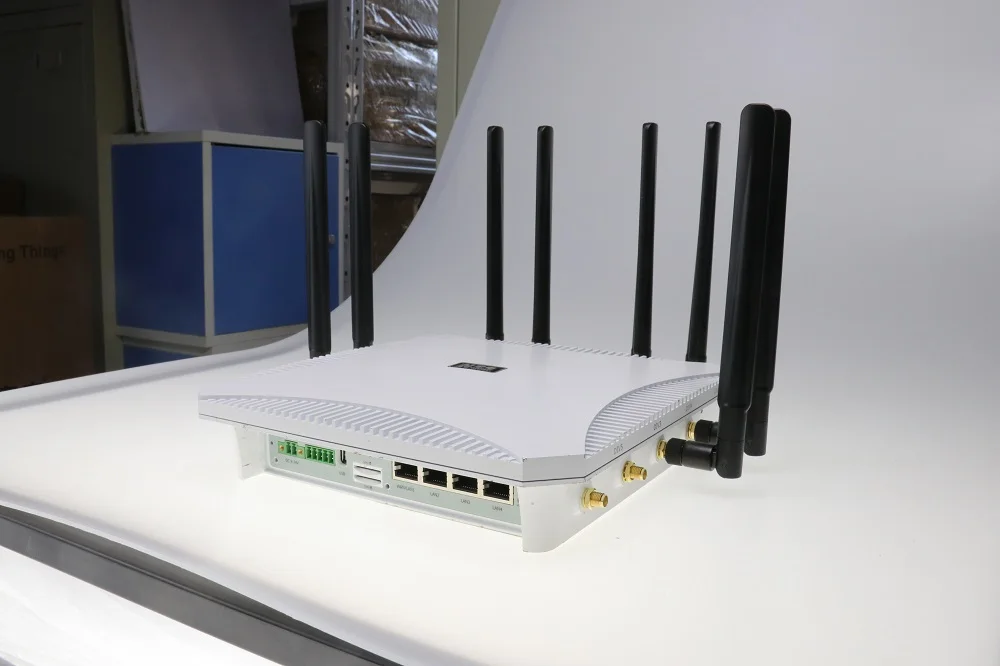

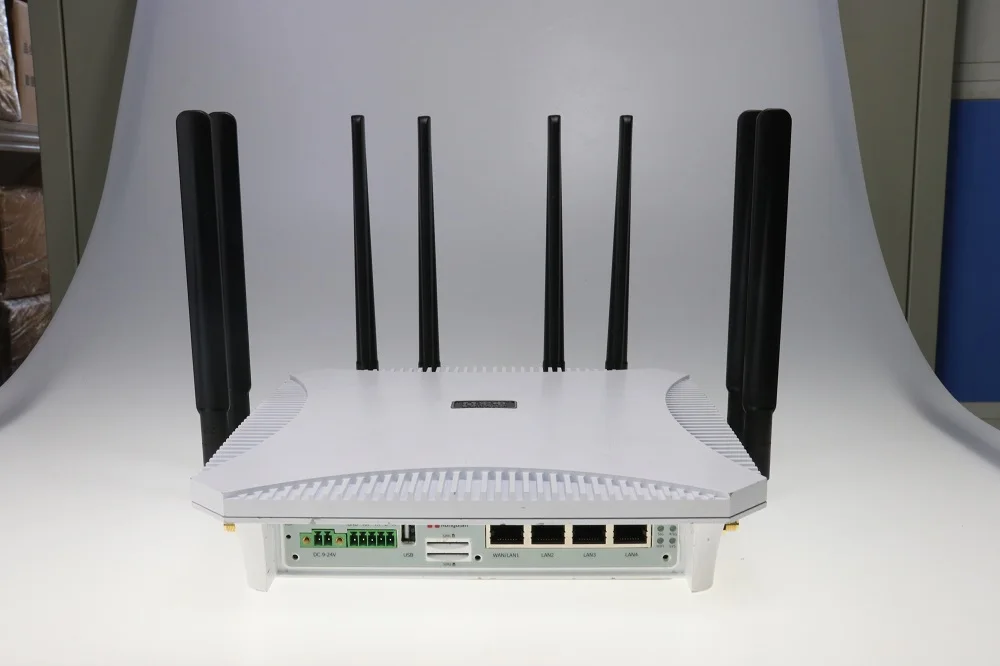

Outdoor esim mt7621 mikrotik cpe module with SIM card slot
- Category: >>>
- Supplier: Hongdian Corporation
Share on (11000000041052):
Product Overview
Description
Built with Qualcomm solution and Gigabit Ethernet, serial port, WIFI inside, Z1 expand usage scenario, this new high-performance edge computing gateway developed for the industrial Internet of Things.
Product Description
Features
Data Collection
Multi-interfaces: RS232/RS485 suits various device access, such as PLC, data logging, PC robot arm .etc
Compatible with mainstream industrial protocols: MQTT/CAN/MODBUS/DLT645/IEC101 .etc
Edge Computing
Data storage of TF extend, data cleaning & store
Embedded Data Processing Model, Predictive Analysis

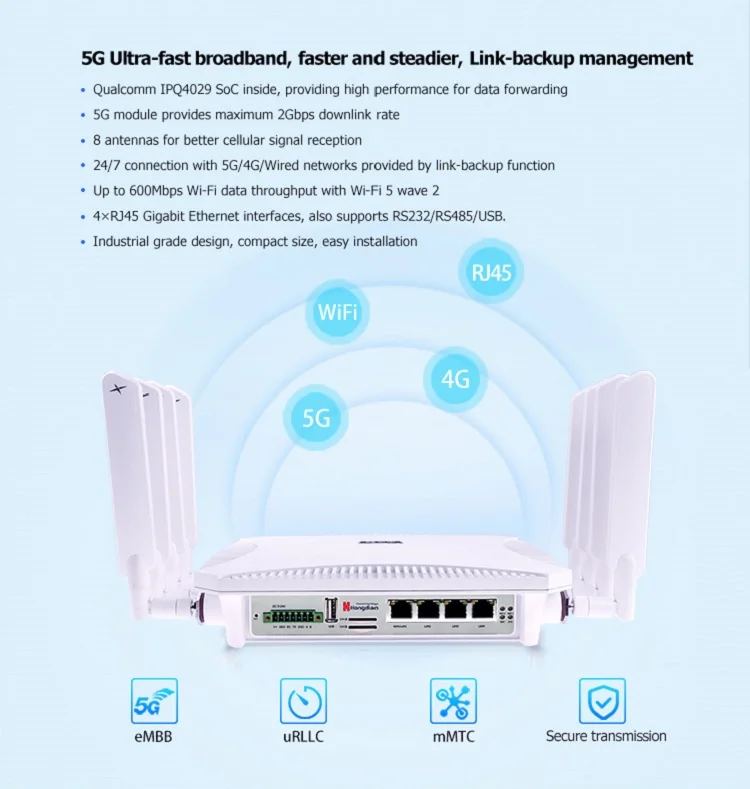

5G NR Sub-6 & Dual SIM
Qualcomm X55 5G NR Sub-6
Support dual SIM for backup
Robust & flexible installation
Robust aluminum housing

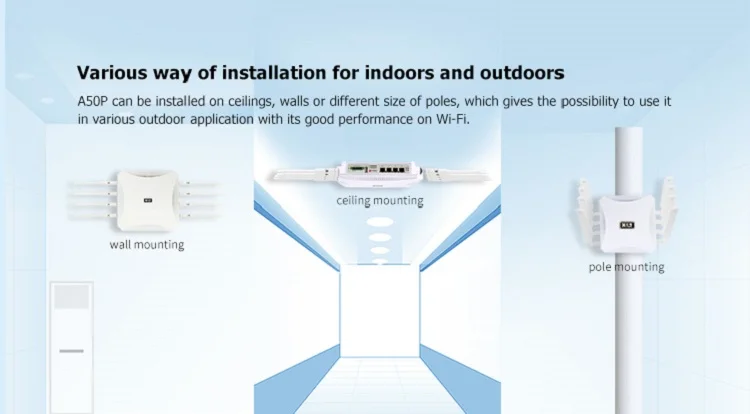

Pole mounting & wall mounting
Water-proof accessories optional
One-touch, always online
Auto connection & auto-failover
Keep alive, 7*24 connection
Specification
Specification | Description | Remark |
Product name | Z1 | V10 |
Network standard | 4G/5G | 4G: B1/3/5/7/8/20(more bands optional) 5G NR(TBD): n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 |
WIFI Standards | 2.4GHz 802.11b/g/n/ac, 2*MIMO, 400Mbps 5GHz 802.11b/g/n/ac, 2* MIMO, 866Mbps |
|

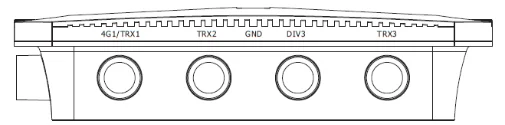

Front panel connector (serial port edition) |
Front side

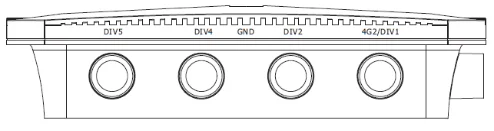

Left side

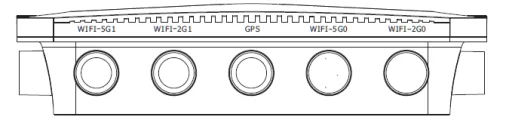

Right side

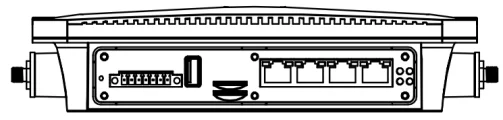

Backside l 13* Antenna connectors at most (SMA-K, 6-8 SMA according to configuration) l 1* Reset button l 1* WAN/LAN interface (10/100/1000 Mbps adaptive) l 3* LAN interfaces (10/100/1000 Mbps adaptive) l 1* USB 2.0 connector l 1* 7 PIN data terminal | |
Power supply | Working voltage | +9V~+24V DC |
Power consumption | Standby power consumption | Approx. 450 mA @ 12V DC |
| MAX Working power consumption | Approx. 2.2A @ 12V DC |
Other | Weight | approx. 1860g |
| Dimensions (excluding power cord connectors and brackets) | Length × width × height (mm) 216*216*51.5 |
| Operating environment temperature | -30~+ 75 º C |
| Storage temperature | -40~+ 85 º C |
| Relative humidity | ≤ 95% (no condensation) |
| Warranty | 1-Year Limited Warranty |
