Полипропиленовая пескоструйная ловушка 1100*600*200 мм серии OVP 60 «Cleaning PM» для очистки сточных вод (11000000043042)

Share on:


Price:262,40 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

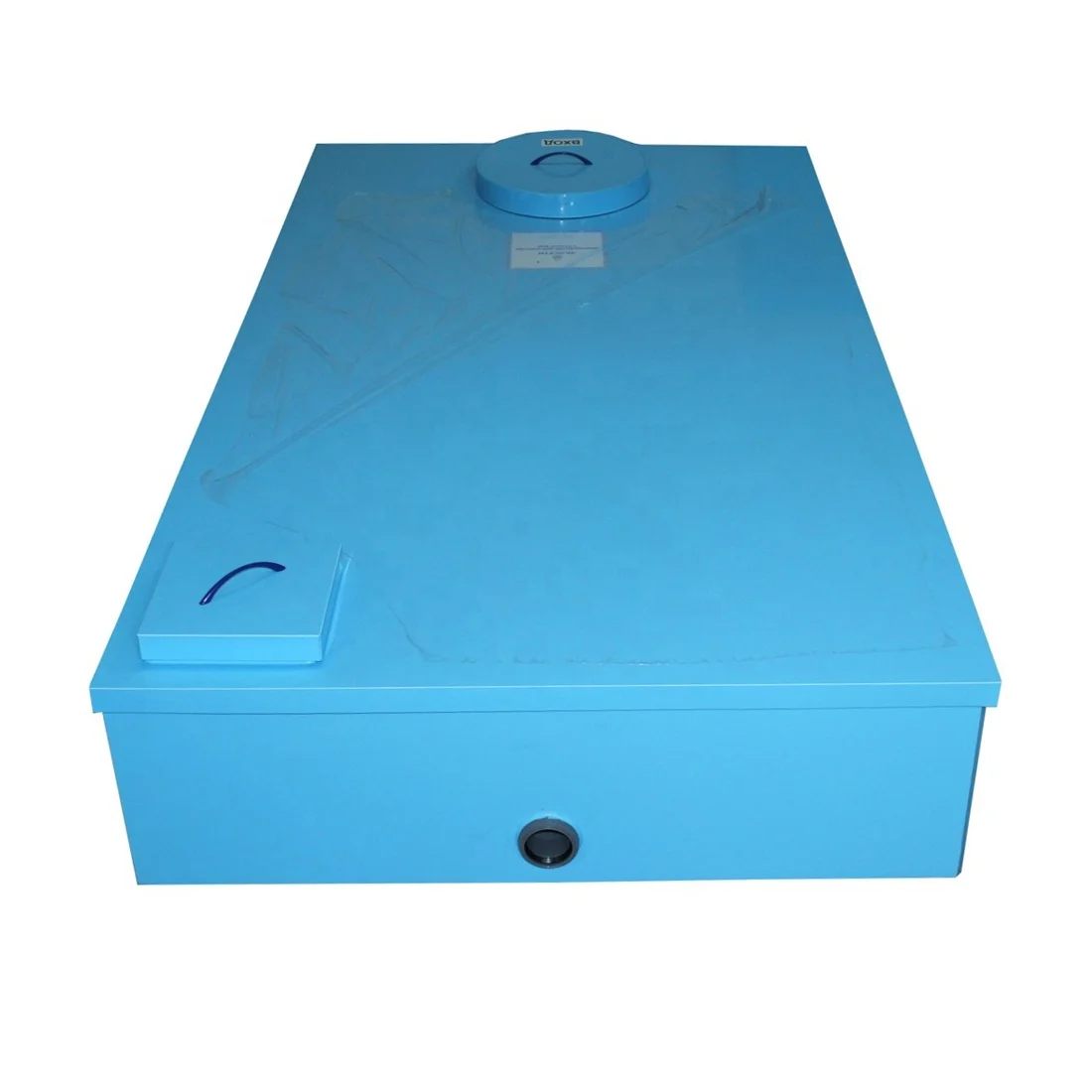

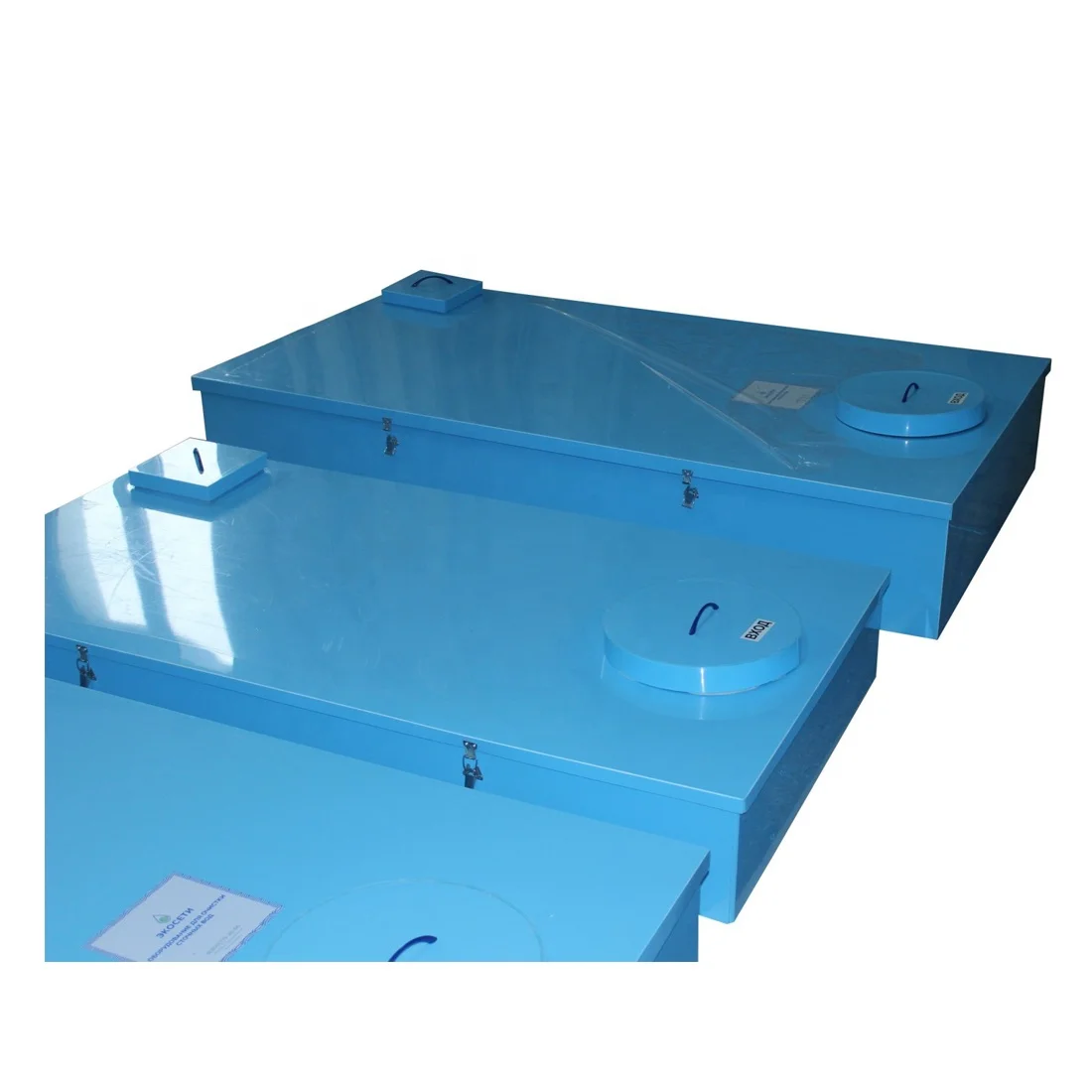

Cleaning-PM OVP 60 sand catcher

The "Cleaning-PM" series sand catcher for machine cleaning of premises is the first in the line of portable sand catcher of this series. The sand catcher is optimally suited for small floor cleaning machines with a salvo discharge of waste water no more than 40 liters. Small dimensions allow installation in any convenient place.




The newly supplied water displaces an equal volume of previously settled water into the small chamber, for secondary, final settling, before being discharged into the sewer network.



Trash box "Cleaning-PM" series for floor scrubber driers of the largest volume. The maximum allowable salvo discharge is up to 60 liters! It can also be used if several small scrubber driers are used simultaneously on the serviced area (with a salvo discharge of up to 30 liters). Small dimensions allow you to install a sand trap in any accessible place.





How do sand catchers works?

To drain the waste water, the operator needs to roll the floor cleaning machine to the sand catcher, remove the cap from the filler neck, drain the waste water and close the cap - you can continue working!

A flow restrictor with a specially selected perforation ensures smooth discharge of contaminated water into the sewer, to prevent sand and small debris from being carried out of the bags by the flow of incoming water. Each next reset can be done in 4-5 minutes!

As the filling progresses, the bags are removed through the filler neck and new ones are inserted. The rubber clamp can be easily put on the neck, inserted into a special locking groove and firmly fixes the bag, protecting it from "breakdown" during salvo discharge of water into the sand catcher.

High-strength PP bags are used as filter bags, allowing one bag to be used up to 100 times. The bag is cleaned once every few days, thus a set of 3 bags (supplied with the desander) can last for several years. You can always purchase additional bags on your own or by contacting Econet.
All sand catchers of the Cleaning-PM series are equipped with a water seal, which excludes the penetration of unpleasant odors from the sewage system.






The equipment is made of high-quality Czech polypropylene with UV-stabilization - a high-strength, non-corrosive material, inert to aggressive media (it can even withstand the storage of concentrated sulfuric acid at temperatures up to 60 degrees!). The service life of such sand catchers is not limited.

The height of the filler neck of the sand trap is selected taking into account the height of the drain pipe of scrubber driers with salvo discharge up to 60 liters.



Specification


Length, mm
1100
Width, mm
600
Height, mm
200
Neck height, cm
25
Peak discharge, L
60
Diameter of the branch tube, mm
50
Exit height (in a center), mm
65




The list of equipment


* Removable filler cap
* Perforated restriction plate (flow restrictor)
* Odor trap
* High-strength filter bags - 3 pcs.
* Fixing clamp - 2 pcs.
* Stiffeners around the perimeter



Title goes here.
The equipment is certified in accordance with the legislation of the Russian Federation The quality control system is certified
according to GOST ISO 9001 - 2011

The warranty is 5 years.


The equipment is certified in accordance with the legislation
of the Russian Federation
The quality control system is certified according to GOST ISO 9001 - 2011
The warranty is 5 years.
