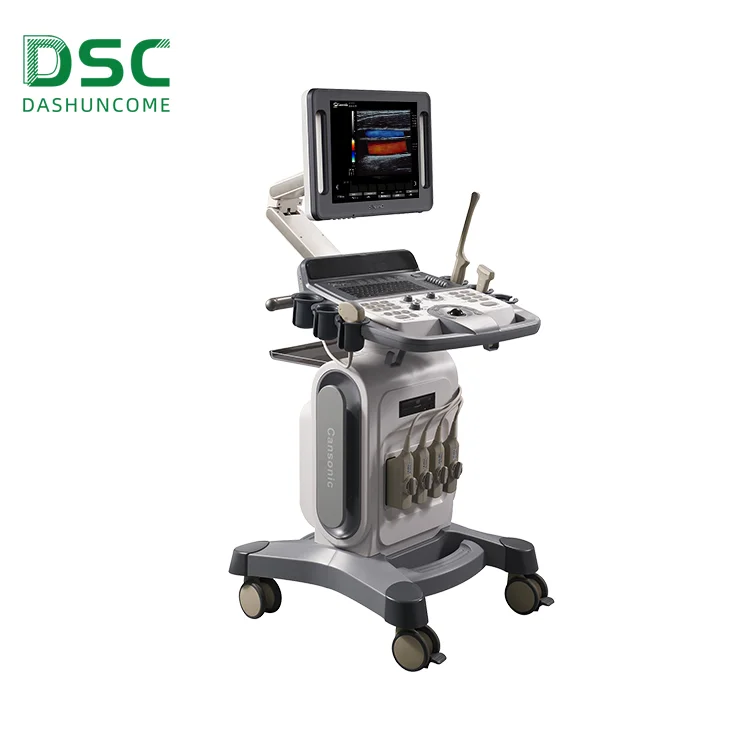

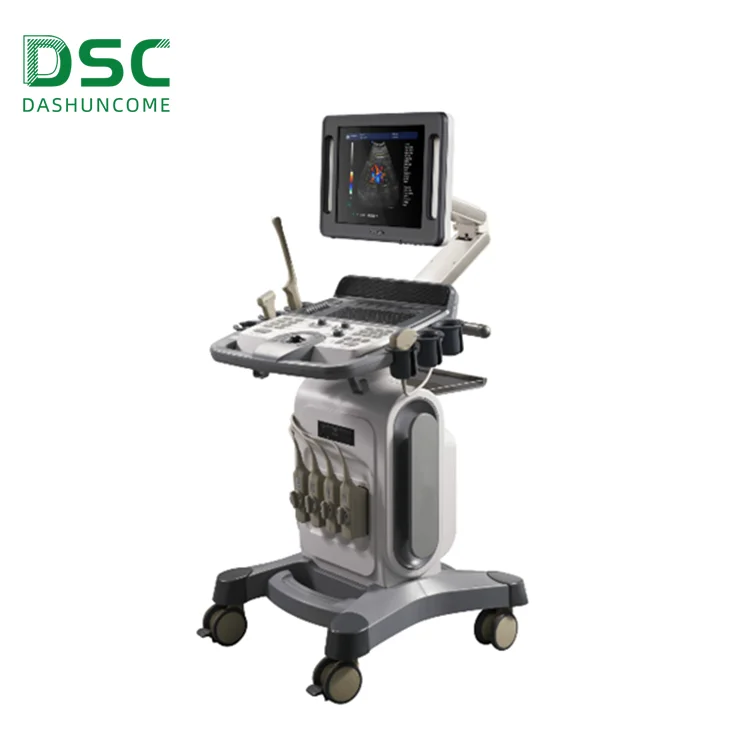

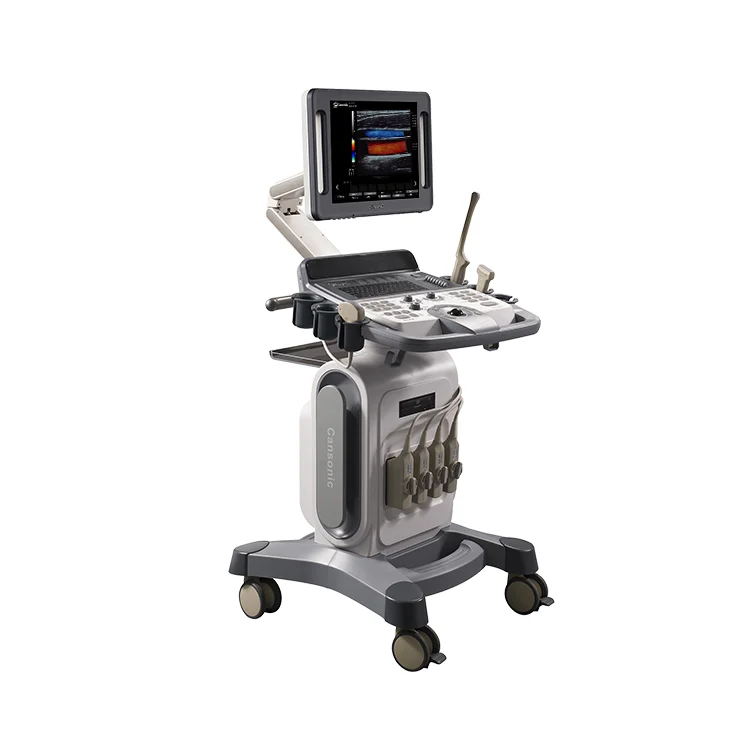

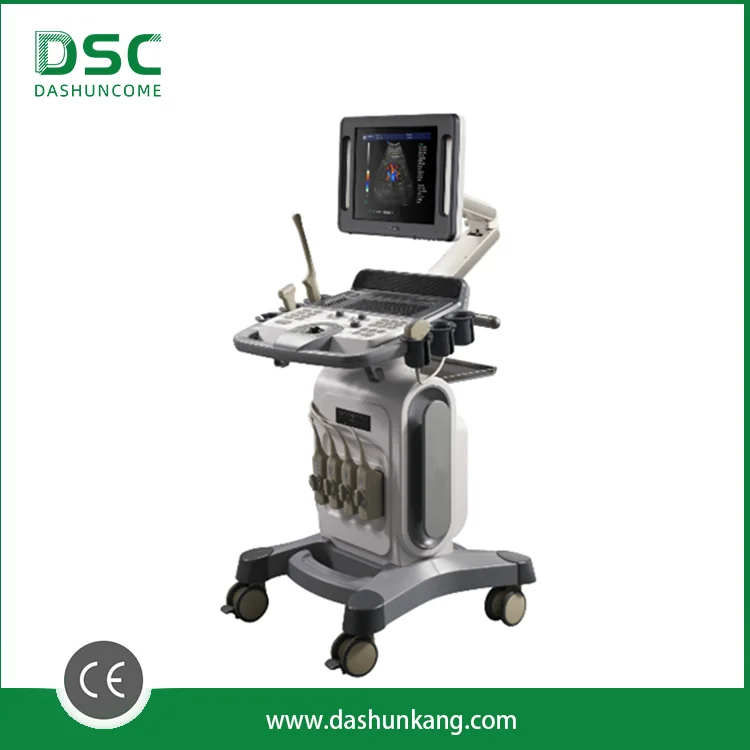

DSC Color Doppler 1700A Color Doppler System Sonoscape E1Exp Ultrasonido Doppler A Color Cansonic Medical Ultrasound Instruments

Probe

Transducer Types

3.5Mhz convex probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

7.5Mhz linear probe (6.0/ 6.5/ 7.5/ 10.0/ 12.0Mhz)

3.5Mhz micro convex probe (2.0/ 2.5/ 3.5/4.5/ 5.0Mhz)

6.5Mhz transvaginal probe  (5.0/ 6.0/ 6.5/ 7.5/ 9.0Mhz)

3.5Mhz phased array probe (2.1/ 3.0/ 3.5/ 4.0/ 5.0Mhz)

4D volume probe (2.0/ 3.0/ 3.5/ 4.0/ 5.5Mhz)

Applications

Abdomen, Obstetrics, Gynecology, Pediatrics,Small parts, Artery,  Superficial organ, Orthopedics, Cardiology, Musculoskeletal, Vascular, etc

Function

Image optimization

Speckled Reduction

Tissue Harmonic imaging

Dynamic apodization

Dynamic aperture

Directional Doppler Flow Imaging

Edit the exam type and save the user defined items

Pulse Wave Doppler

Panoramic Image  (Option)

Trapezoid Image (Option)

Continuous Wave Doppler(Option)

TSF

HPRF

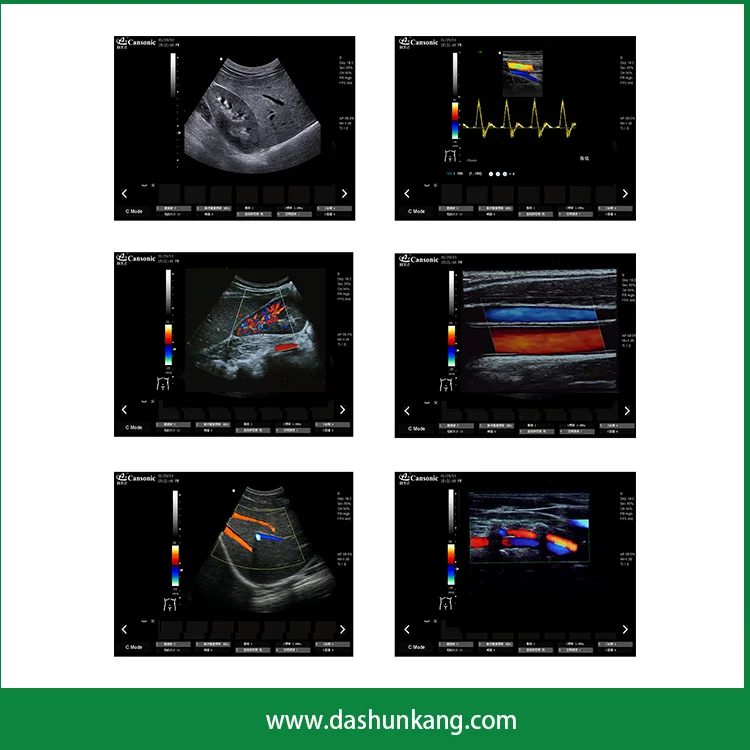

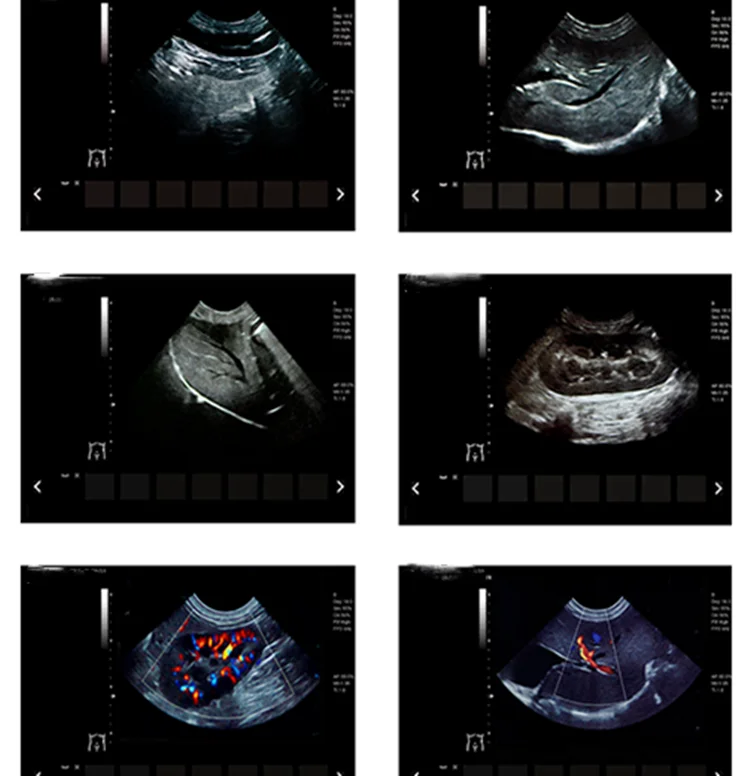

Display mode

B, B|B,4B, B|M, M, B|B, B|C|D, B|D, PW, B|PW, CF, CW, 4D

Triplex mode

Zoom

Real time zooming

10 Steps:  ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0, ×10.0

Selectable zooming position

Focus

Continuous dynamic focus

1~16 selectable transmit focus

Acoustic lens focus

1, 2, 3, 4 focus

Memory

Cine  memory

B mode

M mode

Hard disk 500GB
