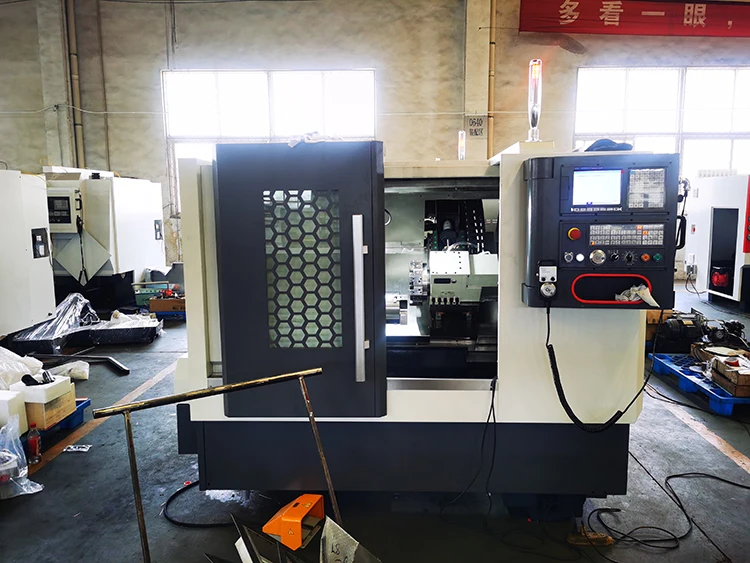

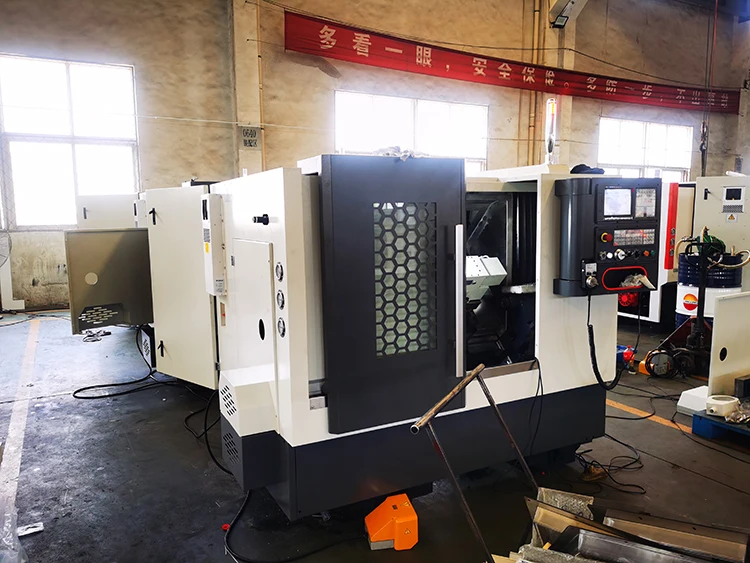

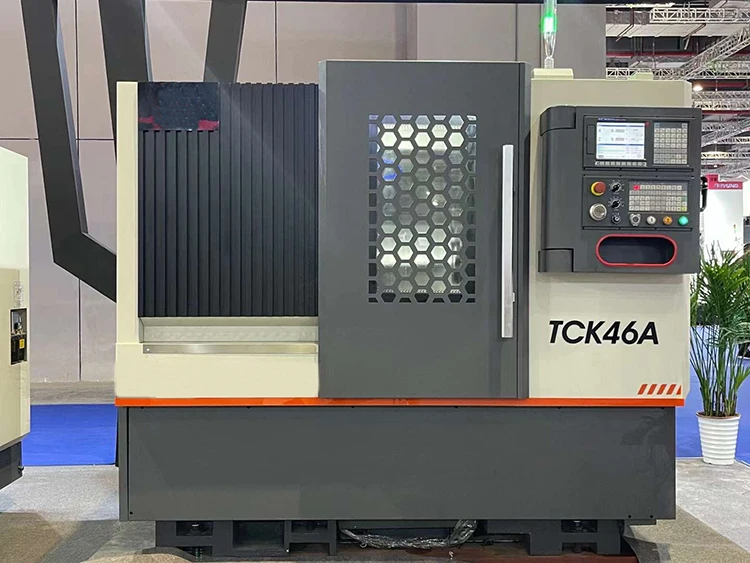

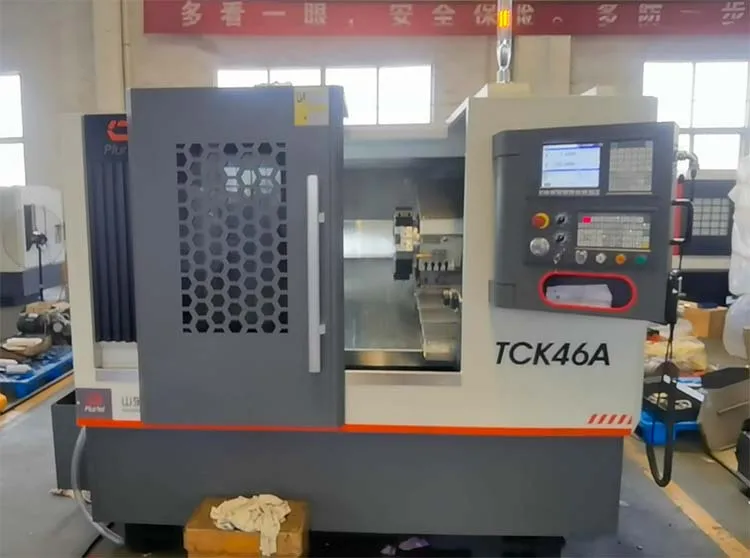

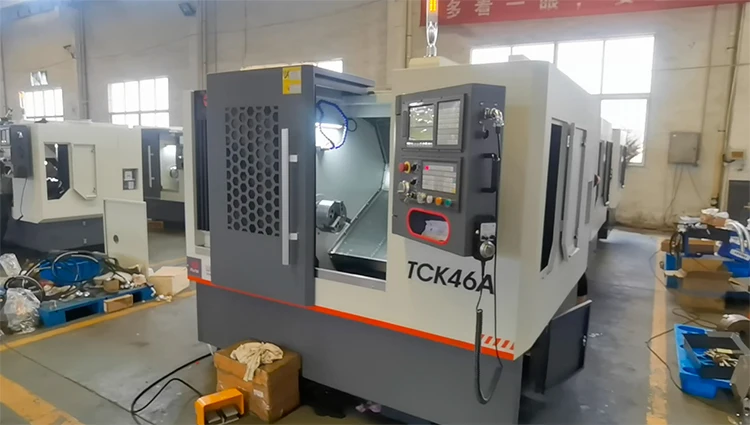

TCK46A High Speed Taiwan Linear Rail Slant Bed CNC Lathe Machine
- Category: >>>
- Supplier: Xuzhou Elsen Machine Tool Co. Ltd.
Share on (11000000067663):
Product Overview
Description
Product Description
Higher accuracy Taiwan linear guideways
Higher speed spindle unit
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Specification | Unit | TCK46A |
Max.swing over bed | mm | 460 |
Max.swing over cross slide | mm | 170 |
Max.processing length | mm | 350 |
X/Z axid travel | mm | x:240 z:400 |
Spindle speed | rpm | 3500 |
Spindle nose | A2-5/A2-6 | |
Spindle bore | mm | 56 |
Spindle motor | KW | 7.5 |
X/Z axis feed motor torque | N.m | 7.5/7.5 |
X/Z axis repeatability | mm | ±0.003 |
Turret center high dimensions | mm | 80 |
Hydraulic quill dia | mm | 70 |
Hydraulic quill traverse | mm | 80 |
Hydraulic quill taper | morse 5# | |
Hydraulic tailstock travel | mm | 200 |
Guide form | 45 Degree Linear guiderway | |
Tool post from | 8/12 Turret post | |
Machine dimension(L*W*H) | mm | 2500x1700x1710 |
Net.weight(about) | kg | 2600 |
Standard configuration:
1) System:GSK988T, servo motor and drive.
2) 3-jaw manual chuck.

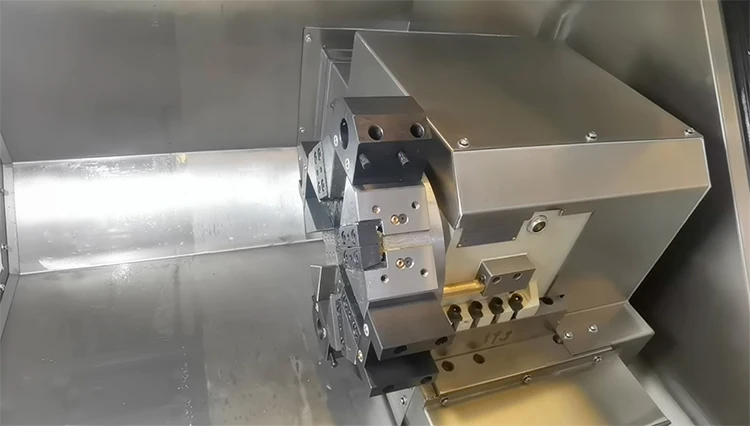

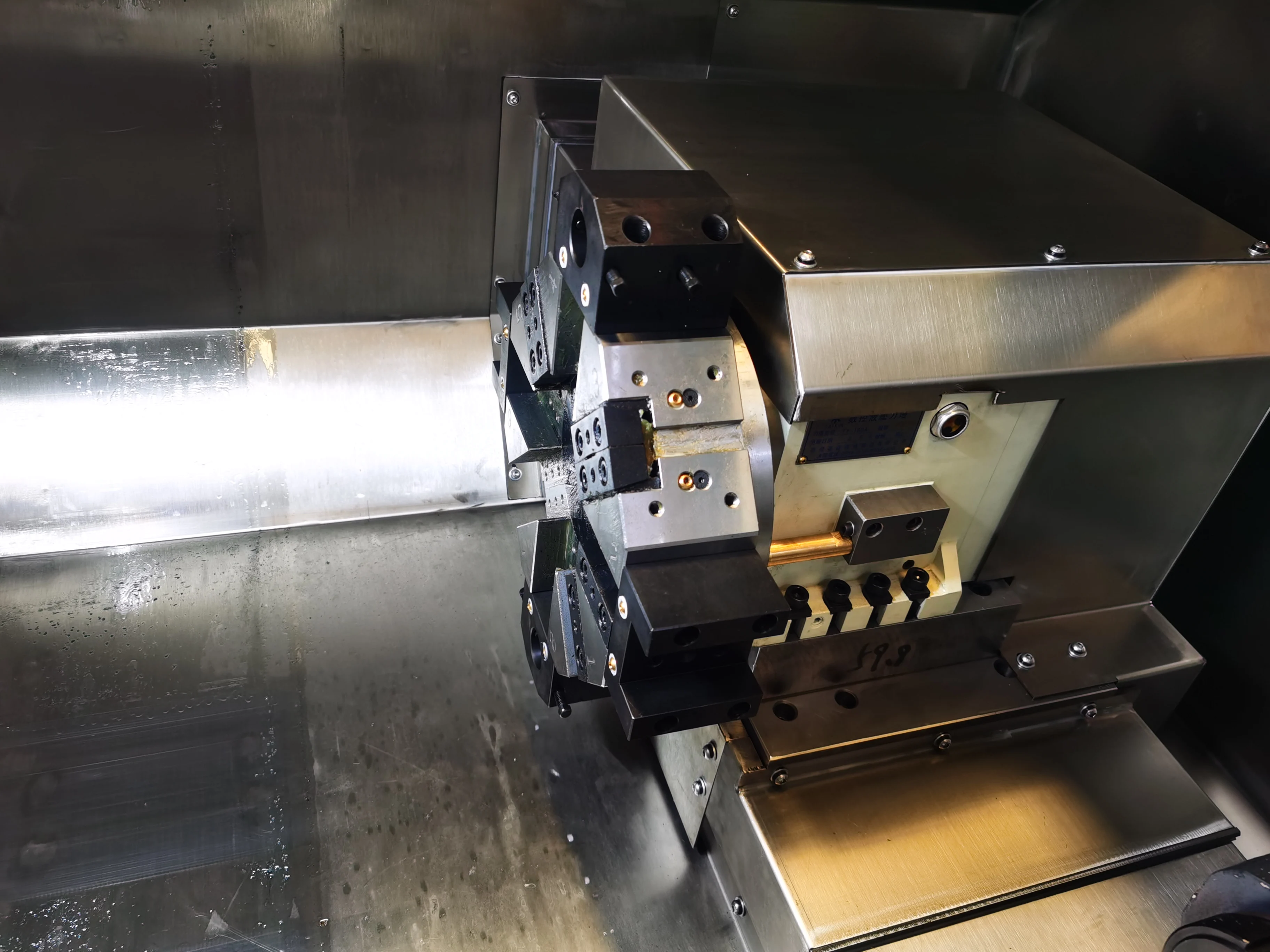

3) 8-station hydraulic turret.
4) Lighting system.
5) Cooling system.
6) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). Automatic bar feeder.
1) System:GSK988T, servo motor and drive.
2) 3-jaw manual chuck.
3) 8-station hydraulic turret.
4) Lighting system.
5) Cooling system.
6) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). Automatic bar feeder.

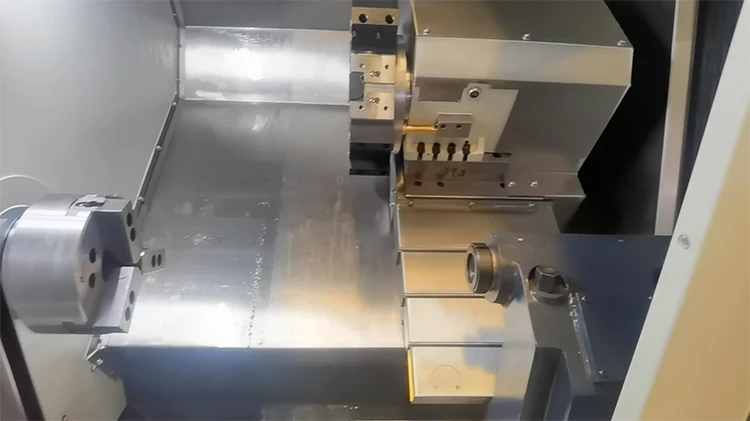

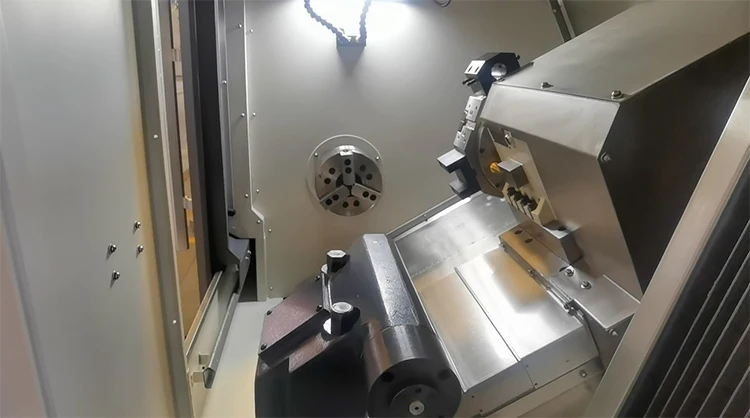

Machine Details
Related Products
Company Information
Packing&Shipping
FAQ
1: Are you a manufacture?
A: Yes,we are a real manufacture.Welcome to visit our factory!
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models,we can also provide customized service according to your requirements.
4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will introduce the most suitable machines for you .
5: Can you offer the training ?
A: Yes,we can provide a cost-free training,Teach you how to operate our machine,some common problems,and how maintain the machine etc. It would be great honor to us.
6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
