Floor Heating Systems and cooling system 230V wifi thermostat
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (11000000071724):
Product Overview
Description
Product Description
AC3385 Series Room Thermostats
Instruction Sheet General
The AC3385 series room thermostats are designed for intelligently controlling fan coils unites (FCU), motorized valve, motorized
damper valves, dampers or heating equipment in industrial, commercial and residential environment. With large-screen LCD display
measuring the ambient temperature by built-in NTC sensor and comparing it with set-point, AC3385 Series Digital Room Thermostats
could automatically adjust the air inflow volume of cooling I heating , or switch on /off motorized valves to keep a constant
ambient temperature. Recommended match with V2016, V4016, V6016, and V8016 Series motorized valves.
damper valves, dampers or heating equipment in industrial, commercial and residential environment. With large-screen LCD display
measuring the ambient temperature by built-in NTC sensor and comparing it with set-point, AC3385 Series Digital Room Thermostats
could automatically adjust the air inflow volume of cooling I heating , or switch on /off motorized valves to keep a constant
ambient temperature. Recommended match with V2016, V4016, V6016, and V8016 Series motorized valves.
Instruction Sheet General
Heating thermostat with LCD screen. Which has manual mode and energy saving mode. The thermostat Is recommended for the control of
electric heating device or on/off valve actuator in hydronic underfloor heating.
electric heating device or on/off valve actuator in hydronic underfloor heating.

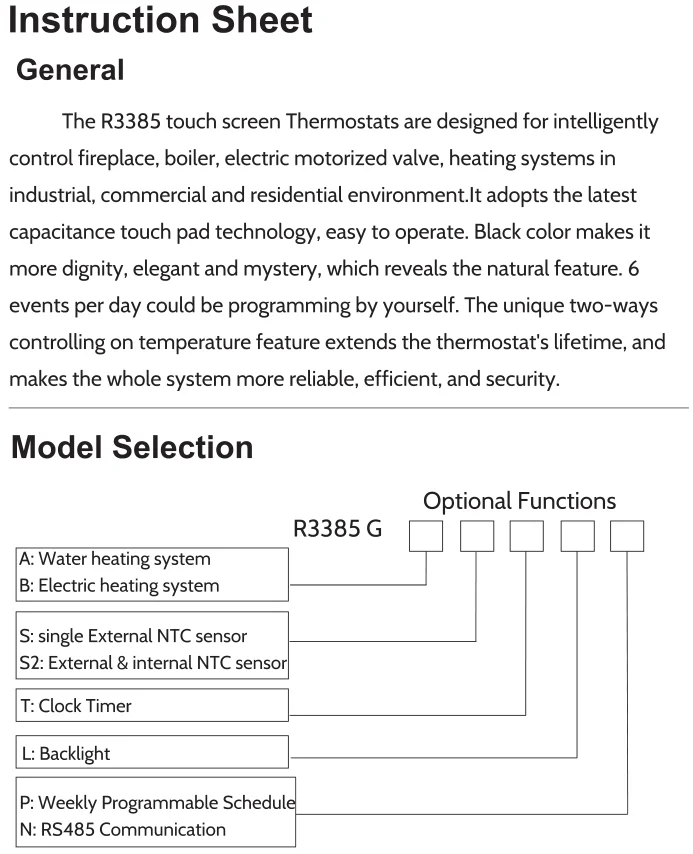

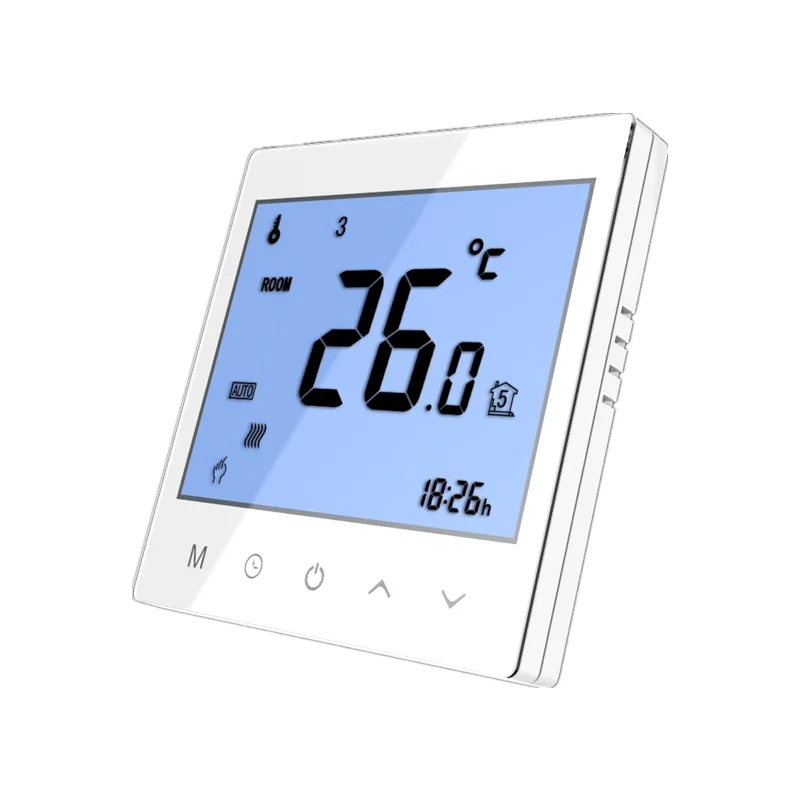

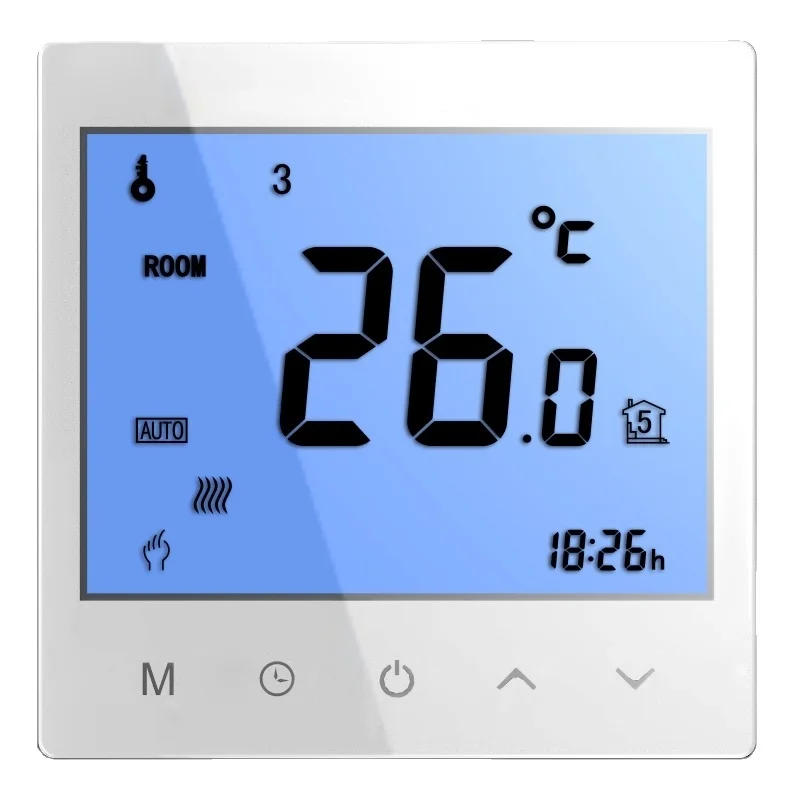

Product name | R3385 room thermostat |
Power Consumption | <1.5W |
Time Error | <1% |
Power Supply | AC100-240V,50/60HZ |
Load current | 1A(Inductive Load) 2A(Resistive Load) |
Temperature Range | 10℃ - 30℃ |
Accuracy | ±0.5 ℃ |
Size | 87mmx87mmx15mm(H*W*T) |

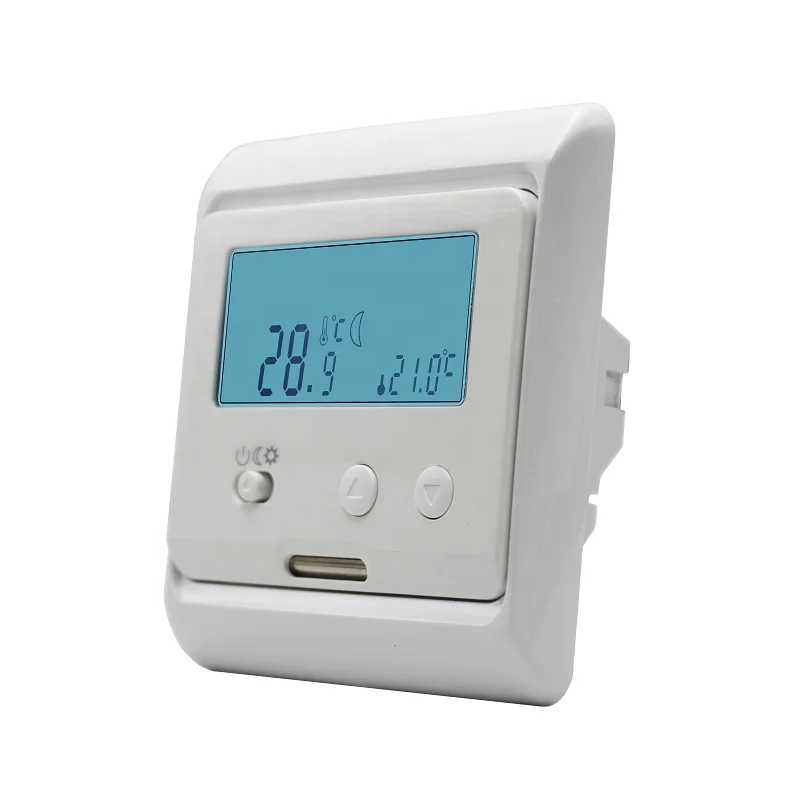

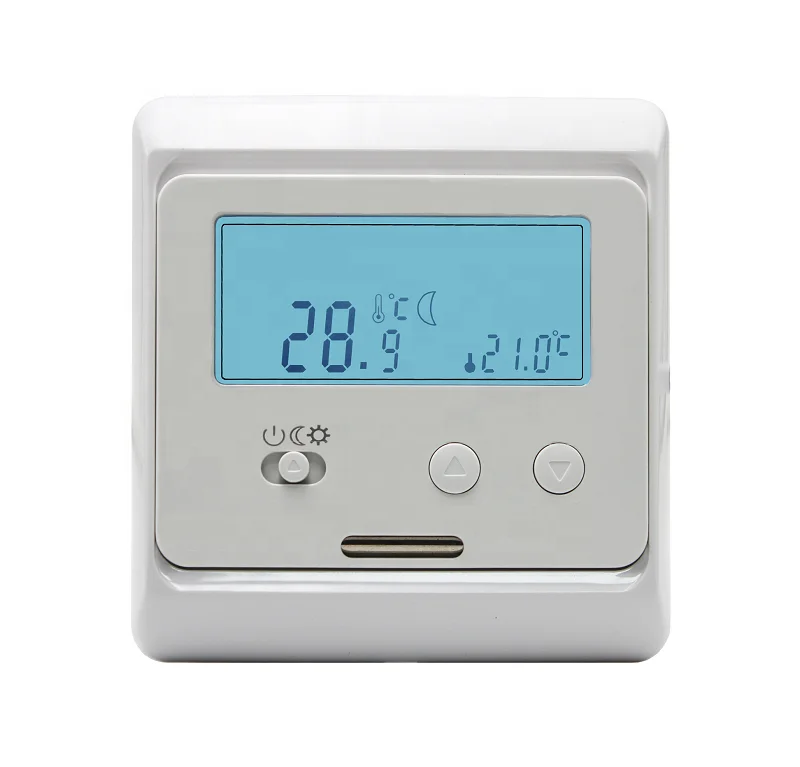

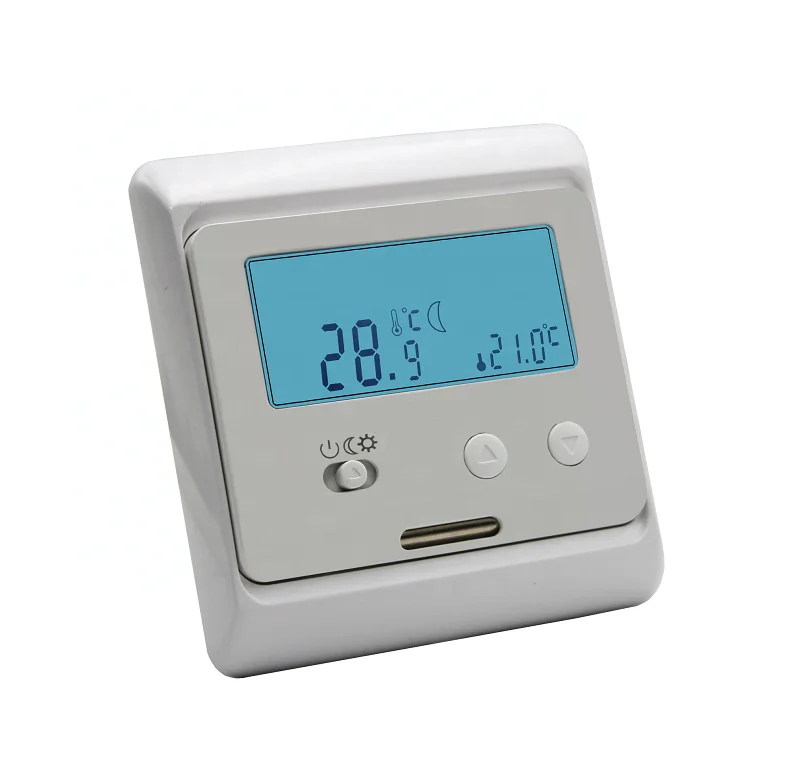

Product name | E31 room thermostat |
Voltage | 220V/230V |
Power consumption | 2W |
Setting range | 5~50℃（can adjust to 5~90℃） |
External limitation | 5…60℃（default 35℃） |
Sensor | NTC internal/ external sensor |
Switch differential | 0.5~10℃ adjustable (default ±1℃) |
Ambient temperature | 5~50℃ |
Products Packing
Main Products
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
