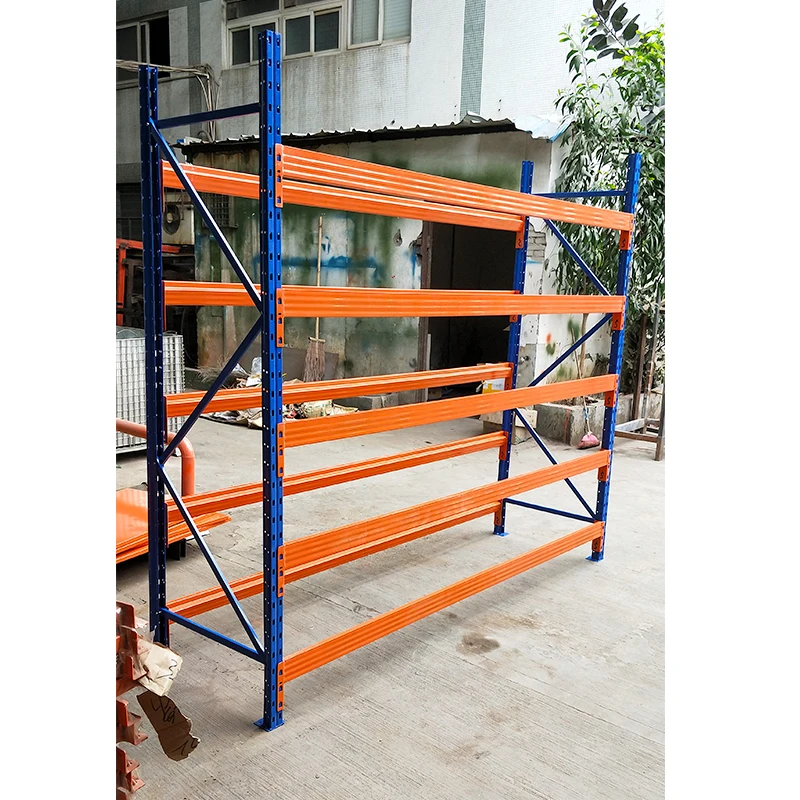

WAREHOUSE RACKING large capacity selective racking system double deep pallet racking warehouse storage
- Category: Stacking Racks & Shelves >>>
- Supplier: Guangzhou Maobang Storage Equipment Co. Ltd.
Share on (11000000076922):
Product Overview
Description
Products Description
Warehouse storage shelving heavy duty storage racking system metal assemble selective pallet rack
Heavy Duty Pallet Racks is specifically constructed and designed for tough
loads between 500kg-5000kgs/UDL(Uniformly Distributive Load) .This storage racks is the most suitable system for heavy capacity warehouse users. With our own innovation, the box beam as the levels increased the loading capacity of the Heavy Duty Shelving Rack System. In addition, the versatility of the box beam bracket enables easier installation process as well as the dismantling process in according to customers' application.
loads between 500kg-5000kgs/UDL(Uniformly Distributive Load) .This storage racks is the most suitable system for heavy capacity warehouse users. With our own innovation, the box beam as the levels increased the loading capacity of the Heavy Duty Shelving Rack System. In addition, the versatility of the box beam bracket enables easier installation process as well as the dismantling process in according to customers' application.
Product Name | WAREHOUSE RACKING large capacity selective racking system double deep pallet racking warehouse storage |
Product Description | Heavy duty pallet racking belongs to Selective racking.Warehouse storage rack systems will optimize your space and improve your stock control.Because of the wide range of dimensions, load capacities and accessories, our pallet racking can be adapted to all types of spaces and for all manner of products regardless of their size and weight. A well designed industrial storage rack system is dynamic and reduces the overall cost of handling product within the organization. Heavy Duty Selective Pallet Rack is used in Warehouses, Factories etc. |

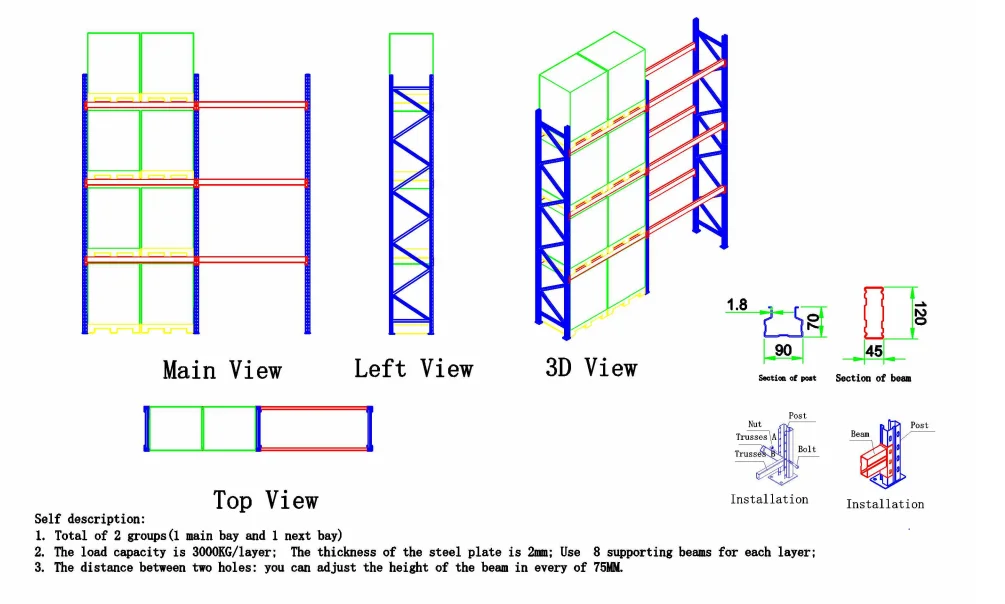

Why choose the selective pallet racking | 1.Goods in and out of storage is not affected by the sequence; 2.The safety pin is used to fix the crossbeam and the column. This structure is not only convenient for transportation, but also can freely adjust the height of each layer of the shelf in 75mm or 50mm steps according to the height of the goods to meet the storage requirements of different heights of goods; 3.The load requirements can be determined according to the size of the columns and beams; 4.The plasticity of the cross-beam shelf (pallet shelf) is very large, on the basis of the cross beam shelf (pallet shelf), we build the drawer mold shelf, the attic shelf, the narrow lane shelf, the double depth shelf, the pressing shelf, the automatic storage shelf and so on; 5.Not only effectively improve the storage height of the warehouse, but also can improve the space utilization rate of the warehouse; 6.Meets any goodsany warehouse use, it is the universal shelf in the storage shelf. |
Product size | Length: 2300/2500/2700/3000/3300/3600/3900 mm or others customized Width: 800/900/1000/1100/1200 mm or others customized Height: 2000-13500 mm/customized |
Material: | Cold rolled steel Q235B |
Thickness | Column: 1.5/1.8/2.0/2.2 mm |

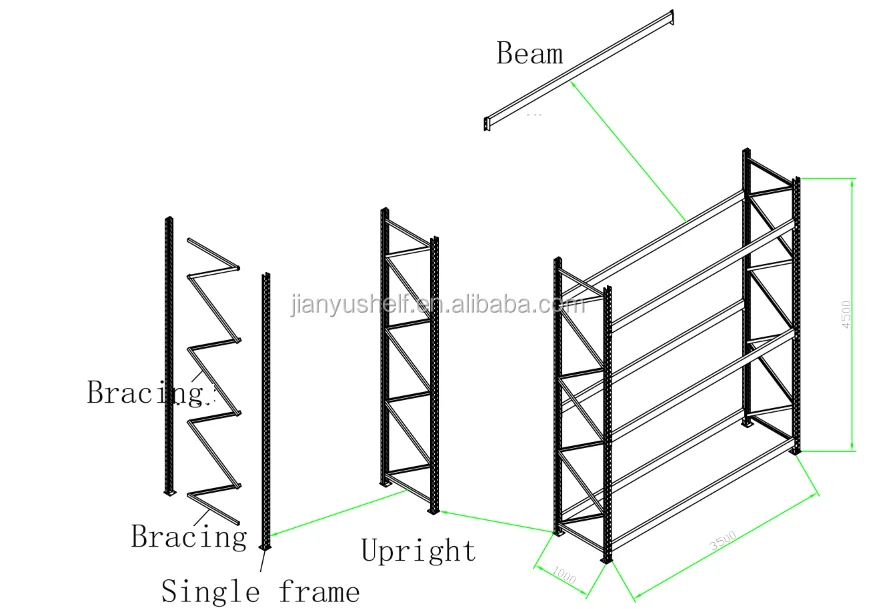

Component | Upright(Frame),beam,steel sheet(option),rolling Bracing |
Loading capacity | 500-5000 kg per layer,customized |
Layers | 2-12 adjustable layers/ can be customized |
Main Components | Upright(Frame),beam,steel sheet(option),rolling Bracing |

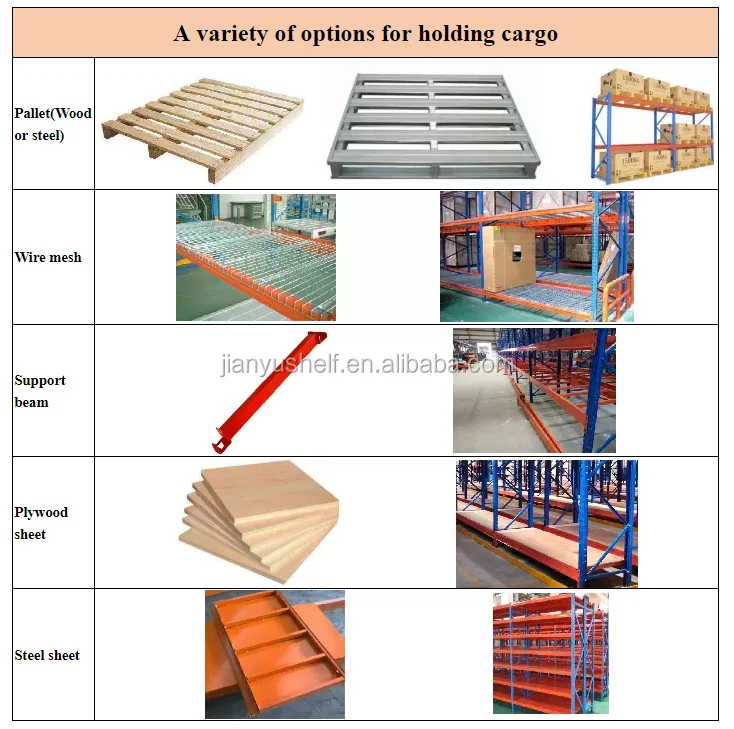

Another parts for choice | Wire mesh, support beam, chipboard, steel panel |
Surface treatment | Electrostatic spray surface, powder coating |
Color | RAL color, Orange, Blue, Grey, Based on clients' requirement |
Feature | Anti-rust, Corrosion protection, Adjustable, assemble |
Accessory | Foot plate, protection rail,safety pin,etc |
Warranty | 3 years |
Remark | OEM& OED are accepted. |
Keyword | pallet racking, selective racking, warehouse pallet racking, pallet storage rack. |
Company Profie
Customer case
Certifications
Customer photoes
contact us
FAQ
1. Q: Are you a factory or trading company?
A: We are factory which is established in 1998 with more than 300 workers.
2. Q: Where is your factory located?
A: Our factory is located in Guangzhou.
3. Q: What is your delivery time?
A: For standard size models, we have plenty of material in stock, less than 500pcs, 3-7 day is ok;
For customized models, the delivery date depends on the quantity. In generally, it is 7-15 days.
We can finish production in 15 days under 332 CBM, 9 containers.
4. Q: What is the term of payment?
A: 40% of deposit , and balance will be cleared by T/T before delivery.
5. Q: What is the trade term?
A: In generally, we will use EXW or FOB. Other terms can be negotiated.
6. Q: Do you have minimum order quantity limitation?
A: We don’t have MOQ limitation. But if you don’t have other goods to share the container and the quantity is less than 10pcs, we would sincerely recommend you buy at the local market. Because the international freight will be expensive.
7. Q: Are samples available?
A: Yes, samples are available at any time.
But due to the big size, we would like to suggest you to check some raw material if you just want to check the quality. If you have container needs to be shipped together recently, then you can buy any quantity you want.
8. Q: What if you encounter problems during installation?
A: We will provide detailed install instruction for every type of shelf. If needed, we can also ask engineers to teach you by
phone, face-time or video.
9. Q: Could you produce the goods in OEM and ODM design?
A: Sure, we have very rich experience in customizing shelves.

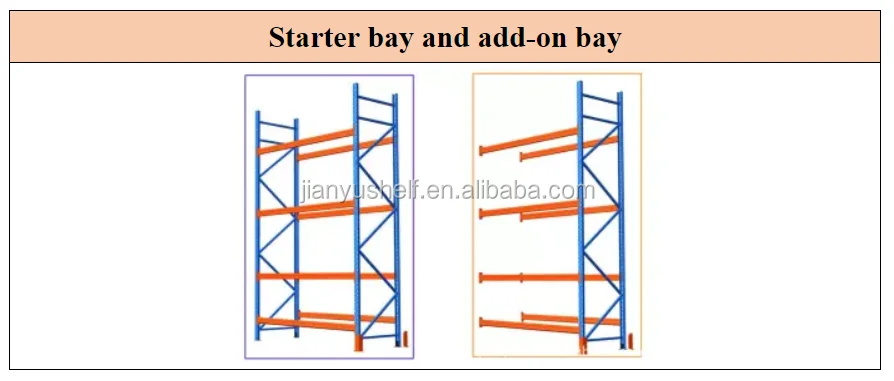

10. Q: What are main rack and add on rack?
A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright.
11. Q: What is your packing?
A: Generally, storage rack are flat packed by air bubble film. Other packing like wooden box are available to clients’
requirement.
12. Q: What if we can't install it or we don't have installers?
A: For the racking mezzanine floor case or big project, if needed, we can offer our technical staff to guide the installation job. Moreover, we have professional installation team to deal with the installation work. So, please do not worry about that.
13. Q: What is the warranty?
A: From 3 years to 5 years.
14. Q: Can we pay by Credit card or Alibaba platform?
A: Yes, you can. And TT is welcome.
15. Q: which loading port is close to you?
A: Nansha or Huangpu. They are in Guangzhou. If your forwarder is in Foshan or Shenzhen, we can deliver them to their warehouse too.
A: We are factory which is established in 1998 with more than 300 workers.
2. Q: Where is your factory located?
A: Our factory is located in Guangzhou.
3. Q: What is your delivery time?
A: For standard size models, we have plenty of material in stock, less than 500pcs, 3-7 day is ok;
For customized models, the delivery date depends on the quantity. In generally, it is 7-15 days.
We can finish production in 15 days under 332 CBM, 9 containers.
4. Q: What is the term of payment?
A: 40% of deposit , and balance will be cleared by T/T before delivery.
5. Q: What is the trade term?
A: In generally, we will use EXW or FOB. Other terms can be negotiated.
6. Q: Do you have minimum order quantity limitation?
A: We don’t have MOQ limitation. But if you don’t have other goods to share the container and the quantity is less than 10pcs, we would sincerely recommend you buy at the local market. Because the international freight will be expensive.
7. Q: Are samples available?
A: Yes, samples are available at any time.
But due to the big size, we would like to suggest you to check some raw material if you just want to check the quality. If you have container needs to be shipped together recently, then you can buy any quantity you want.
8. Q: What if you encounter problems during installation?
A: We will provide detailed install instruction for every type of shelf. If needed, we can also ask engineers to teach you by
phone, face-time or video.
9. Q: Could you produce the goods in OEM and ODM design?
A: Sure, we have very rich experience in customizing shelves.
10. Q: What are main rack and add on rack?
A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright.
11. Q: What is your packing?
A: Generally, storage rack are flat packed by air bubble film. Other packing like wooden box are available to clients’
requirement.
12. Q: What if we can't install it or we don't have installers?
A: For the racking mezzanine floor case or big project, if needed, we can offer our technical staff to guide the installation job. Moreover, we have professional installation team to deal with the installation work. So, please do not worry about that.
13. Q: What is the warranty?
A: From 3 years to 5 years.
14. Q: Can we pay by Credit card or Alibaba platform?
A: Yes, you can. And TT is welcome.
15. Q: which loading port is close to you?
A: Nansha or Huangpu. They are in Guangzhou. If your forwarder is in Foshan or Shenzhen, we can deliver them to their warehouse too.
