Chinese Cast Iron Big Farm Agriculture Irrigation Used Centrifugal Single Stage Diesel Water Pump
- Category: >>>
- Supplier: Shijiazhuang An Pump Machinery Co. Ltd.
Share on (11000000088767):
Product Overview
Description

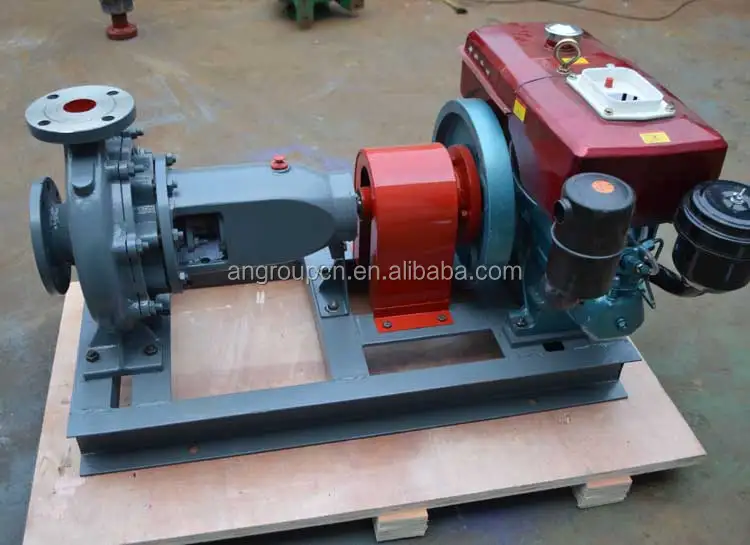

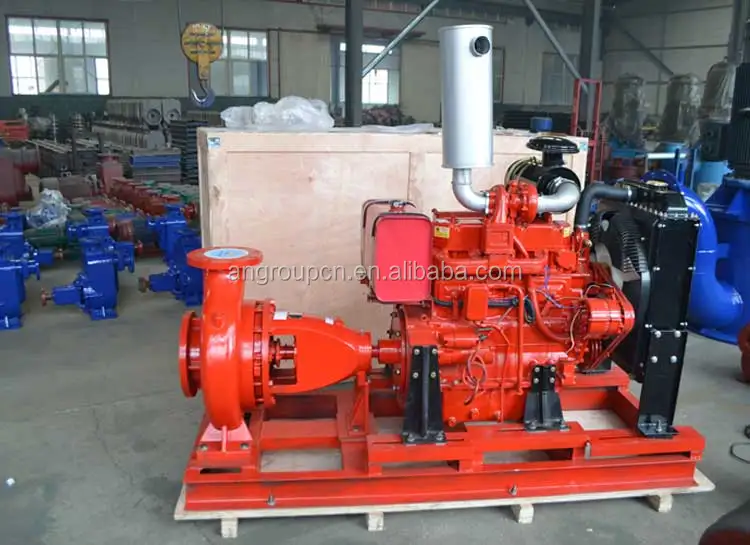

Centrifugal Single Stage Diesel Water Pump
P
Product Description
QI diesel Irrigation Pump Introduction:
QI 2 4 6 8 inch farm agriculture irrigation diesel water pump is a horizontal single stage single suction pump
flow 130~9000m/h, head 3.5~22m.The mobile trailer is available as your request.
QI Diesel Water Pump Features:
QI diesel engine water pump comply with ISO2858 international standard;
Reasonable structure;
No overload design,this makes sure the performance of the pump operated stably;
Packing seal and mechanical seal are available;

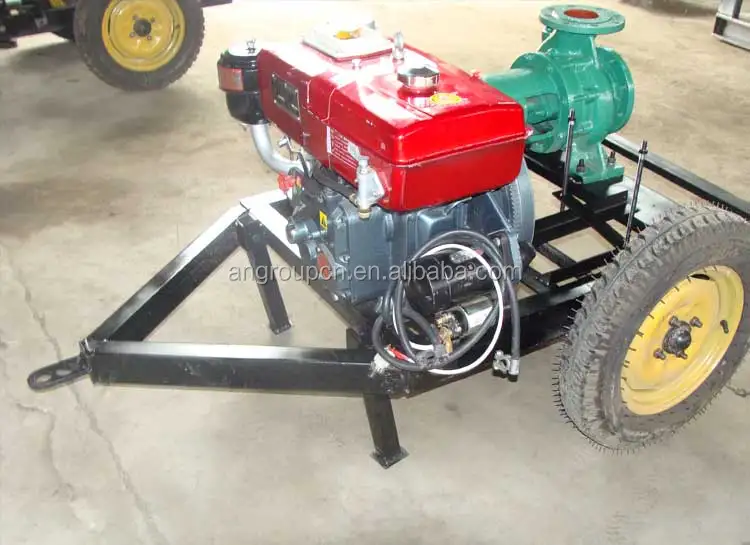

The design of the trailer makes it more convenient to use
Construction
Performance Chart
QI Diesel Engine Water Pump Performance | |||||
Pump Type | Capacity (m3/h) | Head (m) | Speed (rpm) | Motor Power(kw) | Eff (%) |
QI 50 | 3-14 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
QI 65 | 6-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
QI 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
QI 100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
QI 125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
QI 150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
QI 200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
QI 250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
QI 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |
P

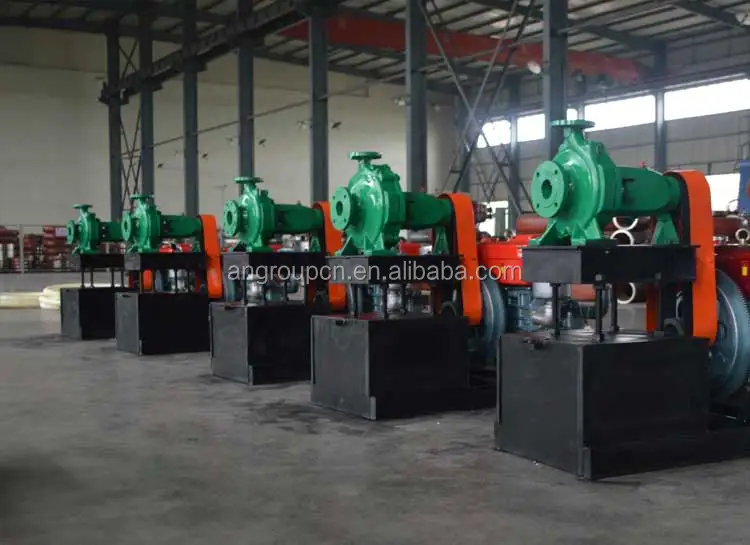

Product Show
C
Company Information
AN Pump
Factory History: Established in 1986
Business Type: Manufacturer and exporter
Main Products: Slurry pump, submersible sewage pump, stainless steel pump, water pump, sand and gravel pump, dredger pump, pulp pump, sea water pump, irrigation pump, diesel water pump, chemical pump, circulation pump etc.
P
Packaging & Shipping
