Needle Flame Test according to IEC60695 2 2 and IEC60695 11 5
- Category: >>>
- Supplier: Lisun Electronics (shanghai) Co. Ltd.
Share on (11000000093975):
Product Overview
Description
Product Description

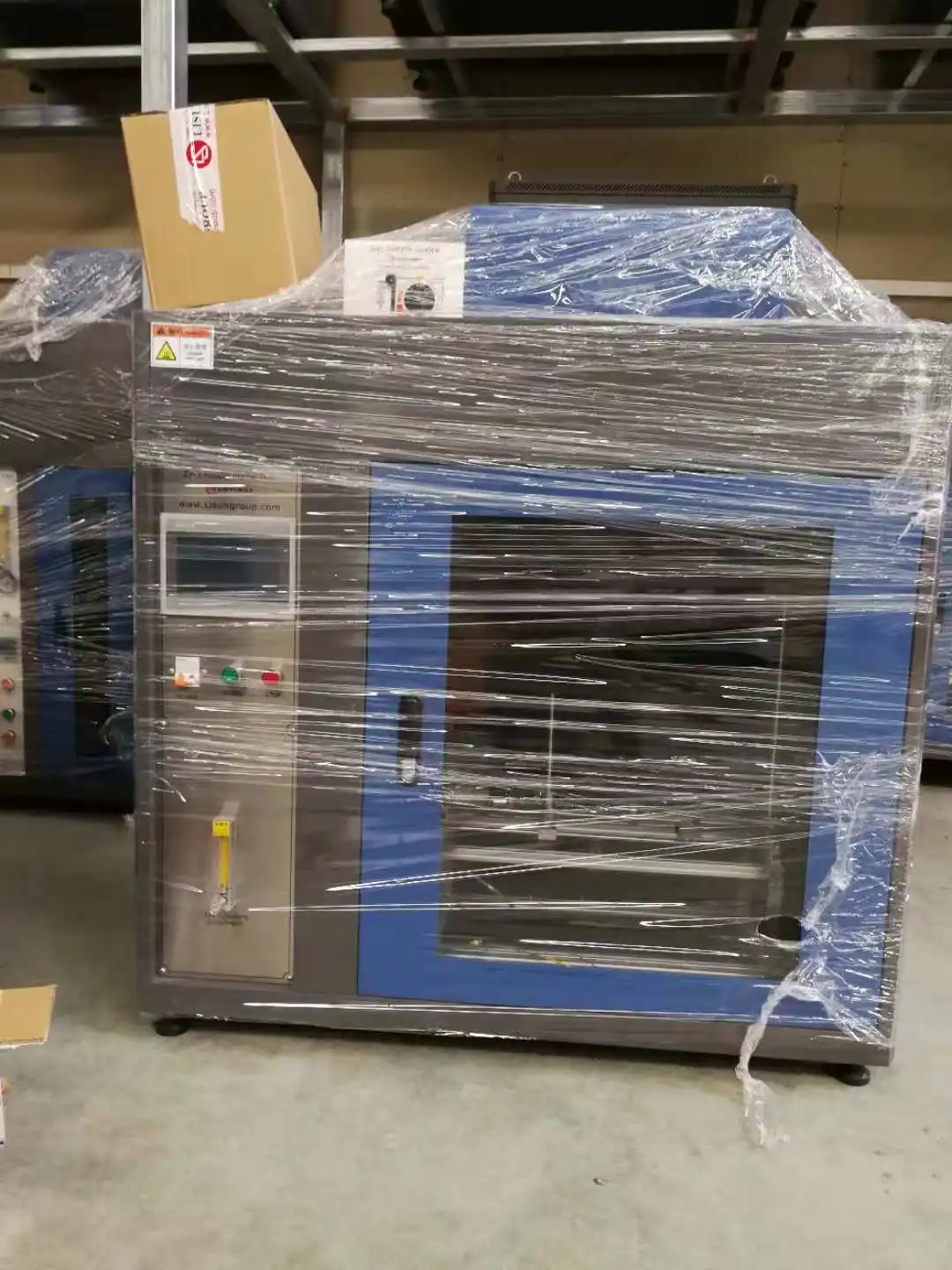

According to IEC60695-2-2 and IEC60695-11-5, GB/T-5169.5, ZY-3/ZY-3S needle flame test equipment is applied in the production and quality control department of lighting products, hyperpiesia electrical apparatus, domestic appliance, machine electric appliance, electrical machine, power tool, electronic instrument, electrician instrument and technical equipment. Also, the apparatus is fit for the industry of insulation material, engineering plastics and solid combustible material.
Specifications:
• Angle of burner: incline with 45° (when in test) / plumb (when adjust the flame’s height)
• Needle flame burning time: 0~999.9s±0.1s adjustable (30s in general)
• Sample burning time: 0~999.9s±0.1s, auto mark and pause manually
• Height of flame: 12mm±1mm (gauge is included)
• Burning air: 95% butagas
• Test range of temperature: 0~1000℃
• Requirement of flame’s temperature: the temperature rises from 100℃±2℃ to 700℃±3℃ within 23.5 seconds±1s
• Temperature testing thermocouple: Φ0.5mm K pattern thermocouple

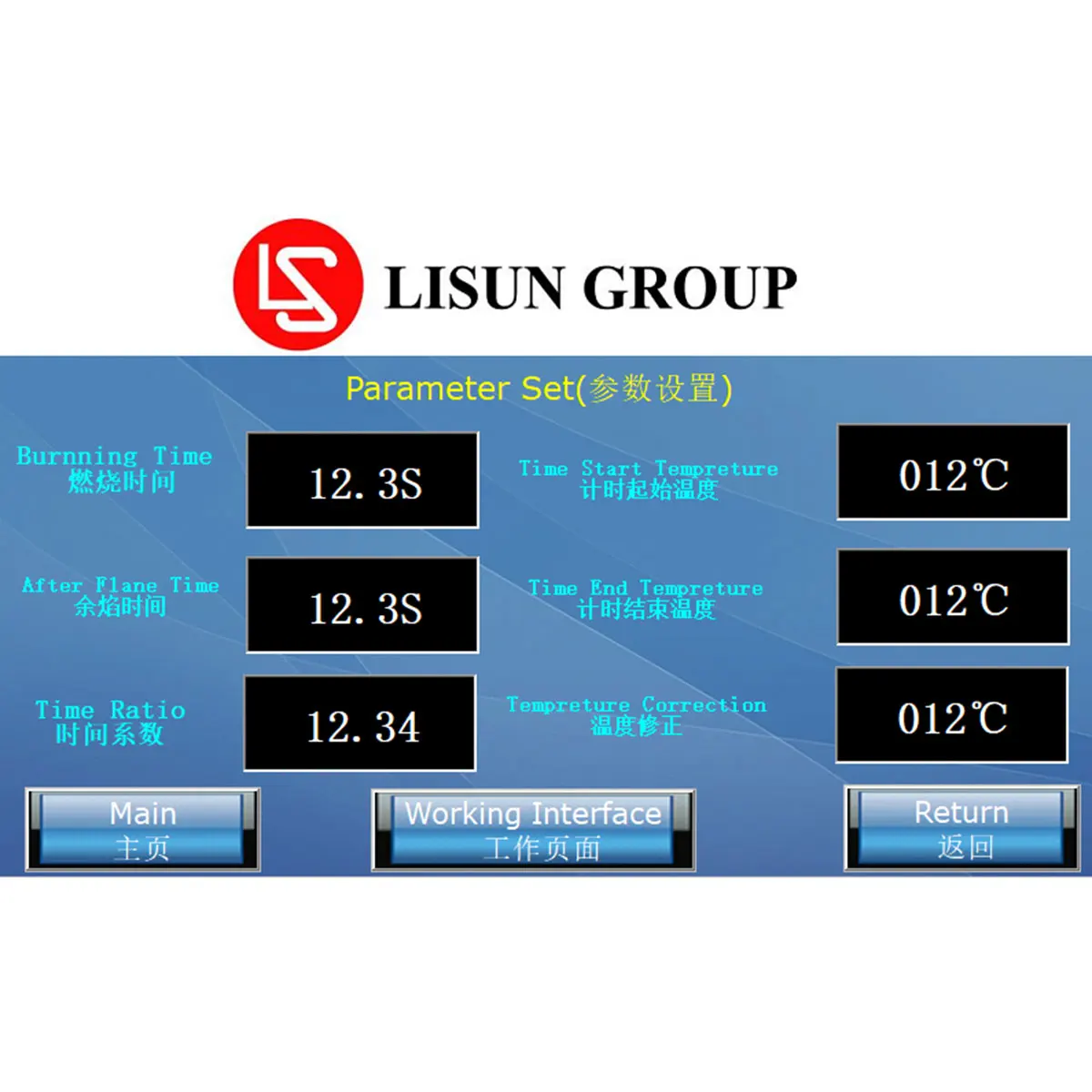

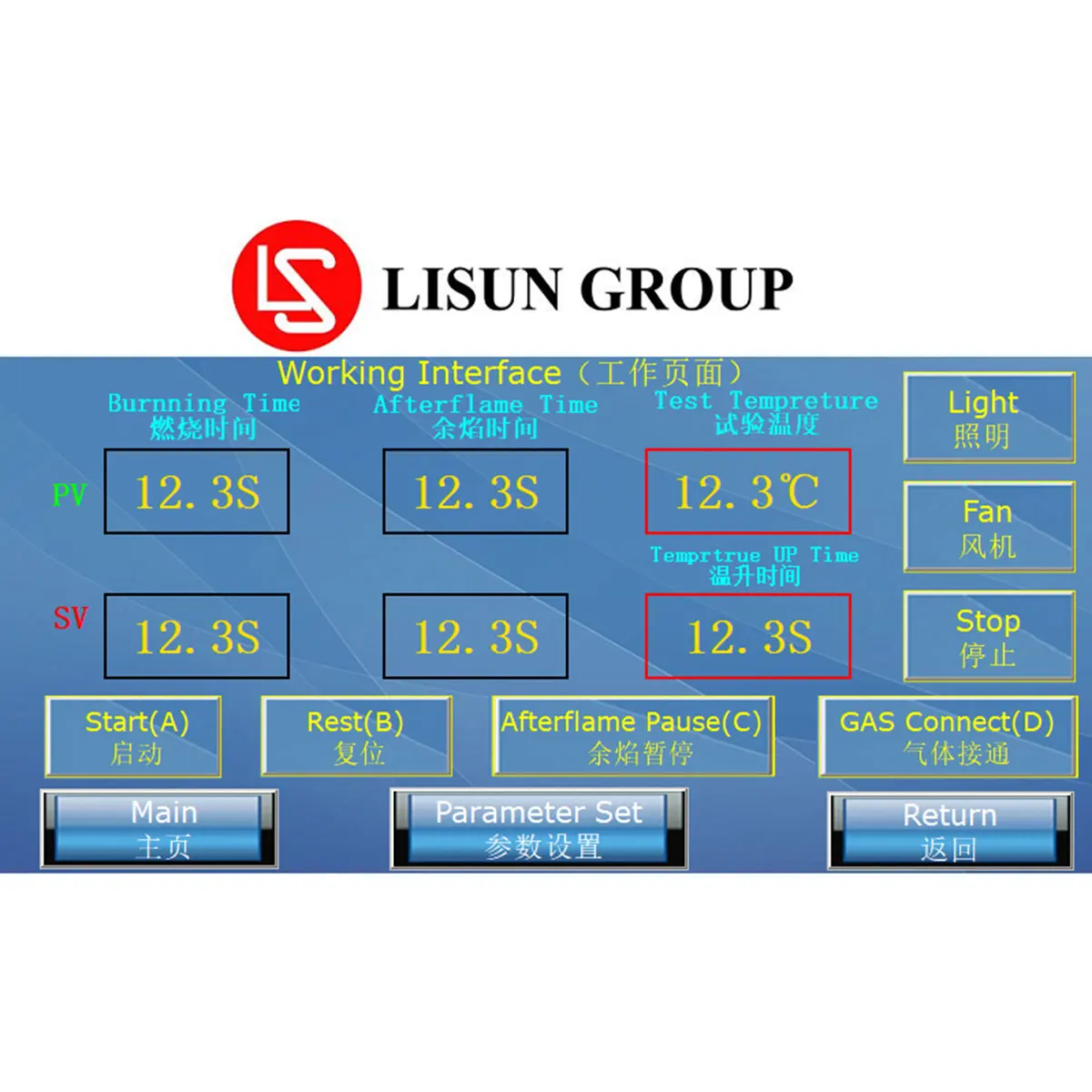

• Applied with touch screen and remote control

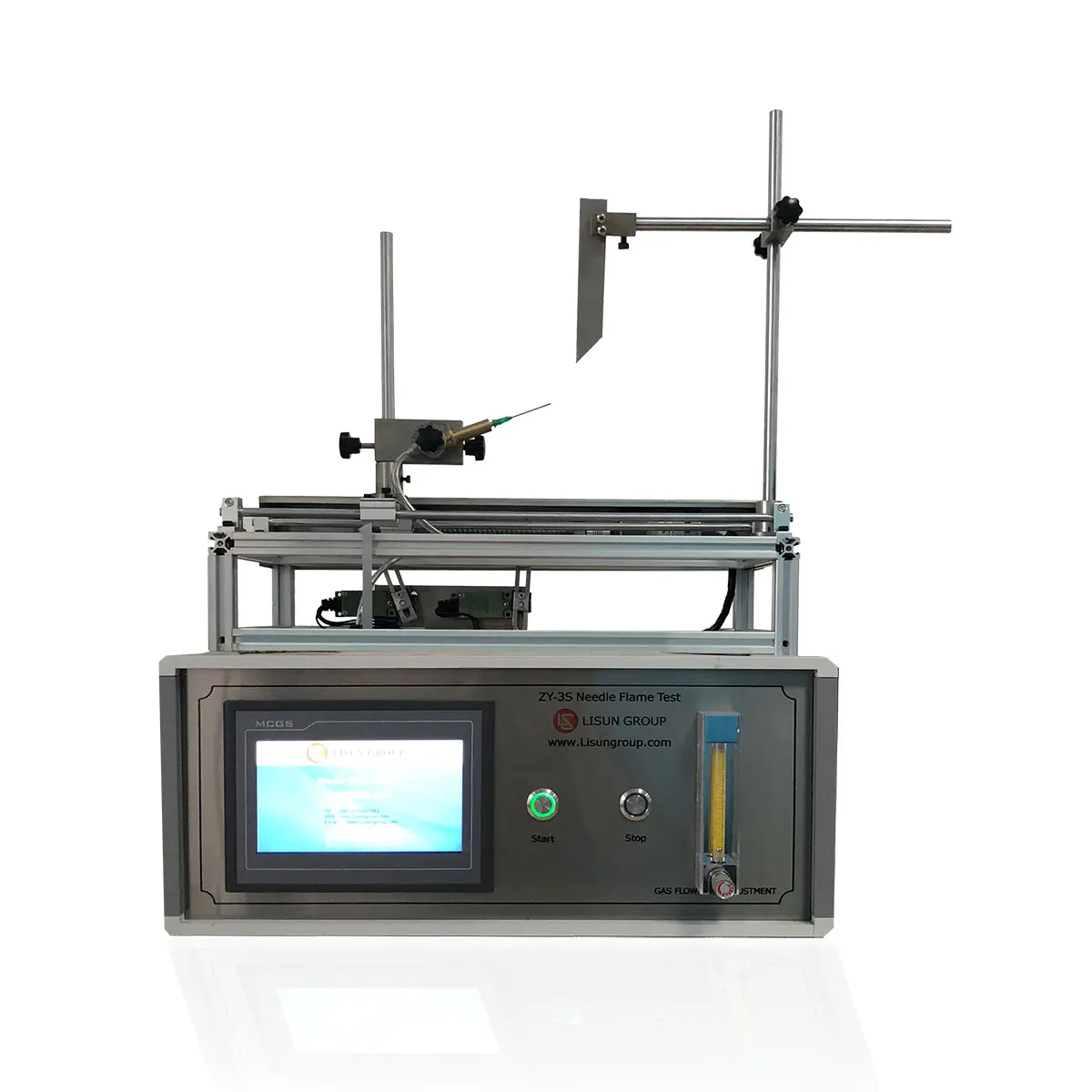

To save the delivery cost for the oversea market, LISUN designed a compact version needle flame test equipment which gross weight is less than 50kg. (Customer need to prepare additional ventilation system for ZY-3S)
