Torque amplifier speed reducer epitical high quality motor with planetary gear from Japan
- Category: >>>
- Supplier: Matex Co. Ltd.
Share on (11000000118974):
Product Overview
Description
Products Description
1.About the products

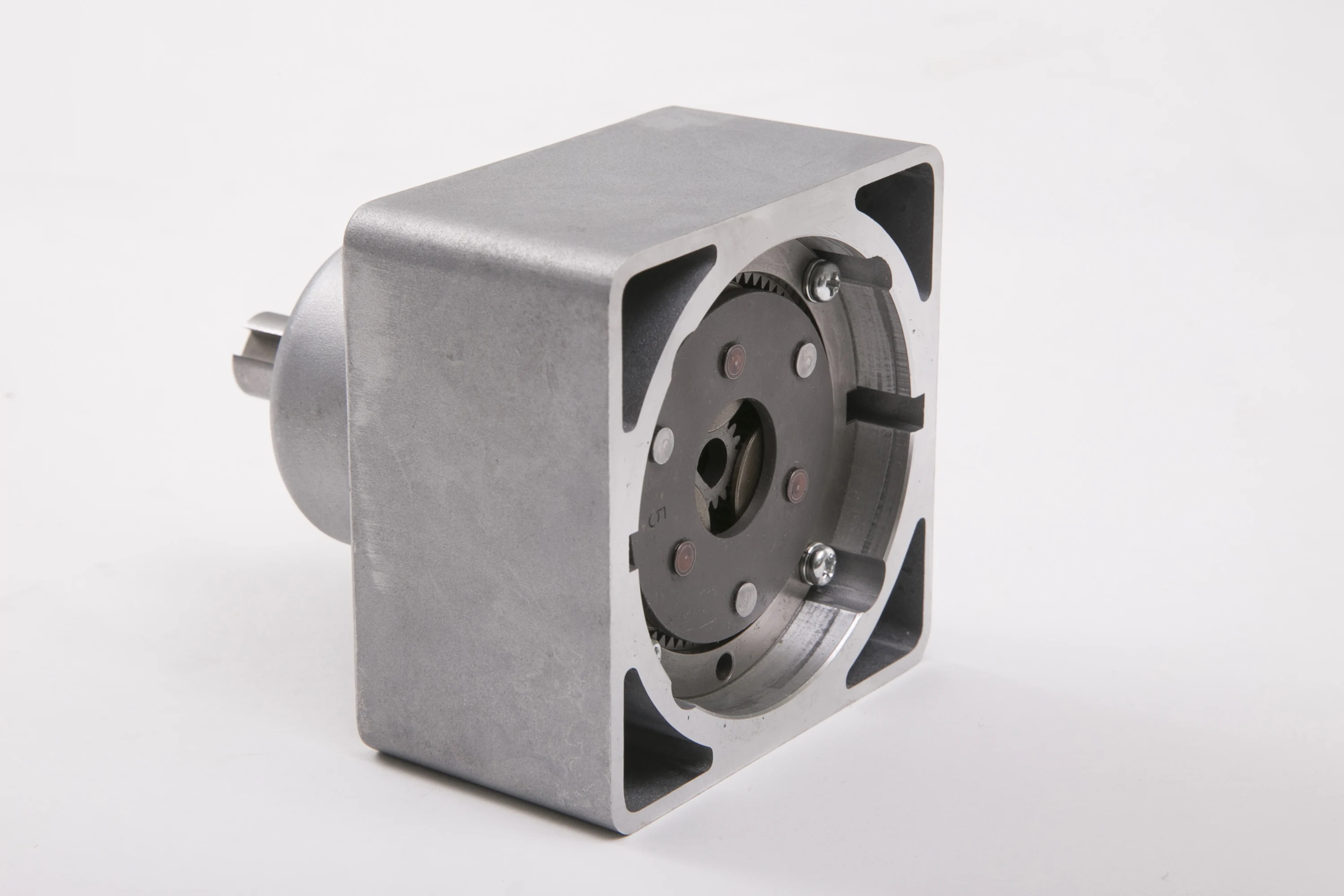

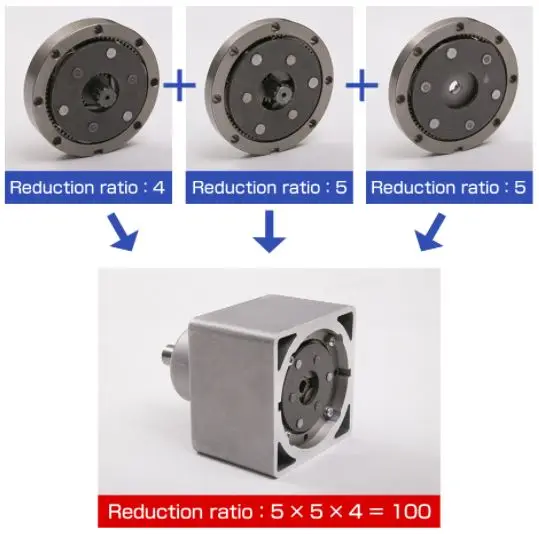

LGH75 series is a gearhead series by combining the long-trusted Matex planetary gear units and a simple gear case. Installng the gearhead series including our advanced manufacturing technology. you can not only reduce size and cost, but also efficiently improve the design process.
2.Advantages
-Excellent in mass production, enabling the cost reduction.
-Allowing backdrivability and supporting high radial load.
-Easier installation available in various types of motors.
3.Sales performance
Delivering to major manufacturers in the various fields, such as automobile industries, transportation machinery, agricultural machinery, wind power or industrial robots.
4.Expected customers and partners
Manufacturers of motors, industrial robots, mechanical products, etc.
LGH75 series is a gearhead series by combining the long-trusted Matex planetary gear units and a simple gear case. Installng the gearhead series including our advanced manufacturing technology. you can not only reduce size and cost, but also efficiently improve the design process.
2.Advantages
-Excellent in mass production, enabling the cost reduction.
-Allowing backdrivability and supporting high radial load.
-Easier installation available in various types of motors.
3.Sales performance
Delivering to major manufacturers in the various fields, such as automobile industries, transportation machinery, agricultural machinery, wind power or industrial robots.
4.Expected customers and partners
Manufacturers of motors, industrial robots, mechanical products, etc.

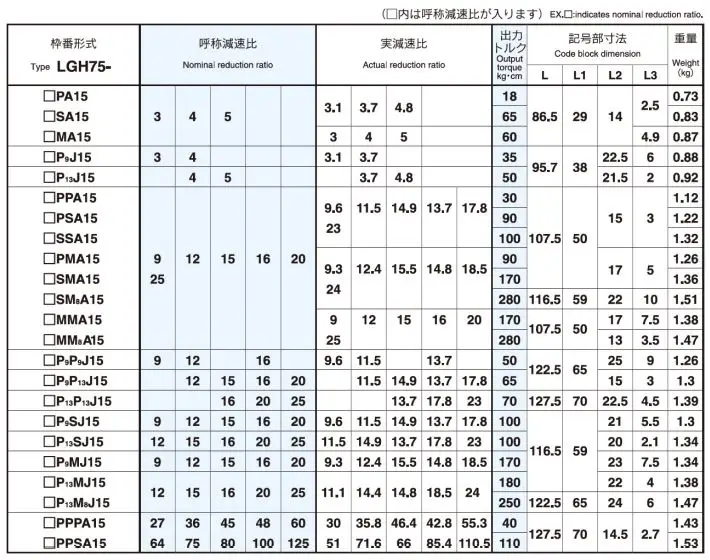

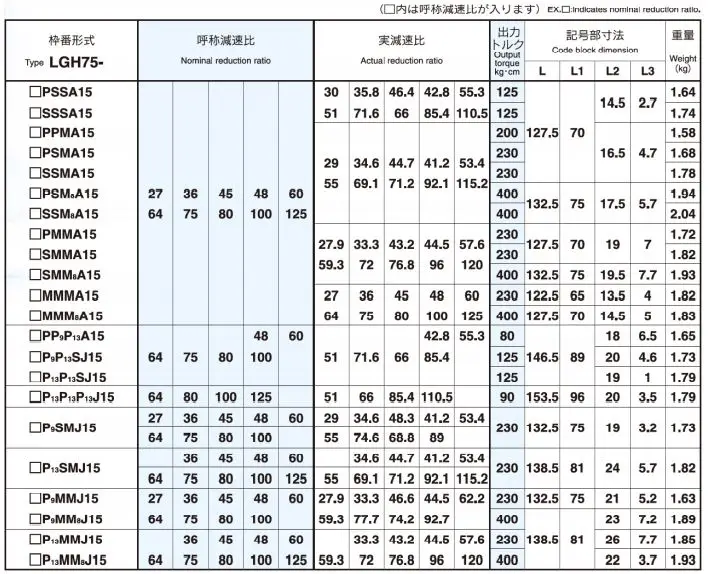

PA15 | PMA15 | SMMA15 | |
Number of Gear Units | 1 | 2 | 3 |
Speed Ratio | 3.1-4.8 | 9.3-24 | 27.9-120 |
Weight [g] | 730 | 1260 | 1820 |
Max . Torque[Nm] | 1.77 | 8.82 | 22.56 |
Company Profile
Matex is a professional group for designing and manufacturing of planetary gears, gearboxes, transmissions and plastic injection molding parts. We have many achievements in development and manufacturing according to customer's specifications including home appliances, machinery, automobile parts, and health equipment. In addition, we fully respond to your needs, including contracted development and manufacturing of mechanical parts such as actuators, power units, pumps, and plastic injection molding and assembly.
