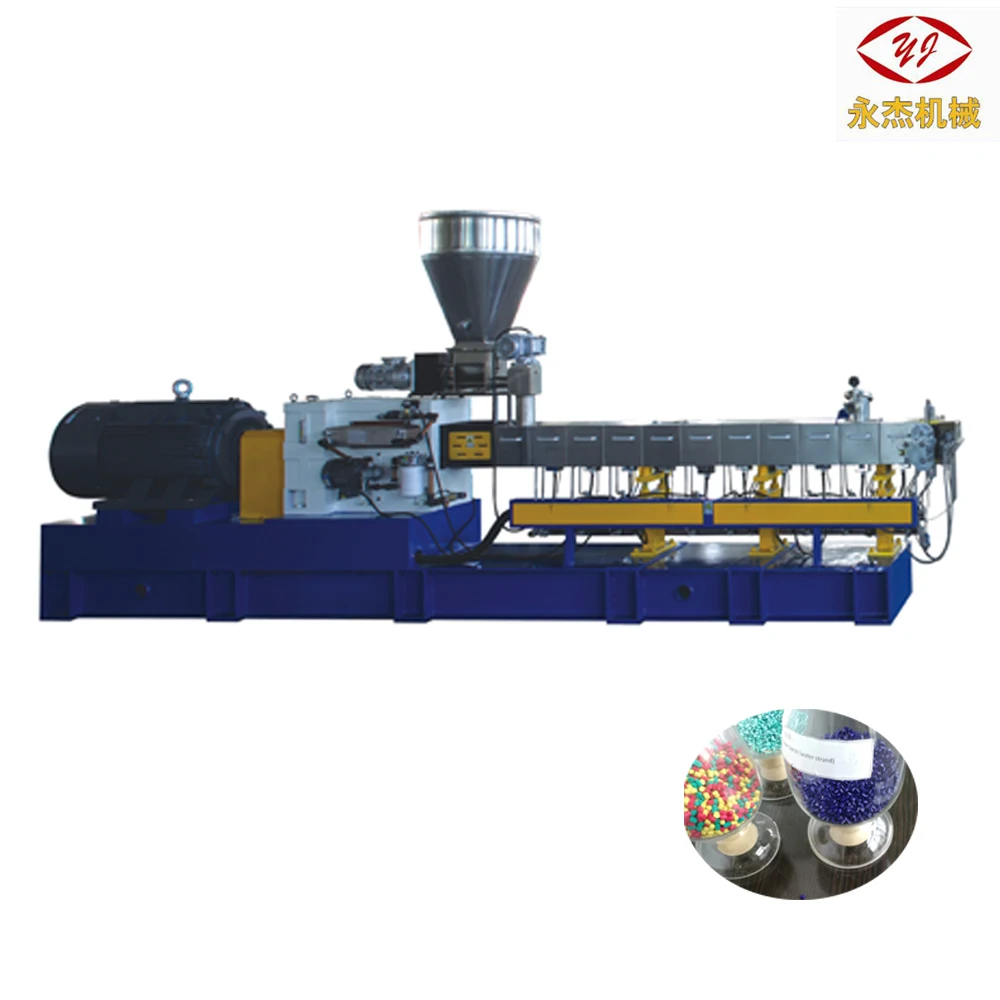

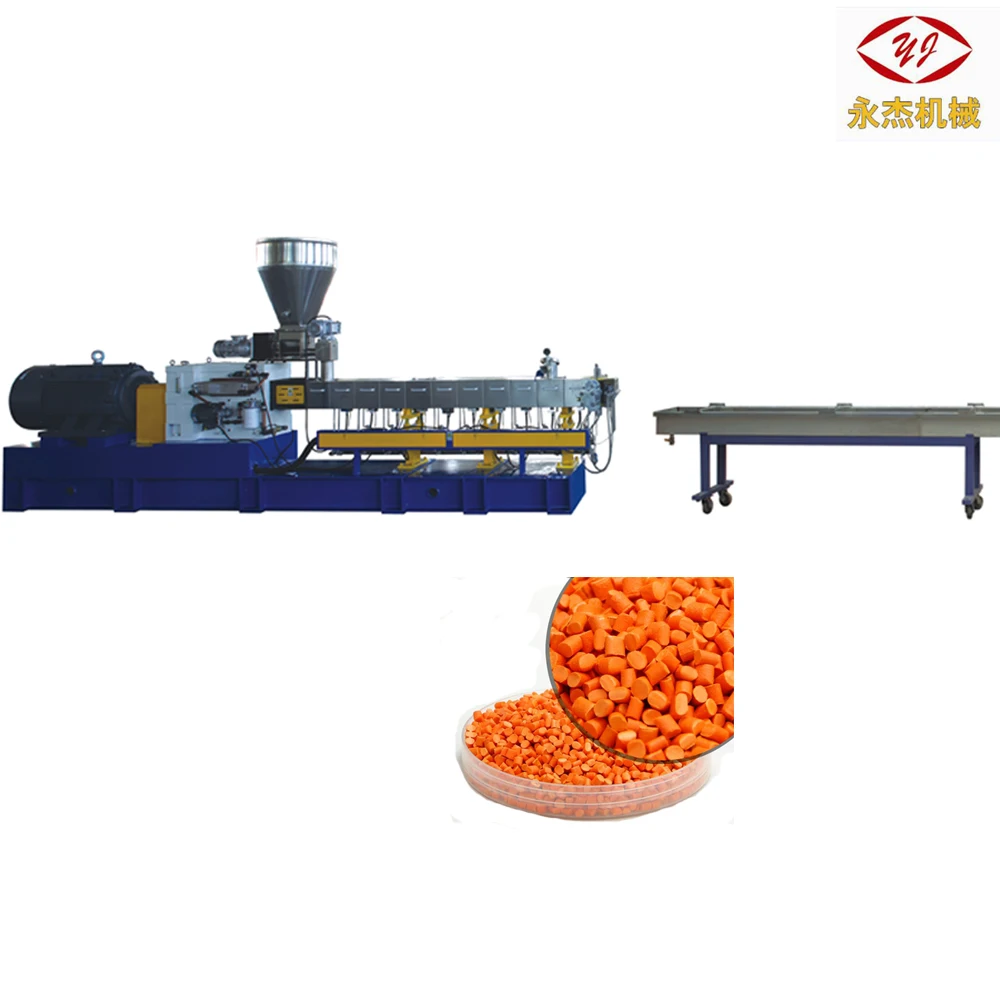

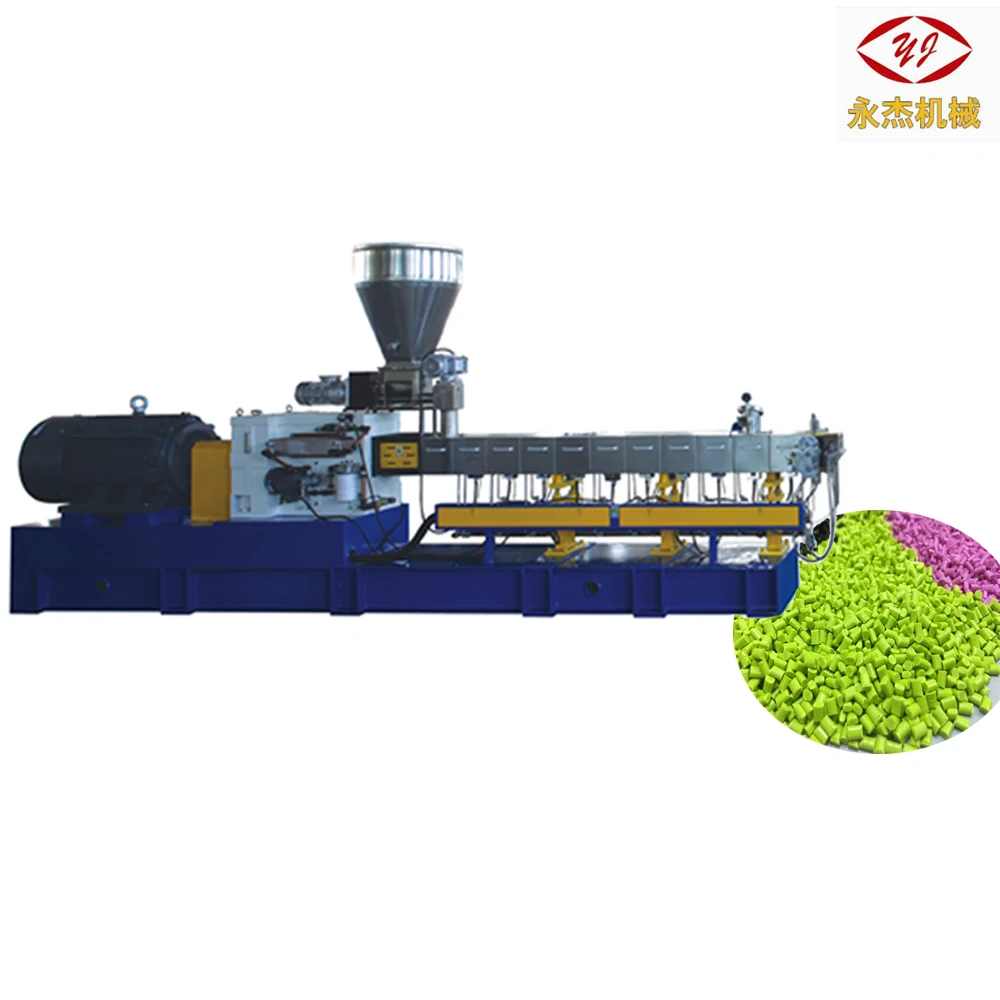

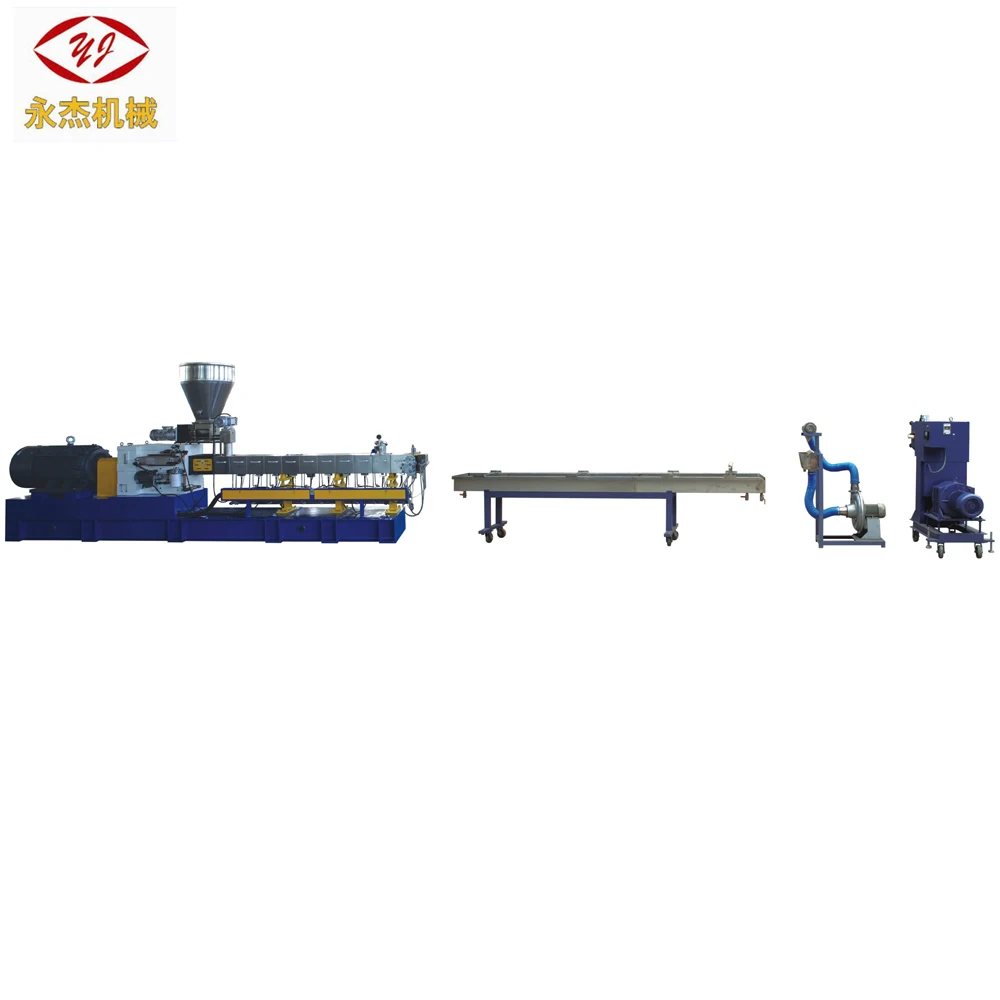

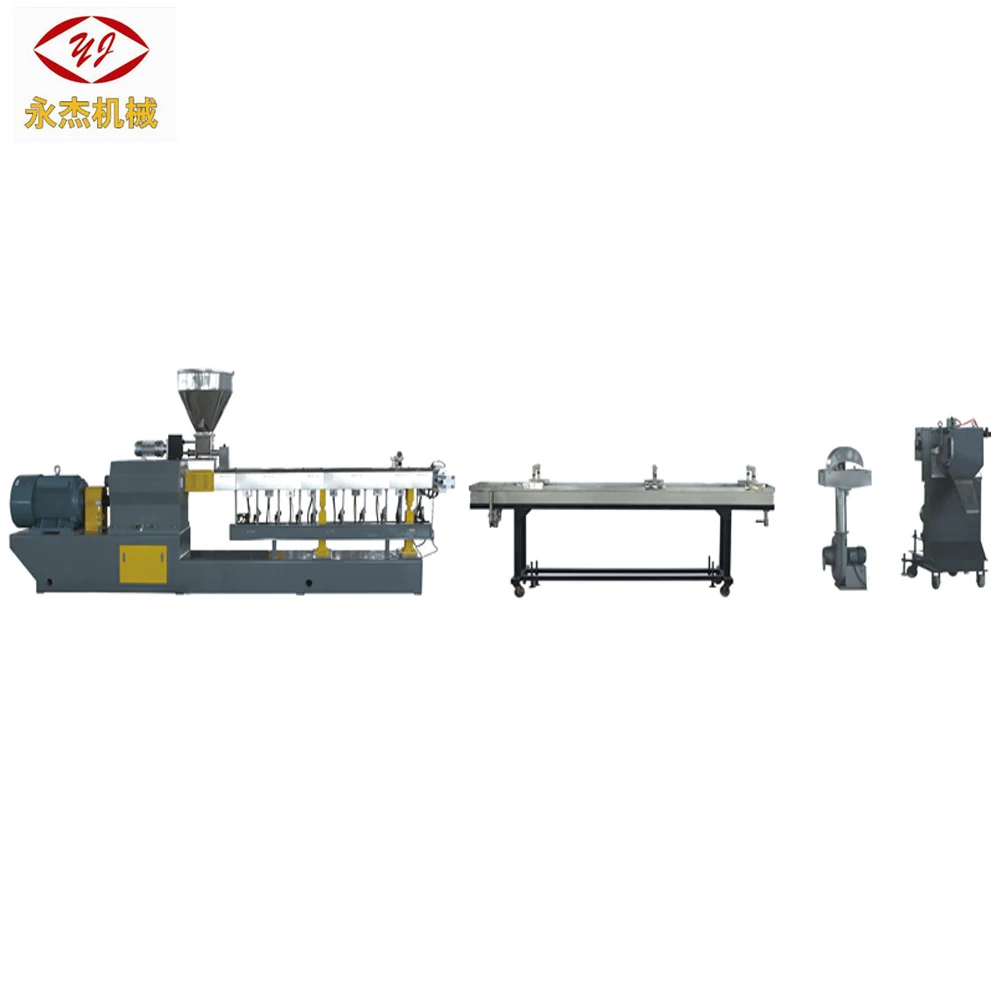

PE/PP/PVC double screw extruding granulator plastic pellet line

Nanjing Yongjie is specialized in pet flake recycling machine pet pelletizing machine for years. Our specially designed pet pelletizing machine uses underwater strand cutting, it can no waste material strand, and save the labour cost, more over super vacuum is adoted for our pet pelletizing machine, and pellets made by our extruder is with very low IV loss during production.


Main technical data of double screw extruding granulator






































































































Model type



Series



Barrel Diameter (mm)



Screw Diameter (mm)



Screw L/D



screw speed n(r/min)



Main motor power(Kw)



Screw torque T(N.m)



Torque rating (T/A3)



Typical production capacity (kg/h)



SJSL20



A/B



22



21.7



32-44



500/600



4/5.5kw



30/30











SJSL-36



A/B/C/D



36



35.6



32-48



400/600



11/15/18.5/22



125-225



4.6-8.3



30-120



SJSL-51



A/B/C/D



51



50.5



32-52



500/600



45/55/75/90



405-680



5.1-8.5



120-400



SJSL-65



A/B/C/D



63



62.4



32-64



500/600



75/90/110/132



680-1200



4.8-8.5



180-750



SJSL-75



A/B/C/D



72



71



32-64



500/600



110/132/160/250



995-1890



4.6-8.7



300-1200



SJSL-95



A/B/C/D



94



93



32-64



500/600



250/315/450/550



2260-4510



4.7-8.7



700-2500



SJSL-135



A/B/C/D



135



133



32-48



400/500



550/750/900/1200



6200-10800



4.4-7.7



1550-6500













Image & Data

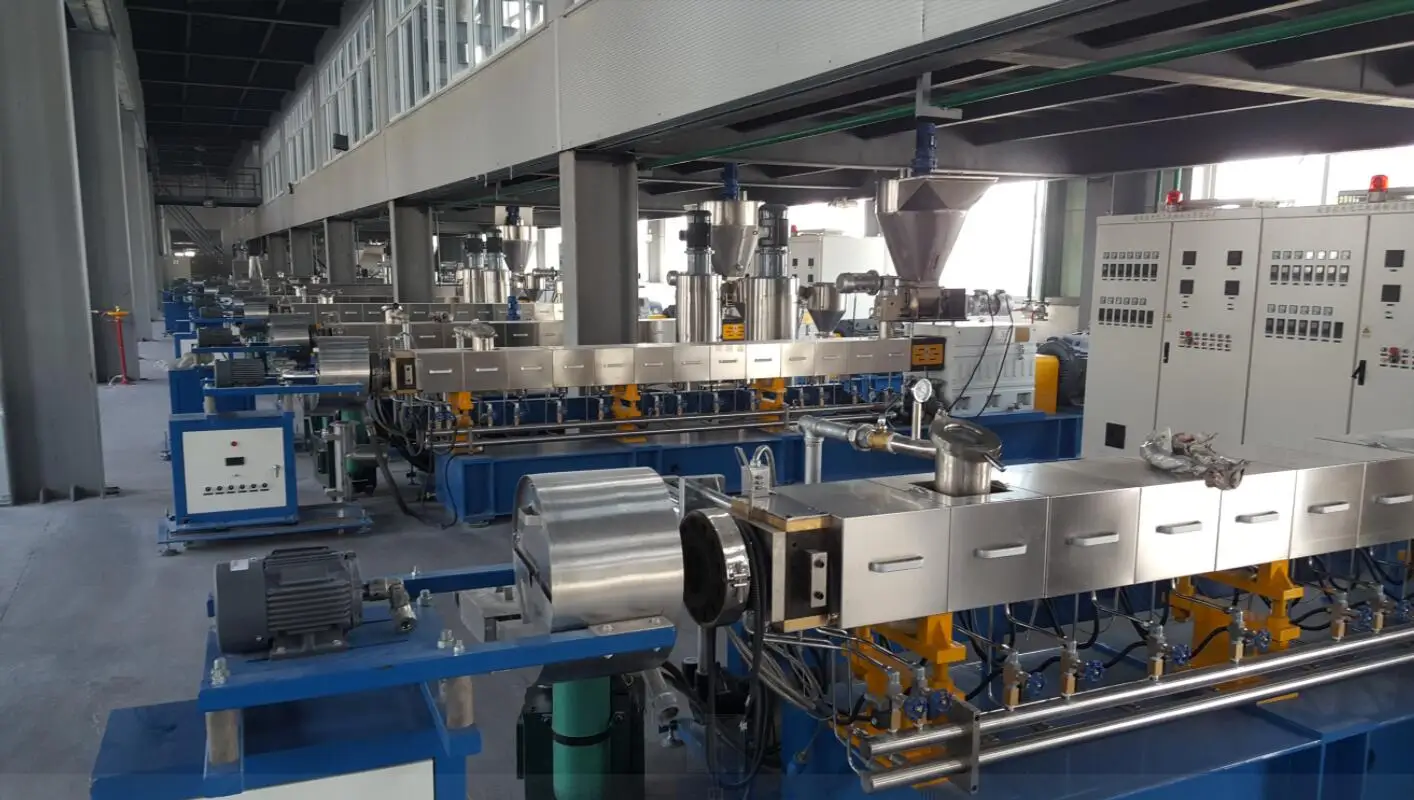

20 sjsl-75B









Technical details of double screw extruding granulator



















1. Main Parts of double screw extruding granulator


Name: Twin-screw extruder
Brand: YJMotor: AC motor, power:160KW, brand: SIEMENS Bade,
Speed governing: Sweden ABB inverter control speed,
Revolutions:600rpm
Reduction ratio: i =2.5:1









1.1. Main Parts of  double screw extruding granulator


Name: Gearbox
Brand: YJ
Parallel tri-axial structure is combination of reduction and matrix. The gear is made of high quality alloy (20CrNi2Mo).Drive bearing: The brand of axletree: Japanese NSK.
Lubrication: Gear bearings in the gear box will be of oil immersed. There is hydraulic lubrication in the gear engagement and gear bearings.
Cooling: Lubricated cooling adopts shell and tube cooler and circulated water cooling method.



1.2.Main Parts of double screw extruding granulator


Name: Screw
Brand: YJ
Direction of rotation: co-rotating;
The screw elements material is W6Mo5Cr4V2(6542#)
The core axis is made of high quality alloy steel 40CrNiMo








Company Information





.jpg


.jpg

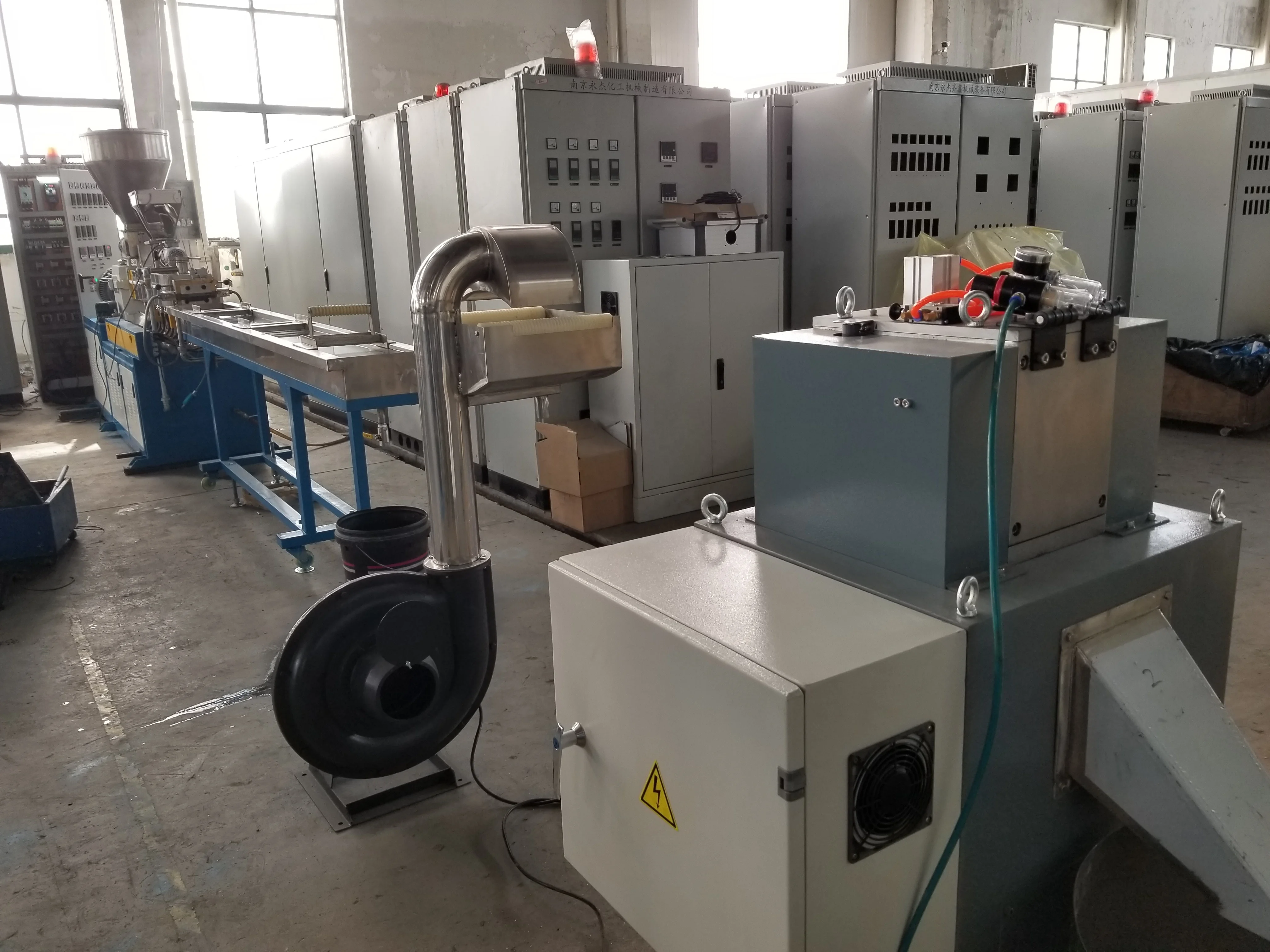

Our projects
