Japan stackable Electric vehicle LGU120 torque amplifier speed reducer gear box electric motor
- Category: >>>
- Supplier: Matex Co. Ltd.
Share on (11000000147145):
Product Overview
Description
Products Description
What Planetary Gear is
(Alibaba Live Stream) \t
(Alibaba Live Stream) \t
What planetary gear is, and advantages of planetary gear compared to usual spur gear are explained first.
You will also know pros of our Matex planetary gear and favorable application areas through the video.
You will also learn how to choose a right gear from rich planetary gear lineup.

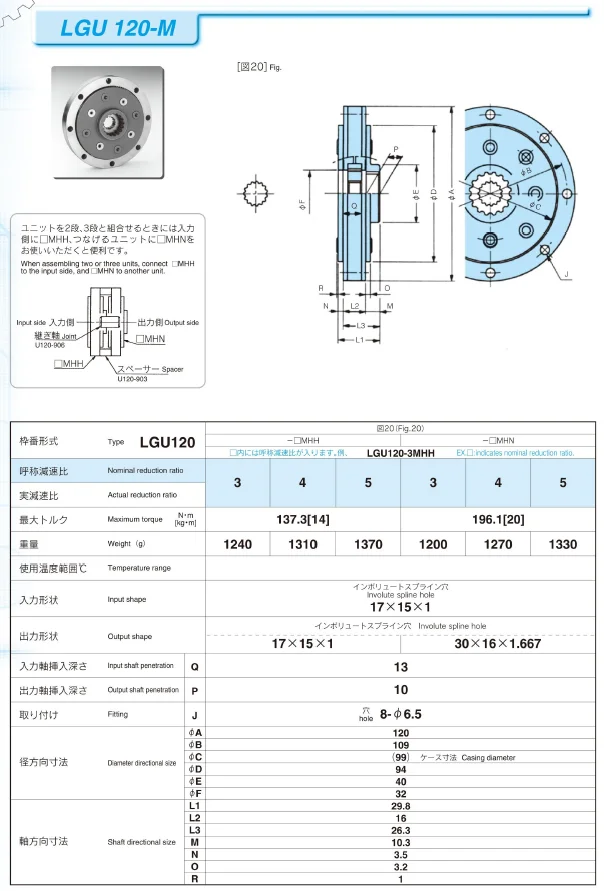

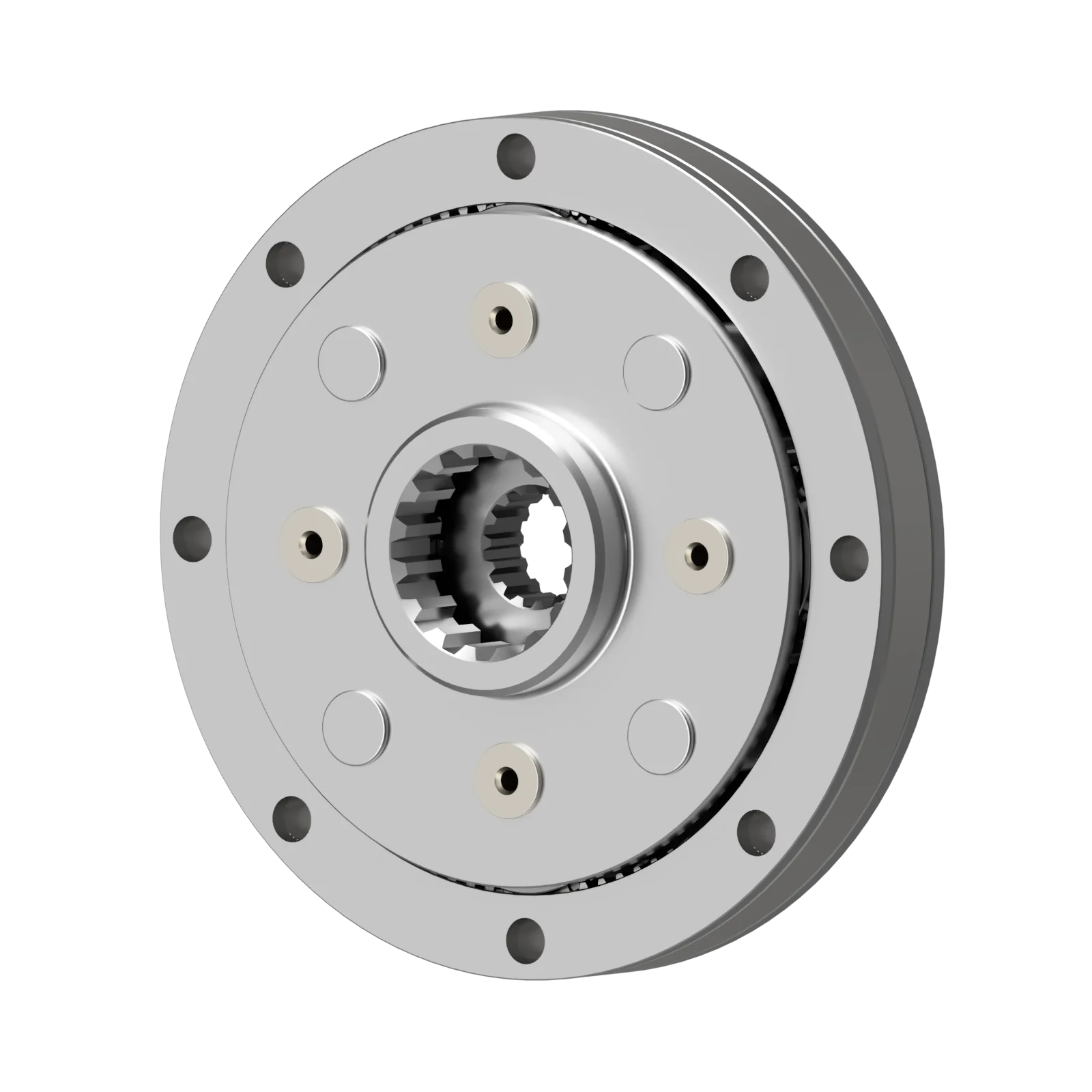

LGU120-M Series Metal Planetary Gear Reducer
Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.
Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.
Applicable Industries | Manufacturing Plant, Automotive Maker |
Gearing Arrangement | Planetary |

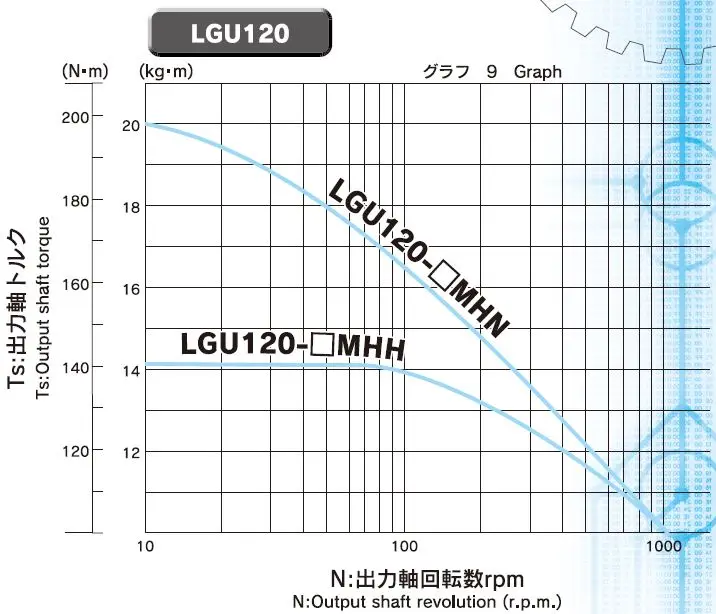

Output Torque | 137.3-196.1Nm |
Input Speed | 3000-5000rpm |
Output Speed | 1000rpm |
Place of Origin | Japan |
Brand Name | Matex |
Product name | Planetary Gear Reducer |
Ratio | 3:1-5:1 |
Input Form | Involute Spline Hole |
Output Form | Involute Spline Hole |
Gear material | Metal |

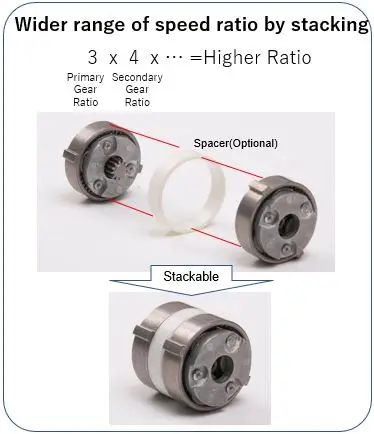

Structures | Stackable |

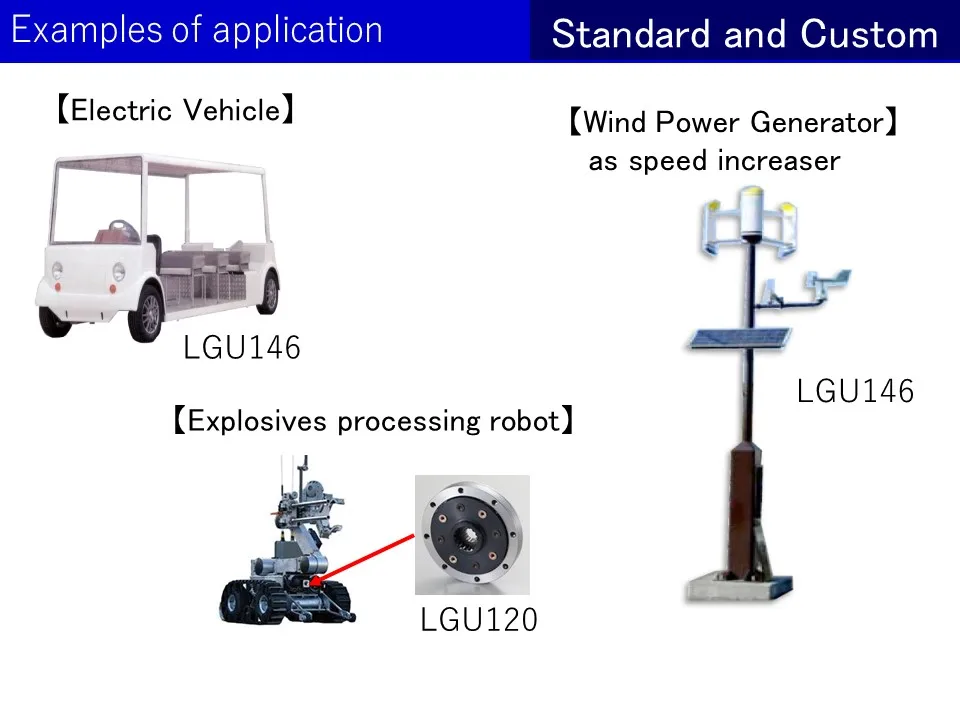

Examples of application

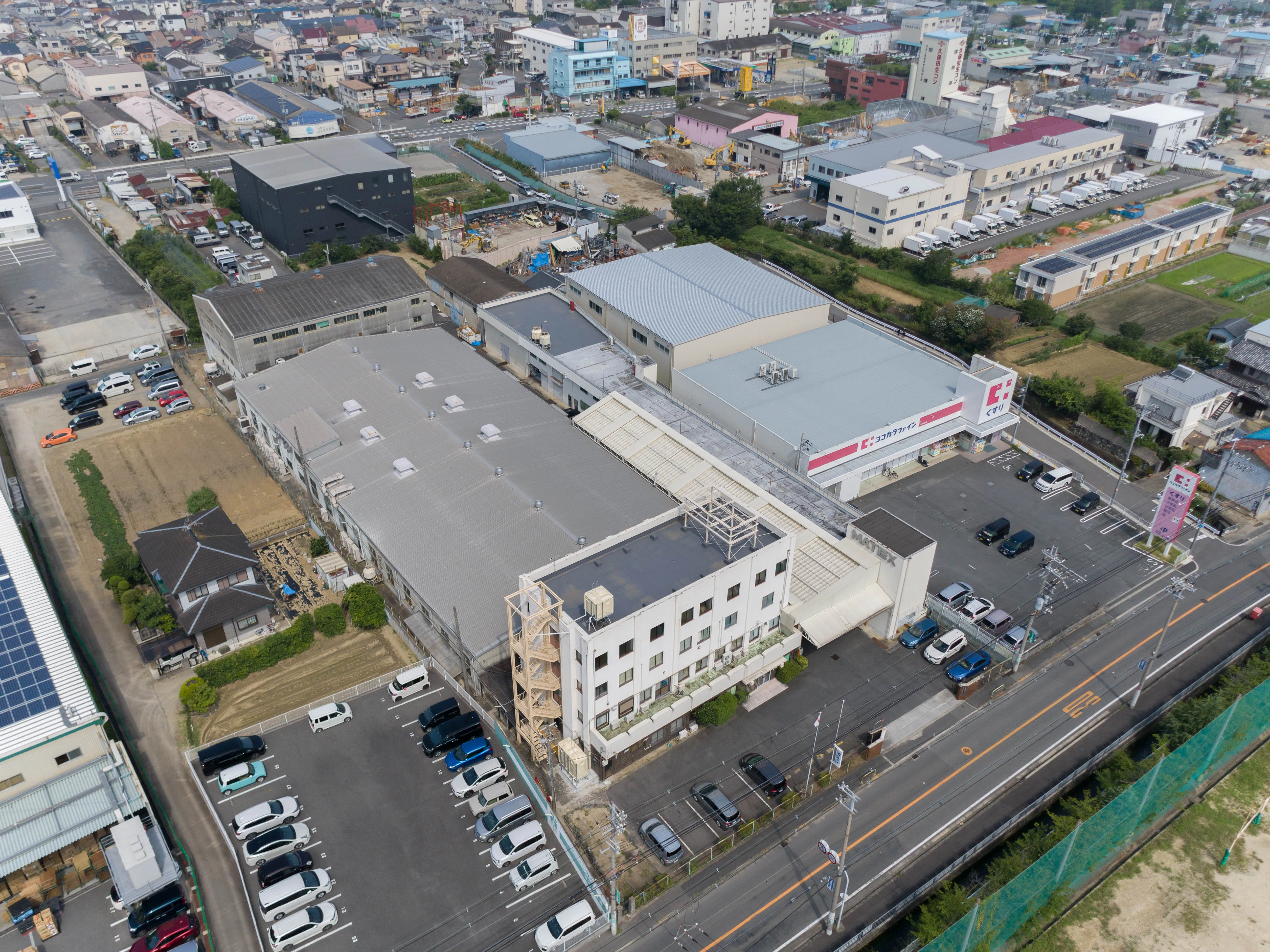

Company Profile
Matex is a professional group for designing and manufacturing of planetary gears, gearboxes, transmissions and plastic injection molding parts. We have many achievements in development and manufacturing according to customer's specifications including home appliances, machinery, automobile parts, and health equipment. In addition, we fully respond to your needs, including contracted development and manufacturing of mechanical parts such as actuators, power units, pumps, and plastic injection molding and assembly.
