High quality Automatic PCB Dry Film Lamination Machine

Name: High quality Automatic PCB Dry Film Lamination Machine
SKU: 11000000172082
Availability: InStock

Price:

Quantity:

Product Description

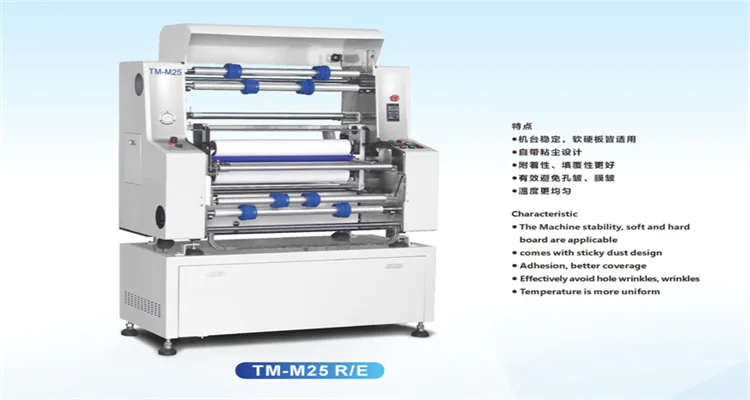

Characteristic:

1, The machine is stability, soft and hard board are applicable

2, Comes with sitcky dust design

3, Adhesion, better coverage

4, Effectively avoid hole wrinkles, wrinkles

5, Temperature is more uniform

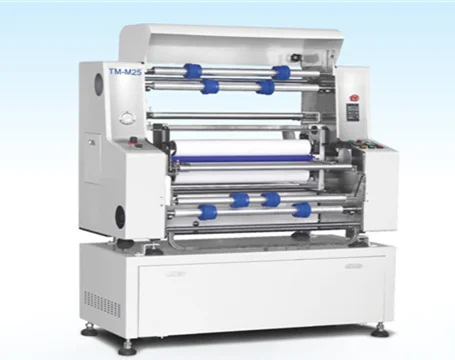

TM-M25 R/E
Project			Specification
Panel Dimetion			Length: 250—635mm(10—25”) Width: 250—635mm(10”—25”) Thickness: 0.05mm(without copper) to 3.2mm(0.002-0/0.12")
Dry film dimension			Length: 200m Width: 250—635mm(10”—25”) Thickness: 15--76μm(0.6—3.0mil)
Lamination process			Laminating speed: 1—4m/min(39.37-157.48in/min) adjustable Pressure: 3—5 kgf/cm2 (40—70Psi) Pressure roll size: Φ78.6×760mm CSL-M25r CSL-
Utilities			Air supply: compressed air @ 6Kgf/cm(90psi), 40L/min Power: AC380V 3Phs 50HZ 12KVA(various power available
Dimension/weight			External dimension: L1200×W750×H1800mm/600Kg Pass line: 950±50mm
Exhaust			Φ5” × 2(4cmm)
