Torque amplifier powered cylinder gearhead speed reducer gear pump machine
- Category: >>>
- Supplier: Matex Co. Ltd.
Share on (11000000180046):
Product Overview
Description
Products Description

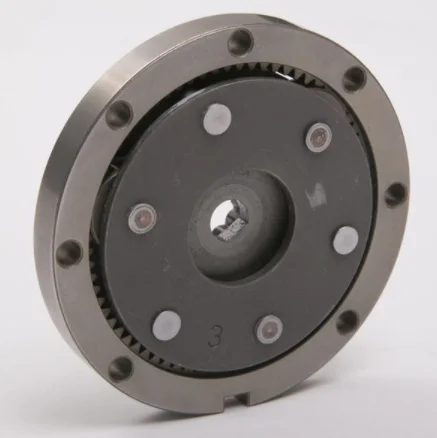

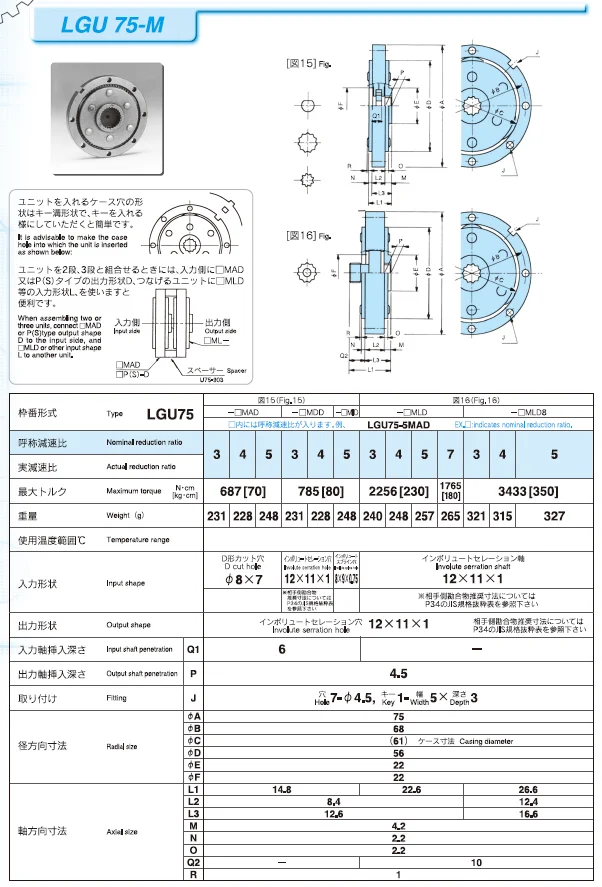

LGU75-M Series Metal Planetary Gear Reducer
Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.
Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.
Applicable Industries | Manufacturing Plant, Automotive Maker |
Gearing Arrangement | Planetary |
Output Torque | 687-2256Ncm |
Input Speed | 3000-7000rpm |
Output Speed | 1000rpm |
Place of Origin | Japan |
Brand Name | Matex |
Product name | Planetary Gear Reducer |
Ratio | 3:1-7:1 |
Input Form | D Cut Hole / Involute Serration Hole or Shaft / Involute Spline Hole |
Output Form | Involute Serration Hole |
Gear material | Metal |

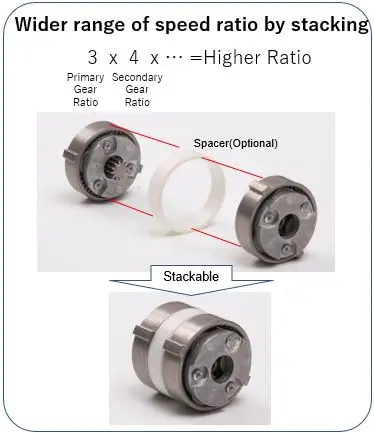

Structures | Stackable |
Examples of application
Company Profile
Matex is a professional group for designing and manufacturing of planetary gears, gearboxes, transmissions and plastic injection molding parts. We have many achievements in development and manufacturing according to customer's specifications including home appliances, machinery, automobile parts, and health equipment. In addition, we fully respond to your needs, including contracted development and manufacturing of mechanical parts such as actuators, power units, pumps, and plastic injection molding and assembly.
