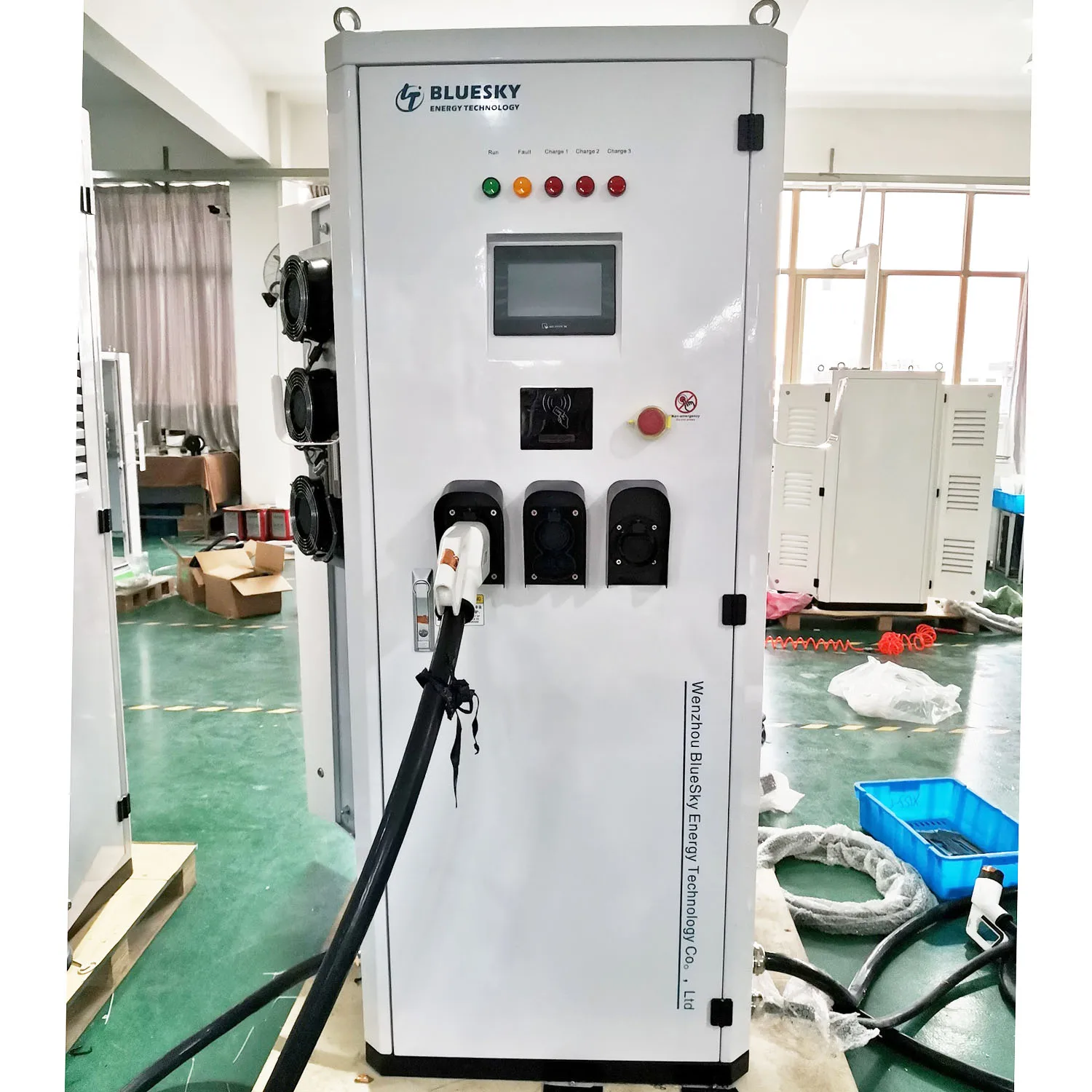

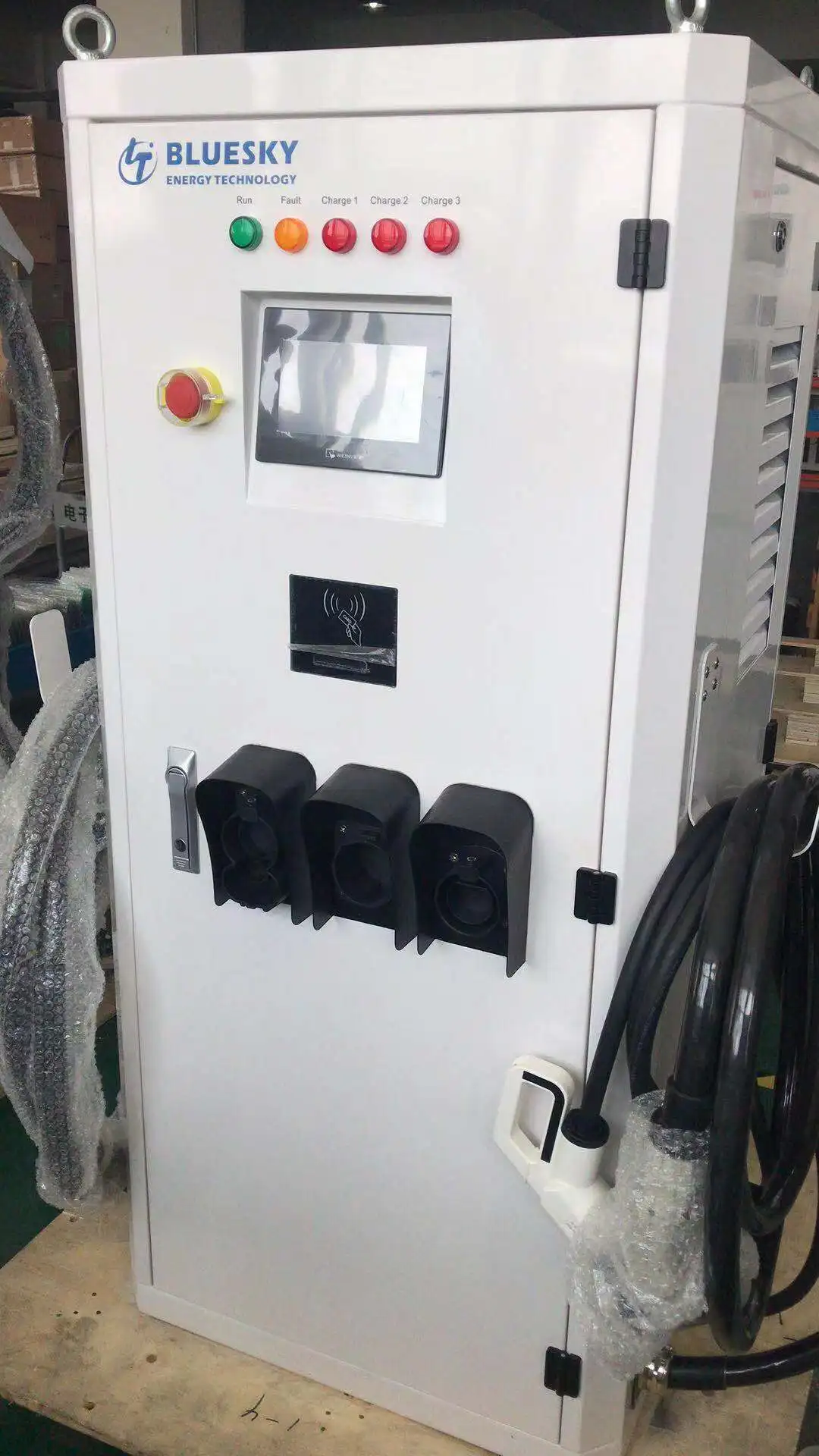

67kw AC DC Integrated ev charging pile CCS combo 2 CHAdeMO Type2 DC fast EV charger
- Category: New Energy Vehicle Parts & Accessories >>>
- Supplier: Wenzhou Bluesky Energy Technology Co. Ltd.
Share on (11000000213198):
Product Overview
Description
30KW+30KW+7KW/DC500VAC415V Simultaneous charging Three connectors(CCS+CHAdeMO+Type 2)specifications
30KW+30KW+7KW/DC500V/AC415V Simultaneous charging Three connectors(CCS+CHAdeMO+Type 2)specifications | |||
Outlet specifications | (option) | (option) | (option) |
Connection standard | CCS Combo2 (IEC 61851-23) | CHAdeMO 1.0 | IEC 61851-1 |
Connector/socket type | IEC62196-3 CCS Combo2 Mode 4 | CHAdeMO Mode 4 | IEC 62196-2 Type 2 Mode 3 |
Vehicle Safety Communication | CCS Combo2 – IEC 61851-23 over PLC | CHAdeMO – JEVS G105 over CAN | IEC 61851-1 PWM (AC Type 2) |
System output voltage range | 150-500VDC | 400/415VAC | |
Number of output interface configuration modules | 15kW×2 | 15kW×2 | 7kW×1 |
Connector maximum output current | 70A | 70A | 32A |
Compliance and safety | CE | CE | CE |
Cable length | 4m | 4m | 4m |
General specifications | |||
Environment | Indoor / outdoor | ||
Operating temperature | ,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc | ||
Storage temperature | ,-40 ºC to +70 ºC | ||
RFID system | ISO/IEC14443A/B, ISO/IEC15693, FeliCa™ 1, NFC reader mode, LEGIC Prime & Advant | ||
Payments | Smart Card, Server based Online Payments or equivalent | ||
Network connection | GSM / CDMA / 3G modem, 10/100 Base-T Ethernet | ||
Interaction Display | Full-color (7 in 800x480 TFT ) LCD display for driver interaction | ||

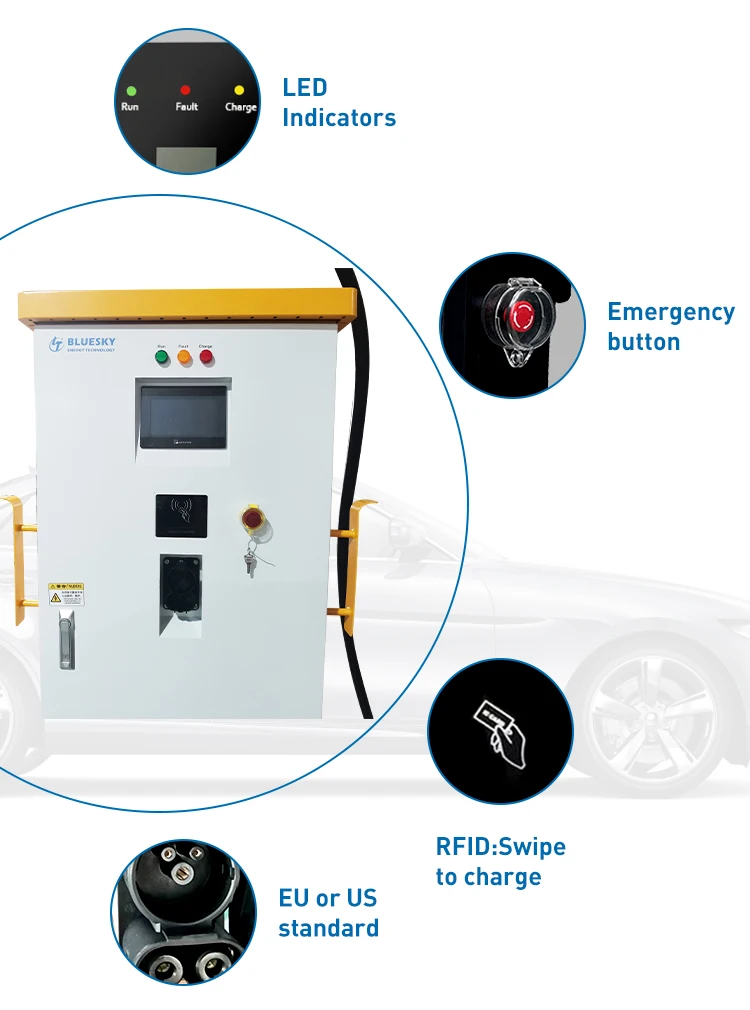

Visual Indicators | Error indication, Presence of input supply indication, Charge process indication and other relevant information | ||
safety protection | Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock | ||
Push Button | Mushroom type emergency stop switch (Red) | ||
Supported Communication Protocols | OCPP1.6 | ||
Protection | IP54 | ||
Dimensions (D x W x H) | 600×690×1500 mm | ||
Input Chracteristics | |||
AC Supply System | Three-Phase, 5 Wire AC system (3Ph.+N+PE) | ||
Nominal Input voltage | 3Ø, 260~530VAC | ||
Input Frequency | 50Hz, ±10Hz | ||
Input Supply Failure backup | Battery backup for minimum 1 hour for the control system and billing unit. Data logs should be synchronized with CMS | ||
Power Module | |||
Max Output Power per Module | 15kW | ||
Max Output Current per Module | 35A | ||
Output voltage range for each module | 150-500VDC | ||
Converter Efficiency | Maximum efficiency >95% | ||
Power factor | Rated output load PF ≥ 0.99 | ||
Voltage regulation accuracy | ≤±0.5% | ||
Current sharing accuracy | ≤±0.5% | ||
Steady flow accuracy | ≤±1% | ||
Connector parameters 1# | |||
Rated voltage | DC1000V | ||
Rated current | 150A | ||
standard | IEC62196-3 CCS2 | ||
Electromagnetic lock | NO | ||
Temperature Sensor | no | ||
communication interface | PLC | ||
