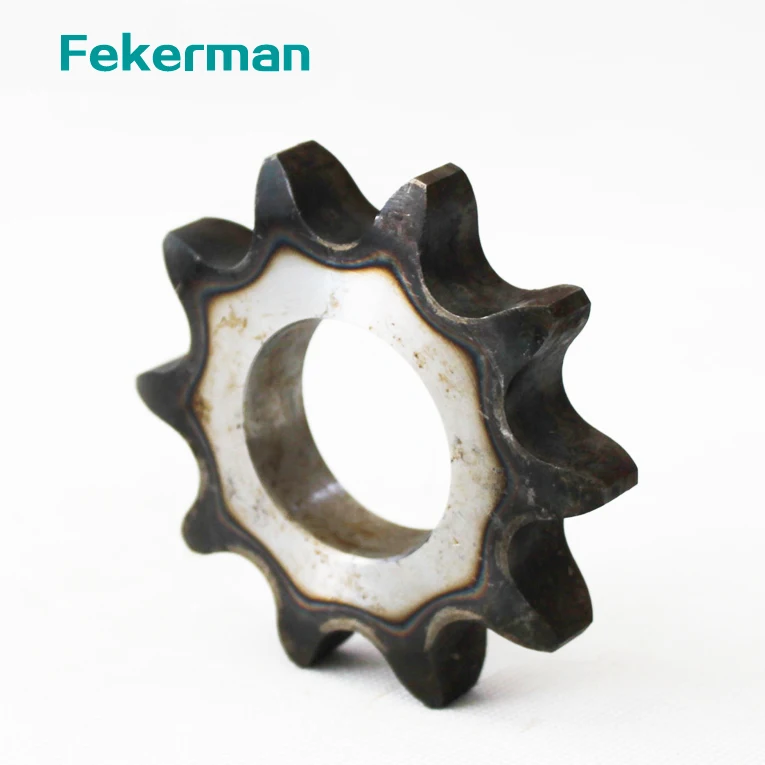

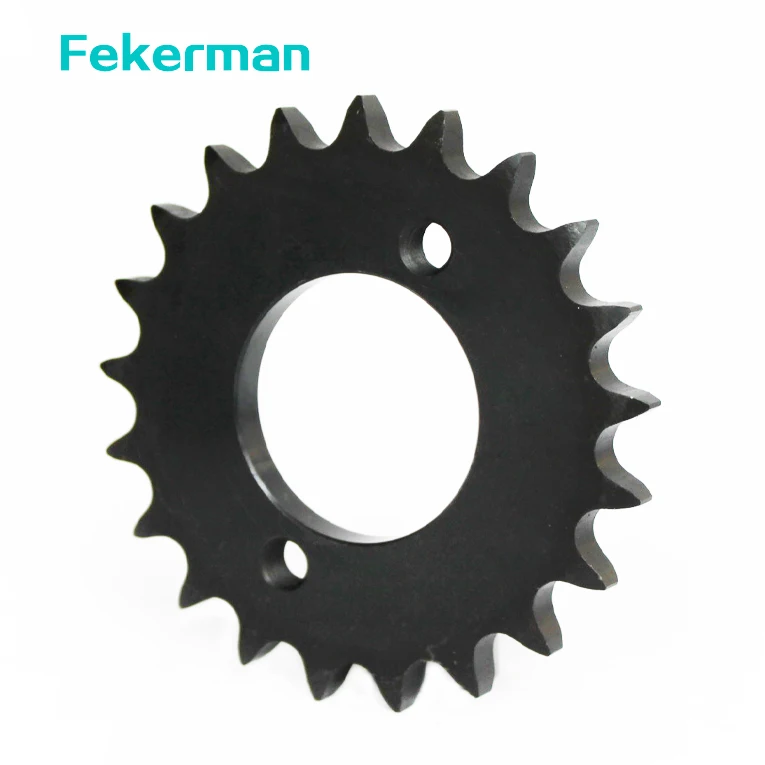

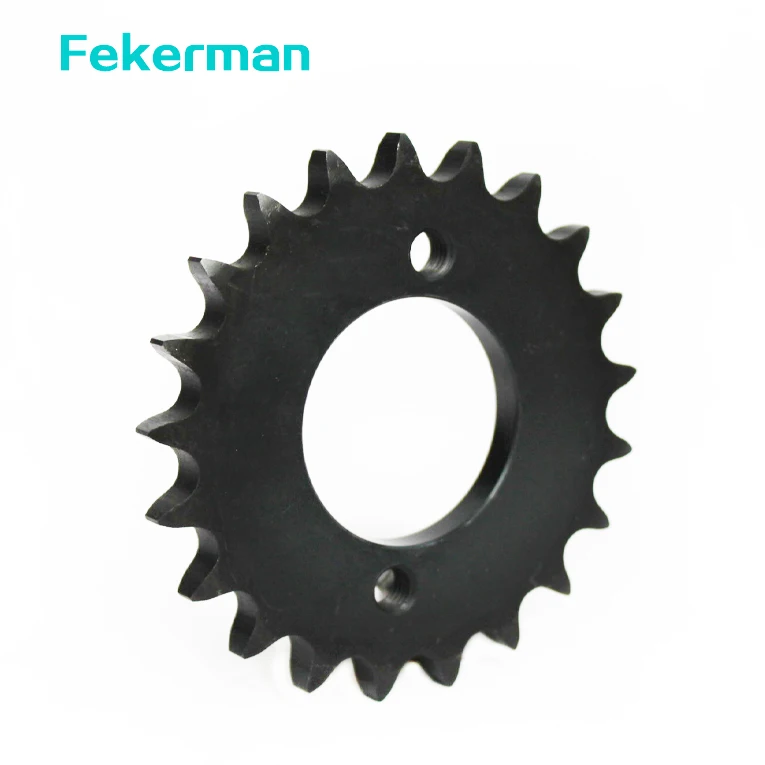

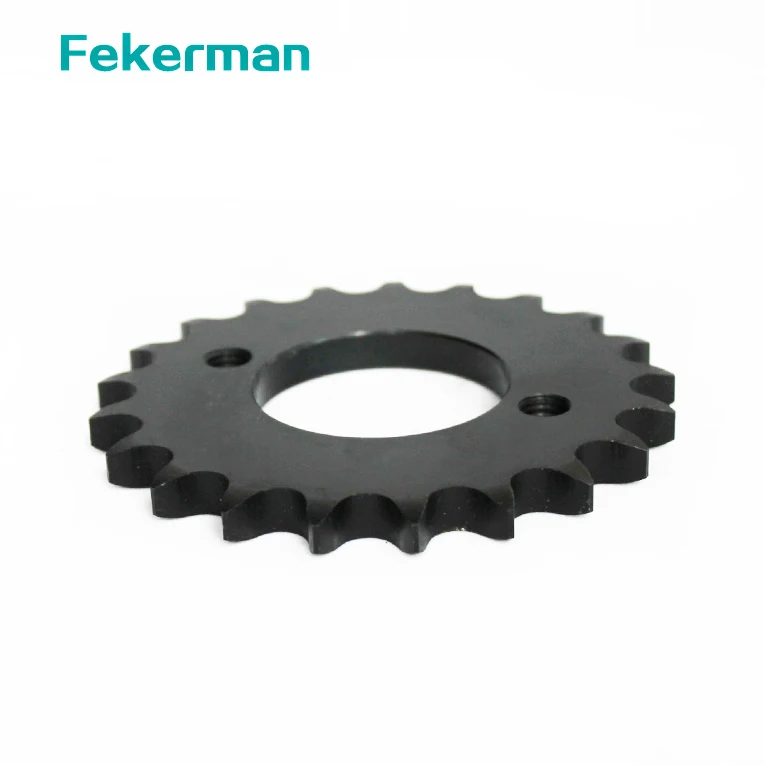

Roller chain sprocket for conveyor sprockets

Product Overview

Description

Sprockets types: 08B 10B 12B 16B 20B 24B

Bore type: Finished bore with keyway

Material of sprockets: Steel C45, 40Cr, 20CrMnTi

Heat treatment: Hardening teeth, Carburizing

Surface treatment: Black oxide, Shot blasting



Fekerman accept custom made sprockets as per the request or drawings.



Type B sprockets with hub or platewheels:

08B	12B	20B	28B
10B	16B	24B	32B



Sprockets strands options:

Simplex

Duplex

Triplex

Quadruplex

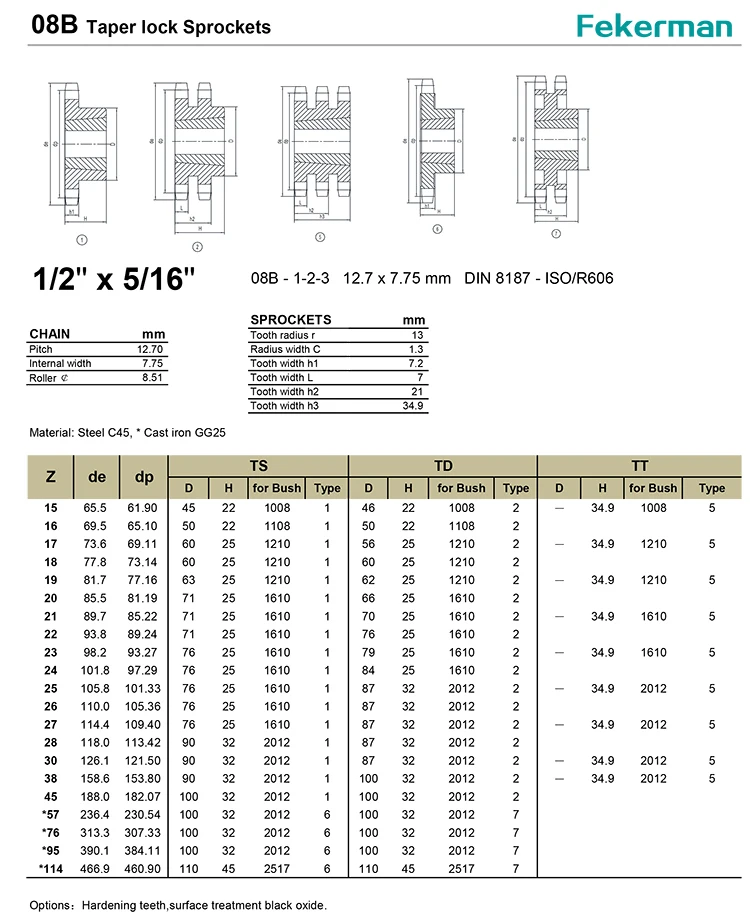

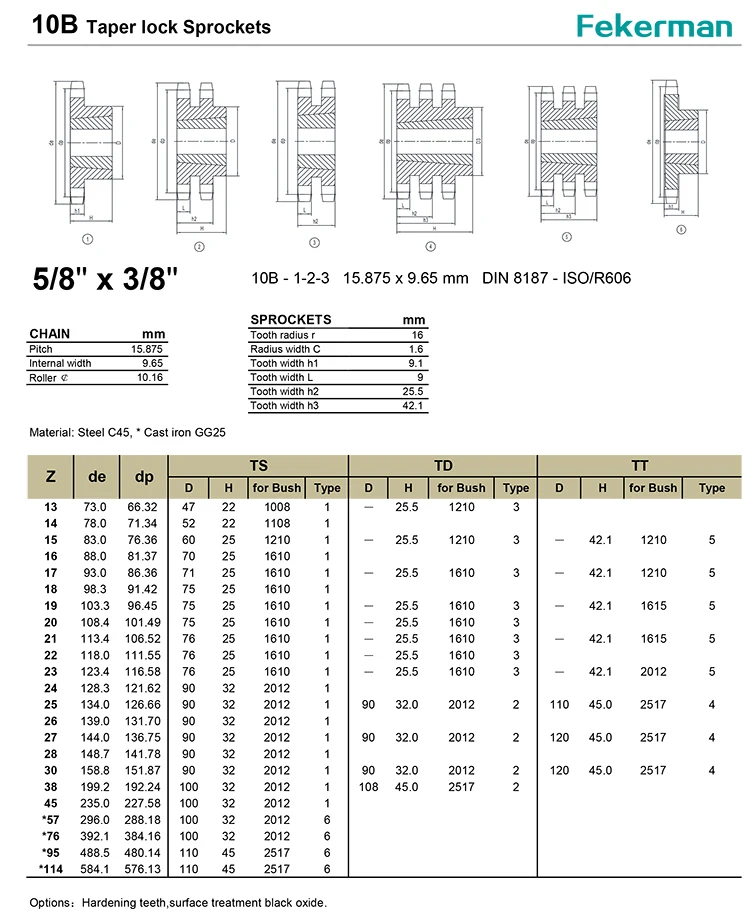

08B Sprockets 1/2'' x 5/16''          10B Sprockets 5/8'' x 3/8''

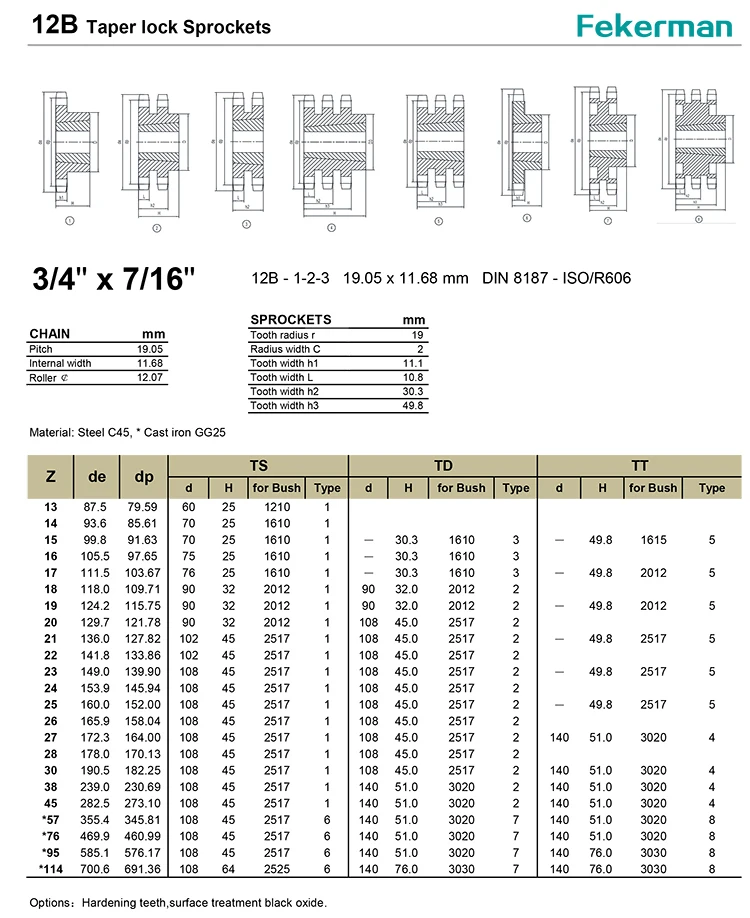

12B Sprockets 3/4'' x 7/16''          16B Sprockets 1'' x 17.02mm

20B Sprockets 1 1/4'' x 3/4''         24B Sprockets 1 1/2'' x 1''

28B Sprockets 1 3/4'' x 1 1/4''      32B Sprockets 2'' x 1 1/4''

























Fekerman Zhengzhou Technology Co., Ltd manufactures and supplies Sprockets, timing pulleys, forged bevel gears, forged spiral gears, spur gears, worm gears, bolt on hub, weld on hub, V belt pulleys,taper bushings, QD bushings, QD sheaves, and machined components, etc.

Fekerman understands that as our customers you require high quality products, delivered on time and at a competitive price. So please contact us when you have a demand on the power transmission components and machined components, etc.
