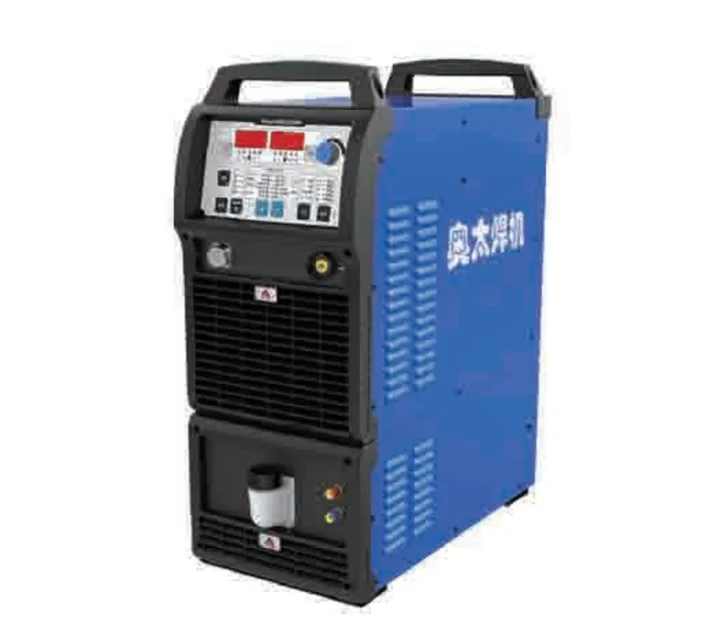

AE MIG 500RP Electric welding machine edon welding machine and mig tig welding machine
- Category: >>>
- Supplier: Ae Robotics Co. Ltd.
Share on (11000000248464):
Product Overview
Description
Product Overview

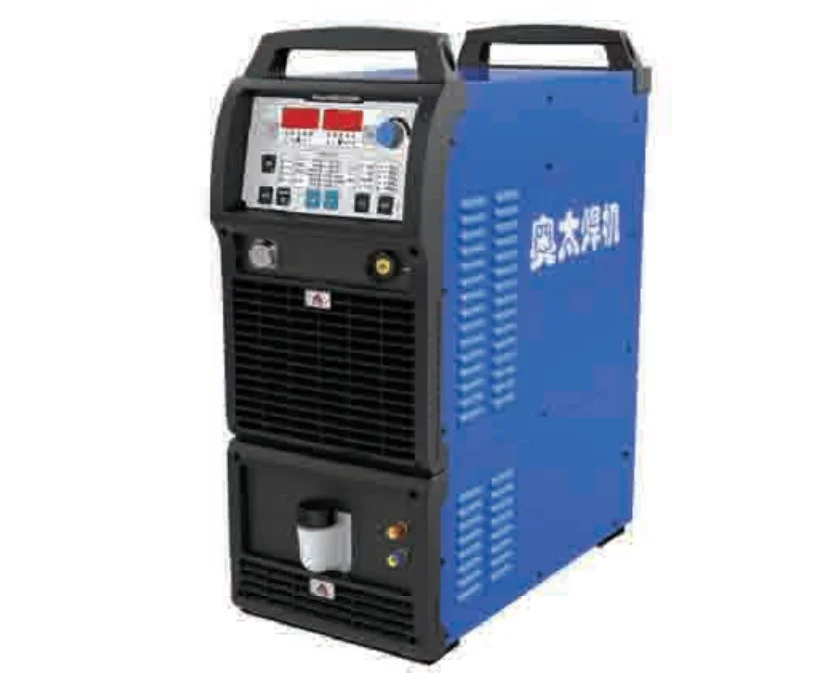

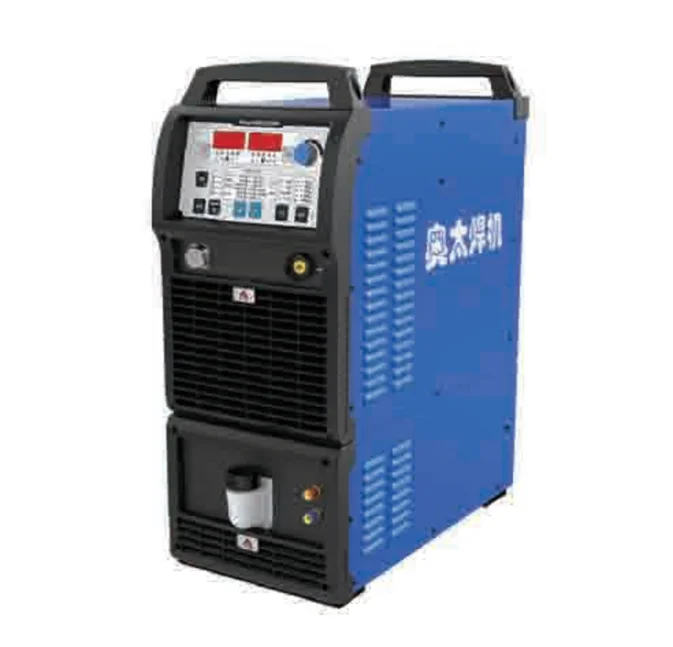

AE MIG 500RP Automatic welding machine
MIG-500RP Excellent welding performance
1. There are two welding methods, single pulse and constant voltage.
2. Fully digital grating feedback motor control, wire feeding is more accurate and stable.
3. 100 sets of welding parameters can be stored, and the robot can be called at any time.
4. With contact sensing function, it is convenient for the robot to complete the positioning operation.
5. The welding parameters can be transmitted to the robot, which is convenient for the robot to complete the arc tracking
function.
6. Friendly operation interface, unified adjustment mode, easy to master.
7. One pulse and one droplet transfer, welding without spatter.
8. It has the function of constant penetration and short arc pulse.
1. There are two welding methods, single pulse and constant voltage.
2. Fully digital grating feedback motor control, wire feeding is more accurate and stable.
3. 100 sets of welding parameters can be stored, and the robot can be called at any time.
4. With contact sensing function, it is convenient for the robot to complete the positioning operation.
5. The welding parameters can be transmitted to the robot, which is convenient for the robot to complete the arc tracking
function.
6. Friendly operation interface, unified adjustment mode, easy to master.
7. One pulse and one droplet transfer, welding without spatter.
8. It has the function of constant penetration and short arc pulse.
Products Description
Type | MAG 350KPL | ||||||
Rated input voltage/frequency(V/Hz) | three-phase 380±10% /50 | ||||||
Rated input capacity(KVA) | 24 | ||||||
Rated input current(A) | 38 | ||||||
Rated output voltage(V) | 39 | ||||||
Rated load duration(%) | 100 | ||||||
96Output no-load voltage(V) | 106 | ||||||
Output current/voltage range(A/V) | 60/17-500/39 | ||||||
Wire diameter(mm) | 0.8、1.0、1.2、1.6 | ||||||
Gas flow（L/min） | 15-20 | ||||||
Enclosure rating | IP23 | ||||||
Insulation class | H | ||||||
Volume L×W×H(cm) | 66×32×56 | ||||||
Wight(Kg) | 55 | ||||||

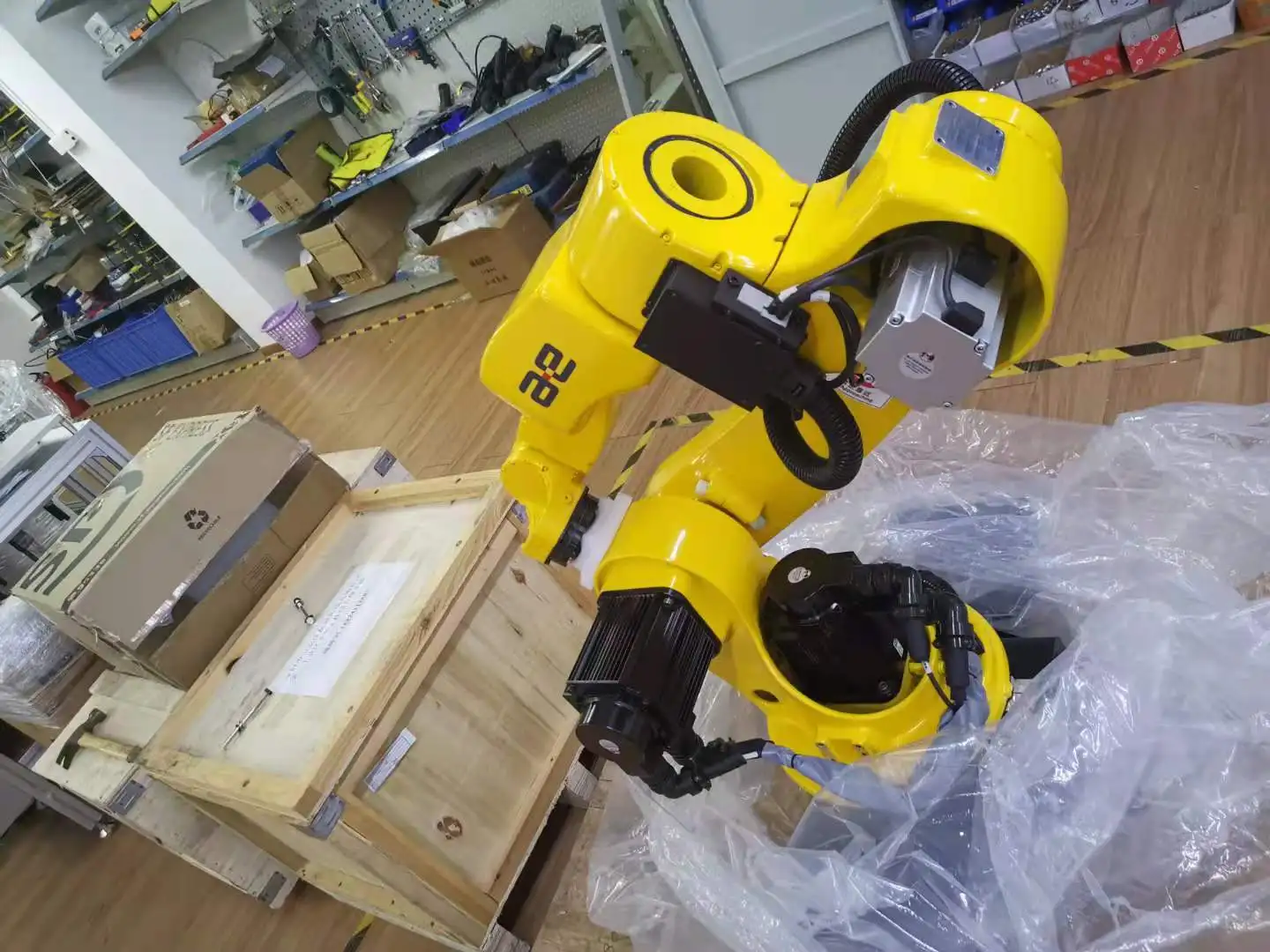

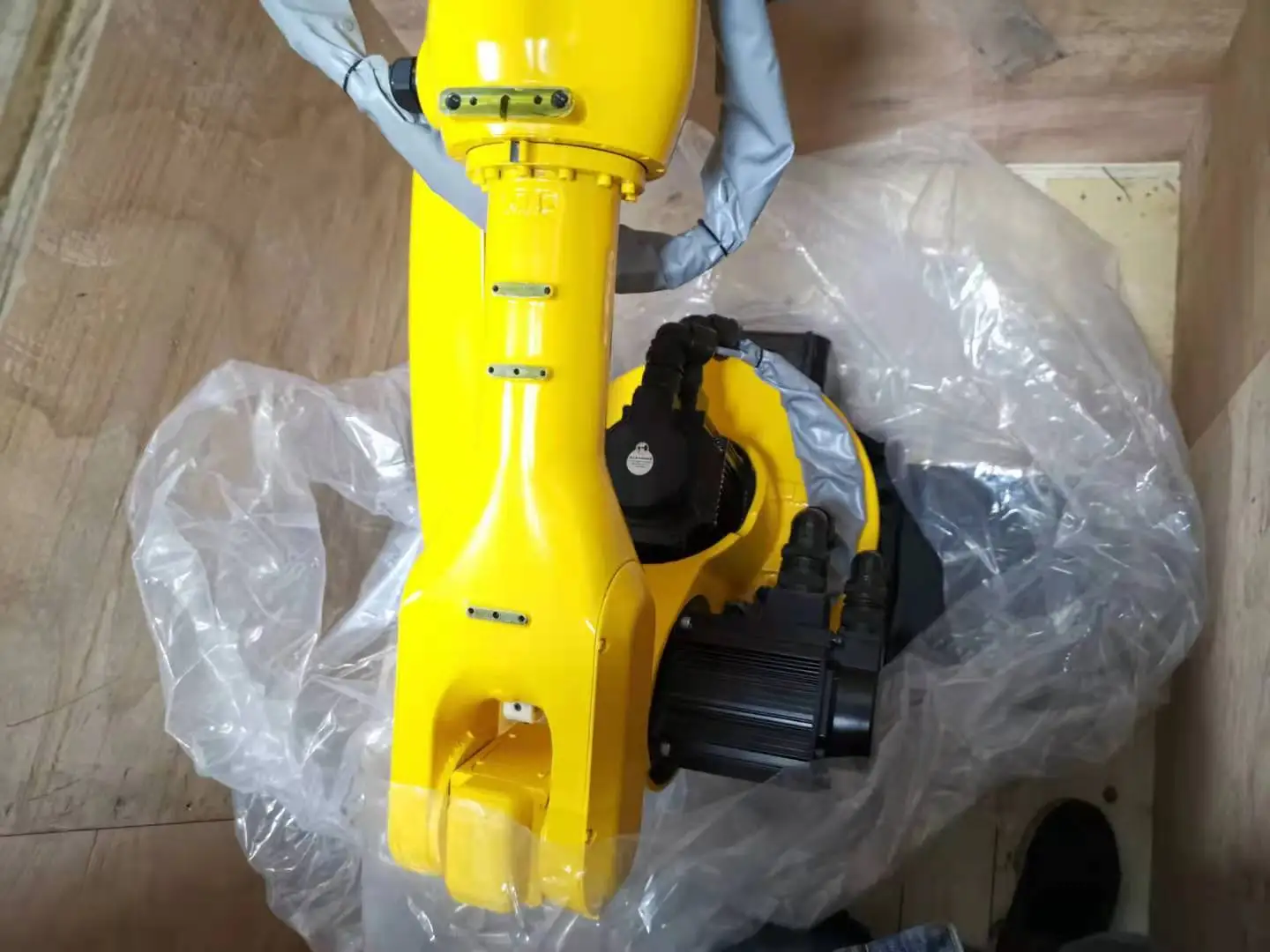

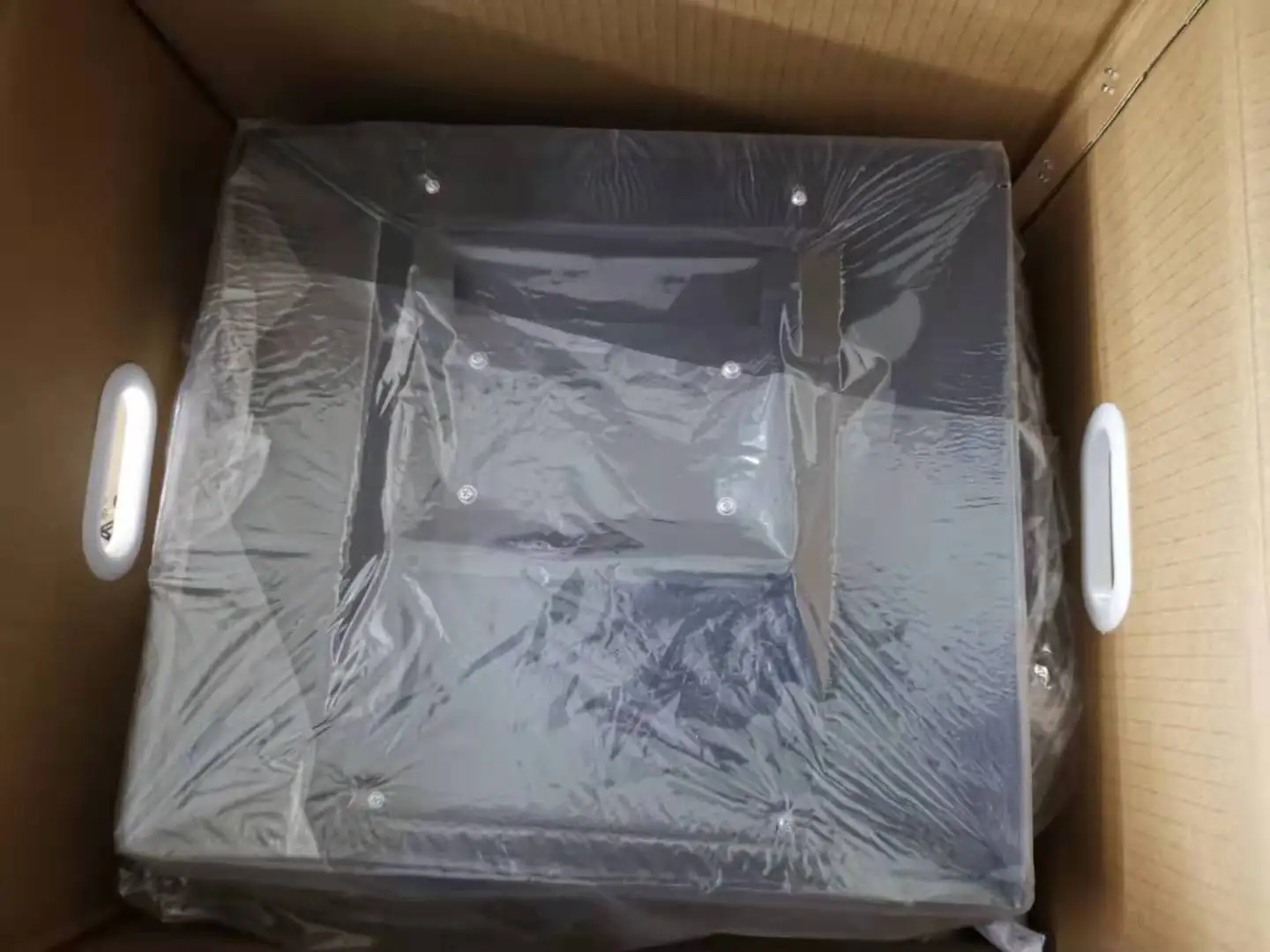

Product packaging
Similar Products
AIR20-A
AIR8-A
AIR50-A

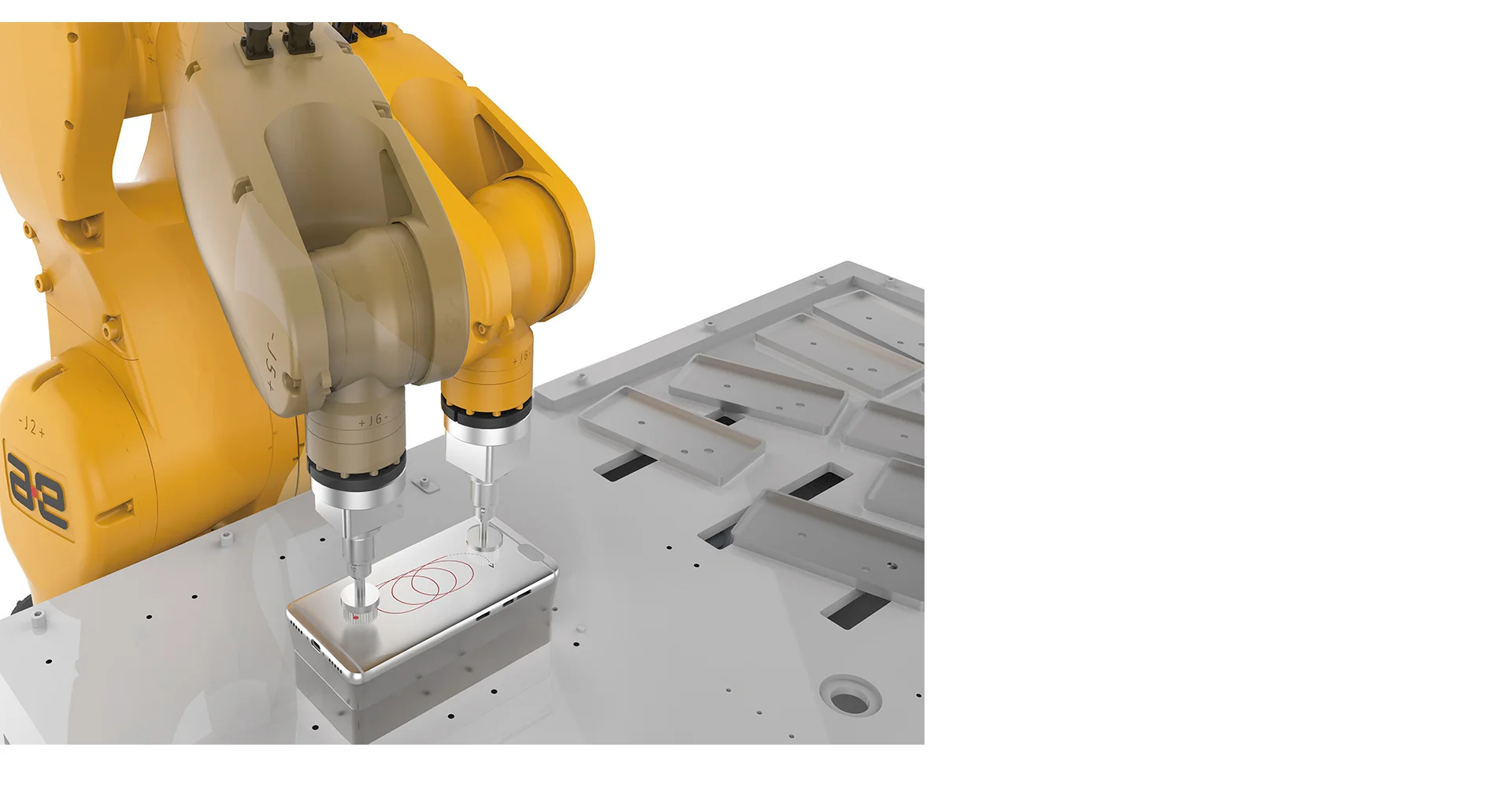

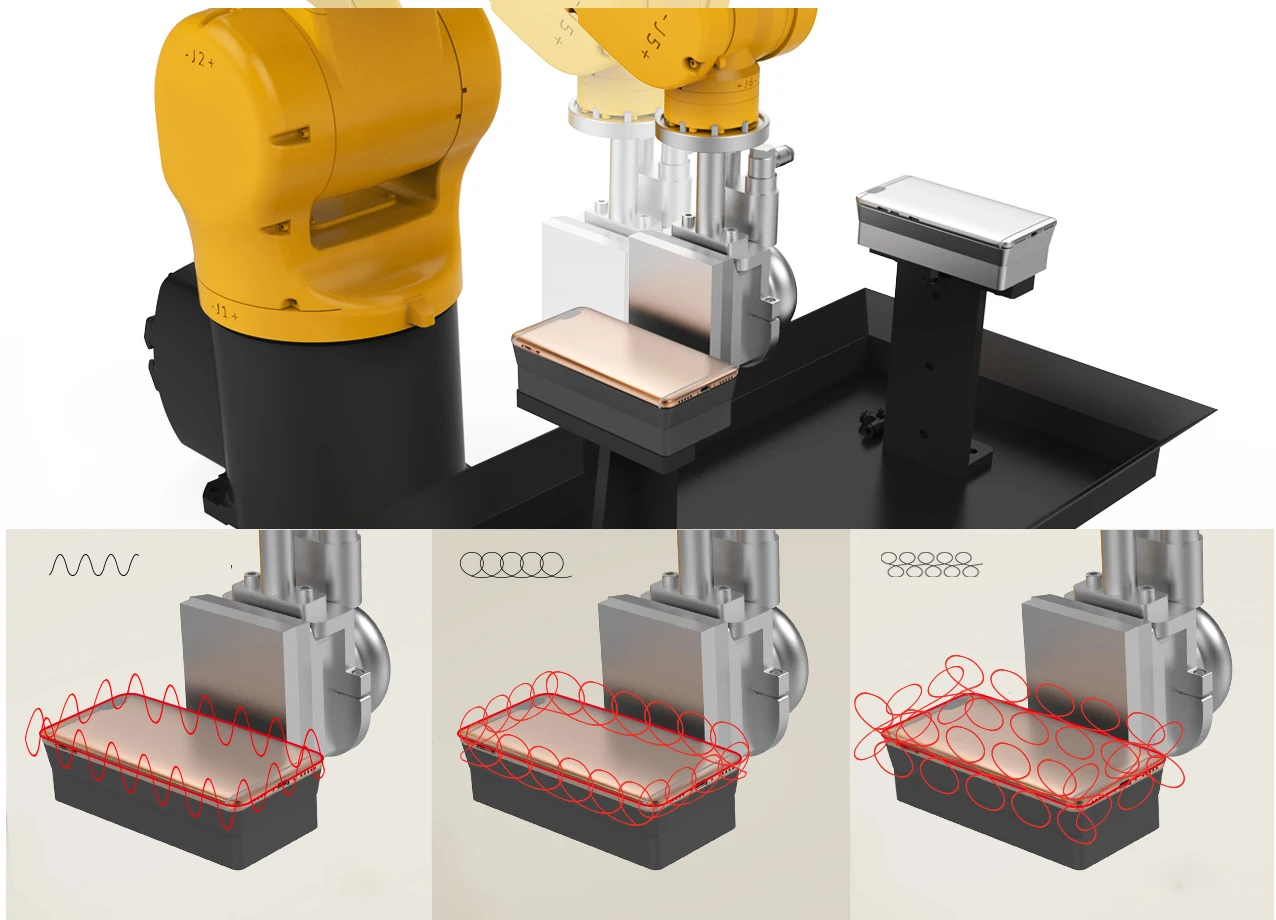

Application
