Product Overview

Description





Products Description

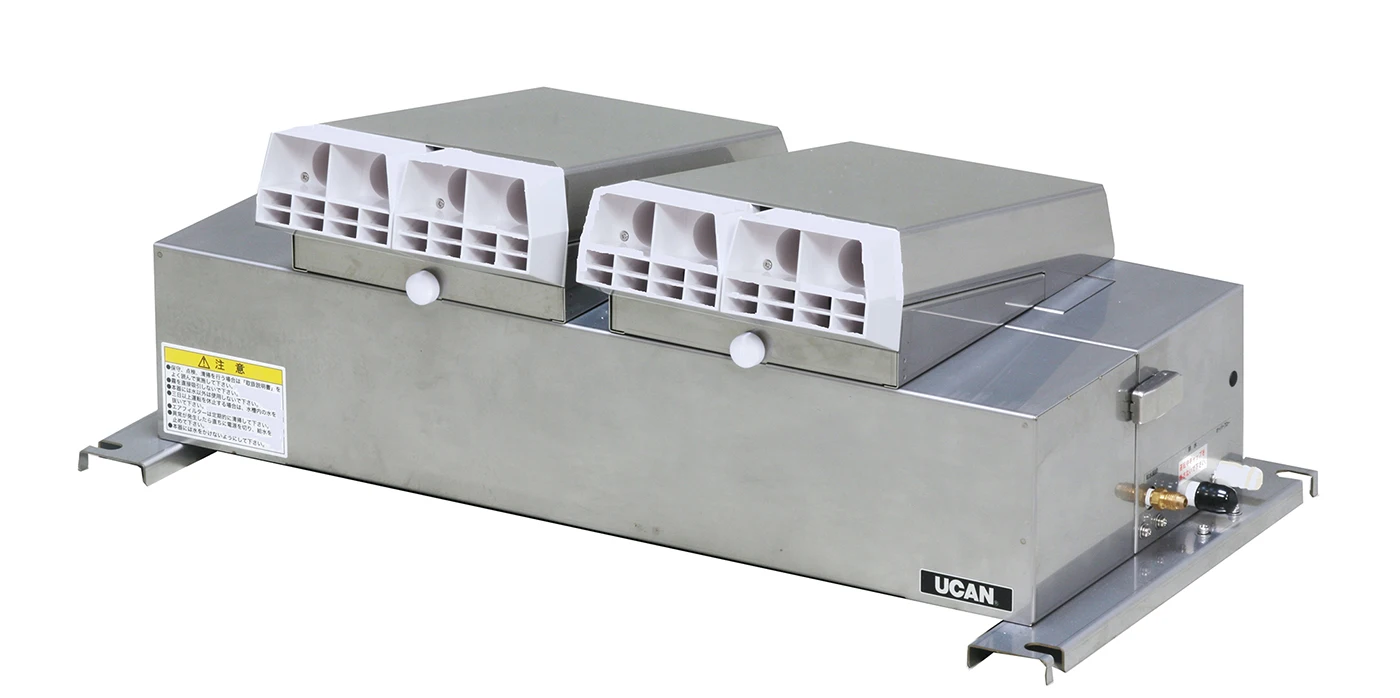

FT-F UVSV Series




Highly reliable JAPAN-MADE industrial ultrasonic humidifier with a hygiene system.
For wide applications from refrigerated storage for keeping vegetable’s freshness and to factory for preventing the electrical statics.




6 models as per capacity 2.0…12.0 L/h.

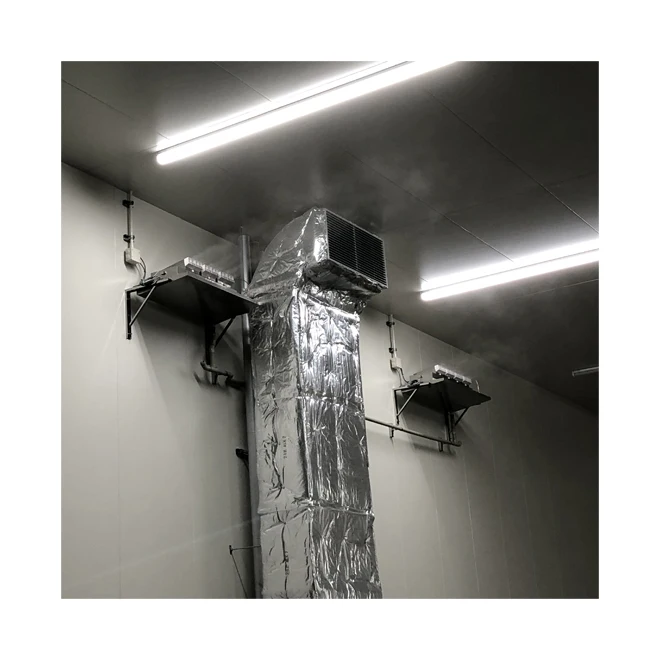

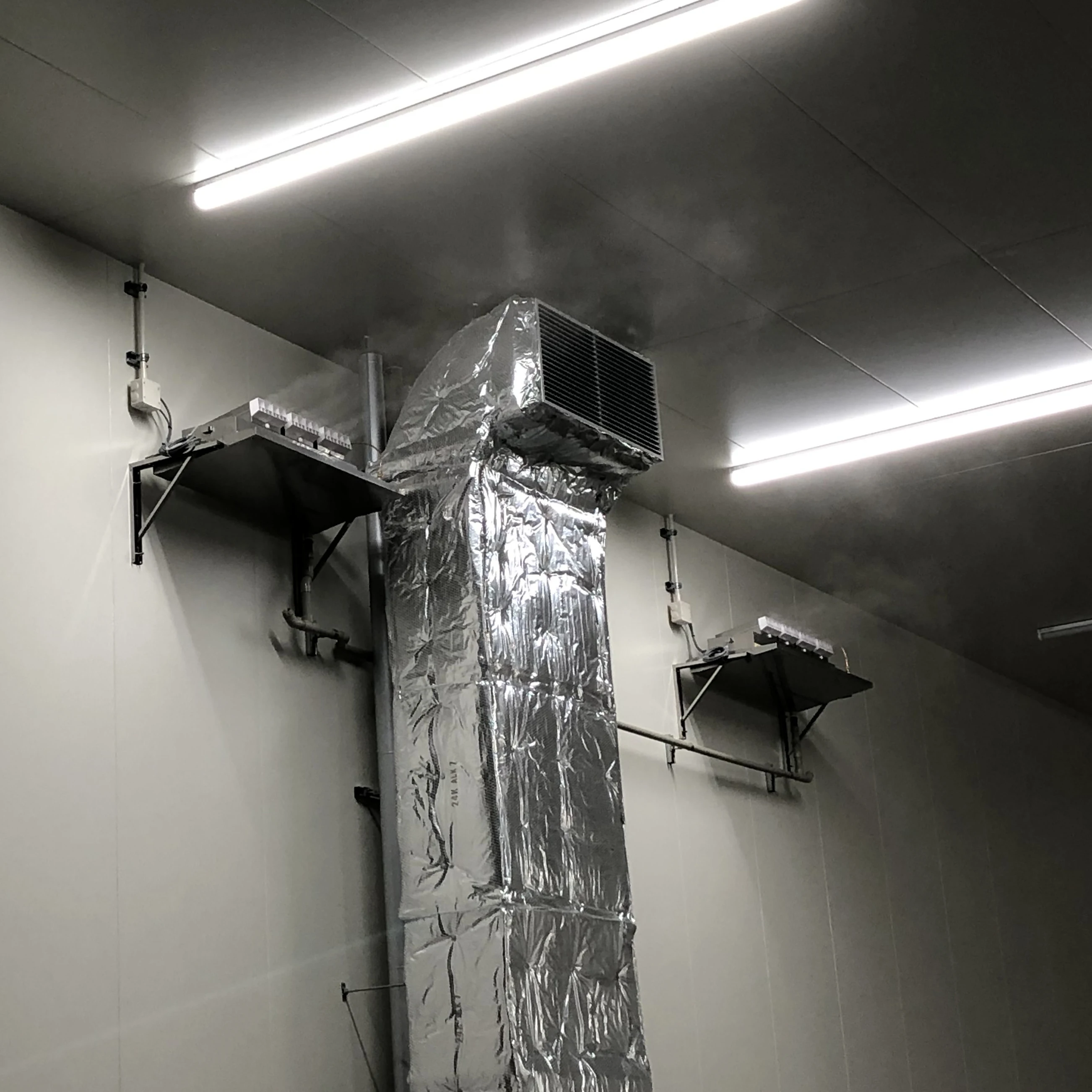

Applications　Refrigerated storage, low-temperature storage, plant germination room, food processing clean room, cigar storage, wine cellar, print factory, shipping storage etc.

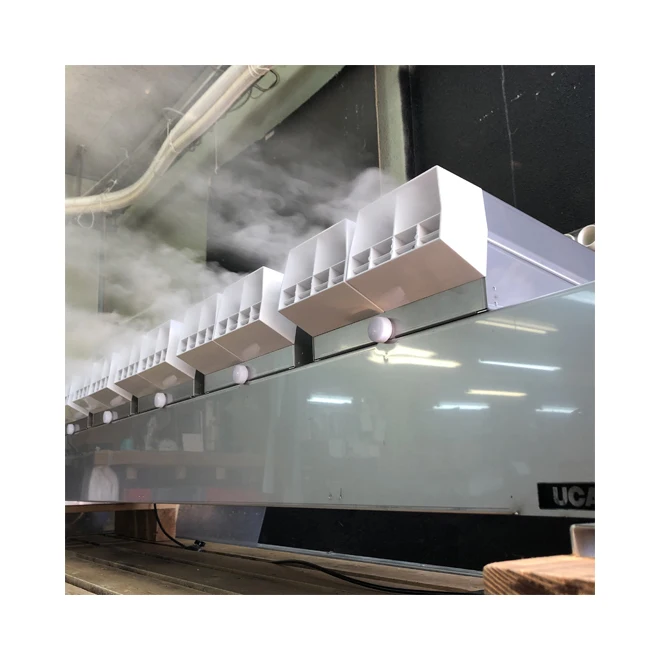

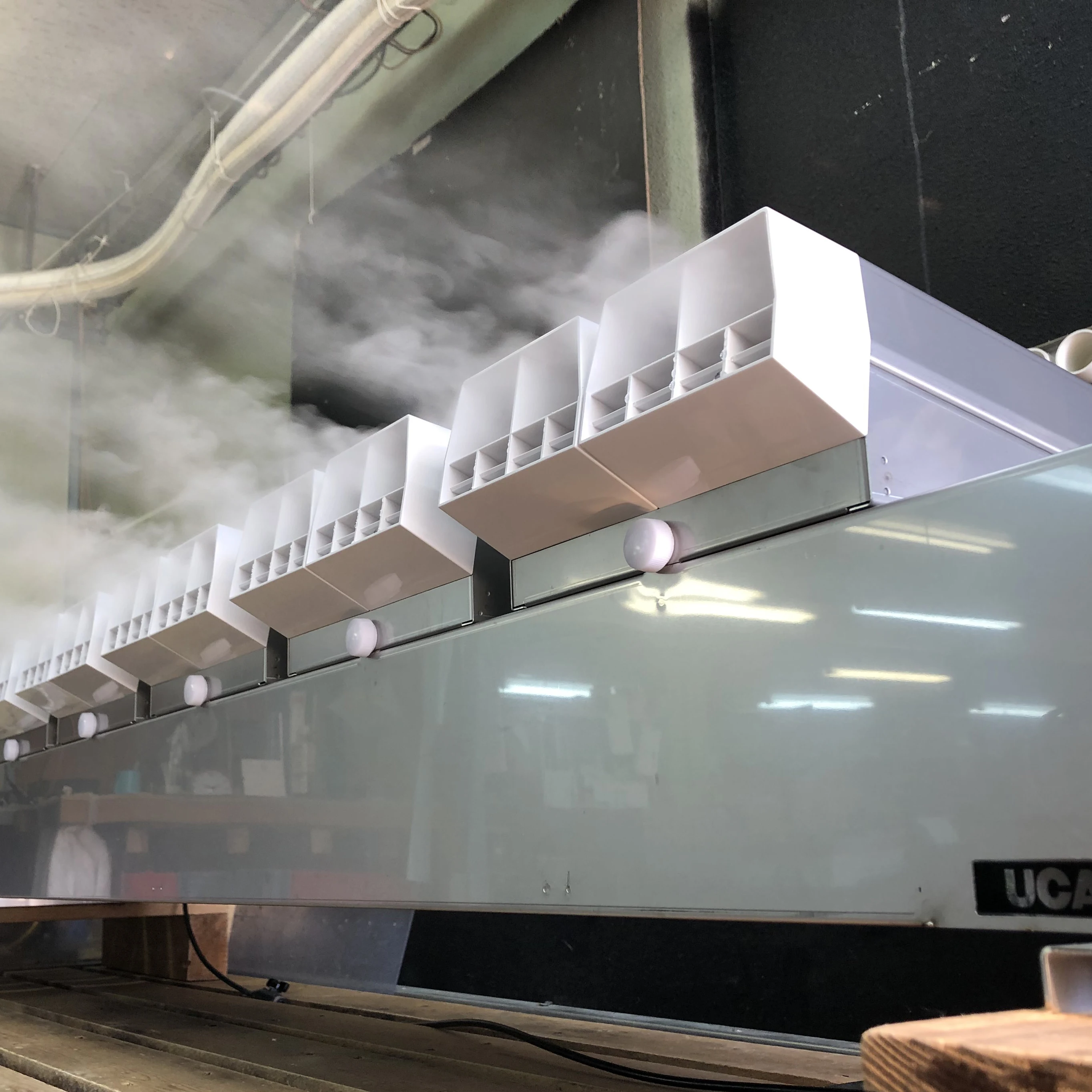

Power booster fan It sprays mist long distance, to reach every corner in the room.




Adaptable various special specifications Anti-freezing, moisture-protection, low temperature storage, proportional control are available by option.
User-friendly construction Unit can be disassembled without any tool.
Acquired CE marking.
Hygiene system
Germicidal device is equipped by UV lamp and automatic drainage system.
The safety of product has been proved by collaborative research with the National Public Health Institute in Japan.
For hygiene system, please refer to this movie.




Model FT- UVSV
Humidity capacity (l/h)
No. of oscillator (pcs)
Power supply (50/60Hz)
Power Consumption (VA)
Air volume (m3/min)
Weight (kg)
Unit
Trans.box
F45
2
4
1φ2W AC230V * (Other power supply types are available on request)
175
3.3/3.7
8.1
5.5
F85
4
8
325
6.6/7.4
12
8
F125
6
12
474
9.9/11.1
15.4
10
F165
8
16
624
13.2/14.8
19.3
11.5
F205
10
20
774
16.5/18.5
23.2
15
F245
12
24
924
19.8/22.2
27.1
17.5


Water supply system
Automatic water supply system by float switch and water supply solenoid valve
Water quality
Tap water, Purified water or R.O. treated water (1…20 μS/cm) We recommend purified water to prevent white powder from producing.
Water supply pressure
0.03…0.5 MPa (0.3…5.0 kgf / cm2)
Control system
On/Off control (Option) Proportional control
Ambient condition
5…40℃ MAX.90%RH (No freezing, No condensation)
Replacement of Oscillator
At about 5,000 cumulative hours of operation
Replacement of UV lamp
At about 10,000 cumulative hours of operation
Safety equipment
Device to prevent waterless operation, Fuse to prevent overcurrent, Thermostat to prevent water overheating (cutoff at 55℃), Surge
filter
