factory supply directly Tractor 3 point middle duty disc harrow good quality disk harrow

Share on (11000000253580):


Price:

Quantity:


Product Overview

Description







tractor disc harrow price disk harrow tractor harrow disc harrow


It's completely mounted with tractor, during operation, the discs by its rotating to turn the soil, suitable for operation on field with grasses, straw and stems of crops or plants,big soil resistance and with many stones and brickbat, etc. in the field. It is good at cutting the grasses and straw , free from being stopped by the grasses, soil or stones, etc.





































































Model


unit


INYP-325


INYP-425


INYP-525


INYP-625


Working width


m


0.75


1


1.25


1.5


Working depth


cm


25


25


30


30


Disc diameter


mm


600


Q'ty of discs


pcs


3


4


5


6


Total Weight


kg


428


520


610


720


Matched power


hp


50-65


65-85


85-100


100-200


Linkage


Standard three-point suspension

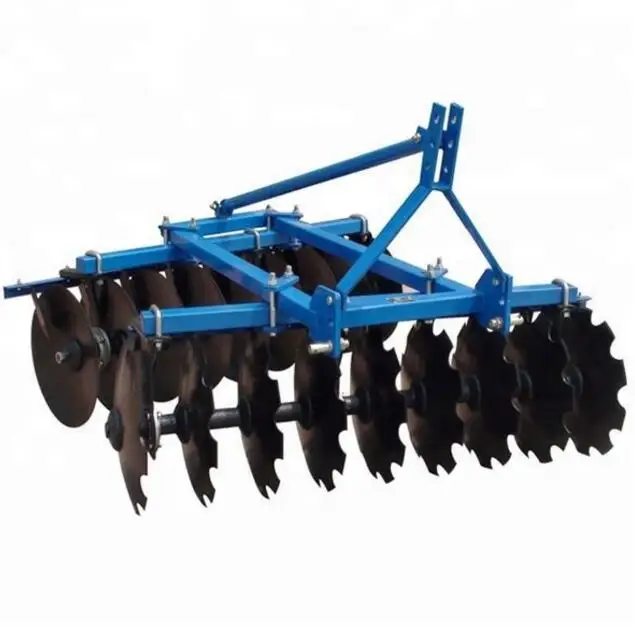

disc harrow.jpg
