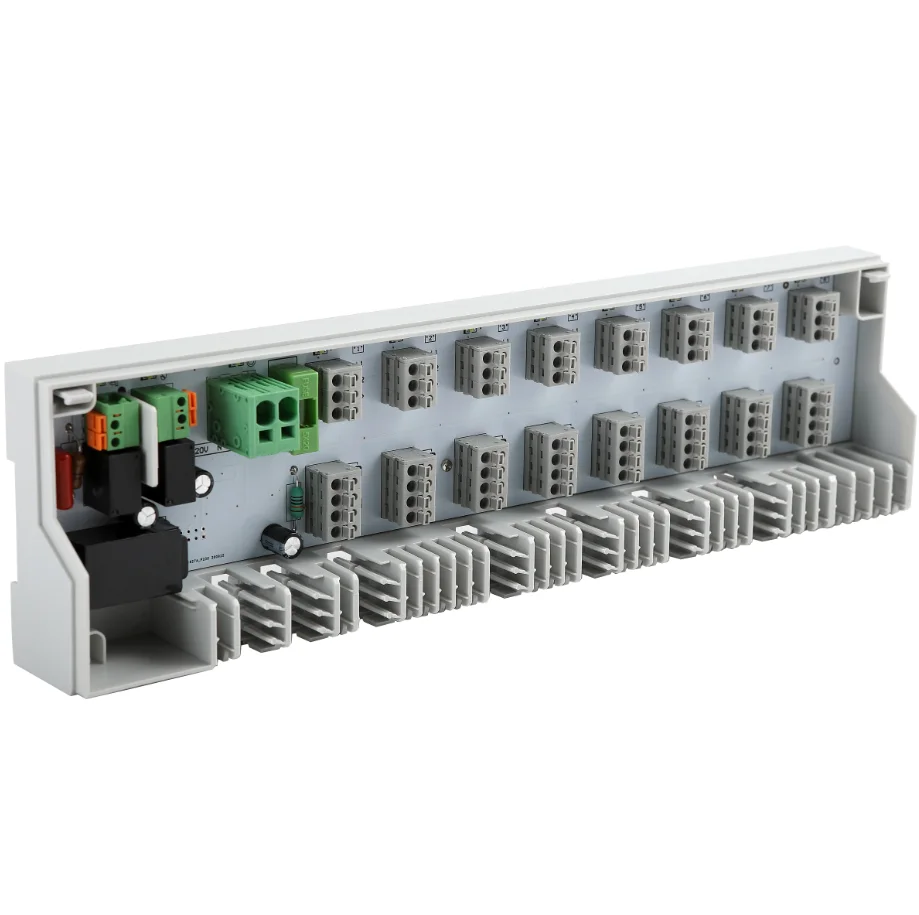

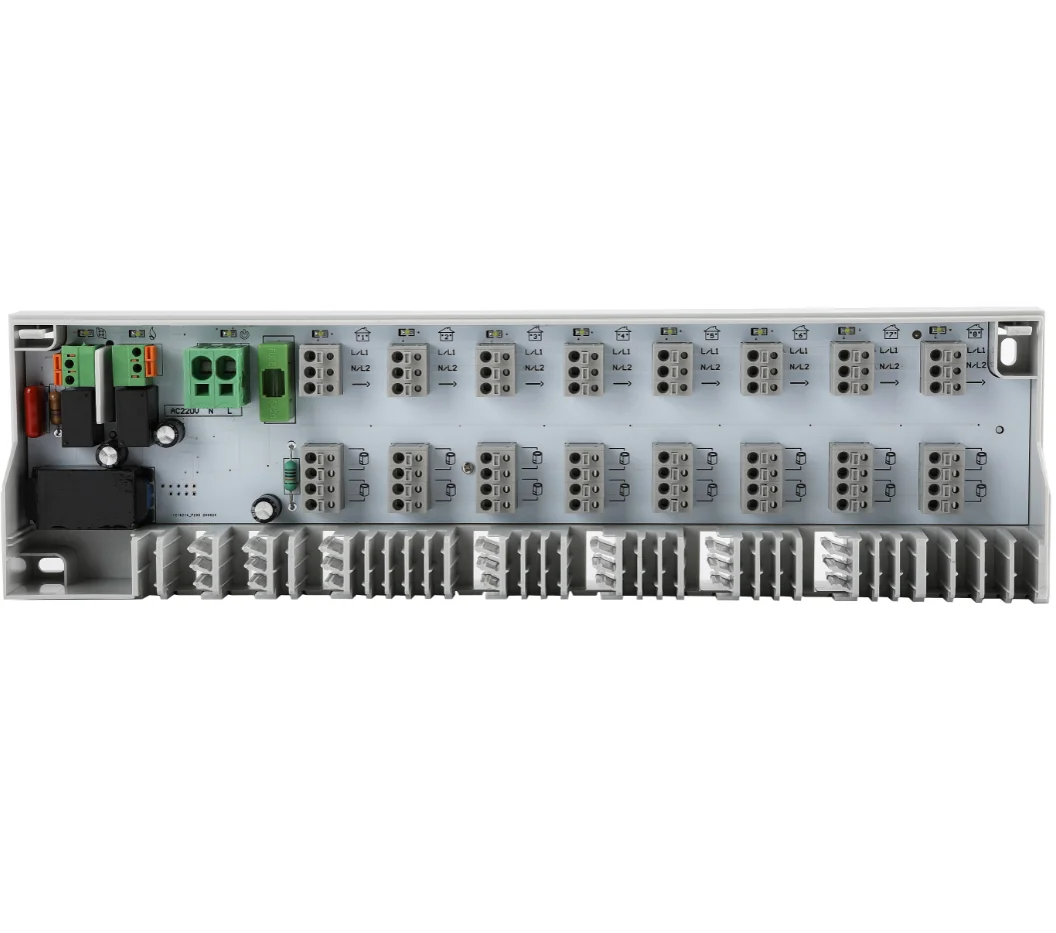

Underfloor heating base station
Base station is the central connection unit of a roomby-room temperature control for the surface temperature adjustment of heating systems.
Base station is available in the versions with 8 zones in 230 V. With minimum expense, it can be wired to all system components as e. g. thermostats and actuators. The system components are supplied directly with the voltage supply of bass station.
All switching commands for the thermostats are forwarded directly to the connected system components.
Base station is available in the versions with 8 zones in 230 V. With minimum expense, it can be wired to all system components as e. g. thermostats and actuators. The system components are supplied directly with the voltage supply of bass station.
All switching commands for the thermostats are forwarded directly to the connected system components.
Feature:
* Design with 8 zones
* 230 V version
* A maximum of 16 actuators can be connected
* Equipment for heating
* Simple, intuitive installation and operation
* Status signalling by LEDs
* Proven cable guide and standard-complying strain relief
* Screw less terminal connection technique
* Clearly structured connection terminals
* Pump and boiler control
* Control direction : NC (normally close)
* High functional security
* 120s delayed start,prevent conflicts between internal and external water pump
* Maintenance-free
* 230 V version
* A maximum of 16 actuators can be connected
* Equipment for heating
* Simple, intuitive installation and operation
* Status signalling by LEDs
* Proven cable guide and standard-complying strain relief
* Screw less terminal connection technique
* Clearly structured connection terminals
* Pump and boiler control
* Control direction : NC (normally close)
* High functional security
* 120s delayed start,prevent conflicts between internal and external water pump
* Maintenance-free
Feature:
-Compact size, small dimensions
- 360° installation position
-High functional safety and long expected service life
- Low power consumption
-High over-voltage protection
-Supply 12v-230v
-Maintenance-free, noiseless
- Snap-on installation
- Valve adapter concept
-Patented 100% protection against leaky valves
- 360° installation position
-High functional safety and long expected service life
- Low power consumption
-High over-voltage protection
-Supply 12v-230v
-Maintenance-free, noiseless
- Snap-on installation
- Valve adapter concept
-Patented 100% protection against leaky valves

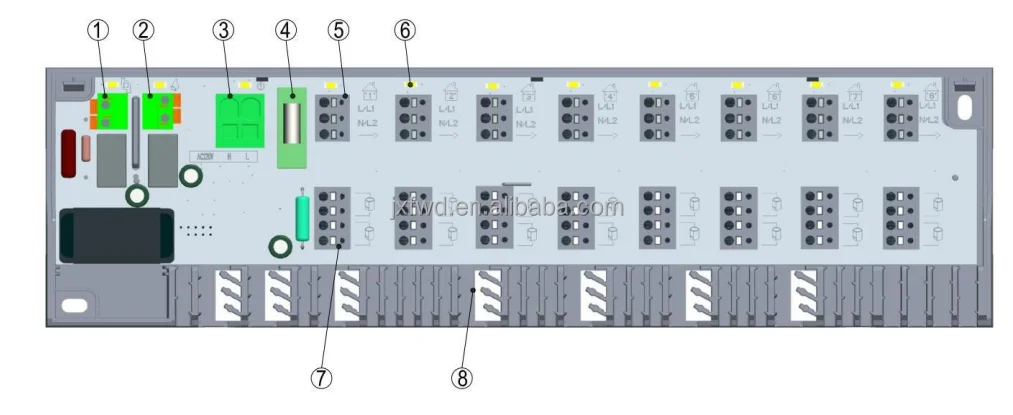

Device overview:
Product name | Base station |
1.Pump control | •Potential-free contact for controlling a boiler circuit • Starting and switching-off delay predefined with 2 minutes |
2.Boiler control | • Potential-free contact for controlling a pump circuit • Starting and switching-off delay predefined with 2 minutes |
3.Voltage supply/through clamp | • Through clamp for the connection of electrical consumers as e. g. pump (only 230 Vversion) |
4.Fuse | • Protects the INTCC direct by interrupting the circuit if the amperage exceeds a defined value for a predefined time. |
5.Connection for thermostat | • Quick connection of up to 8 thermostats • Voltage supply for connected thermostats |
6.Status signalling by leds | •Clear status signalling, also with the casing cover closed, for: - Boiler/pump active (white) - Operating status active (white) - Heating zone active(white-one status LED per heating zone |
7.Connection for actuators | • Voltage supply for connected actuators |
8.Cable guide and strain relief | • Proven, integrated cable guide and strain relief according to DIN EN 60730-1 |

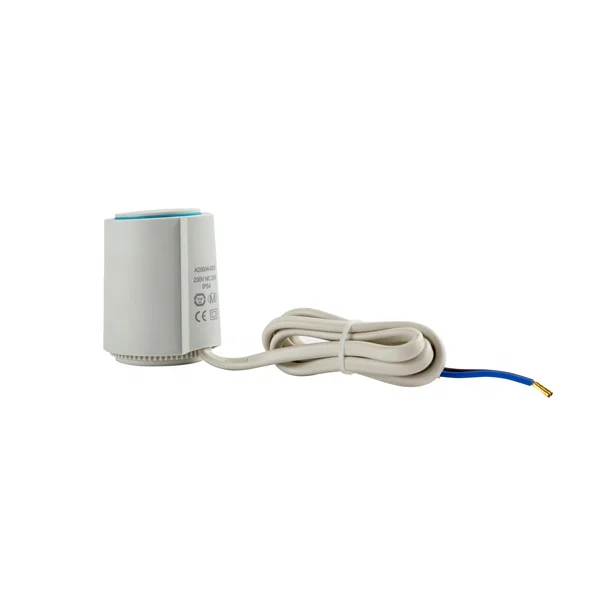

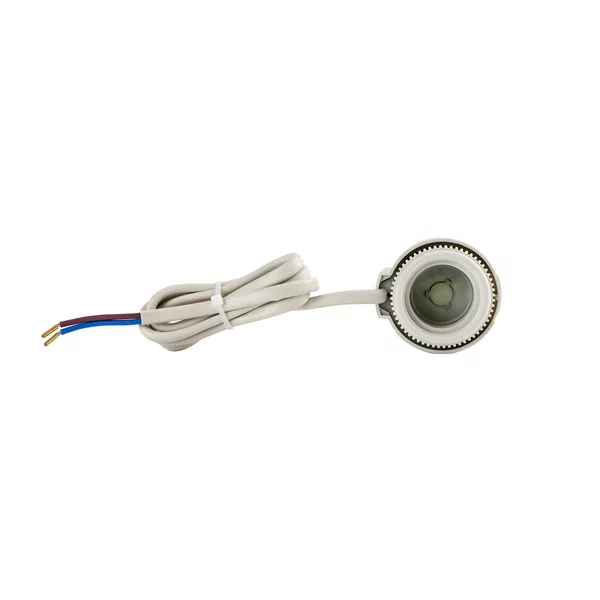

Product name | Thermal actuator |
Type | NO/NC |
Voltage | AC24V 110V 230V |
Power Consumption | 2VA |
Working Temperature | -5-60℃ |
Force | 110N |
Maximum Stroke | 4.0±0.5mm |
Running Time | 3-5min |
Connection Size | M30×1.5mm /M28×1.5mm |
Wall Installation

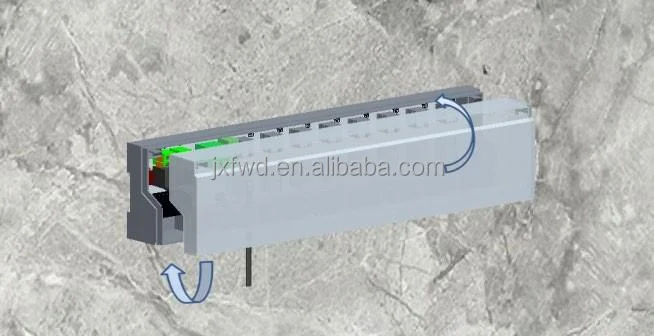

Loosen the casing cover at both latching points with a screwdriver and remove it.
Mark the two fixing holes for the basis and drill them. The basis must horizontally aligned. Install the basis with dowels and screws (2 units M4) depending on the condition of the wall.
Align the basis and tighten the screws by hand.
Lay the cables into the casing through the strain relief and install all cables to the basis using the clamping/plug-in
technology; this is possible in a very short time.
technology; this is possible in a very short time.
Close the cover and apply mains voltage. Now the basis is ready to operate.
