Steel Formwork Concrete Slab panel construction
- Category: >>>
- Supplier: Qingdao Scaffolding Import And Export Co. Ltd.
Share on (11000000265972):
Product Overview
Description
Product Overview

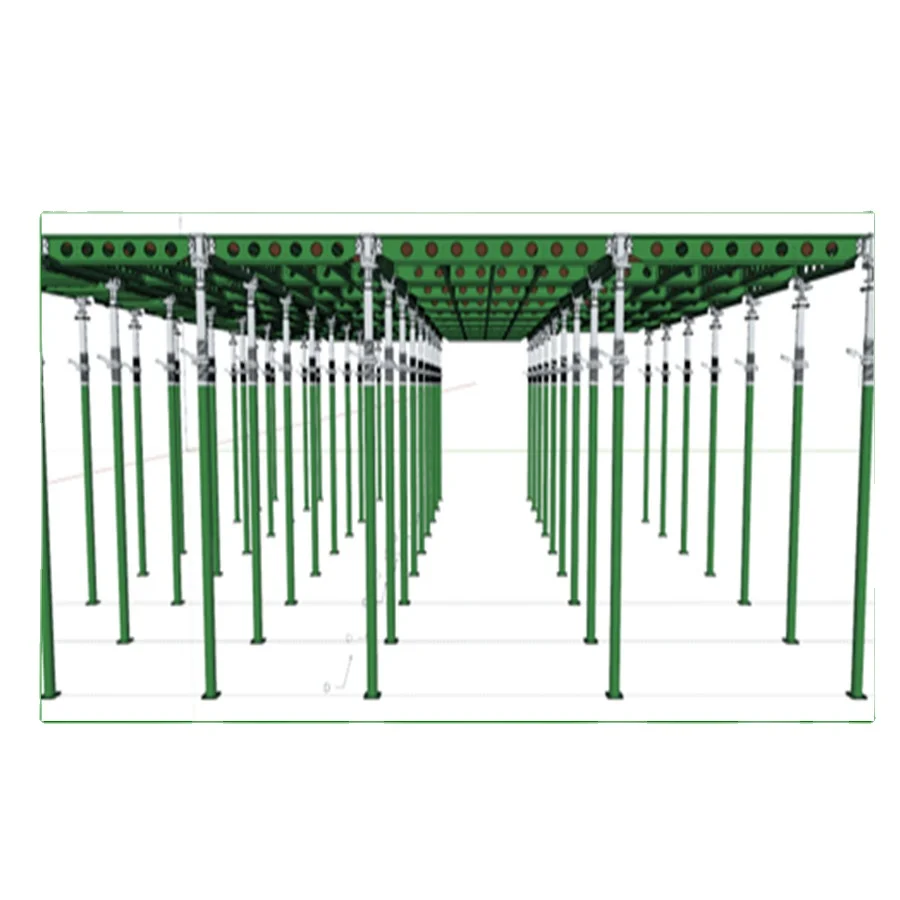

Green Formwork - Best slab formwork solution for your projects
Based on the concept of Green Construction,Green Formwork is an advance panel-prop formwork system which allow early stripping process.We provide you the best slab formwork choice for PT structure projects.It is a handset light weight puzzle style system which can be erected or stripped or removed with high efficiency and solid safety. Only 2 basic components panel and props,40-times-recycle panel could help you to save labor and cost.Thanks for the early stripping feature,only one set of panel are required for multi-floor high rise building concrete slab structure pouring,two sets or three sets are used to match the panels according to the construction speed and method of the actual operation.

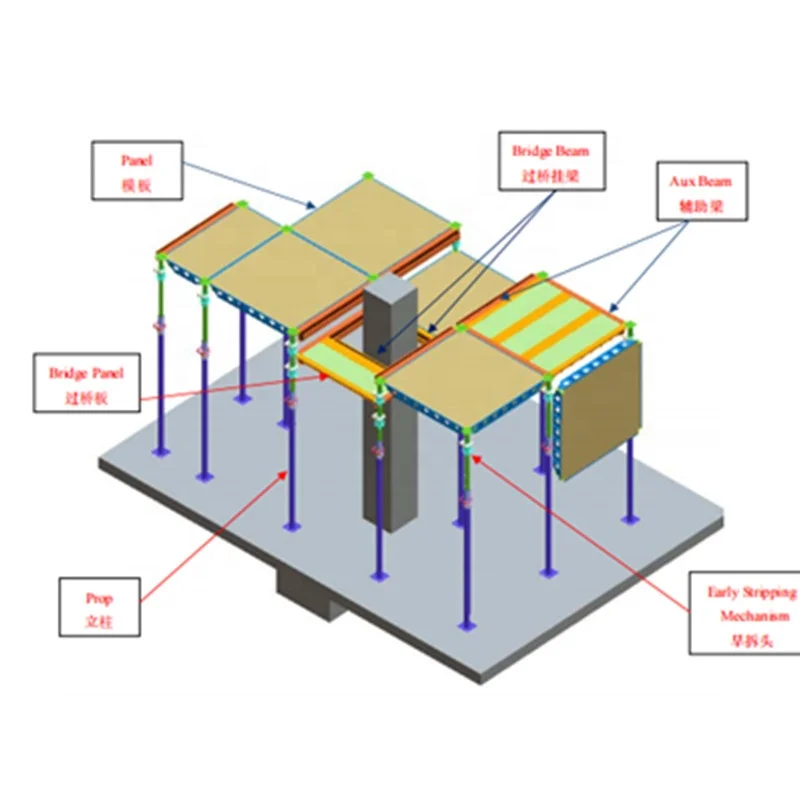

There are 2 basic components
1)Panel with plywood faced on top of a steel or aluminium frame
2)Prop with early stripping mechanism
in Green Formwork System:
1)Panel with plywood faced on top of a steel or aluminium frame
2)Prop with early stripping mechanism
PRODUCT SPECIFICATIONS
Component | Dimensions | Code |
PANEL | 1800*1200mm | MB1812 |
PANEL | 1800*900mm | MB189 |
PANEL | 1800*600mm | MB186 |
PANEL | 1200*1200mm | MB1212 |
PANEL | 1200*900mm | MB129 |
PANEL | 1200*600mm | MB126 |
PANEL | 900*900mm | MB99 |
PROPS WITH DROP HEAD | 3.5M | ZB3500 |
SALES AND SERVICE NETWORK

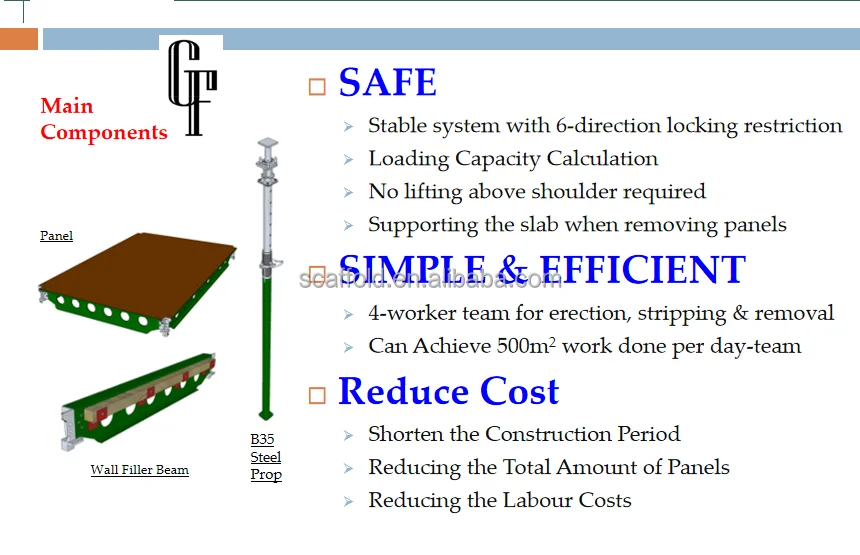

Our Advantages

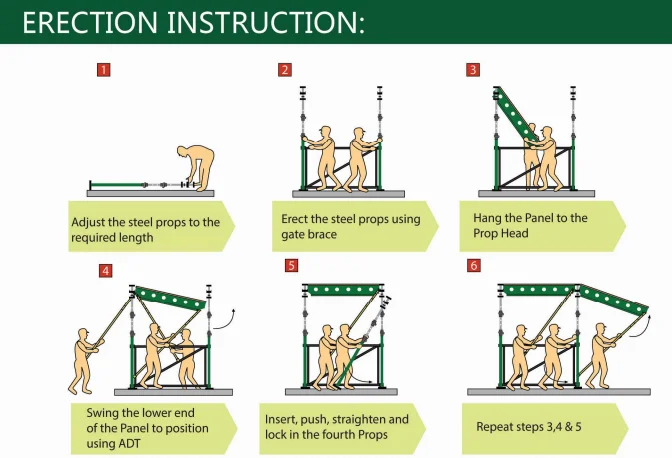

Erection Instruction

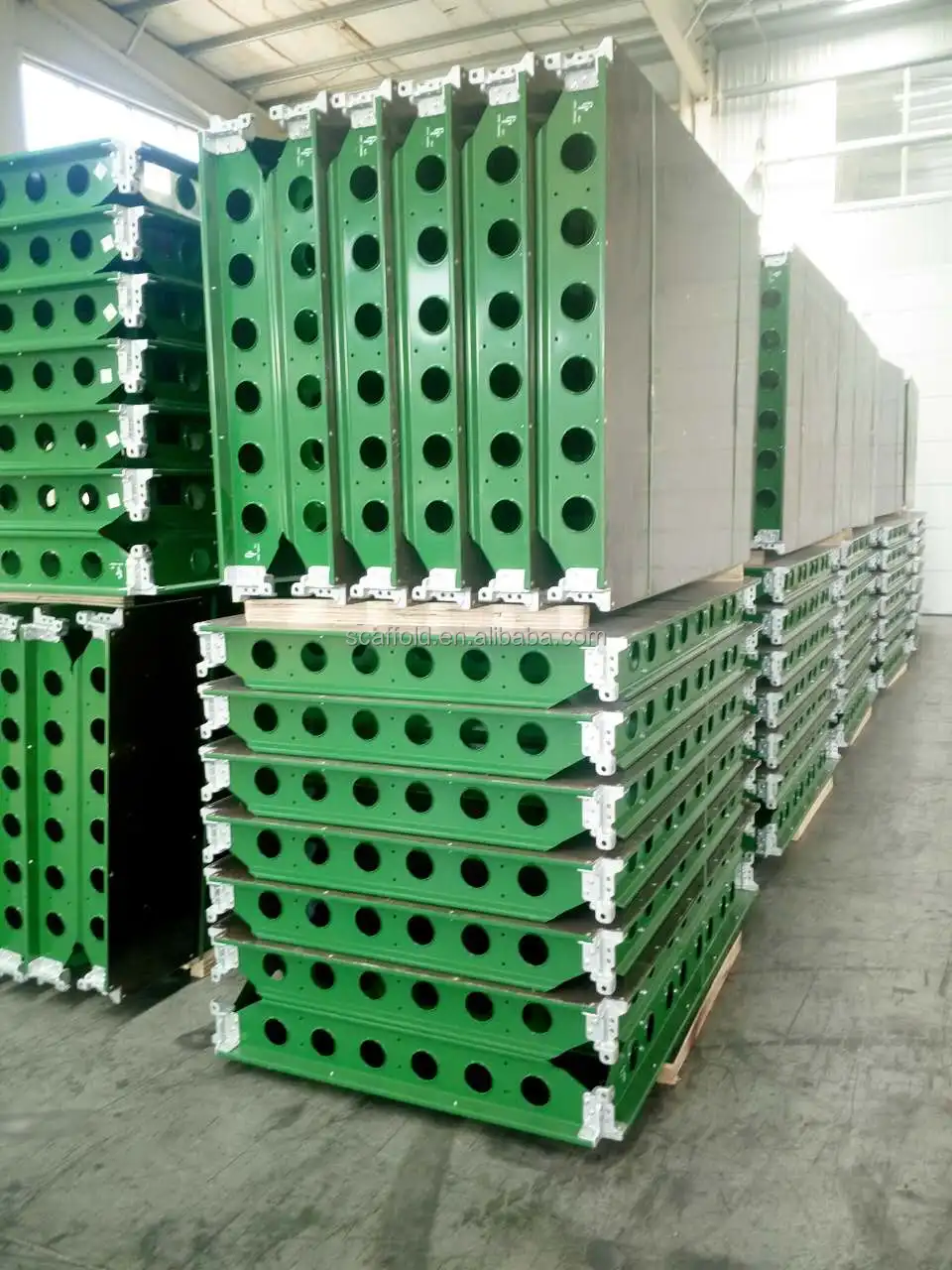

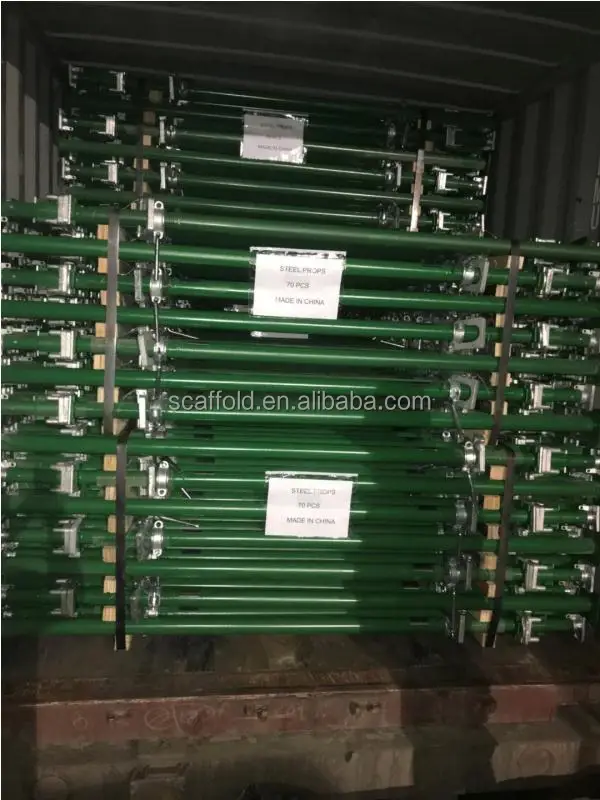

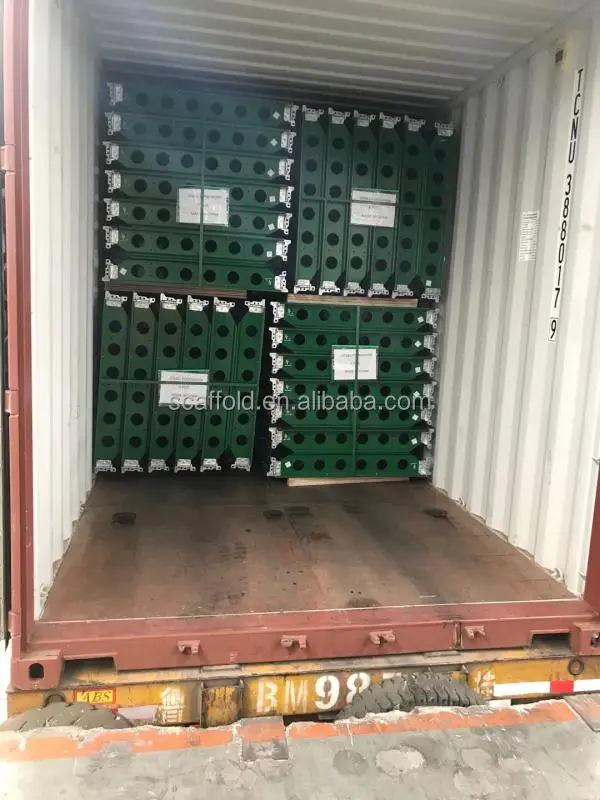

Product packaging
Successful Project
Project in Thailand
Project in Malaysia
Project in US
FAQ
1. How to get a quotation?
If you have got structure drawings for the upcoming projects, please send CAD or PDF file to us by e-mail cherryrdscaffolding@foxmail.com.We would like to make proposal layout and quotation for you.
Or you can let me know the information about slab thickness,floor height,rough area, then we can suggest you a list based on 1000sqm for your general checking.
2. What is the payment term?
By T/T or L/C.
3. What is the lead time?
According to different quantity and detailed requirements,about 25 to 60 days.
4, Do you offer buy back system or rental business?
We offer buy back system on some of medium and big scale projects, but we do not have any rental business yet.
5. Do you have techinical support service?
We provide design and related technical service including formwork & scaffolding proposal drawing, material list, shop drawing, calculation sheet, loading capacity analysis and assembly instruction on site and other after-sale service.
6. Are you looking for agent or distributor in our country?
Yes, we are looking for agent or distributor worldwide based on win-win relationship. If you have any interest or related experiences, capability of investment, as well as business plan & goal, we would be glad to discuss with you in details. For now, we have agents in New York US,Brisbane AU,Malaysia,Cambodia,Thailand,Myanmar and other area.
7. How to purchase your formwork and scaffolding?
Step 01. Confirm the PI based on our proposal after technical & commercial communication
Step 02. Make the deposit
Step 03. Update status of order production until completion
Step 04. Execute pre-shipment inspection
Step 05. Make the balance payment
Step 06. Arrange the loading and shipment after balance payment
Step 07. Provide Commercial documents for import clearance or other special documents as required
Step 08. Further online technical discussion or after-sale services
If you have got structure drawings for the upcoming projects, please send CAD or PDF file to us by e-mail cherryrdscaffolding@foxmail.com.We would like to make proposal layout and quotation for you.
Or you can let me know the information about slab thickness,floor height,rough area, then we can suggest you a list based on 1000sqm for your general checking.
2. What is the payment term?
By T/T or L/C.
3. What is the lead time?
According to different quantity and detailed requirements,about 25 to 60 days.
4, Do you offer buy back system or rental business?
We offer buy back system on some of medium and big scale projects, but we do not have any rental business yet.
5. Do you have techinical support service?
We provide design and related technical service including formwork & scaffolding proposal drawing, material list, shop drawing, calculation sheet, loading capacity analysis and assembly instruction on site and other after-sale service.
6. Are you looking for agent or distributor in our country?
Yes, we are looking for agent or distributor worldwide based on win-win relationship. If you have any interest or related experiences, capability of investment, as well as business plan & goal, we would be glad to discuss with you in details. For now, we have agents in New York US,Brisbane AU,Malaysia,Cambodia,Thailand,Myanmar and other area.
7. How to purchase your formwork and scaffolding?
Step 01. Confirm the PI based on our proposal after technical & commercial communication
Step 02. Make the deposit
Step 03. Update status of order production until completion
Step 04. Execute pre-shipment inspection
Step 05. Make the balance payment
Step 06. Arrange the loading and shipment after balance payment
Step 07. Provide Commercial documents for import clearance or other special documents as required
Step 08. Further online technical discussion or after-sale services
