BMi2 Series Electronically Controlled Low Cost Robotic Arm For Sale
- Category: >>>
- Supplier: TOYO KOKEN K.K.
Share on (11000000275106):
Product Overview
Description
Products Description

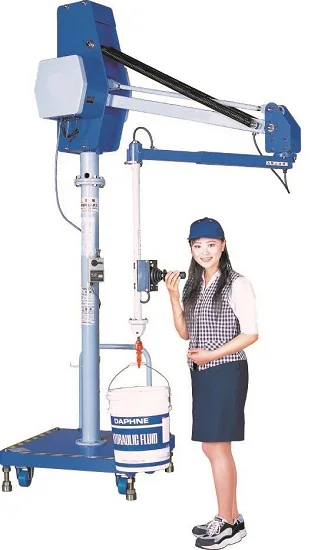

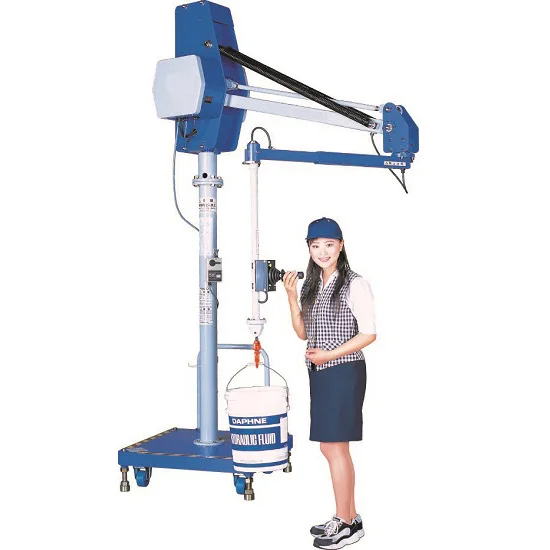

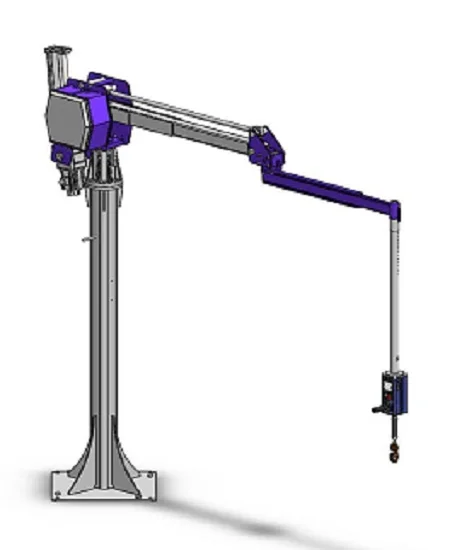

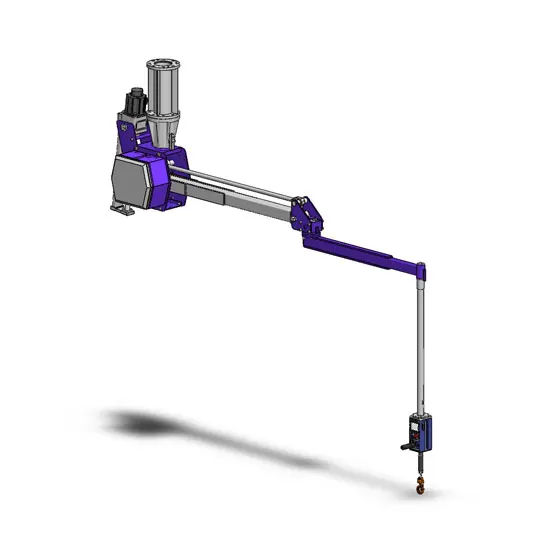

BMi2 series (Electric manipulator)
This is a completely reimagined electric manipulator. All on-board functions, including the high-performance balance function, are electronically controlled. They have been developed by using electrical control technologies, mechanical design technologies and operability that set these manipulators apart from existing electric manipulators.
This is a completely reimagined electric manipulator. All on-board functions, including the high-performance balance function, are electronically controlled. They have been developed by using electrical control technologies, mechanical design technologies and operability that set these manipulators apart from existing electric manipulators.
Specification
Model | Max.load (kg) | Max.working radius (mm) | Lift stroke (mm) | |||
BMi2S-50 | 50 | R2150 | 1600 | |||
BMi2S-50C | 50 | R2150 | 1600 | |||
BMi2S-75 | 75 | R2480 | 1655 | |||
BMi2S-75C | 75 | R2480 | 1655 | |||
BMi2S-150 | 150 | R2345 | 1655 | |||
BMi2S-150C | 150 | R2345 | 1655 | |||
BMi2S-250 | 250 | R2552 | 1655 | |||
BMi2S-250C | 250 | R2552 | 1655 | |||
Power source : Three-Phase AC200/220V±10% 50／60Hz | ||||||
Certifications
Factory Information
Company Profile
TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
