Wholesale Japan High Quality Industrial Pneumatic Manipulator Arm
- Category: >>>
- Supplier: TOYO KOKEN K.K.
Share on (11000000279063):
Product Overview
Description
Products Description

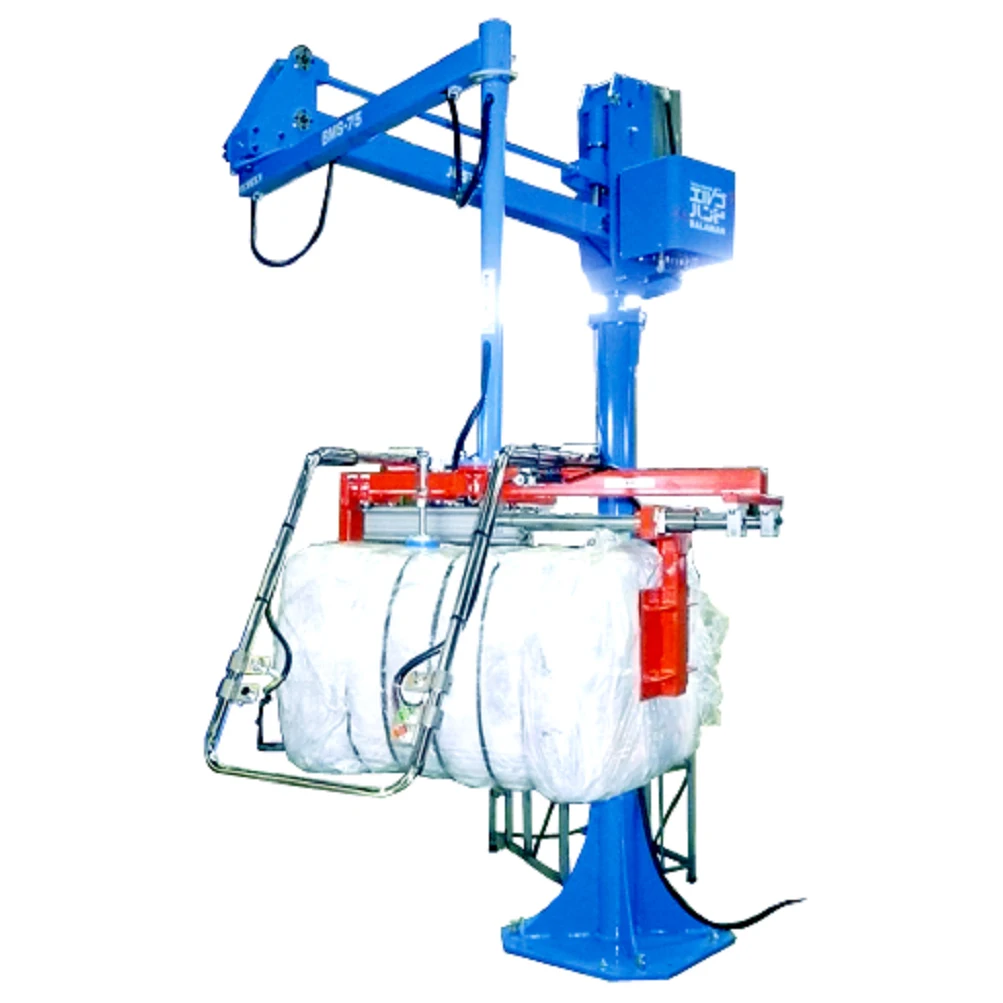

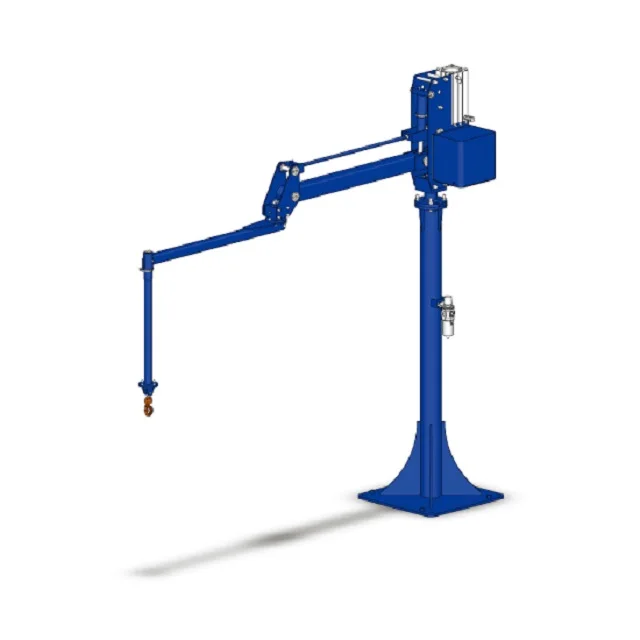

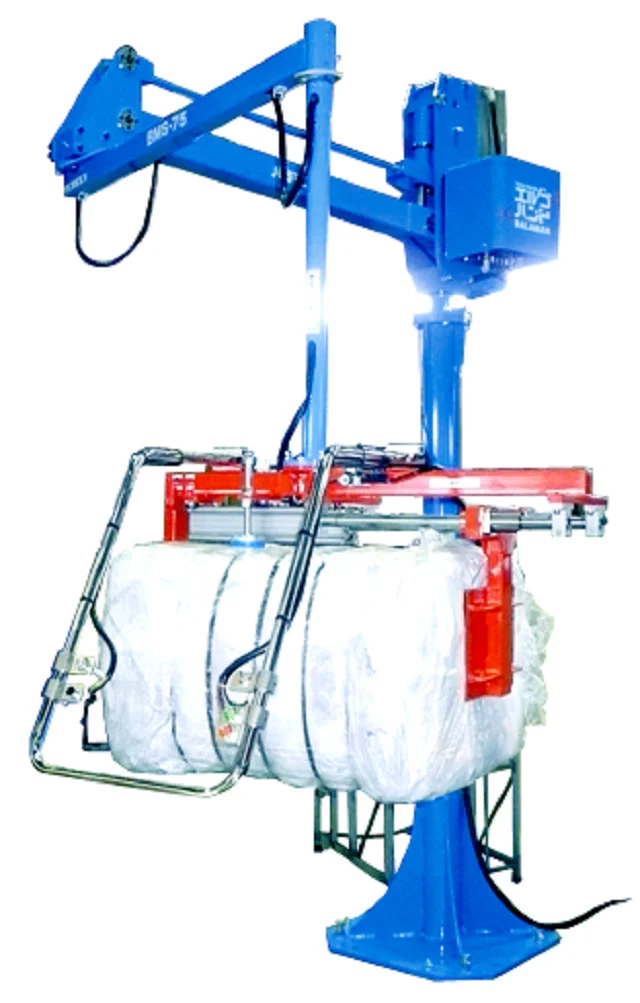

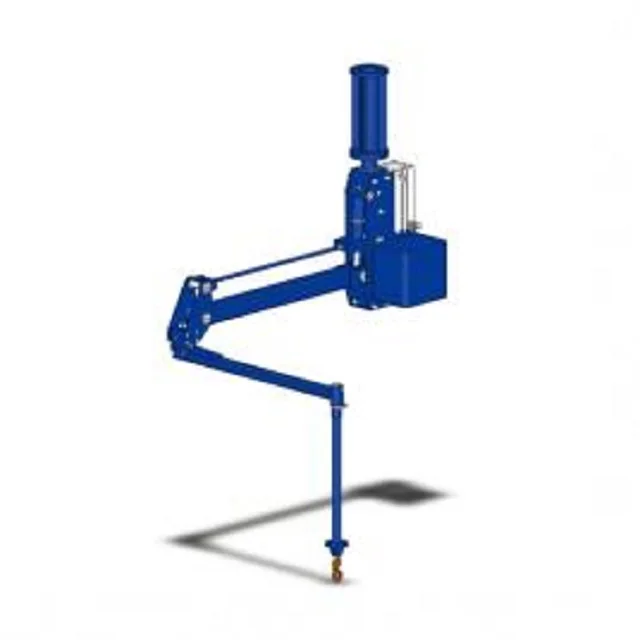

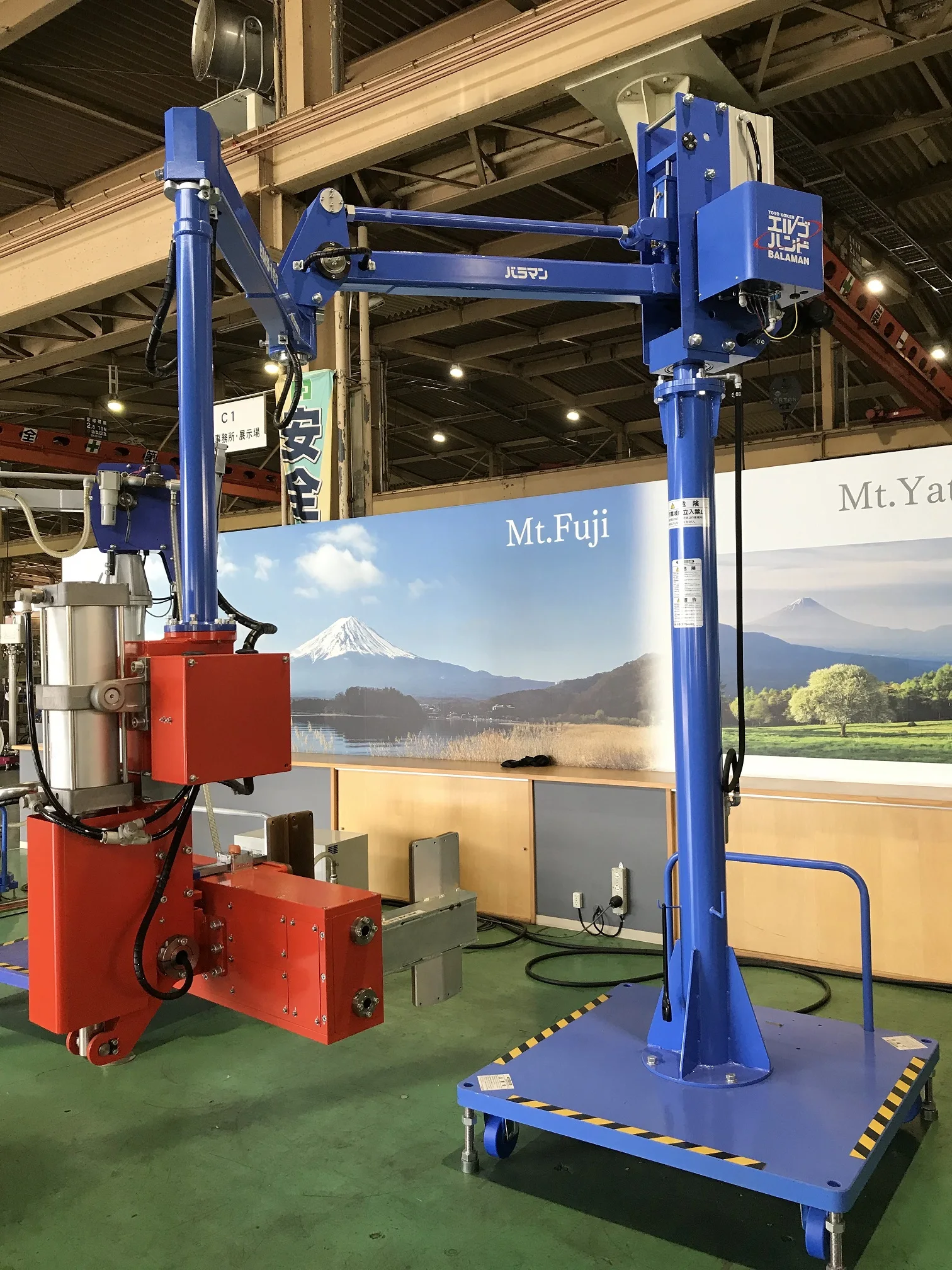

BMS, BMS- C series (Pneumatic manipulator)
2-axis rotation type which is compatible with various installation spaces.

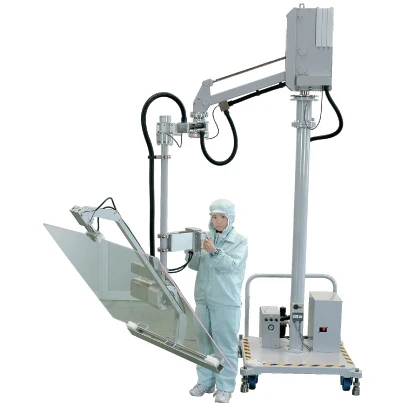

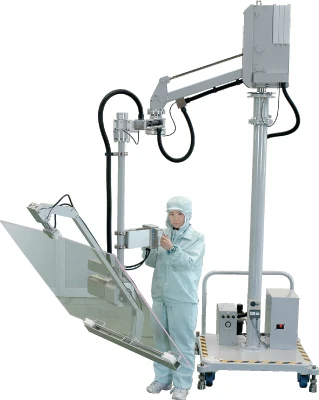

The horizontal and vertical arm lengths can be independently adjusted in order to meet the constraints of ceiling height and work area. Compared with other models, almost no dust is generated because there are only a few sliding parts. Therefore, we have received many requirements and several installations in clean rooms.
2-axis rotation type which is compatible with various installation spaces.
The horizontal and vertical arm lengths can be independently adjusted in order to meet the constraints of ceiling height and work area. Compared with other models, almost no dust is generated because there are only a few sliding parts. Therefore, we have received many requirements and several installations in clean rooms.
Specification
Model | Max.load (kg) | Max.working radius (mm) | Lift stroke (mm) | |||
BMS-30 | 30 | R1990 | 1300 | |||
BMS-50 | 50 | R2118 | 1610 | |||
BMS-75 | 75 | R2350 | 1560 | |||
BMS-125 | 125 | R2190 | 1500 | |||
BMS-150 | 150 | R2354 | 1656 | |||
BMS-30C | 30 | R1990 | 1300 | |||
BMS-50C | 50 | R2118 | 1610 | |||
BMS-75C | 75 | R2350 | 1560 | |||
BMS-125C | 125 | R2190 | 1500 | |||
BMS-150C | 150 | R2354 | 1656 | |||
Air pressure : 0.54MpaG | ||||||
Certifications
Factory Information
Company Profile
TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
