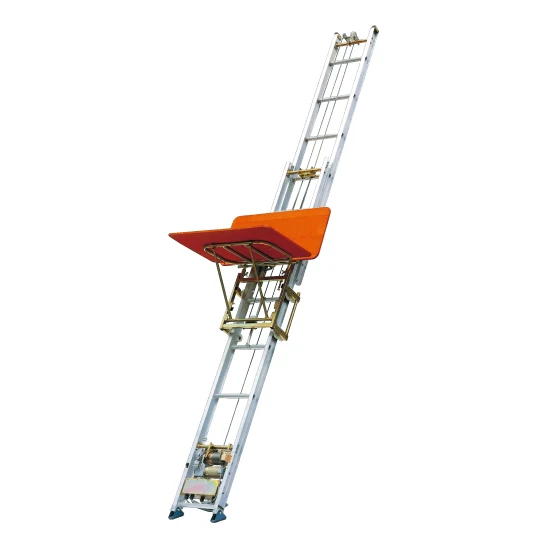

JS type ladder lift "Mighty Slider"
JS-480F / -2F / -3F / 870F
This type is easy to install.　
　

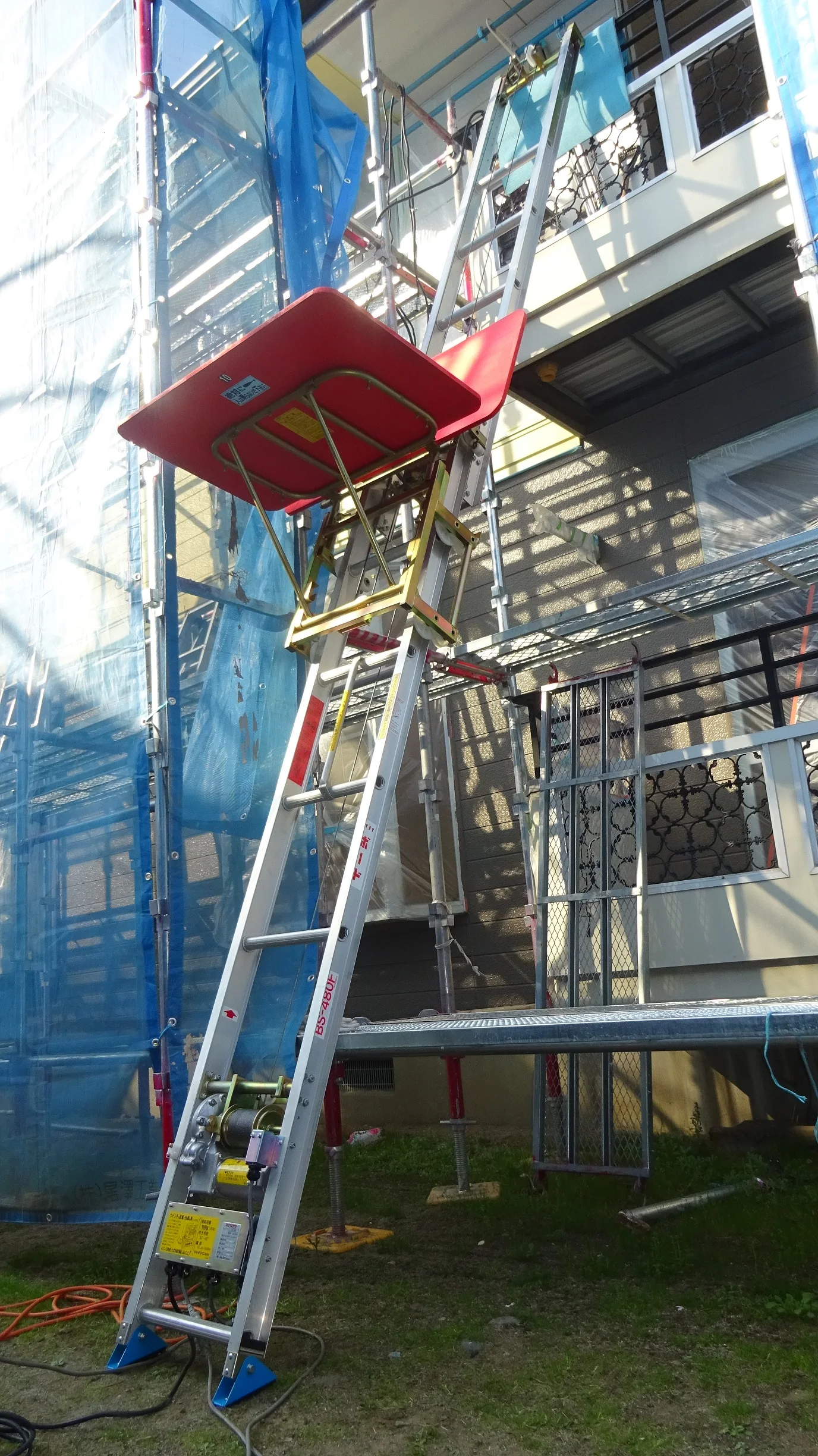

The ladder is slid electrically and automatically adjusted to the required height.

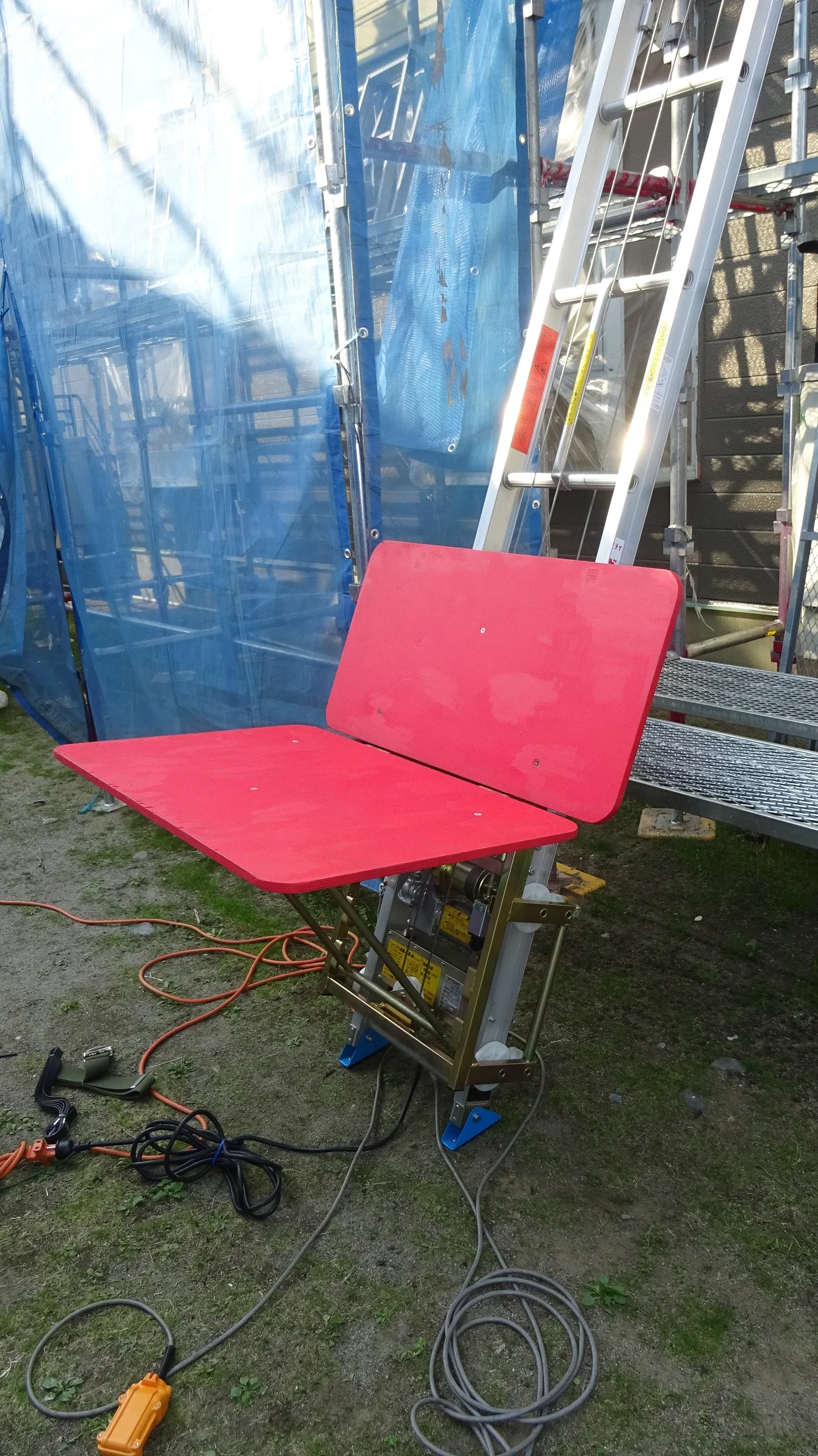

By inverting the back plate, loading at the upper limit is made easier.

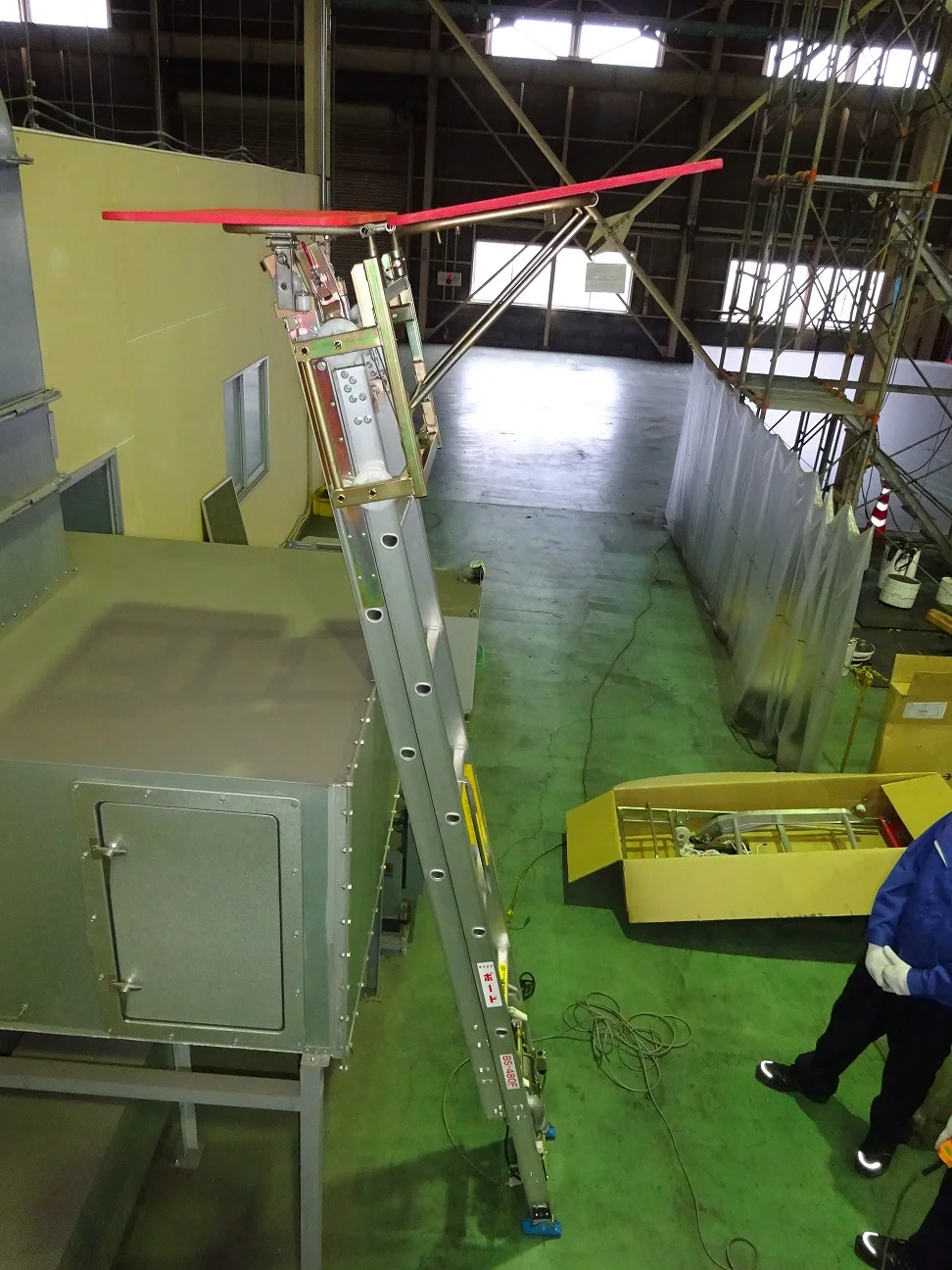

When the load reaches the top of the ladder, the back plate automatically reverses, allowing easy loading from the rear side. Maximum load capacity 120kg






Specification


Model
Rated Load (kg)
Lifting Speed (m/min)
Wire Rope (m)
Operation Switch (m)
Lift (m)
Standing angle (deg)
Weight(kg)
JS-480F
120
14
φ4×17
10
4.8
60°～80°
57
JS-2F
120
14
φ4×23
10
7
60°～80°
61
JS-3F
120
14
φ4×25
10
7.7
60°～80°
74
JS-870F
120
14
φ4×28
10
8.7
60°～80°
76
Power supply：AC100V 50/60Hz



■Components


Name
Dimensions and Remarks
When stored
Weight（kg）
sliding ladder
JS-480F
3.2～4.8m
3.1
33
JS-2F
4.6～7.0m
4.5
37
JS-3F
4.9～7.7m
4.8
39
JS-870F
5.5～8.7m
5.3
41
Winch KS-400
Output400W
8
Bed Size
W900×D600×H450mm
16
Lower pillar
Adjustment range2,840～4540mm
11


Certifications




Factory Information






Company Profile


TOYO KOKEN has a history of 60 years for winches and 40 years for manipulators, and our products used by many companies in a wide range of industries such as the construction and industrial machinery industry. Our products are designed under JIS (Japanese Industrial Standards), and we provide our customers with better products under the policies of ISO90001 and ISO14001.
