Product Overview
Description
Products Description
Small, but robust and reliable!

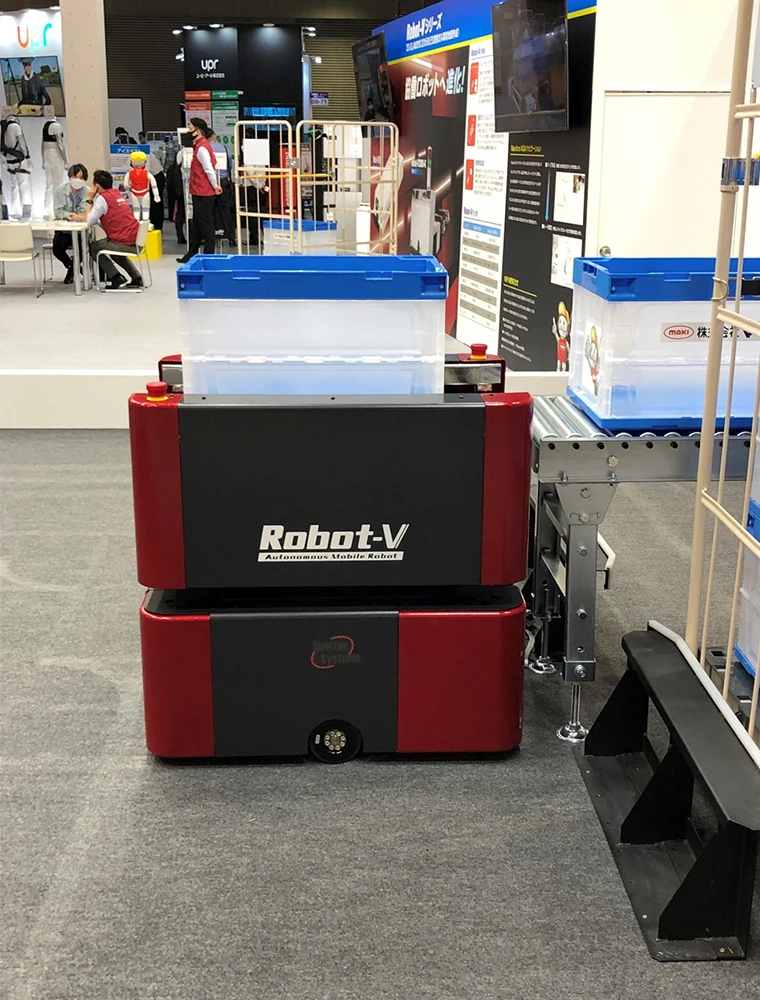

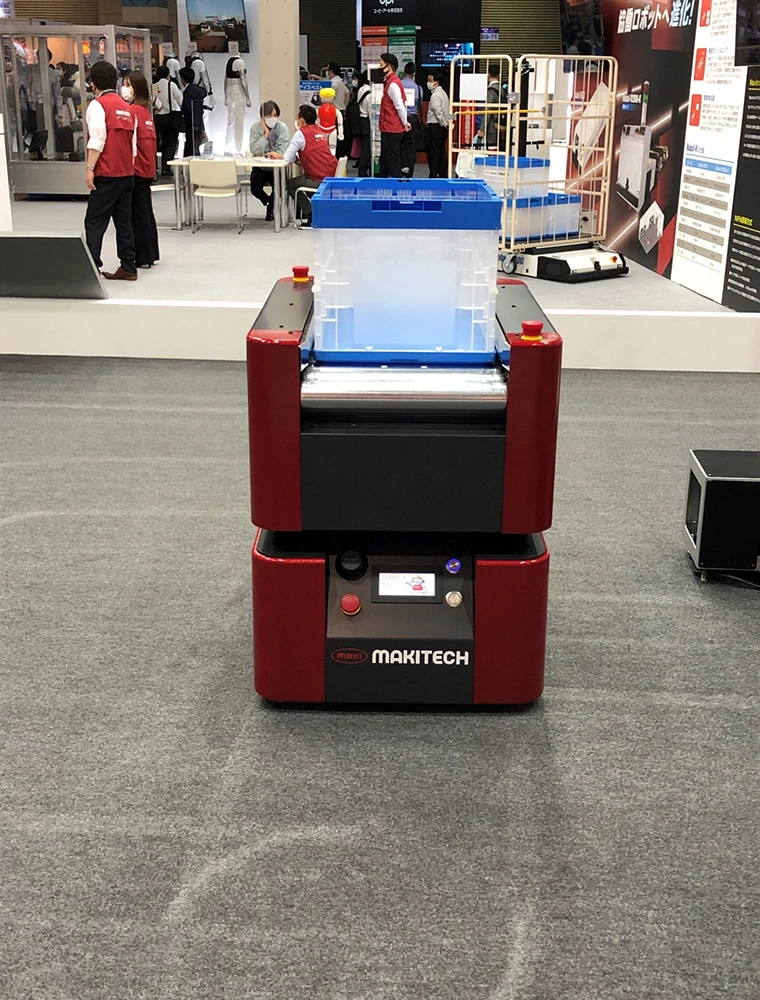

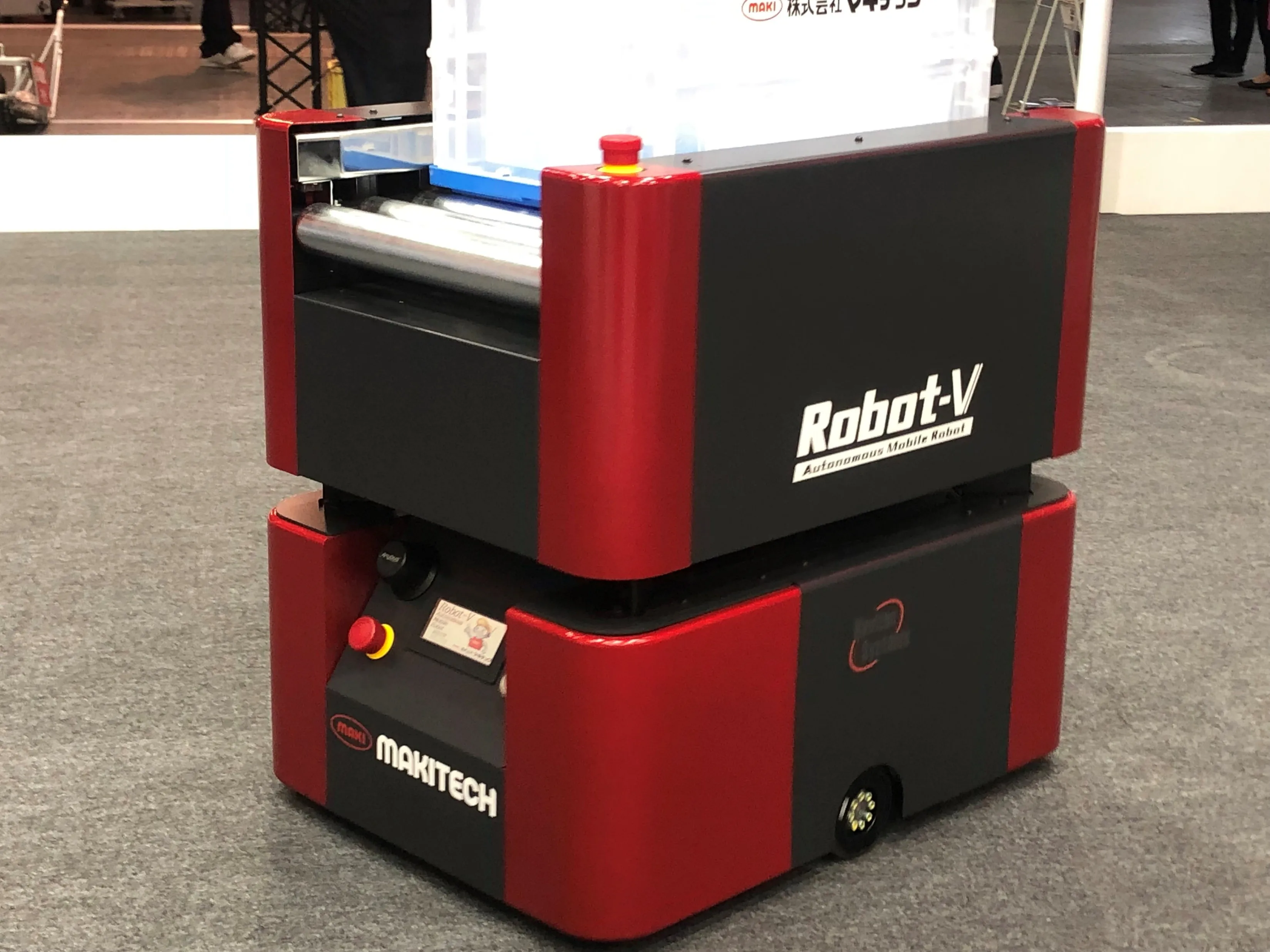

Our Robot-V100 is an autonomous mobile robot (AMR) which, by attaching driven conveyors up the product, autonomously collects items from a conveyor line, transporting it to previously set locations or lines.
Our Robot-V100 is an autonomous mobile robot (AMR) which, by attaching driven conveyors up the product, autonomously collects items from a conveyor line, transporting it to previously set locations or lines.
We adopt special software supplied by Navitec Systems (in Finland) in order to achieve its positioning accuracy within ±10mm.
Because it is an AMR driven by 2D SLAM, you no longer need extra installment such as attaching magnetic tapes on the ground.
All you need is mapping with lasers. Mapping is possible if you have more than 20% of columns or walls on the floor.
Of course, we also have safety sensors or bumper sensors as options.
Only a PC is required for route setting.
Because it is an AMR driven by 2D SLAM, you no longer need extra installment such as attaching magnetic tapes on the ground.
All you need is mapping with lasers. Mapping is possible if you have more than 20% of columns or walls on the floor.
Of course, we also have safety sensors or bumper sensors as options.
Only a PC is required for route setting.
Our controlling system can handle 100 pieces of AMRs at maximum.
To prevent from AMRs to freeze by facing each other at intersections, you can decide priorities of each AMR or motions beforehand.
To prevent from AMRs to freeze by facing each other at intersections, you can decide priorities of each AMR or motions beforehand.
We will be happy to manufacture the most suitable AMRs based on customer's needs, so long as the conveyor height is more than 450mm.
So far, we have confirmed that our Robot-V100 can transport loads of 200kg, meaning that our AMRs can convey a wide range of loads.
For charging systems, wireless charging is adopted.
Robot-V100 has sensors with 360° cameras in the middle of the product, enabling full-direction mapping.
So far, we have confirmed that our Robot-V100 can transport loads of 200kg, meaning that our AMRs can convey a wide range of loads.
For charging systems, wireless charging is adopted.
Robot-V100 has sensors with 360° cameras in the middle of the product, enabling full-direction mapping.
■Robot-V100 | |
Place of origin | Japan |
Guided way | 2D-SLAM |
Load capacity | 200kg |
Steering way | dual steering wheel driven |
Running directions | forward, backward, spin turn |
Max run speed | 40m/min |
Power supply | lithium ion battery |
Charging system | wireless charging (automatic) |
Outline external dimensions | L800mm x W600mm x H350mm |
MOQ | 1 set |
