Product Overview
Description
Products Description
Small, but robust and reliable!

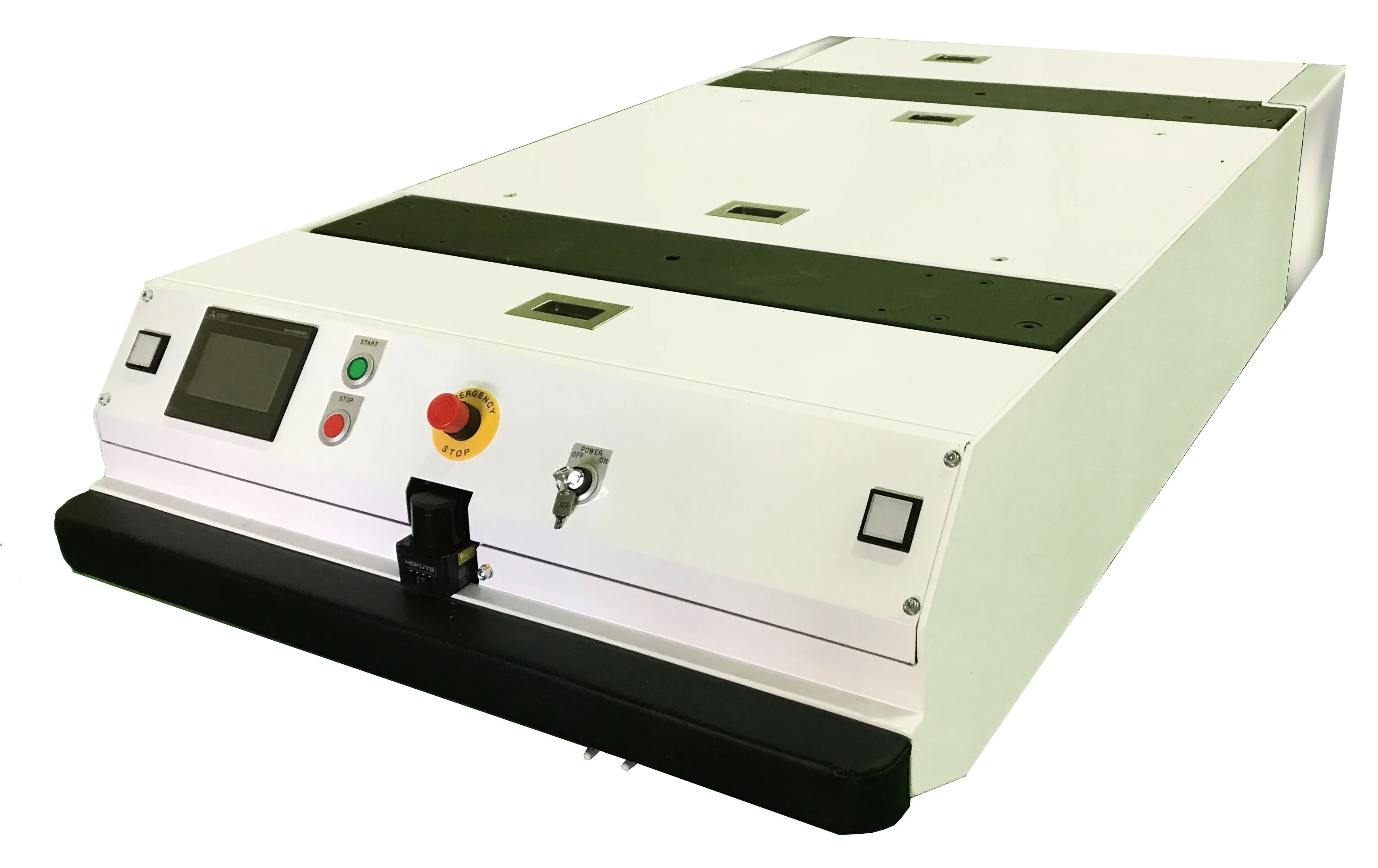

Our Robot-V1000 is an autonomous mobile robot (AMR) which autonomously goes under a standard roll box pallet, lifting it up with its lifting mechanism in the middle of this product, transporting it to previously set locations.
Our Robot-V1000 is an autonomous mobile robot (AMR) which autonomously goes under a standard roll box pallet, lifting it up with its lifting mechanism in the middle of this product, transporting it to previously set locations.
We adopt special software supplied by Navitec Systems (in Finland) in order to achieve its positioning accuracy within ±10mm.
Because it is an AMR driven by 2D SLAM, you no longer need extra installment such as attaching magnetic tapes on the ground.
All you need is mapping with lasers. Mapping is possible if you have more than 20% of columns or walls on the floor.
Of course, we also have safety sensors or bumper sensors as options.
Only a PC is required for route setting.
Because it is an AMR driven by 2D SLAM, you no longer need extra installment such as attaching magnetic tapes on the ground.
All you need is mapping with lasers. Mapping is possible if you have more than 20% of columns or walls on the floor.
Of course, we also have safety sensors or bumper sensors as options.
Only a PC is required for route setting.
Our controlling system can handle 100 pieces of AMRs at maximum.
To prevent from AMRs to freeze by facing each other at intersections, you can decide priorities of each AMR or motions beforehand.
To prevent from AMRs to freeze by facing each other at intersections, you can decide priorities of each AMR or motions beforehand.
So far, we have confirmed that our Robot-V1000 can transport loads of 1000kg, meaning that our AMRs can convey a wide range of loads.
For charging systems, wireless charging is adopted.
Laser sensors are placed at the back and front of this product, enabling laser mapping.
For charging systems, wireless charging is adopted.
Laser sensors are placed at the back and front of this product, enabling laser mapping.
■Robot-V1000 | |
Place of origin | Japan |
Product | Robo-V1000 |
Guided way | 2D-SLAM |
Load capacity | 1000kg |
Steering way | dual steering wheel driven |
Running directions | forward, backward, spin turn |
Max run speed | 35m/min |
Power supply | lithium ion battery |
Charging system | wireless charging (automatic) |
Outline external dimensions | L1600mm x W800mm x H330mm |
Weight | 560kg |
MOQ | 1 set |
