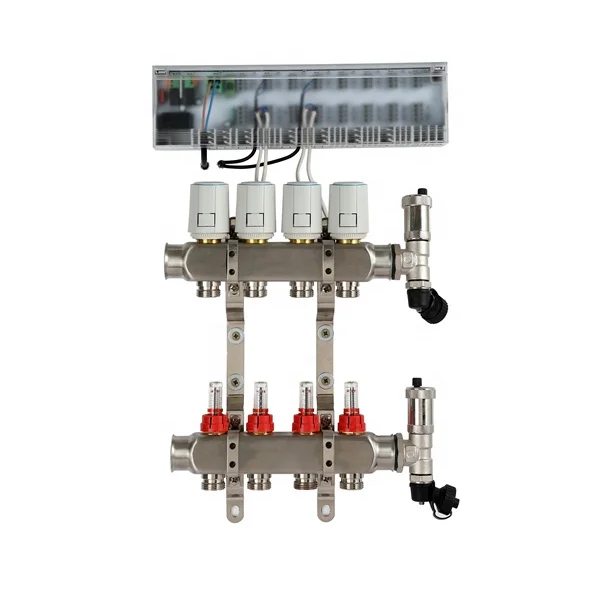

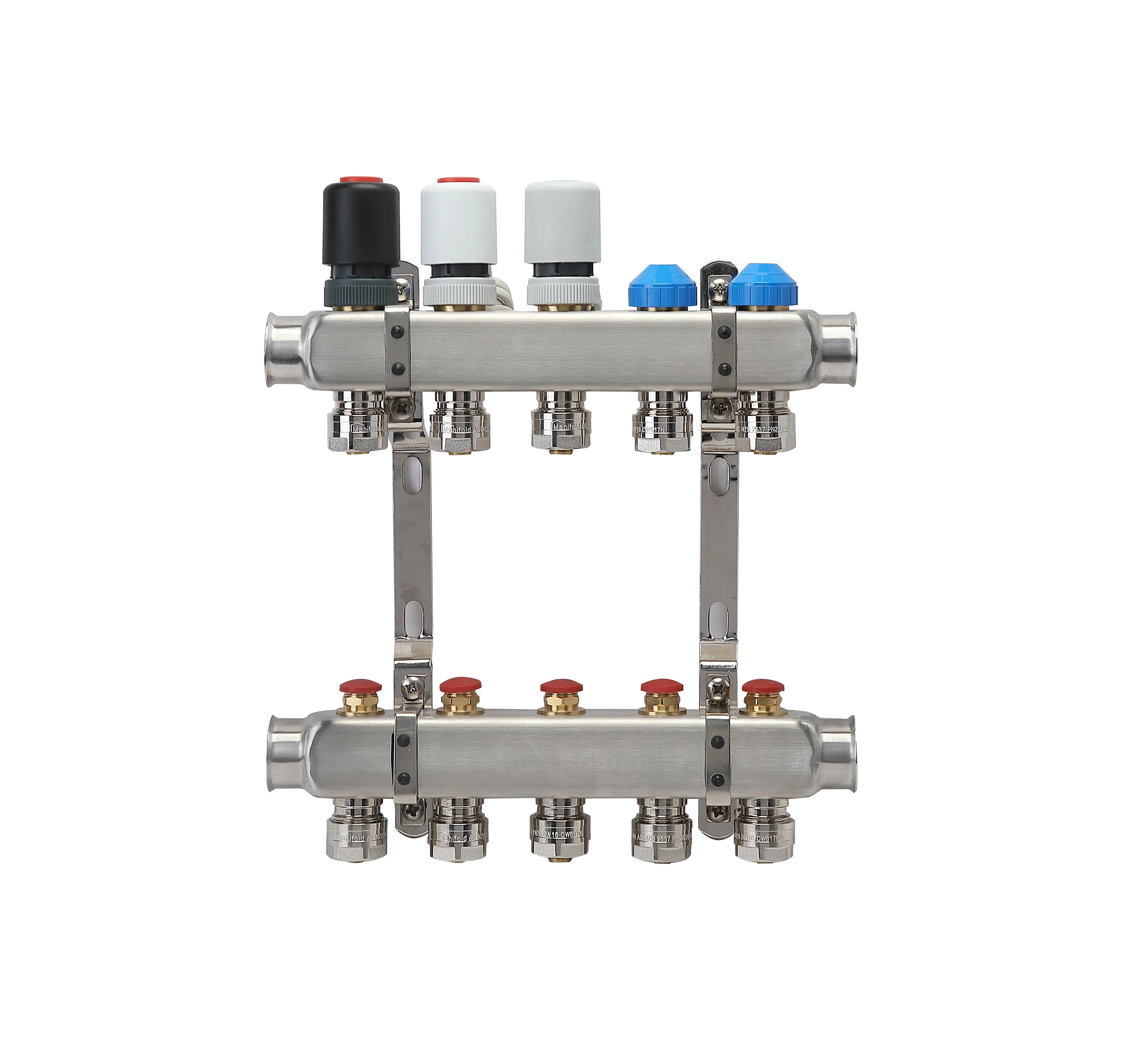

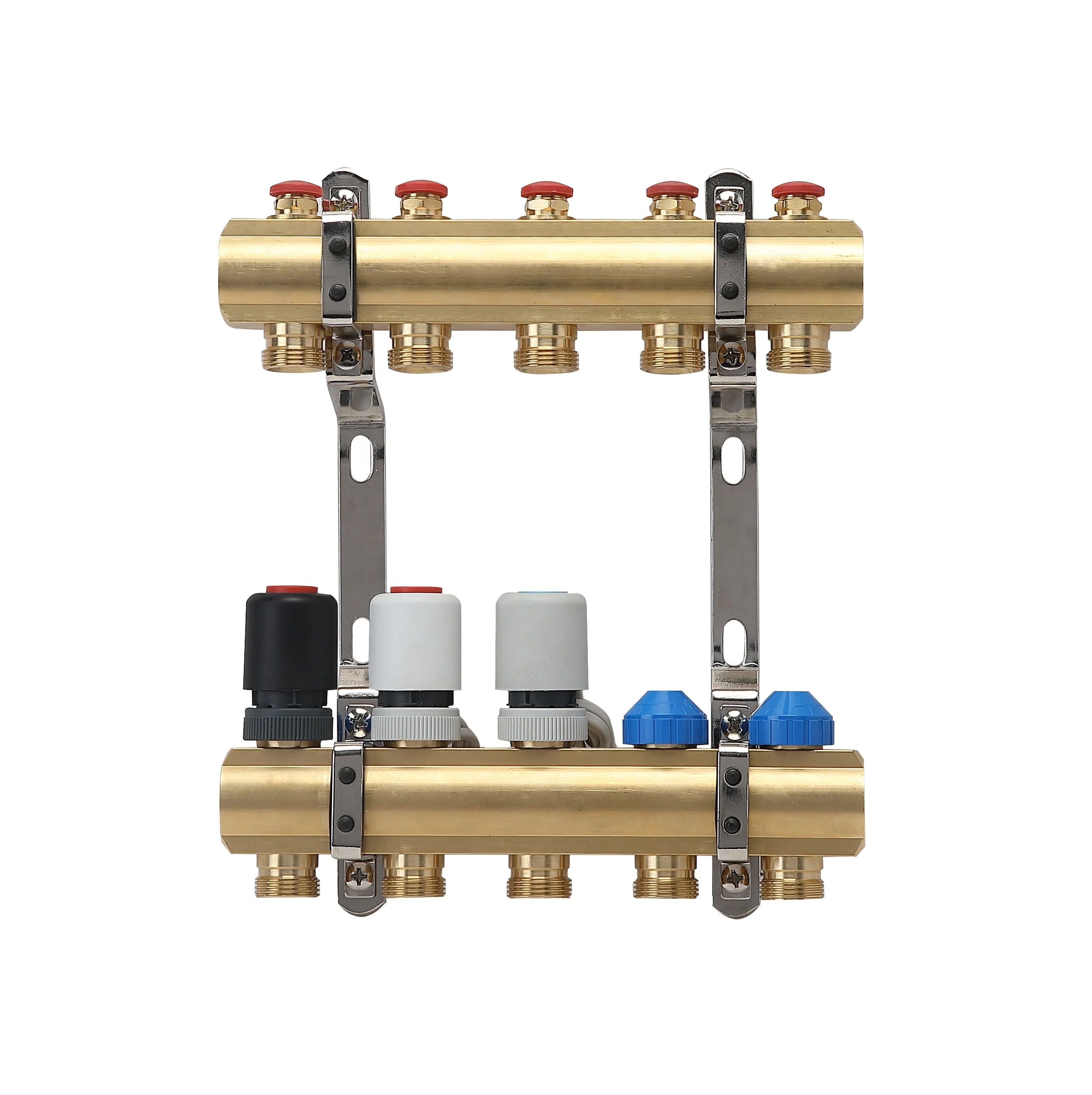

Floor heating system brass and stainless steel radiant water manifold
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (11000000294125):
Product Overview
Description
Product Description

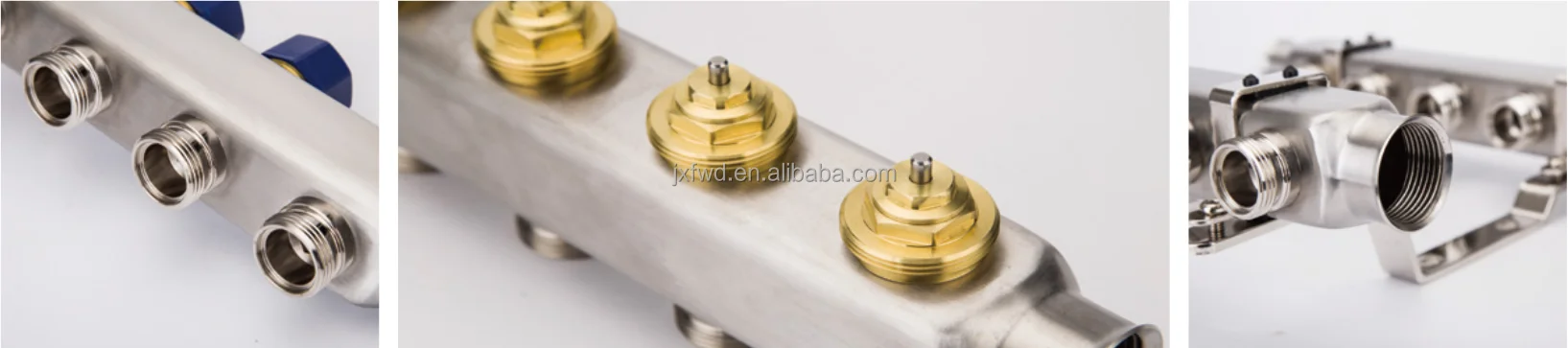

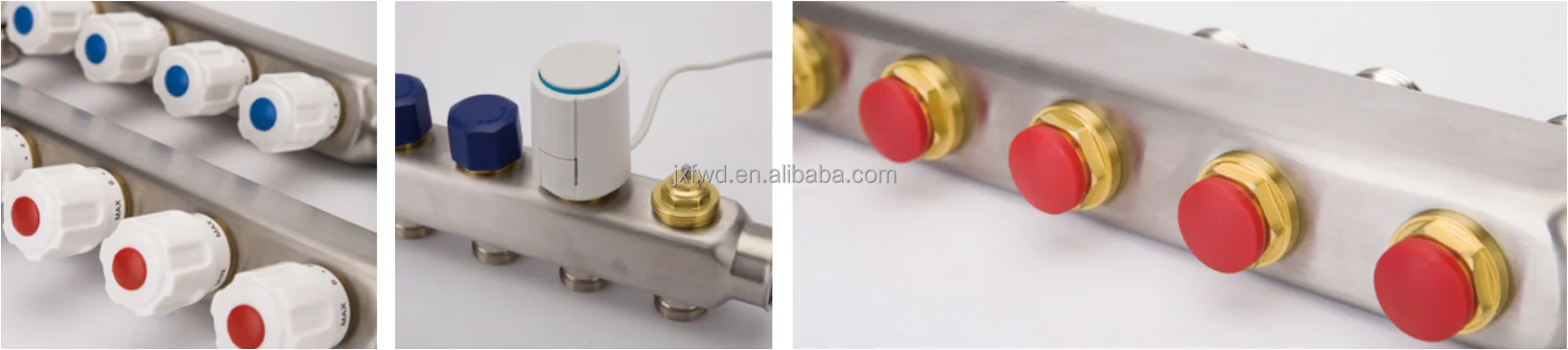

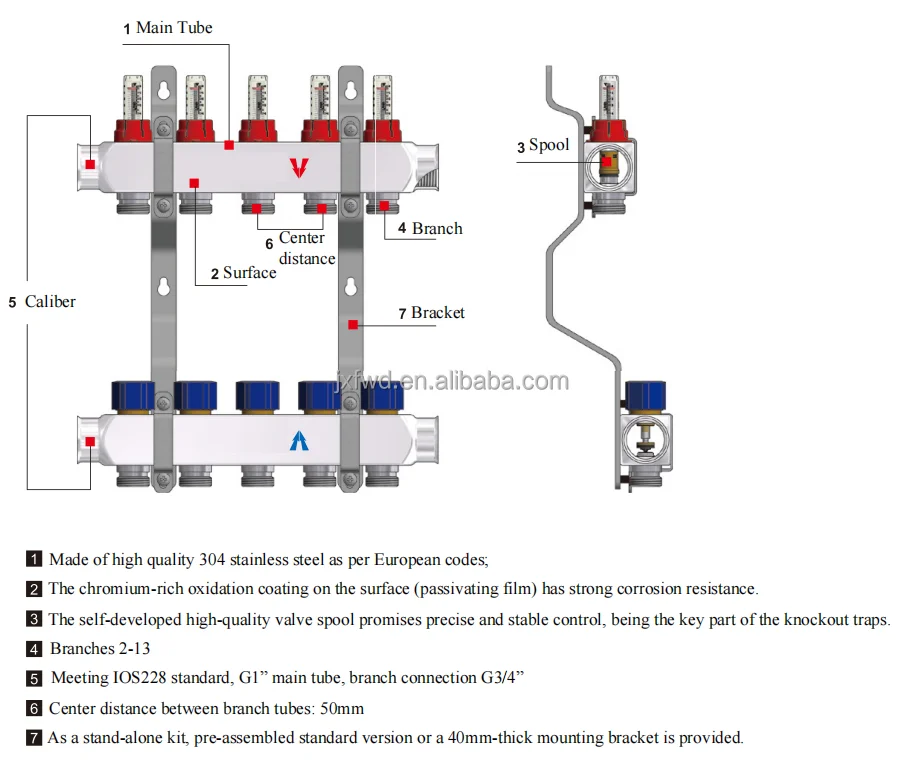

Manifold in Underfloor Heating System
Design concept

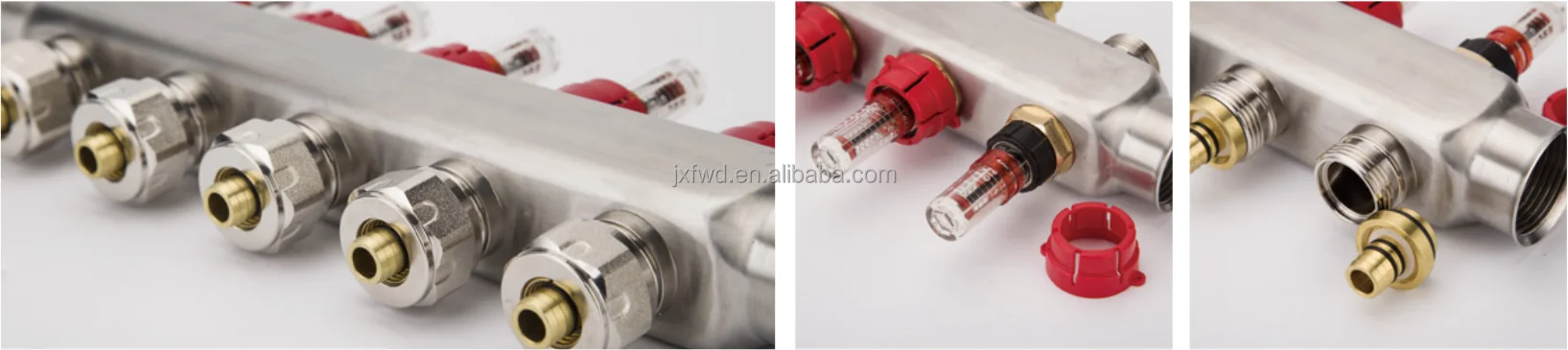

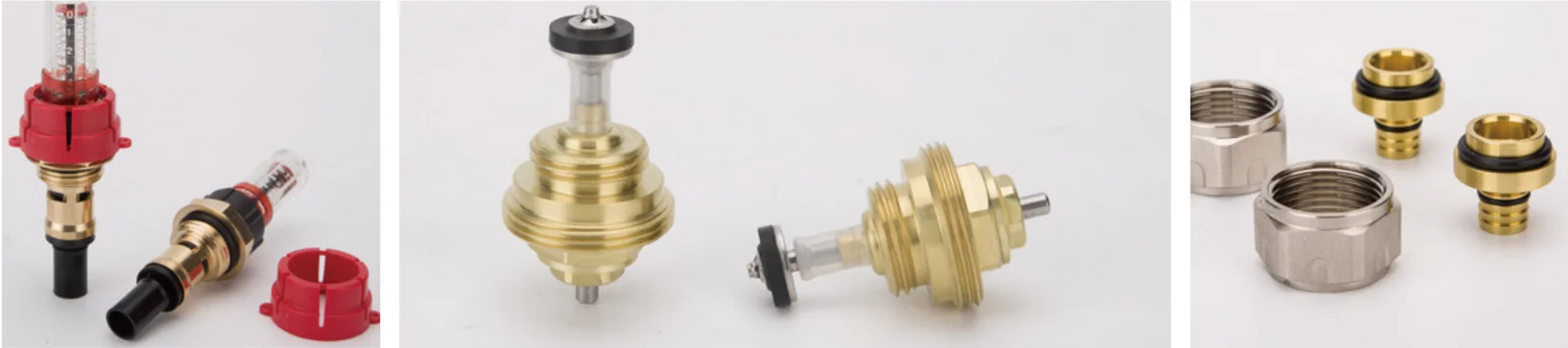

The core of the manifold is the valve core. The patented valve core independently developed and designed by SMLG greatly increases
the service life of the valve core and reduces after-sales maintenance costs. The inner hexagonal valve core is replaced with a
visually adjustable flow meter, which makes the hydraulic flow adjustment more accurate.
the service life of the valve core and reduces after-sales maintenance costs. The inner hexagonal valve core is replaced with a
visually adjustable flow meter, which makes the hydraulic flow adjustment more accurate.
Products advantage:
The valve core adopts SI high temperature resistant silica gel anti-fouling sleeve, which effectively prevents dirt and sand from
entering the valve core and prolongs the service life of the valve core.
The main internal components of the valve core-304 stainless steel spring, after effective anti-fatigue treatment, through the
matching of experimental torque values, the feel and opening and closing functions are softer.
entering the valve core and prolongs the service life of the valve core.
The main internal components of the valve core-304 stainless steel spring, after effective anti-fatigue treatment, through the
matching of experimental torque values, the feel and opening and closing functions are softer.
Technical Parameter:
Material | 304 stainless steel/Brass |
Product specifications | F1''*M3/4'' |
Max working pressure | 16bar |
Max temperature | 110℃ |
Working Media | Water |
Main pipe flowing | 20kv(m³/h) |
Branch flowing | 1.5kv(m³/h) |
Branch size | G1'' |
Main pipe size | 50mm |

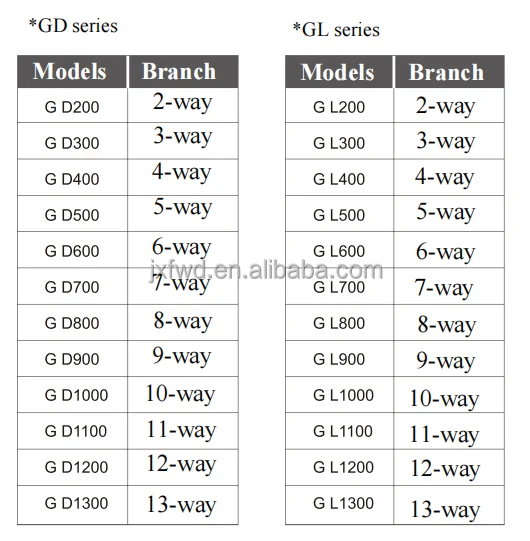

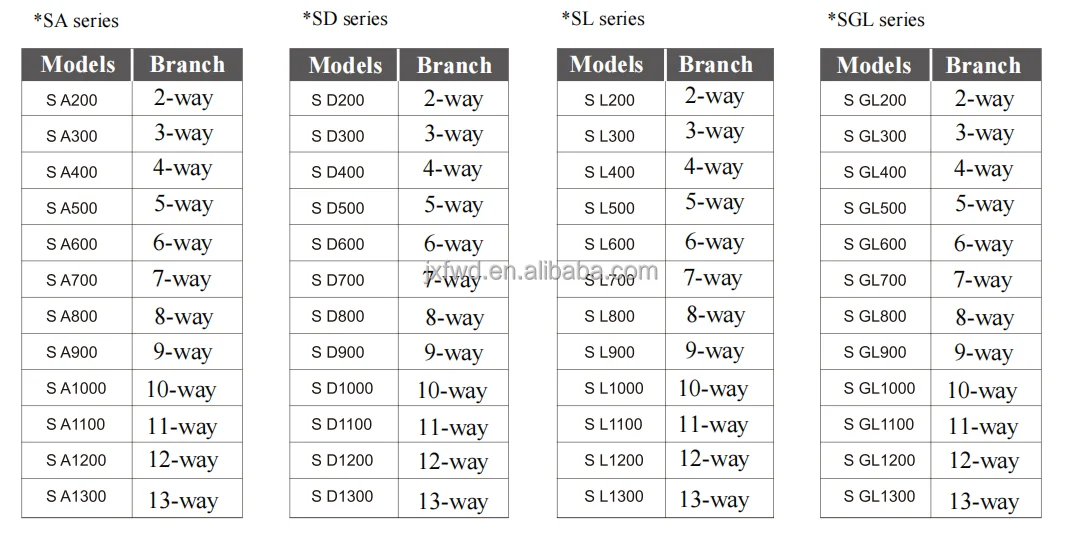

Branch | 2-13 ways |
Adapter optional | 20*2.0,16*2.0 |

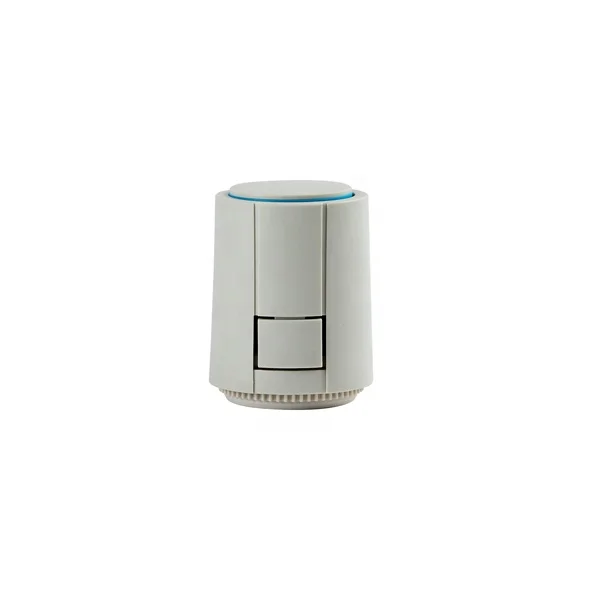

Product name | 920039PL thermal actuator |
Type | NO/NC |
Voltage | AC24V 110V 230V |
Power consumption | 2VA |
Working temperature | -5-60℃ |
Force | 110N |
Maximum Stroke | 4.0±0.5mm |
Running time | 3-5min |
Connection size | M30/28×1.5mm |
Protection Grade | IP54 |
Standard | EN60730 |

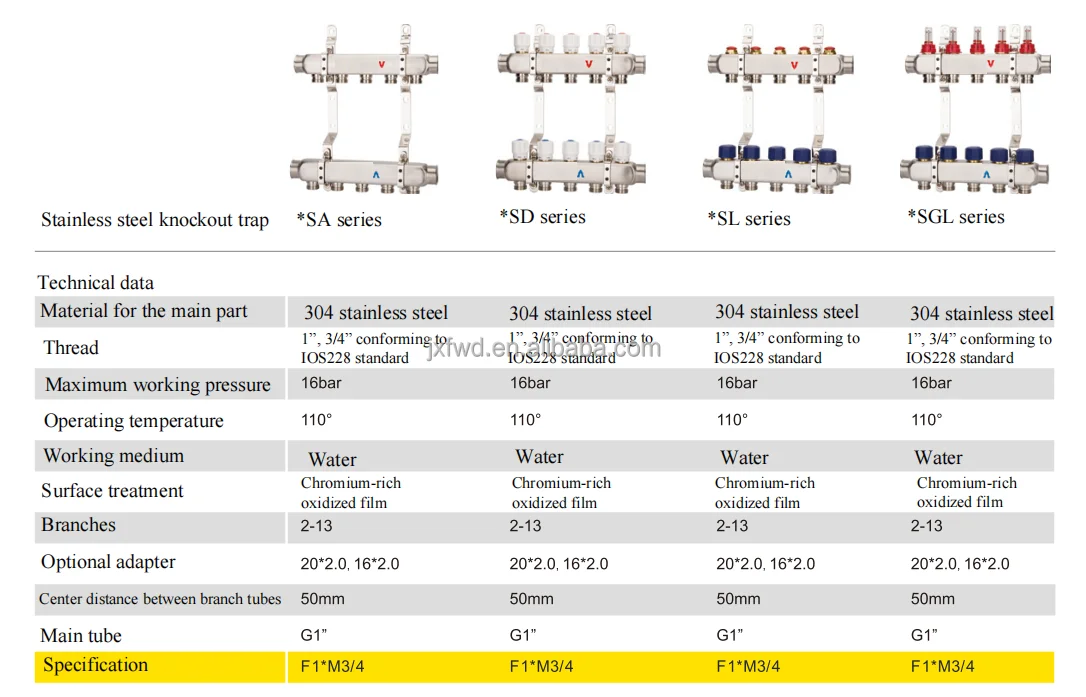

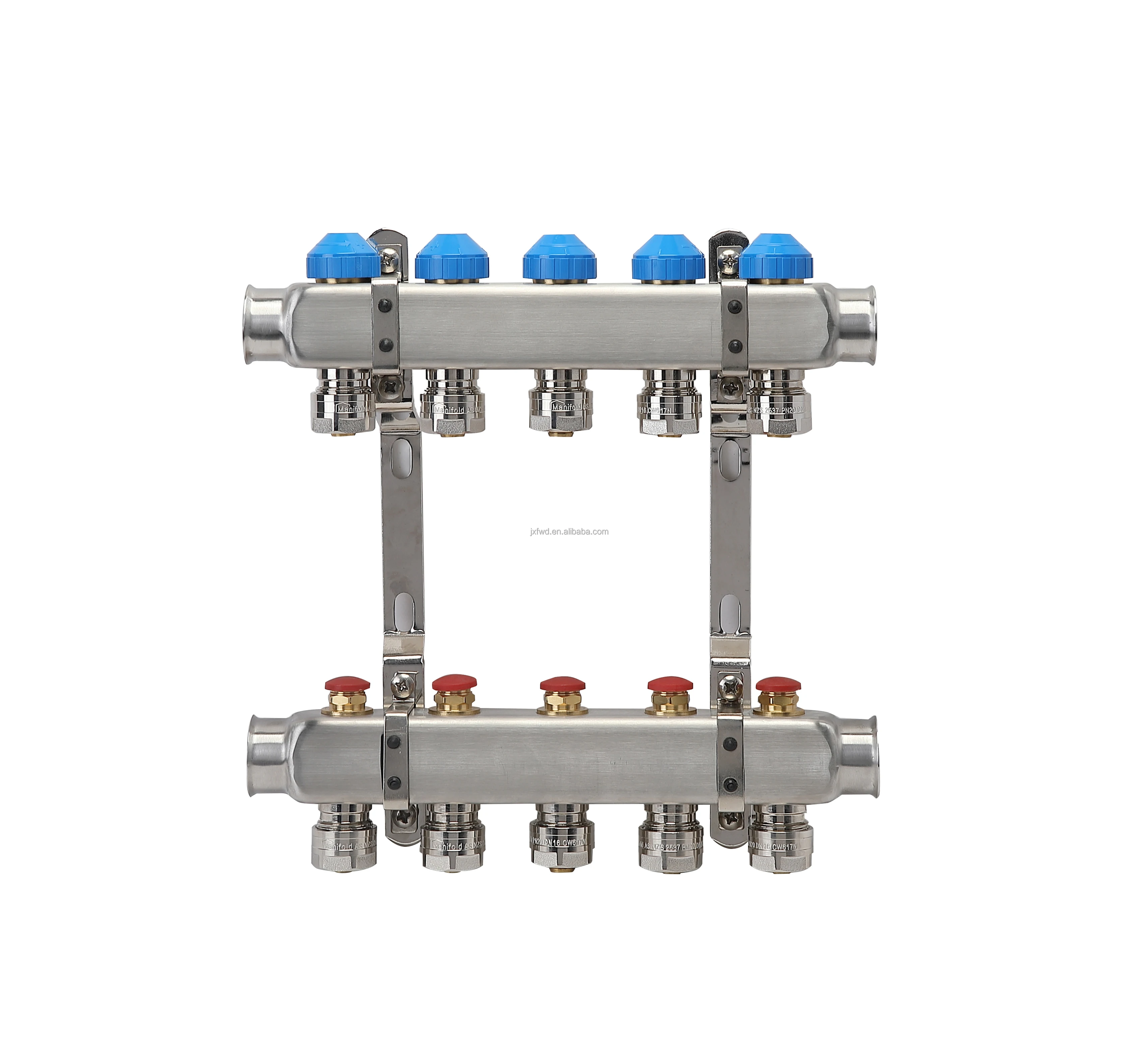

Stainless Steel

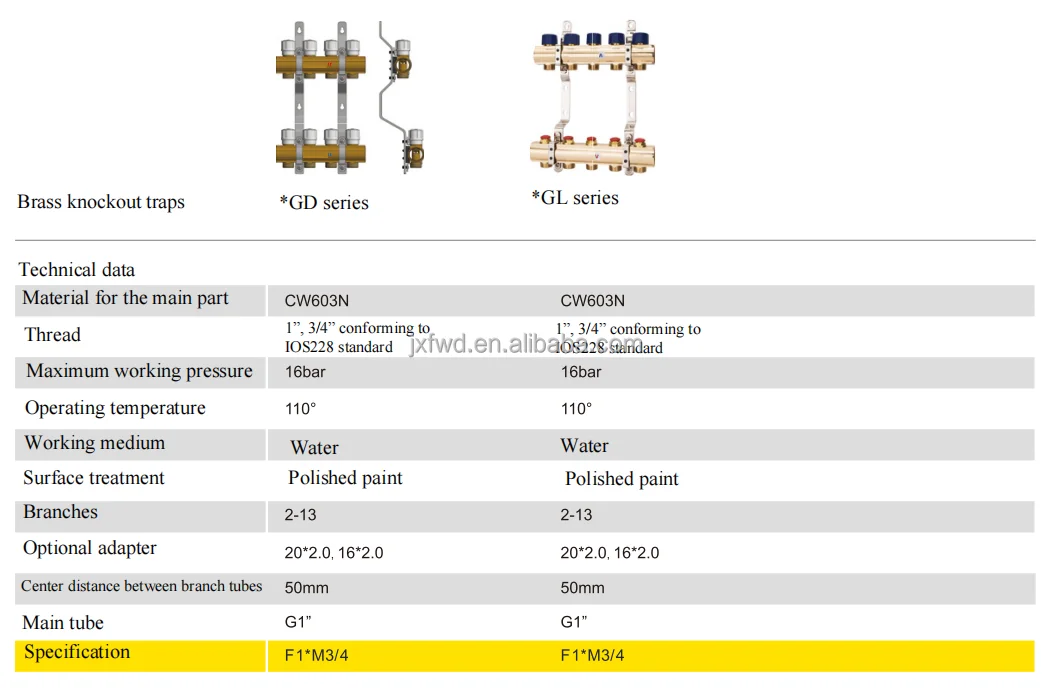

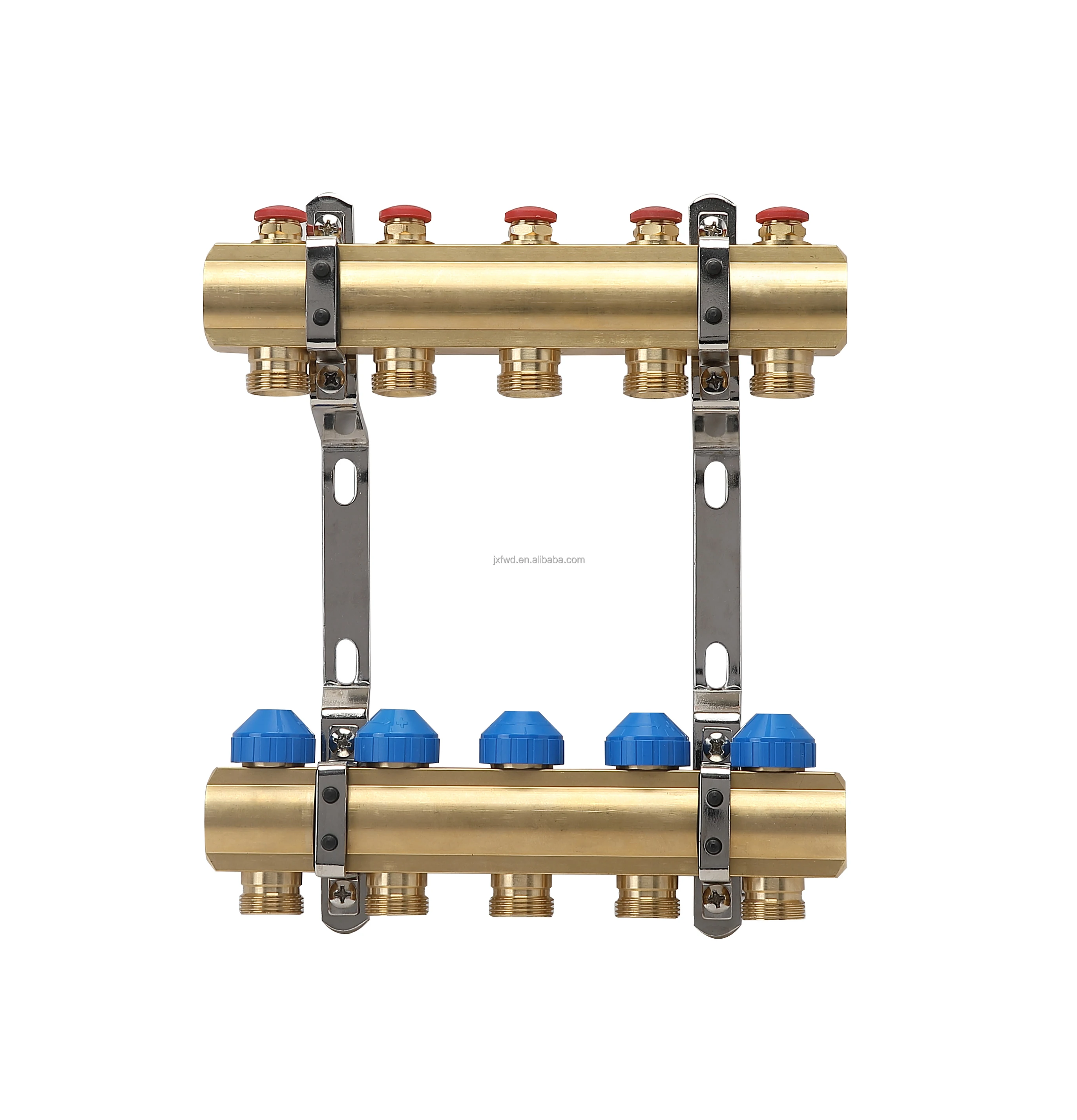

Brass
Main Products

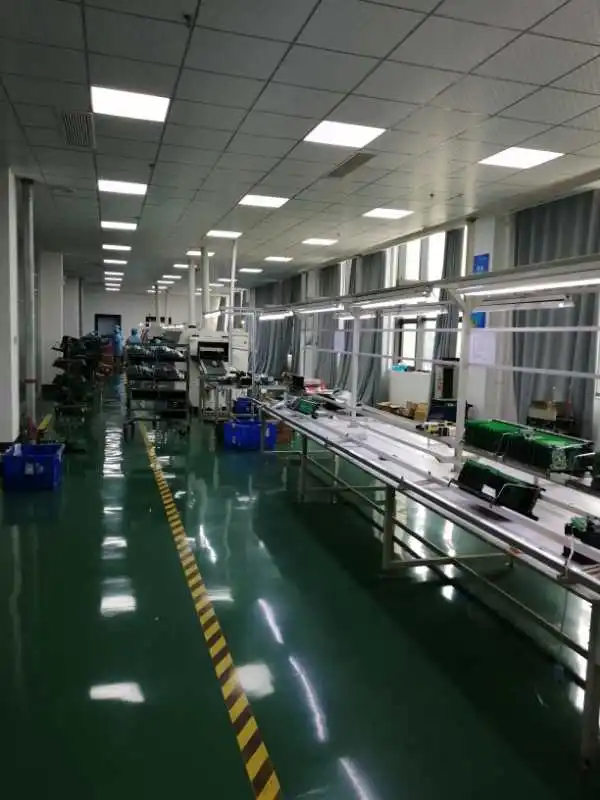

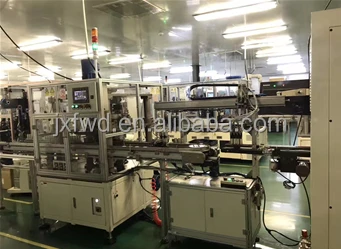

Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
