Air diffuser ultrasonic humidifier for compact open showcase
- Category: Humidifiers >>>
- Supplier: UCAN Co. Ltd.
Share on (11000000294348):
Product Overview
Description
Products Description
FT-SN UVSV Series
Highly reliable JAPAN-MADE industrial ultrasonic humidifier with a hygiene system.
Small type for compact open showcase and salad bar, etc.
Small type for compact open showcase and salad bar, etc.
4 models as per capacity 1.0 and 1.5 L/h.

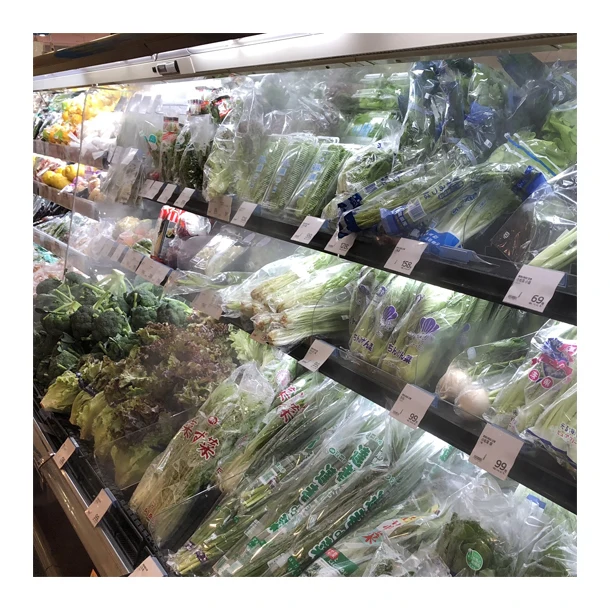

Applications Suitable for small size (approx.1.2 m) open showcase and for partial humidification.
Mist volume controller Volume controller is equipped with SC1 model. Can adjust the mist at stepless level.
Supplies ample mist to every corner of the showcase to keep the products freshness.
Visual effect It appeals the product freshness to the buyers.
Acquired CE marking
Applications Suitable for small size (approx.1.2 m) open showcase and for partial humidification.
Mist volume controller Volume controller is equipped with SC1 model. Can adjust the mist at stepless level.
Supplies ample mist to every corner of the showcase to keep the products freshness.
Visual effect It appeals the product freshness to the buyers.
Acquired CE marking
Hygiene system
Germicidal device is equipped by UV lamp and automatic drainage system.
The safety of product has been proved by collaborative research with the National Public Health Institute in Japan.
For hygiene system, please refer to this movie.
Germicidal device is equipped by UV lamp and automatic drainage system.
The safety of product has been proved by collaborative research with the National Public Health Institute in Japan.
For hygiene system, please refer to this movie.
Model FT- UVSV | 200SN | 200SNC1 | 300SN | 300SNC1 | |||||
Humidity capacity (l/h) | 1 | 0.5…1.0 | 1.5 | 0.5…1.5 | |||||
Power supply (50/60Hz) | 1φ2W AC230V * (Other power supply types are available on request) | ||||||||
Power Consumption (VA) | 96 | 130 | |||||||
No. of oscillator (pcs) | 2 | 3 | |||||||
Air volume (m3/min) | 0.5 / 0.6 (50/60 Hz) | ||||||||
Weight （kg) | Unit | 6 | 6.5 | 7.5 | 8 | ||||
Trans.box | 2 | 3 | |||||||
Water supply system | Automatic water supply system by float switch and water supply solenoid valve | ||||||||
Water supply pressure | 0.03…0.5 MPa (0.3…5.0 kgf / cm2) | ||||||||
Control system | On/Off control (Option) Proportional control | ||||||||
Water quality | Tap water, Purified water or R.O. treated water (1…20 μS/cm) We recommend purified water to prevent white powder from producing. | ||||||||
Ambient condition | 5…40℃ MAX.90%RH (No freezing, No condensation) | ||||||||
Replacement of Oscillator | At about 5,000 cumulative hours of operation | ||||||||
Replacement of UV lamp | At about 10,000 cumulative hours of operation | ||||||||
Safety equipment | Device to prevent waterless operation, Fuse to prevent overcurrent, Thermostat to prevent water overheating (cutoff at 55℃), Surge filter | ||||||||
