FT-SN UVSV Series

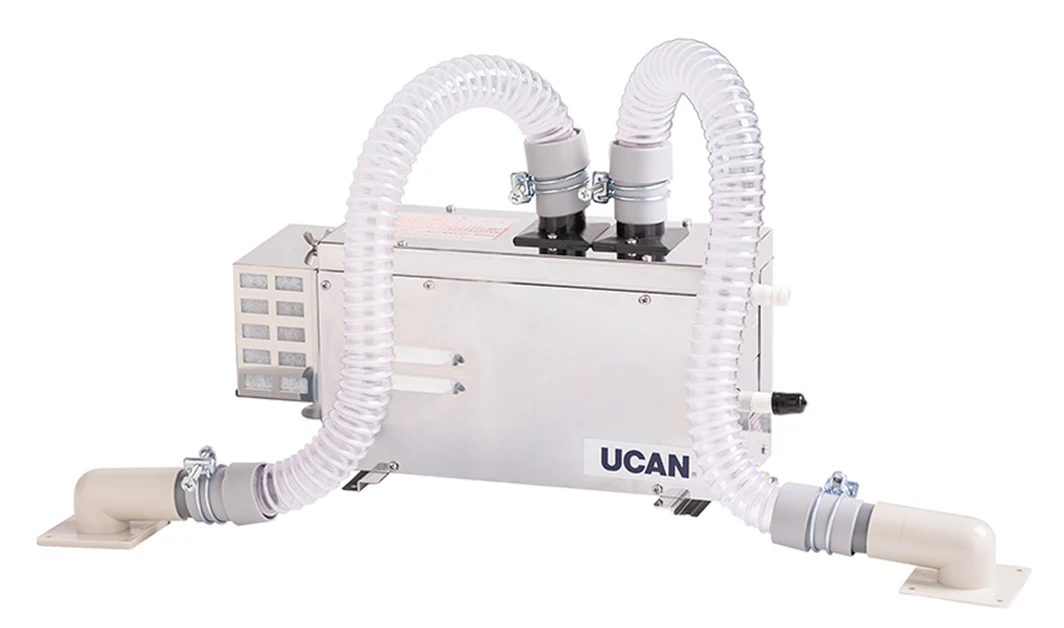

Highly reliable JAPAN-MADE industrial ultrasonic humidifier with a hygiene system.

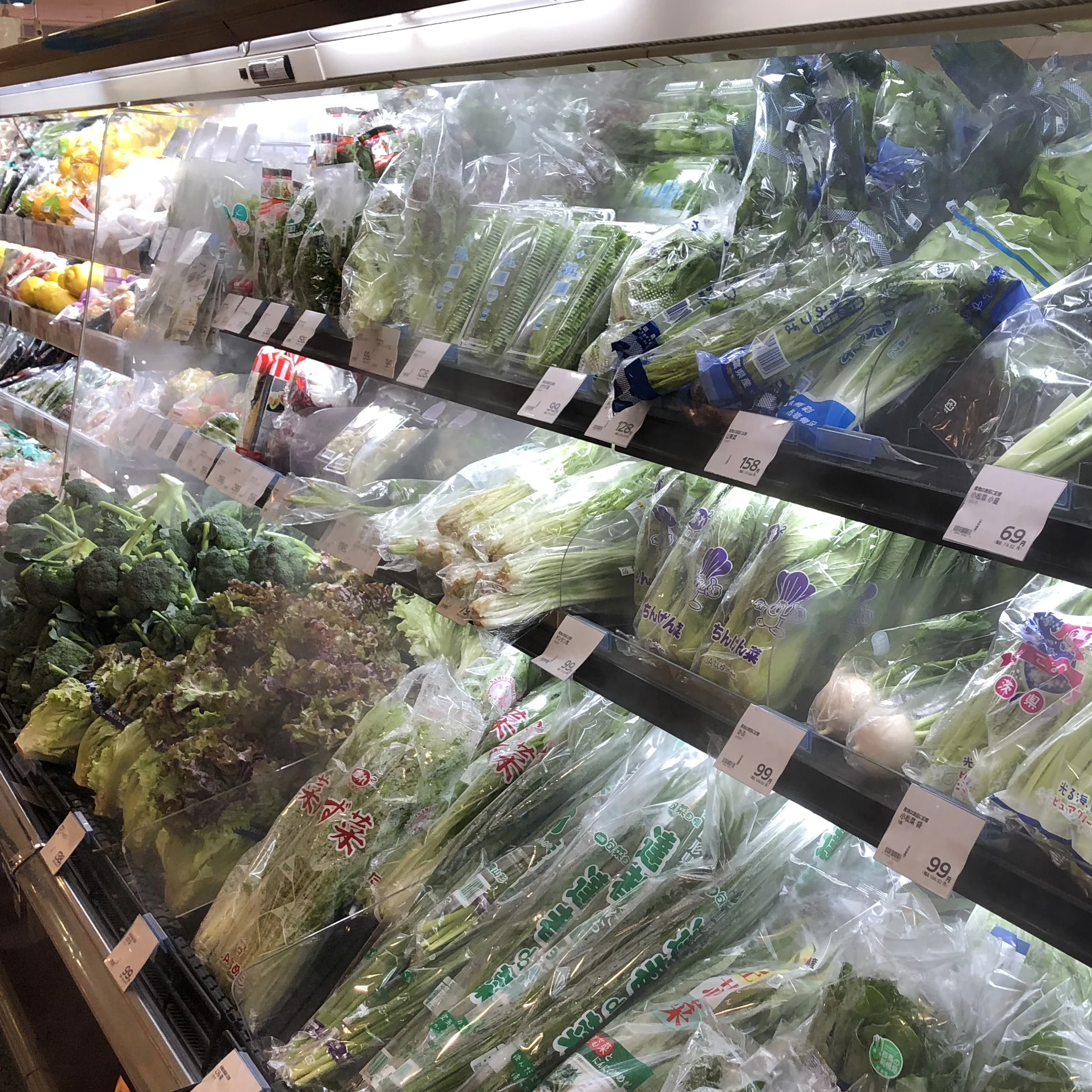

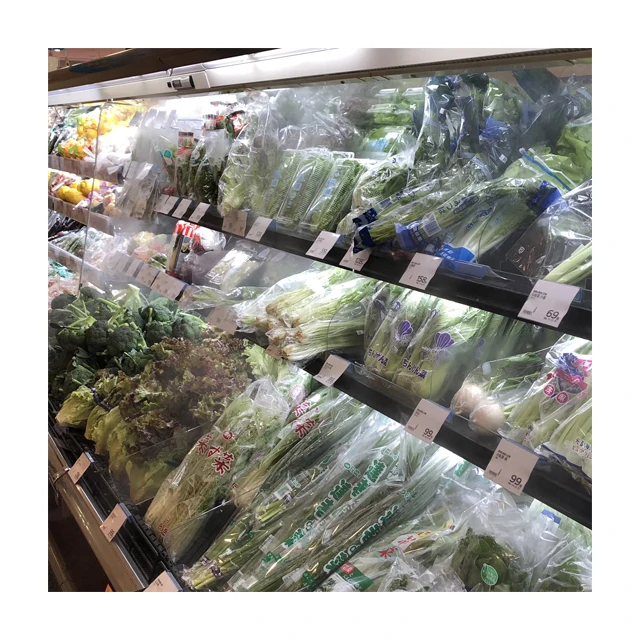

Small type for compact open showcase and salad bar, etc.




4 models as per capacity 1.0 and 1.5 L/h.
Applications Suitable for small size (approx.1.2 m) open showcase and for partial humidification.
Mist volume controller Volume controller is equipped with SC1 model. Can adjust the mist at stepless level.
Supplies ample mist to every corner of the showcase to keep the products freshness.
Visual effect It appeals the product freshness to the buyers.
Acquired CE marking


Hygiene system
Germicidal device is equipped by UV lamp and automatic drainage system.
The safety of product has been proved by collaborative research with the National Public Health Institute in Japan.
For hygiene system, please refer to this movie.




Model FT- UVSV
200SN
200SNC1
300SN
300SNC1
Humidity capacity (l/h)
1
0.5…1.0
1.5
0.5…1.5
Power supply (50/60Hz)
1φ2W AC230V * (Other power supply types are available on request)
Power Consumption (VA)
96
130
No. of oscillator (pcs)
2
3
Air volume (m3/min)
0.5 / 0.6 (50/60 Hz)
Weight （kg)
Unit
6
6.5
7.5
8
Trans.box
2
3
Water supply system
Automatic water supply system by float switch and water supply solenoid valve
Water supply pressure
0.03…0.5 MPa (0.3…5.0 kgf / cm2)
Control system
On/Off control
(Option) Proportional control
Water quality
Tap water, Purified water or R.O. treated water (1…20 μS/cm)
We recommend purified water to prevent white powder from producing.
Ambient condition
5…40℃ MAX.90%RH (No freezing, No condensation)
Replacement of Oscillator
At about 5,000 cumulative hours of operation
Replacement of UV lamp
At about 10,000 cumulative hours of operation
Safety equipment
Device to prevent waterless operation, Fuse to prevent overcurrent,
Thermostat to prevent water overheating (cutoff at 55℃), Surge filter


Company Profile


Comfortable Humidity for All




As a specialized manufacturer of industrial humidifiers and air conditioning peripherals, we UCAN Co.,Ltd. have been developing many uniquely and innovative products, which had not found in other makers.
Mainly through air conditioning by humidification, we support the living infrastructure such as realizing a healthy and comfortable environment and maintaining the freshness of agricultural products.
UCAN exports to about 30 countries and regions. We have dealers in Europe, Asia and ASEAN countries. Our “Made in Japan” quality, we have high praise from users.
