Floor heating wifi room thermostat digital
- Category: >>>
- Supplier: Jiaxing Forward Trade Co. Ltd.
Share on (11000000298005):
Product Overview
Description
Product Description

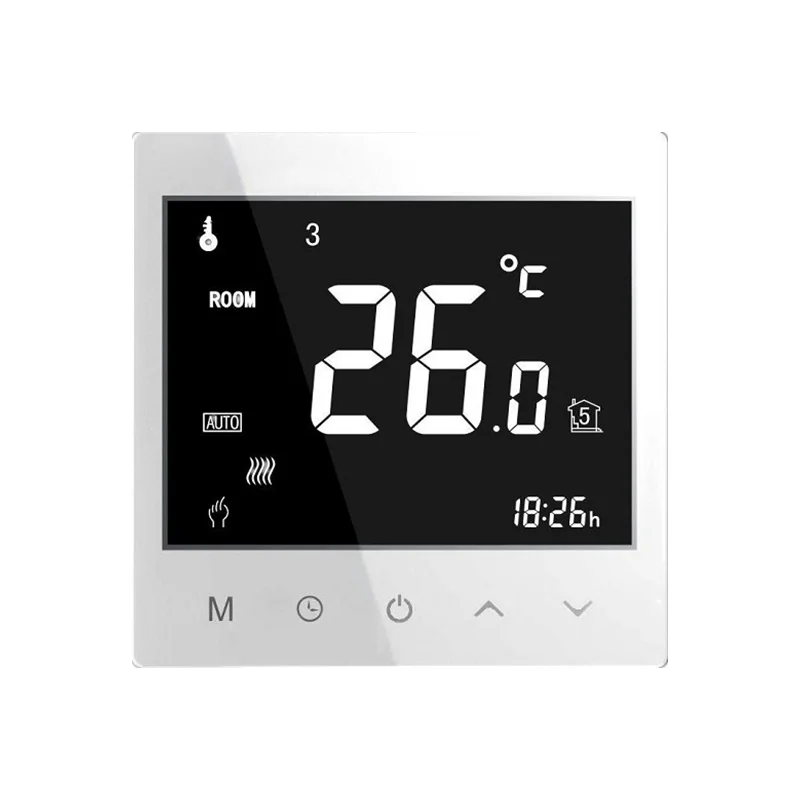

AC3386 Series Room Thermostats

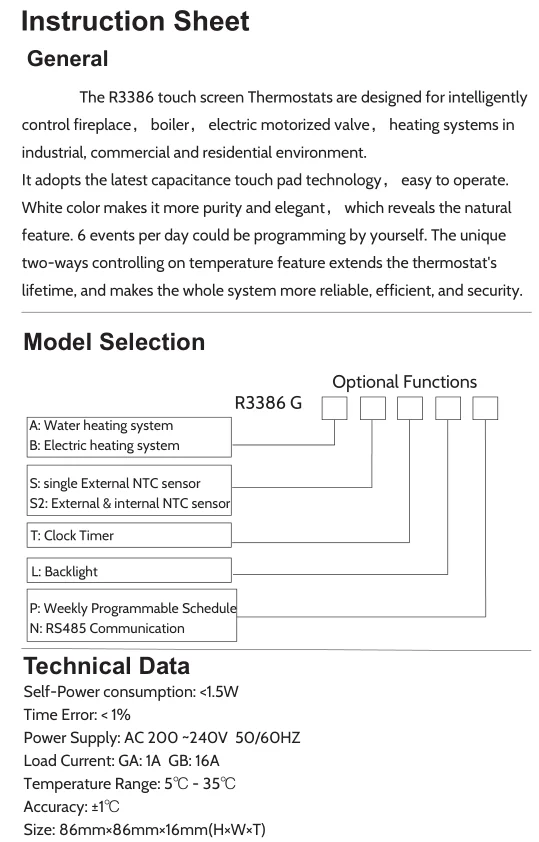

Instruction Sheet General
The R3386 touch screen Thermostats are designed for intelligently control fireplace boiler electric motorized valve heating
systems in industrial, commercial and residential environment. It adopts the latest capacitance touch pad technology easy to
operate. White color makes it more purity and elegant which reveals the natural feature. 6 events per day could be programming by
yourself. The unique two-ways controlling on temperature feature extends the thermostat's lifetime, and makes the whole system
more reliable, efficient, and security
systems in industrial, commercial and residential environment. It adopts the latest capacitance touch pad technology easy to
operate. White color makes it more purity and elegant which reveals the natural feature. 6 events per day could be programming by
yourself. The unique two-ways controlling on temperature feature extends the thermostat's lifetime, and makes the whole system
more reliable, efficient, and security
Feature
-Compact size, small dimensions
- 360° installation position
-High functional safety and long expected service life
- Low power consumption
-High over-voltage protection
-Supply 12v-230v
-Maintenance-free, noiseless
- Snap-on installation
- Valve adapter concept
-Patented 100% protection against leaky valves
- 360° installation position
-High functional safety and long expected service life
- Low power consumption
-High over-voltage protection
-Supply 12v-230v
-Maintenance-free, noiseless
- Snap-on installation
- Valve adapter concept
-Patented 100% protection against leaky valves
Product name | Room thermostats |
Power Consumption | <1.5W |
Time Error | <1% |
Power Supply | AC200-240V,50/60HZ |

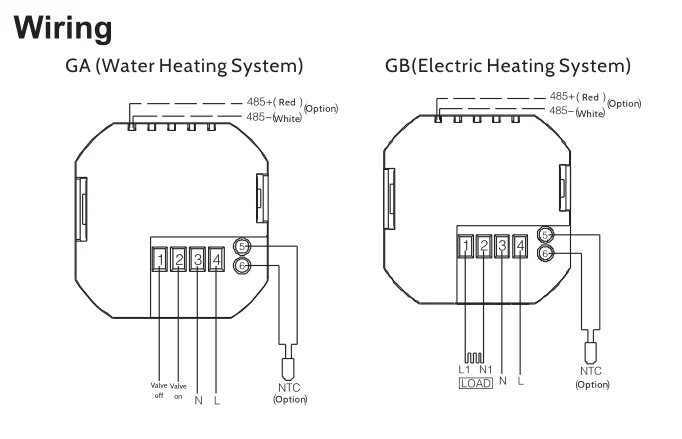

Load current | GA:1A GB:16A |
Temperature Range | 5℃ - 35℃ |
Accuracy | ±1 ℃ |
Size | 86mmx86mmx16mm(H*W*T) |

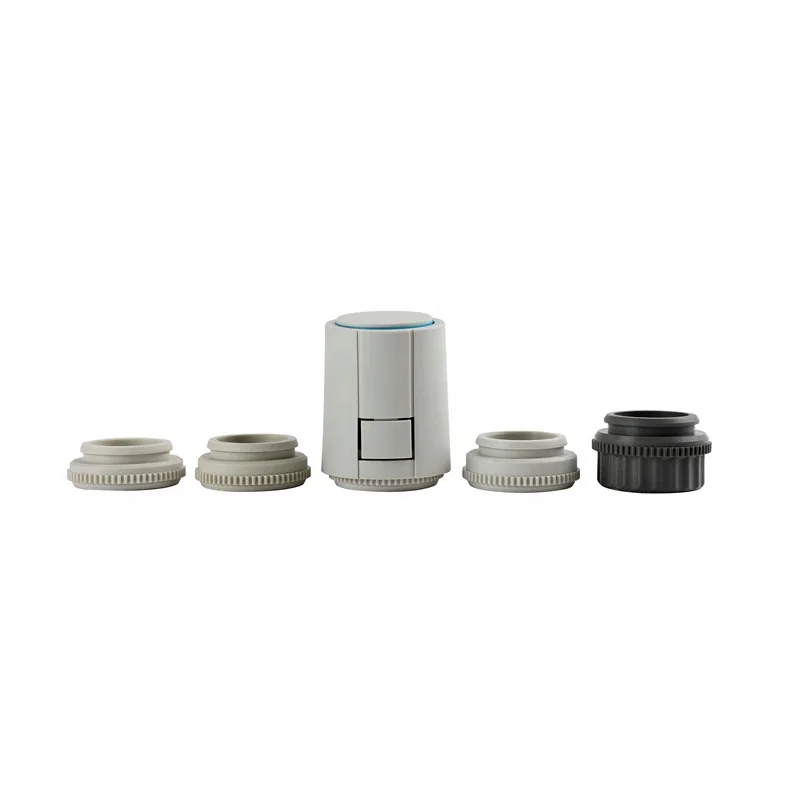

Product name | Thermal actuator |
Type | NO/NC |
Voltage | AC24V 110V 230V |
Power Consumption | 2VA |
Working Temperature | -5-60℃ |
Force | 110N |
Maximum Stroke | 4.0±0.5mm |
Connection Size | M30×1.5mm /M28×1.5mm |
Products Packing
Main Products

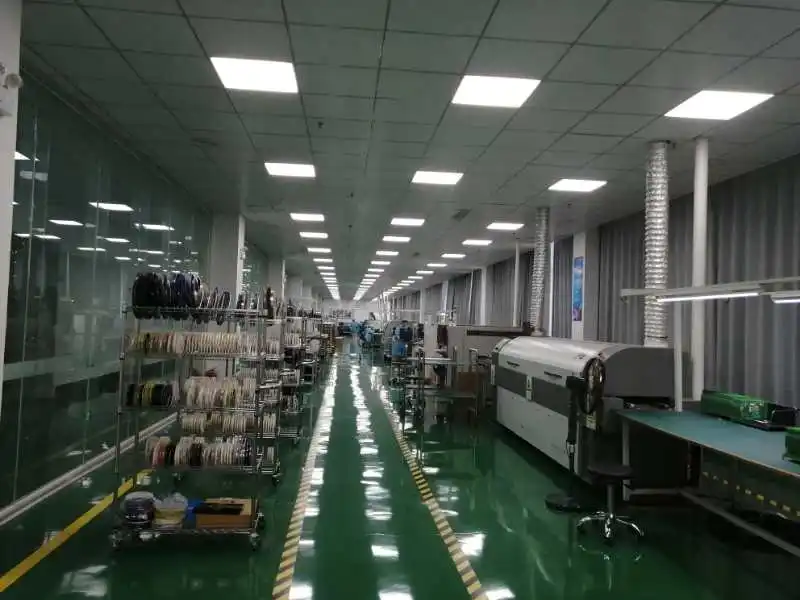

Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
A: Both, actually we are both factory and trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we couldn't offer the sample for free charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us
