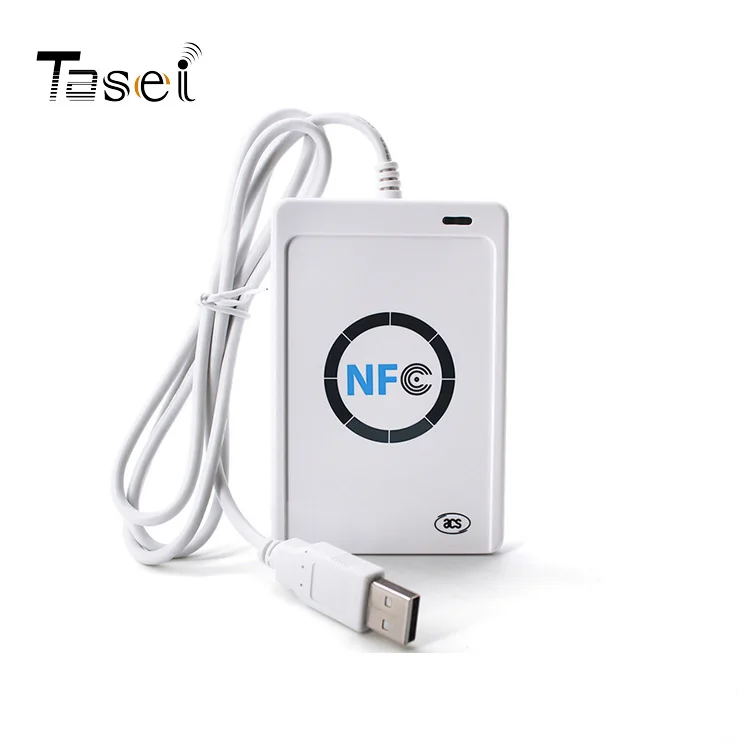

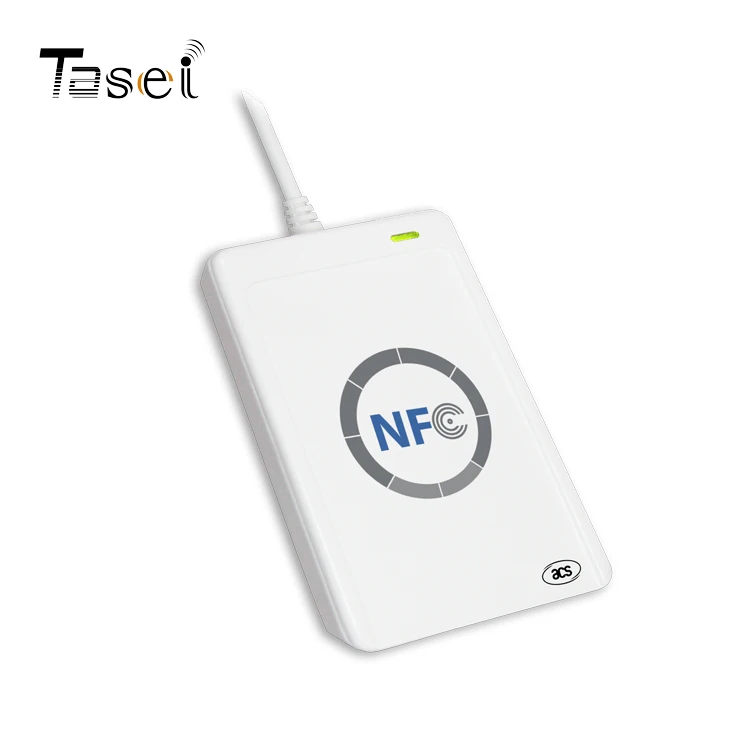

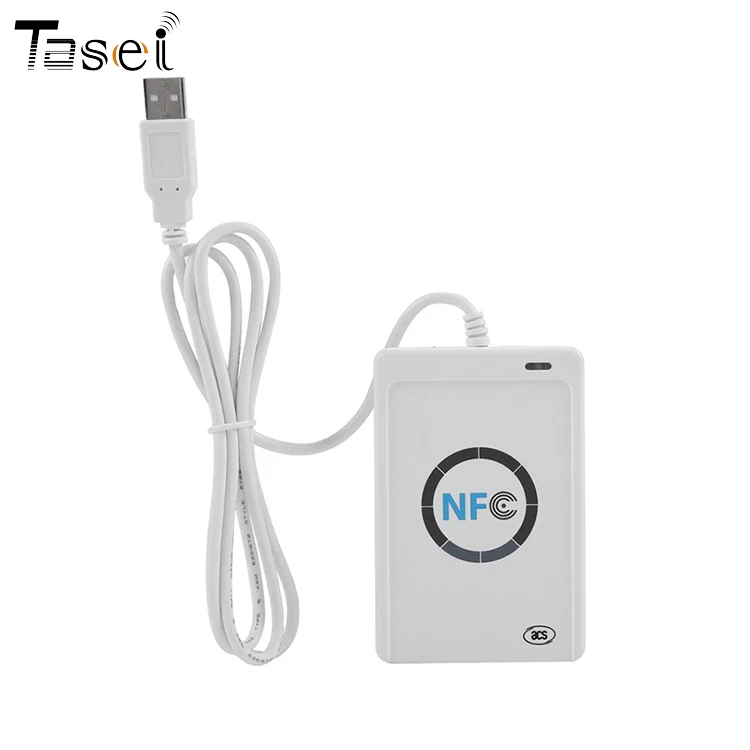

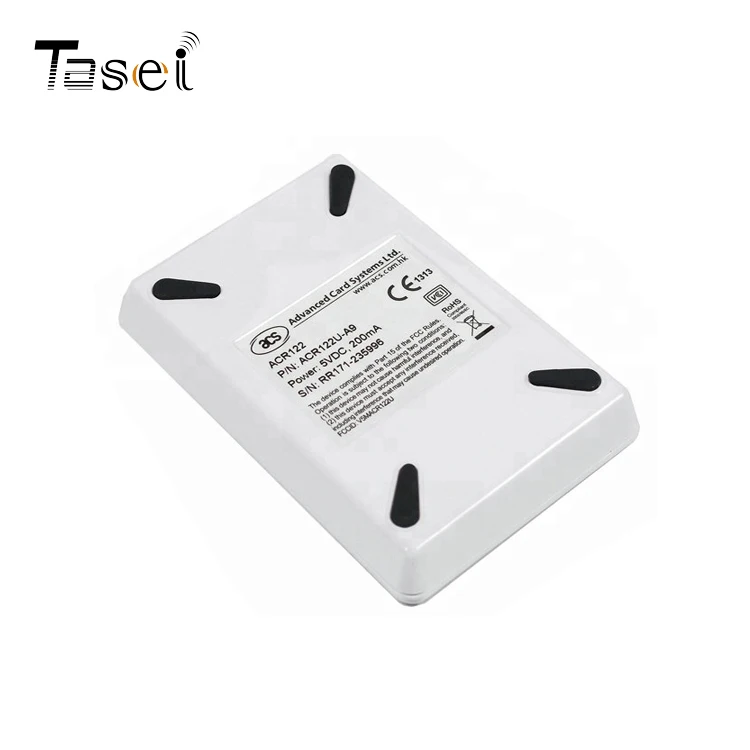

Portable 13.56MHZ RFID ISO14443 USB Contactless Smart NFC Card Reader ACR122U
- Category: >>>
- Supplier: Shenzhen Tasei RFID Co. Limited
Share on (11000000302577):
Product Overview
Description
Portable 13.56MHZ RFID ISO14443 USB Contactless Smart NFC Card Reader ACR122U
Product Description

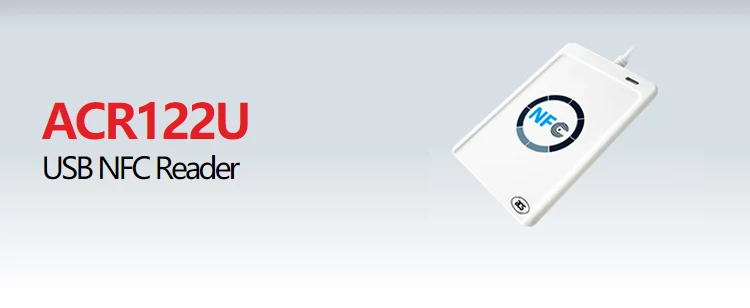

The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz
ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.
In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

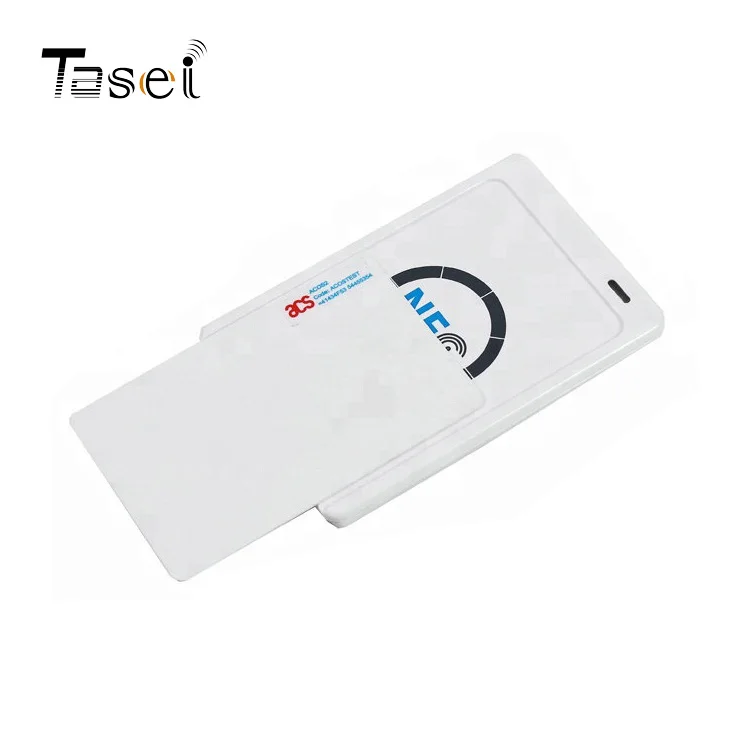

The ACR122U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR122U with ease. For more information
Contactless (RFID)Technology. Compliant with the ISO14443A/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO14443 A and B cards, but also all four types of NFC tags.
ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.
In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.
The ACR122U NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
The ACR122U comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the ACR122U with ease. For more information
* USB 2.0 Full Speed Interface
* CCID Compliance
* Smart Card Reader:
* CCID Compliance
* Smart Card Reader:
* Read/write speed up to 424 kbps
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag
type)
* Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
* Built-in anti-collision feature (only 1 tag is accessed at any time)
* Application Programming Interface:
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag
type)
* Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
* Built-in anti-collision feature (only 1 tag is accessed at any time)
* Application Programming Interface:
* Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Peripherals:
* Supports CT-API (through wrapper on top of PC/SC)
* Peripherals:
* User-controllable bi-color LED
* User-controllable buzzer
* Supports Android™ OS 3.1 and above
* User-controllable buzzer
* Supports Android™ OS 3.1 and above
Physical Characteristics | ||
Model Name | ACR122U | |
Product Name | NFC Card Reader | |
Dimensions (mm) | 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H) | |
Compliant with | CCID and PC/SC | |
Read/write speed | 424 kbps | |
Protocol | ISO14443TypeAand B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092)tags | |
Proximity operating distance | 5cm | |
Weight (g) | 70g | |
USB Interface | ||
Protocol | USB CCID | |
Power Source | From USB port | |
Speed | USB Full Speed (12 Mbps) | |
Cable Length | 1.0 m, Fixed | |
Contactless Smart Card Interface | ||
Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliC | |
Protocol | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL ISO18092, NFC Tags FeliCa | |
Built-in Peripherals | ||
LED | 1 bi-color: Red and Green | |
Buzzer | Monotone | |
Certifications/Compliance | ||
Certifications/Compliance | EN 60950/IEC 60950 ISO 18092 ISO 14443 USB Full Speed PC/SC CCID VCCI (Japan) KC (Korea) Microsoft® WHQL CE FCC RoHS 2 REACH | |
Device Driver Operating System Support | ||
Device Driver Operating System Support | Windows® CE Windows® Linux® MAC OS® Solaris Android™ | |
Details Images
Related Products
Packing&Shipping
Shipping mode mainly have three types:
1: by express : DHL , Fedex , TNT ,EMS ---3-5days
2: by air : 7-10 days
3: by sea : 20-25 days
About payment mode :
We recommend trade assurance for trading ,it support multi-payment mode , T/T ,Visa,Mastercard,E-checking ,we also accept paypal
,western union
1: by express : DHL , Fedex , TNT ,EMS ---3-5days
2: by air : 7-10 days
3: by sea : 20-25 days
About payment mode :
We recommend trade assurance for trading ,it support multi-payment mode , T/T ,Visa,Mastercard,E-checking ,we also accept paypal
,western union
