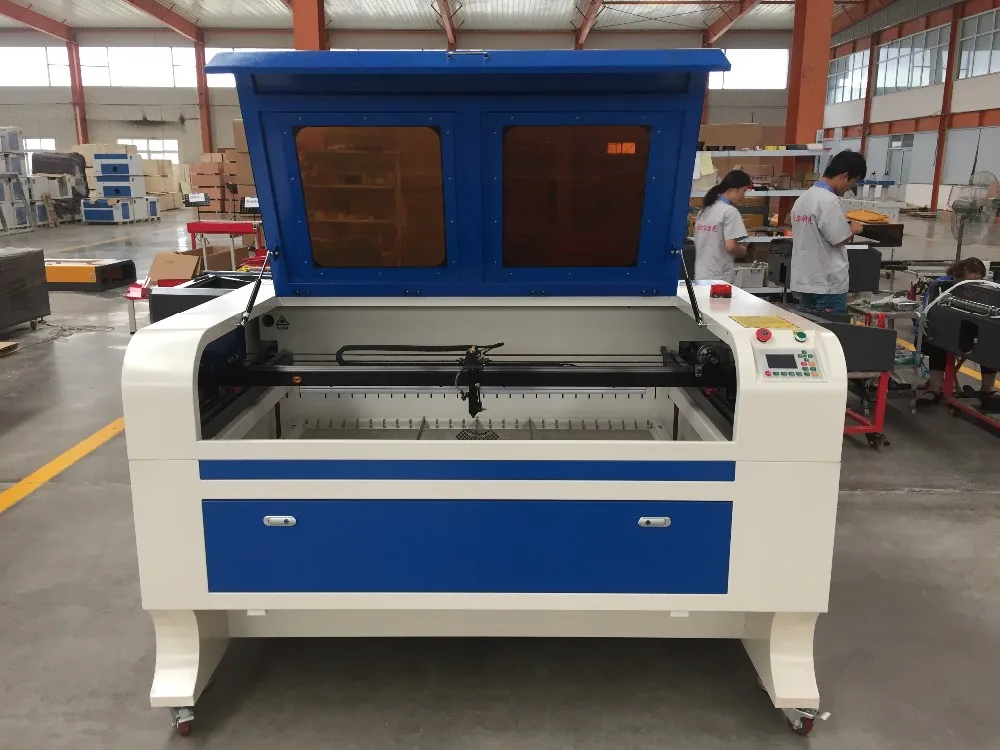

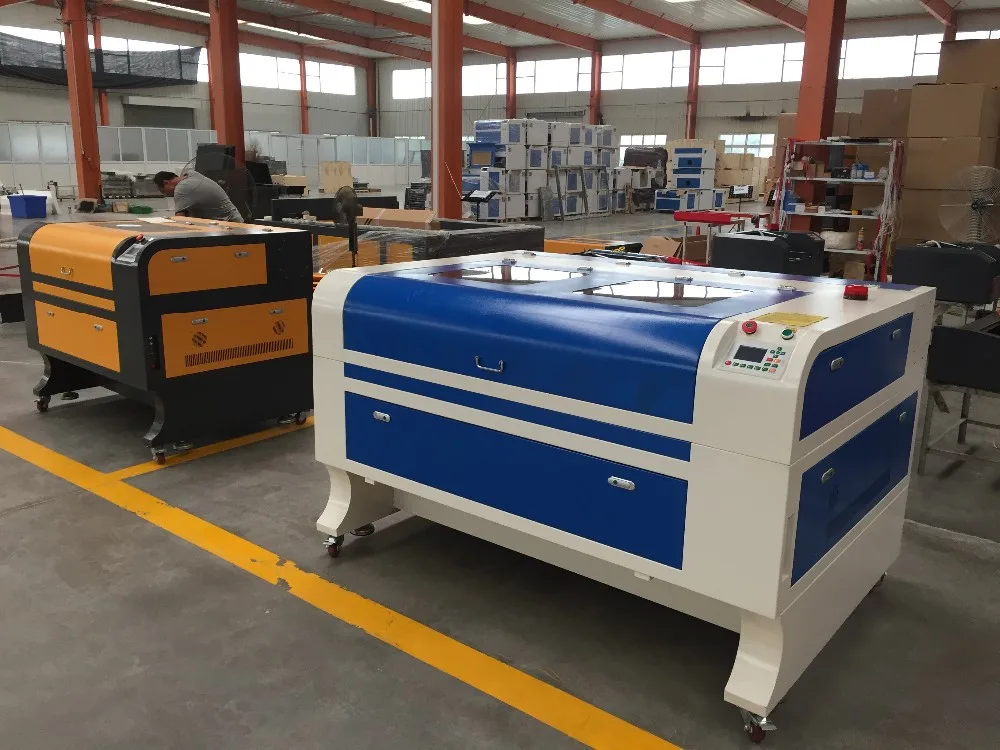

Voiern 60w 80W 100w fabric laser cutting machine 900x600mm with Rotary Axis 3d laser engraving machine
- Category: >>>
- Supplier: Liaocheng Voiern Laser Technology Co. Ltd.
Share on (11000000321014):
Product Overview
Description

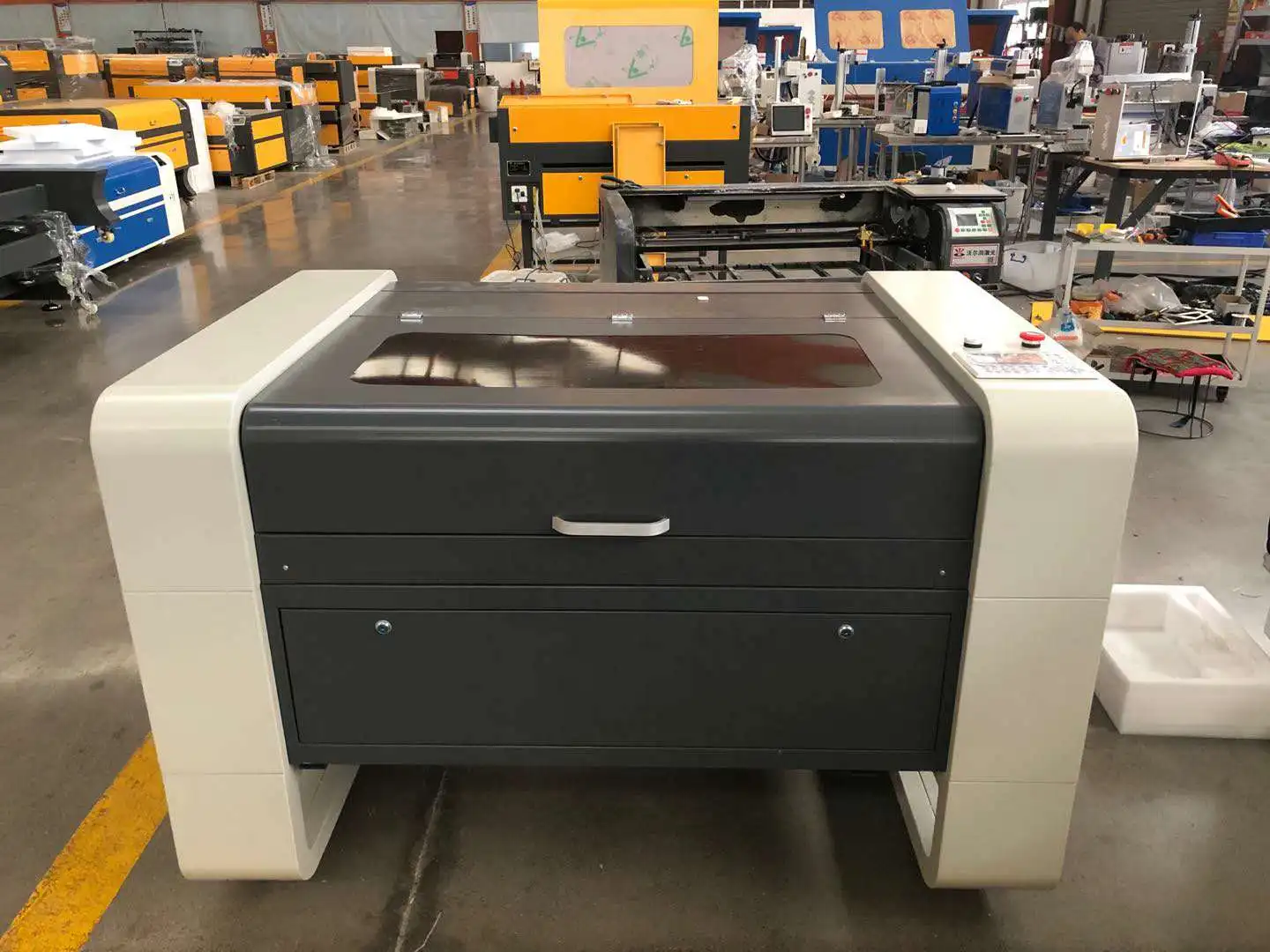

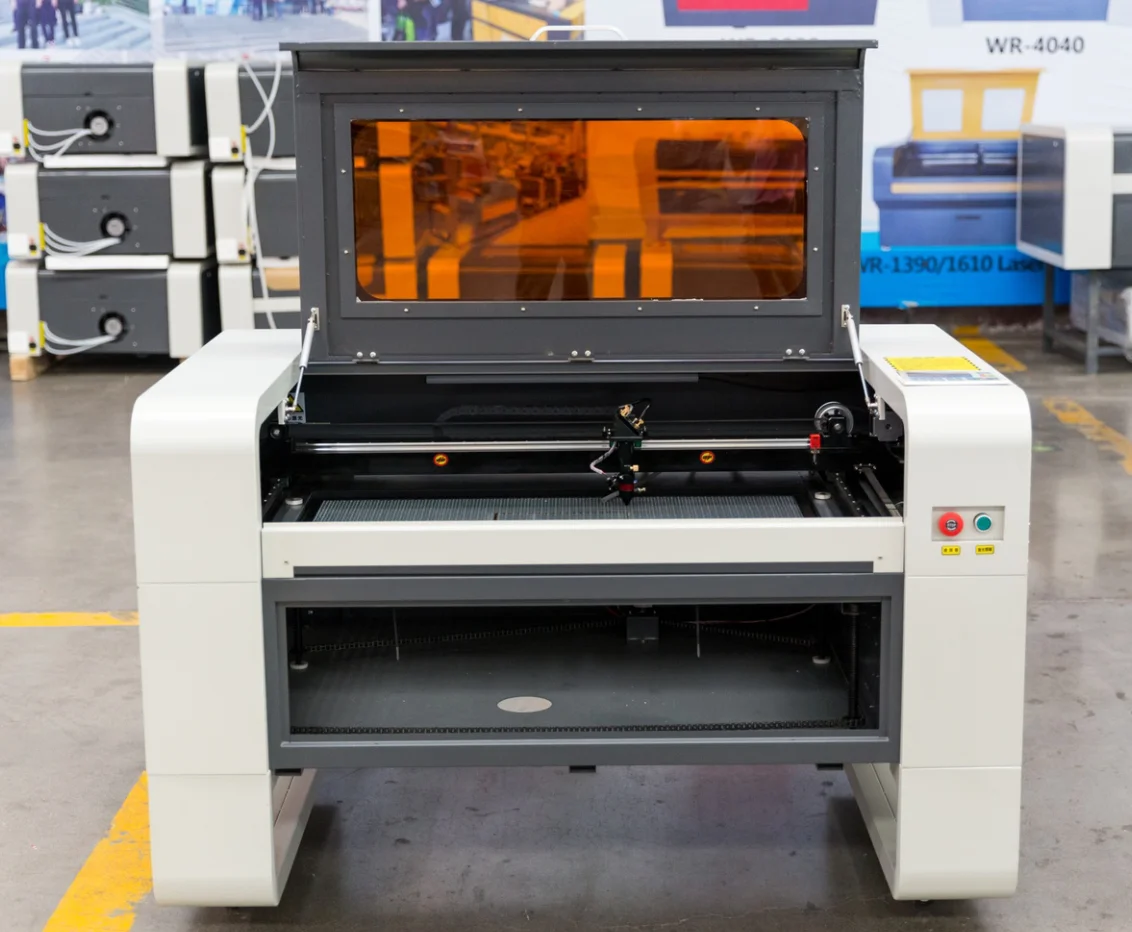

9060/1080/1390/1310 Series CO2 laser cutting machine
Model | WER-1080/WER-9060/WER-1390 |
Working area | 1000X800mm/900X600mm/1300x900mm |
Laser type | sealed CO2 glass laser tube |
Laser power | 60W/80W/100W/130W/150W/180W |
Engraving speed | 0-30000mm/min |
Cutting speed | 0-3600mm/min |
Cutting thickness | 0-20mm (depends on materials) |
Resolution rate | ±0.05mm |
Data transfer interface | USB2.0 |
Working voltage | 220V±10% 50hz 110v±10% 60hz |
Min shaping character | Character:2x2mm letter:1x1mm |

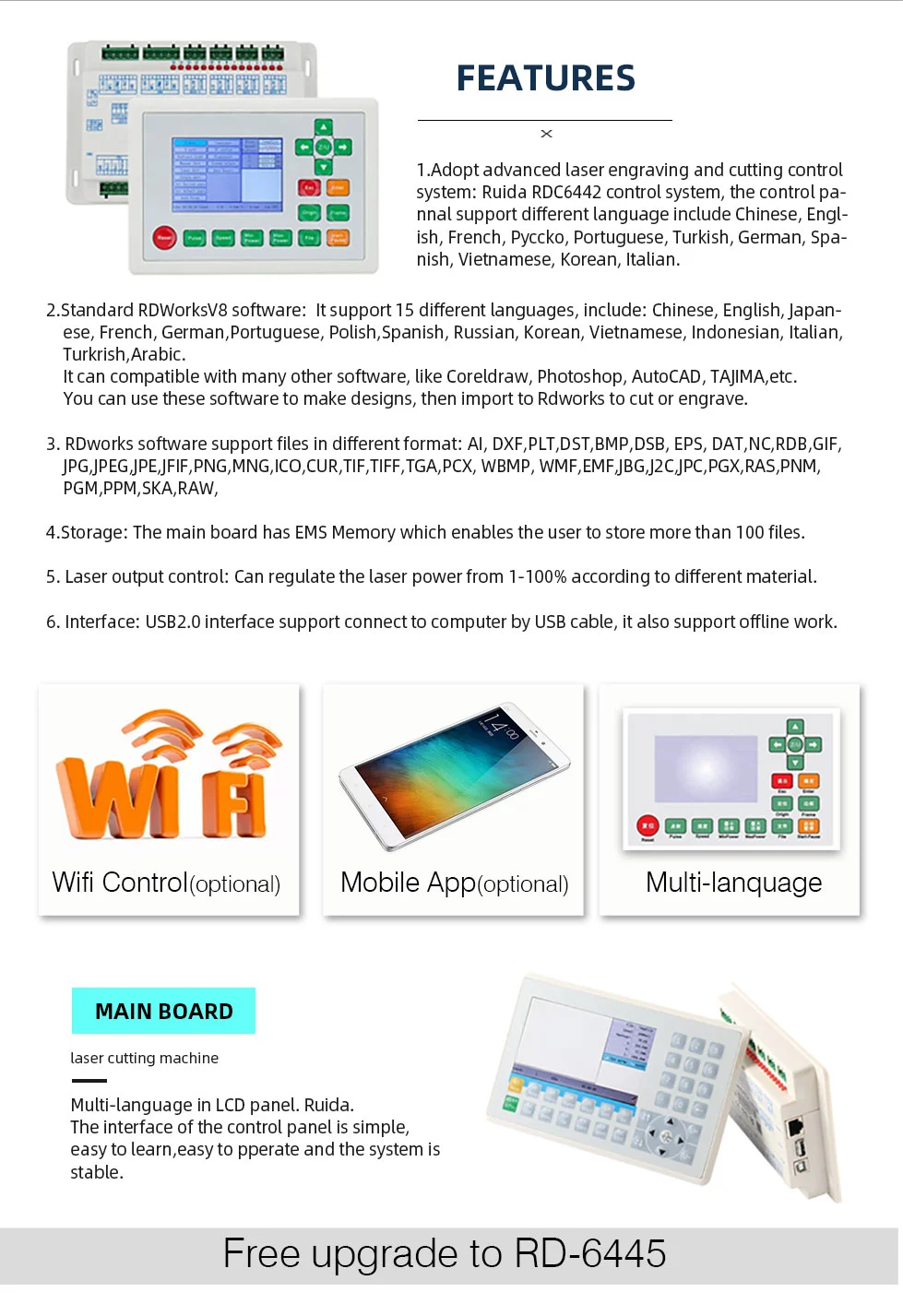

Software | RdworksV8/CorelDraw/AutoCAD |
Supported graphic formats | BMP PCX TGA TIF PLT CDR |
Working temperature | 0-45°C |
Working humidity | 5%-90% |
Resolution ratio | <4500dpi |
Operational parts | Rotary axis, water chiller 3000/5000/5200 |
Package size | 173*125*80 cm |
Weight | 190kg |

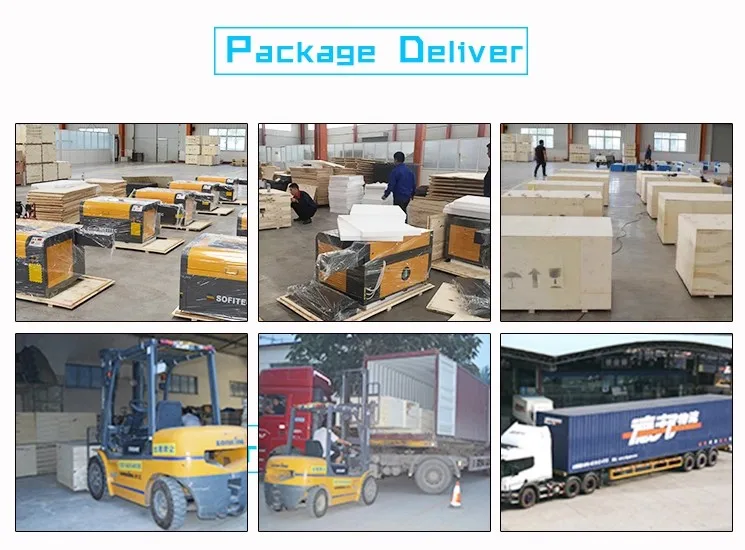

Package | Packing in export wooden cases |

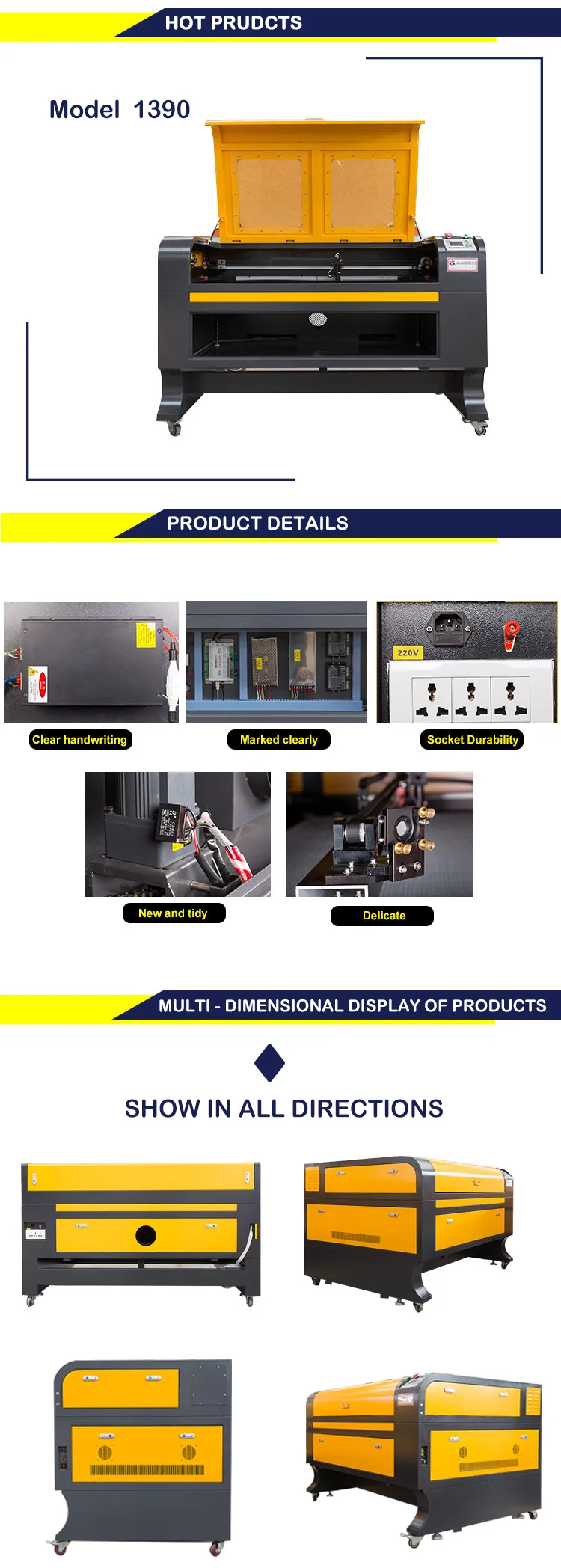

Products Details

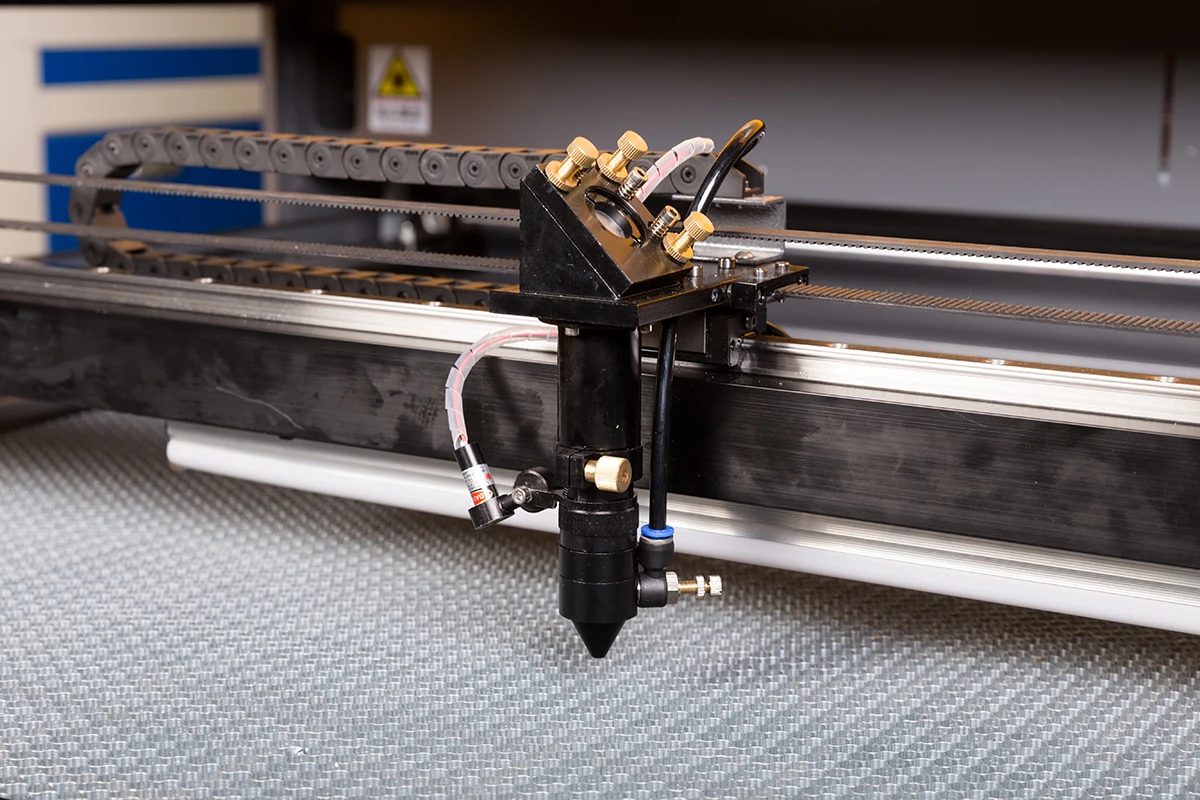

Laser Head
--- Import industrial laser head.
---High precision and speed.

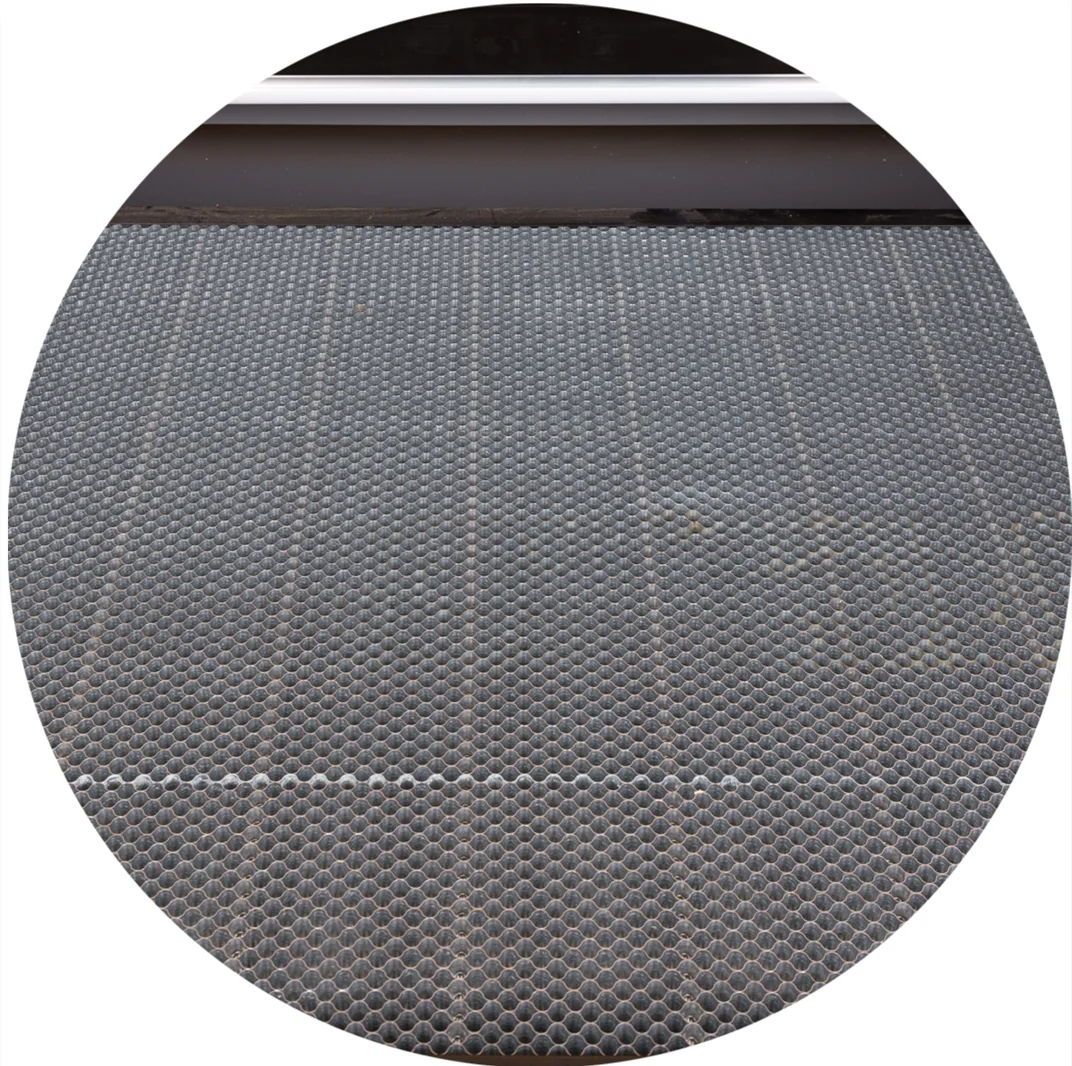

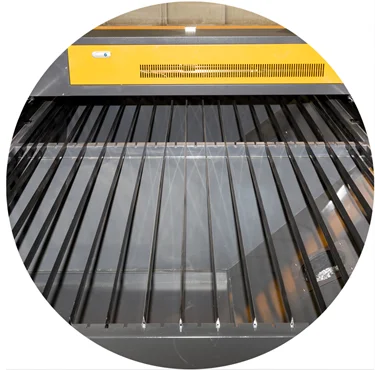

Aluminium Blade stick Worktable
--- High load capacity
--- Simple to clean
--- To process hard materials like Acrylic, MDF, Wood etc.....
--- To process hard materials like Acrylic, MDF, Wood etc.....
--- Removable and washable, non-reflective, not easy to damage and deform
--- Prevent cutted small parts from falling

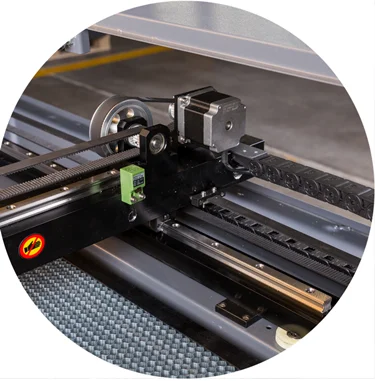

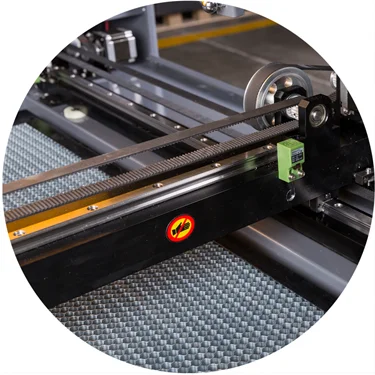

--- X and Y three imported linear guide rail.
--- High cutting speed and precision
--- Smoothly working
--- Smoothly working

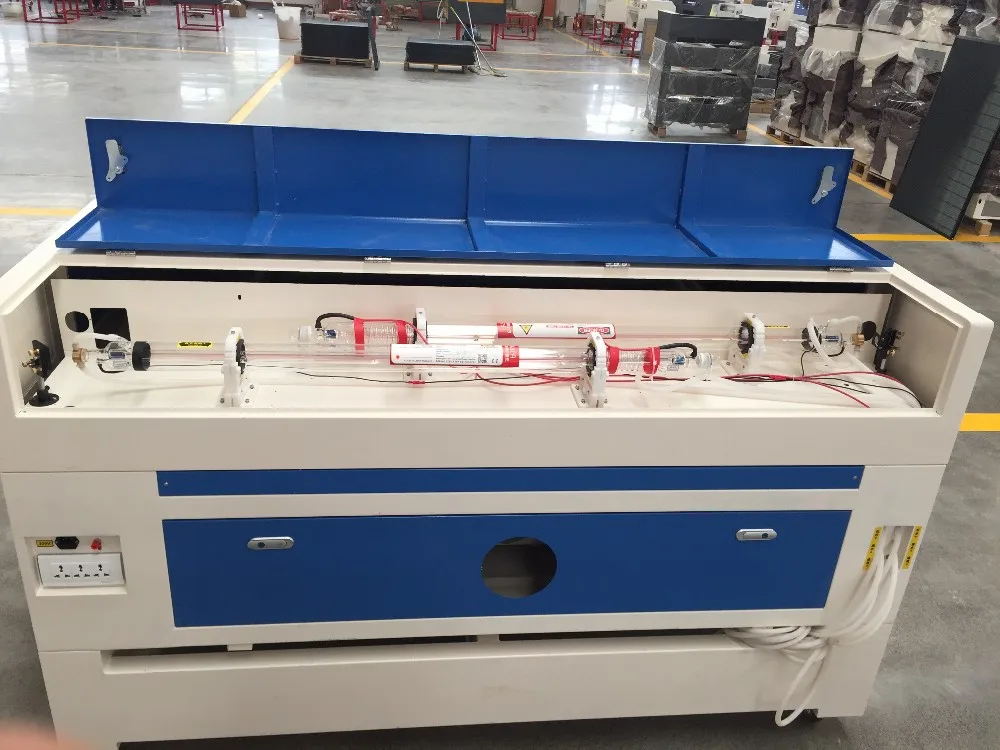

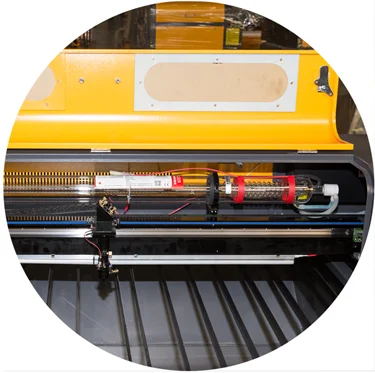

--- Sealed CO2 laser tube.
--- Long working life and stable power
--- Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.
( optional brand, EFR, RECI, CDWJ, YONGLI, JOY)
--- Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.
( optional brand, EFR, RECI, CDWJ, YONGLI, JOY)
--- High operating accuracy
,--- high temperature resistance
--- bear the high temperature generated by high-speed operation
--- low noise.
--- bear the high temperature generated by high-speed operation
--- low noise.

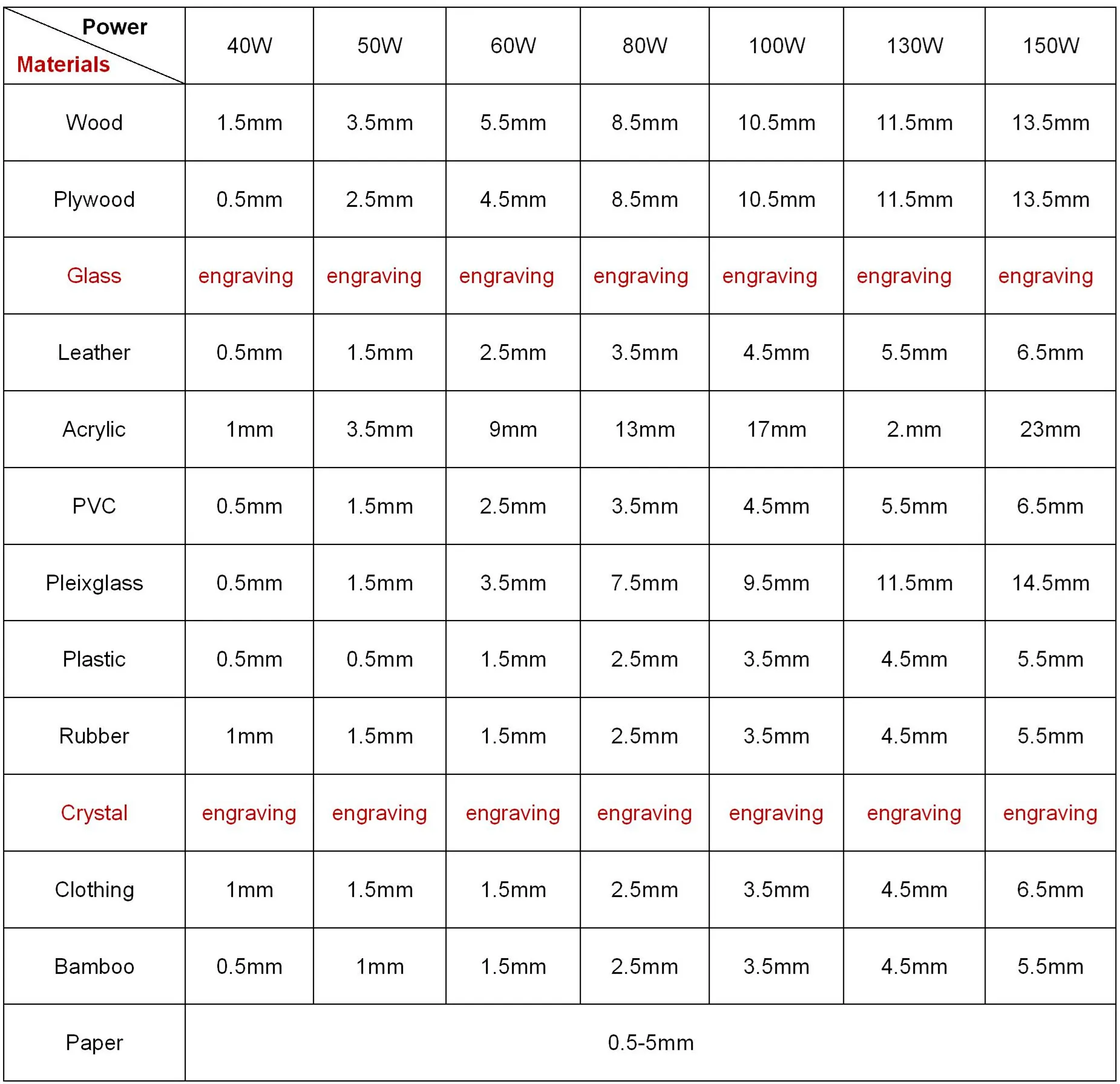

Reference cutting thickness for different materials

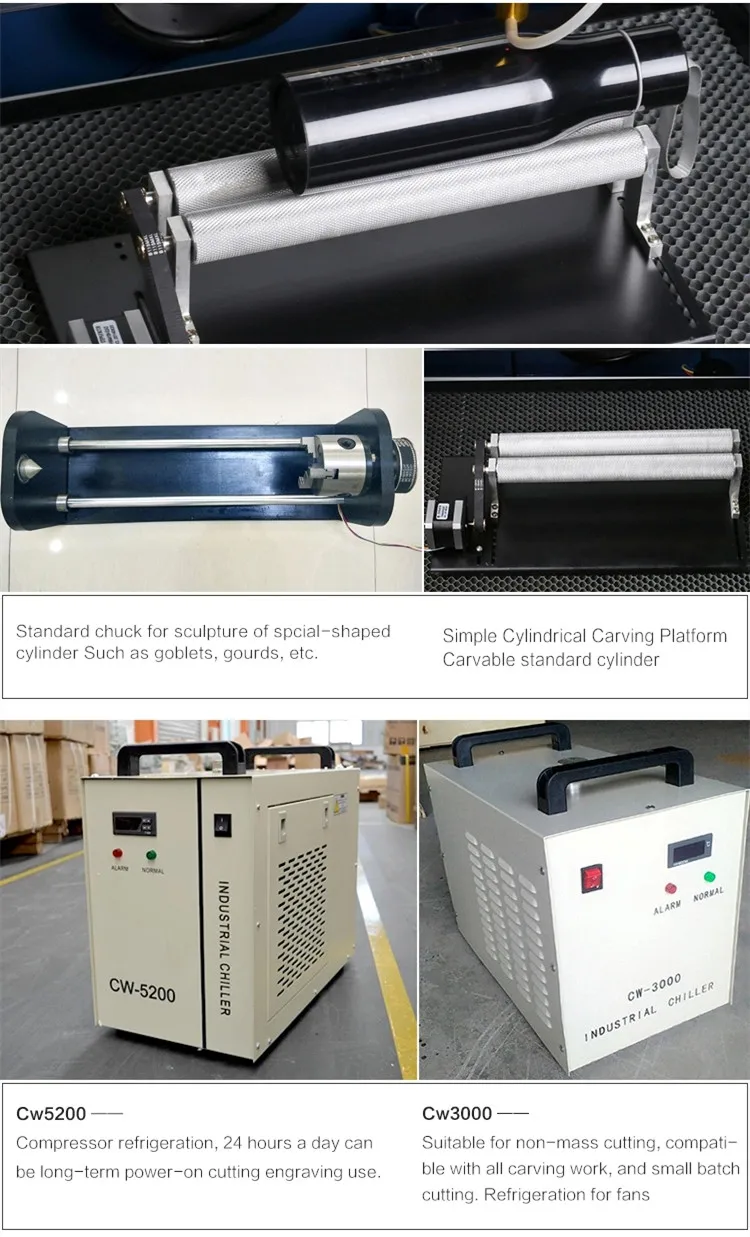

Optional Accessories
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage
Our service
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
