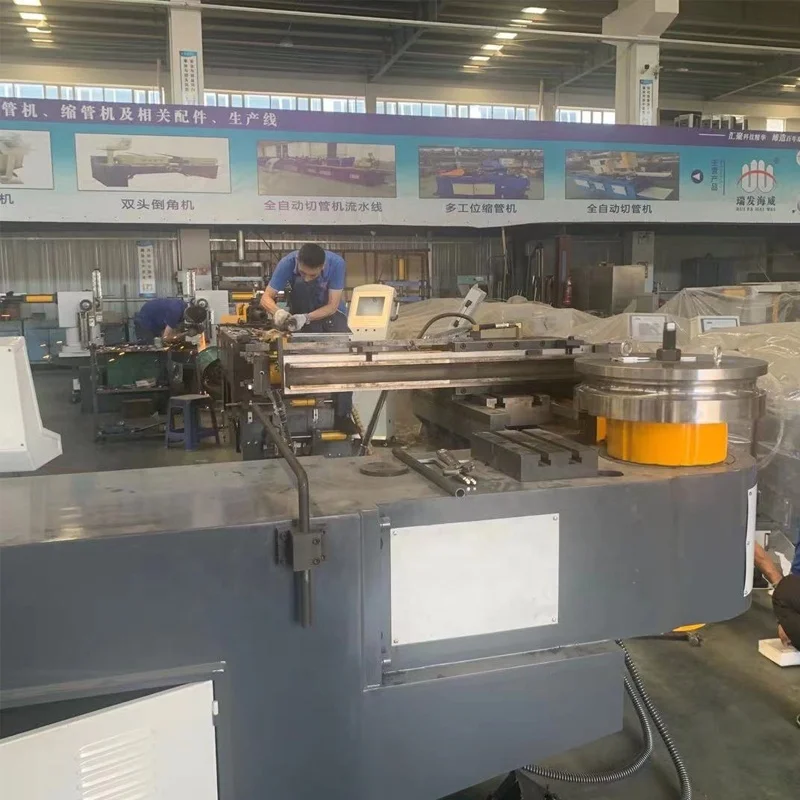

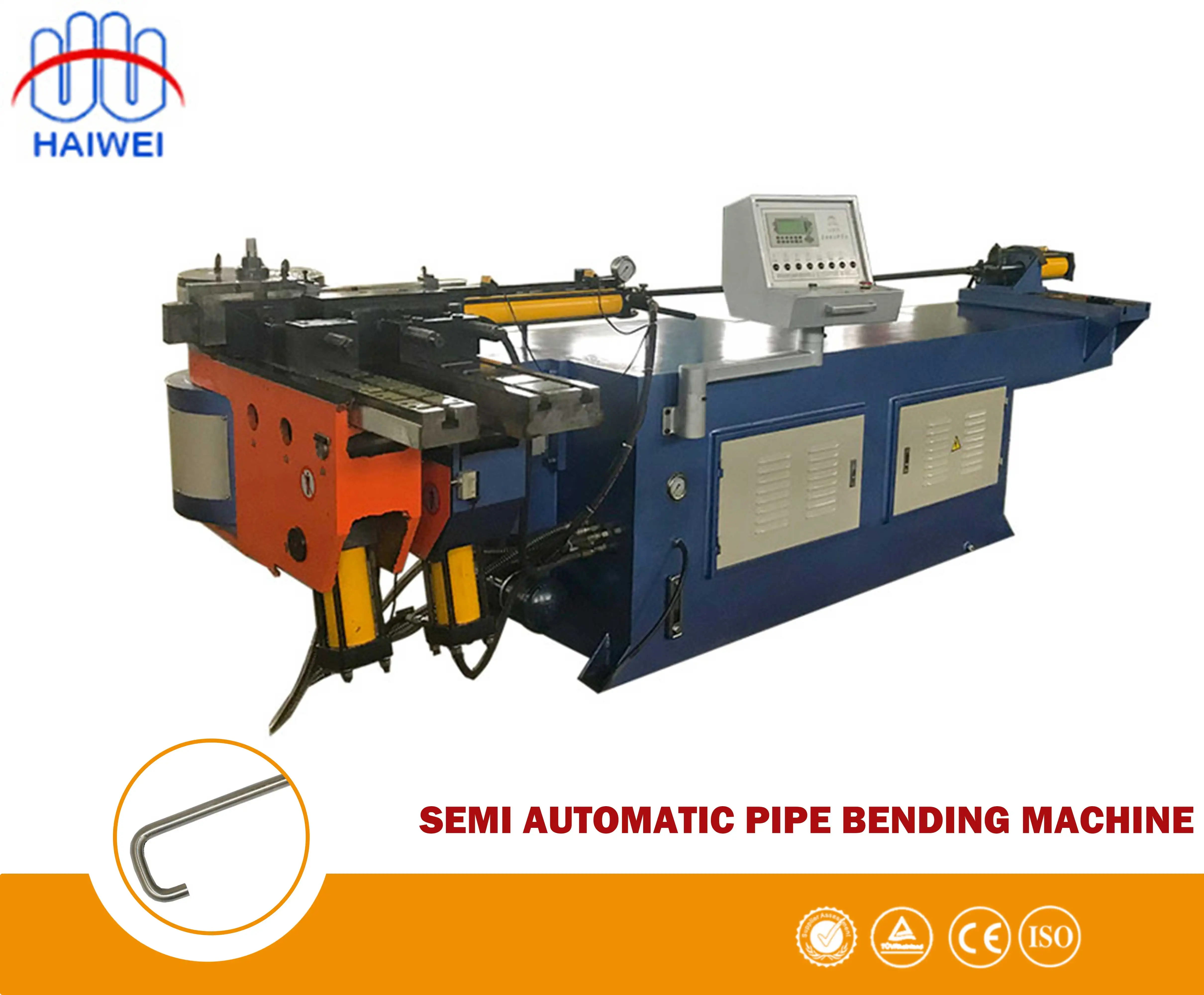

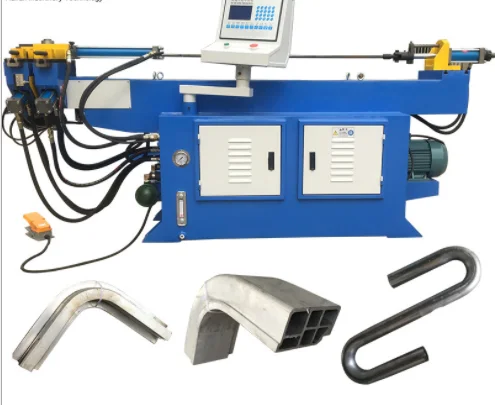

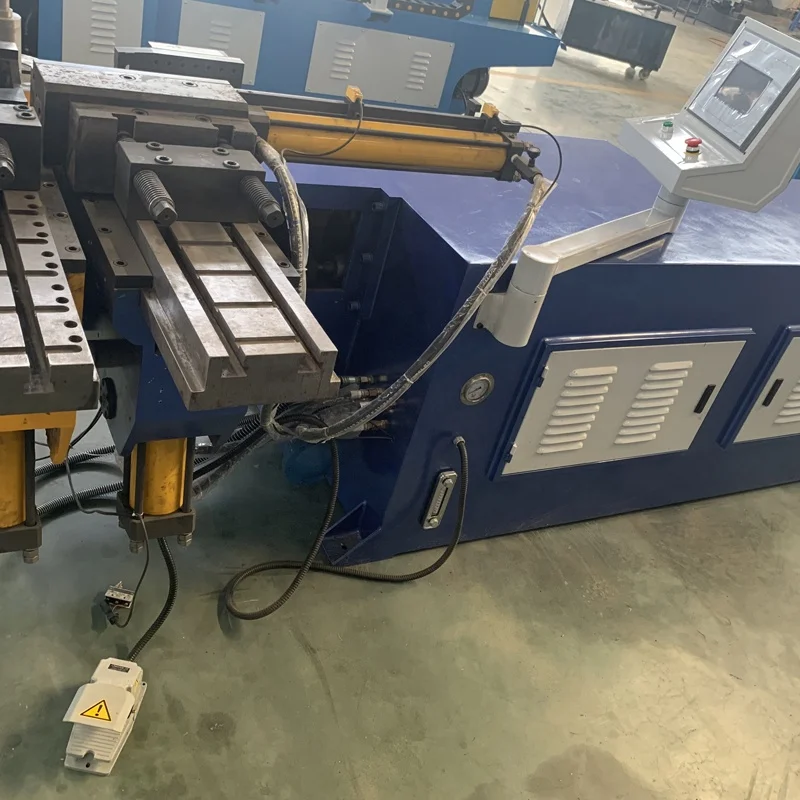

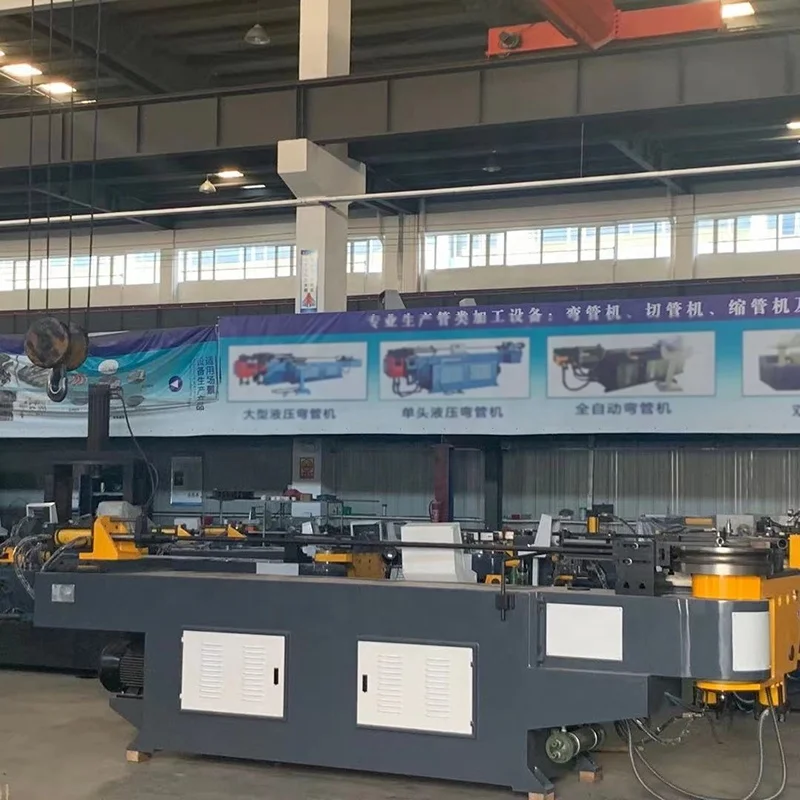

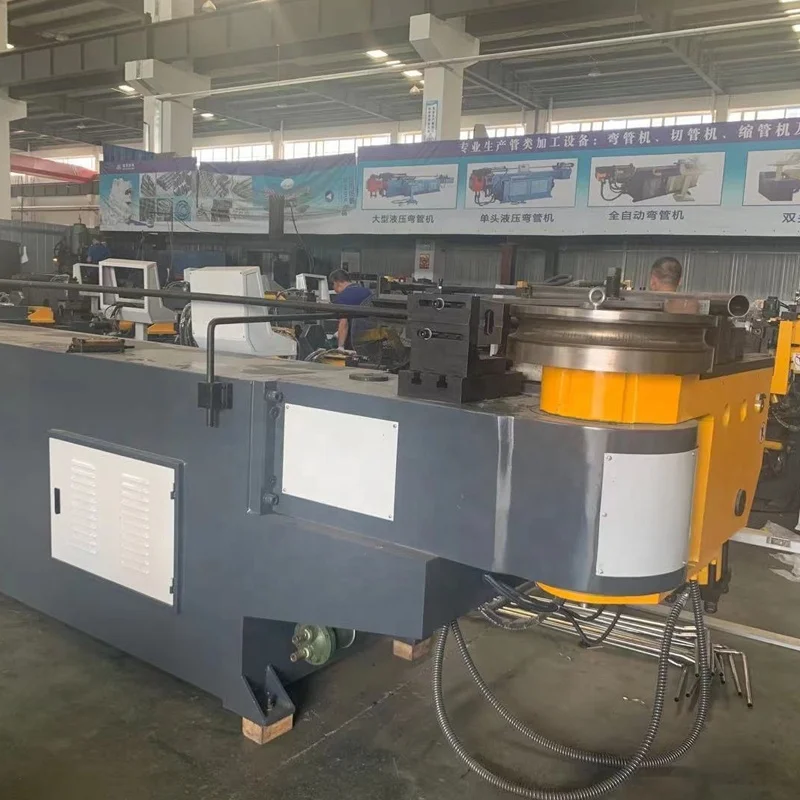

3inch hydraulic semi automatic NC pipe bender machine manual pipe bending machine manual pipe bender
- Category: >>>
- Supplier: Zhangjiagang Ruifa Haiwei Machinery Co. Ltd.
Share on (11000000340228):
Product Overview
Description
Item# | Name | Unit | Data | Remark/Brand | |
1 | Max pipeO.D.×thickness | mm | Φ 75×4mm (3 inch) | ||
2 | Maxi. Bending radius | mm | R280 | can be adjusted | |
3 | Mini. Bending radius | mm，R>=1.5D | R40 | ||
4 | Maxi. Bending angle | degree | 190° | ||
5 | Maxi. Length of feeding | mm | 2600 | can be adjusted | |
6 | Bending speed | degree/s | 180 | can be adjusted | |
7 | Bending accuracy | degree | ±0.1 | ||
8 | Hydraulic/OIL motor power | KW | 7.5 | ||
9 | Power | V | 380v, 50Hz | ||
10 | Valve voltage | V | 24 | ||
11 | Machine Size | mm | 4200×1100×1500 | ||
12 | Net .weight | T | 3 | ||
13 | Control panel | PLC with touch screen or industrial computer | Taiwan Delta | ||
14 | Data input way | 1.coordinates (X,Y,Z) 2.working values (Y,B,C) | Taiwan Delta | ||
15 | Rotating servo motor power | w | 750 | Japan Mitsubishi | |
16 | Feeding servo motor power | w | 2000 | Japan Mitsubishi | |
17 | Beeding servo motor power | w | 7000 | ||
18 | Hydraulic/OIL motor power | KW | 11 | ||
19 | Maxi. System pressure | MPA | 15 | ||
20 | Power | V | 380v, 50Hz | ||
21 | Machine Size | mm | 4500*1200*1400 | ||
22 | Net .weight | T | 3.4 | ||
Ruifa Haiwei specializes in producing HWJ metal circular saw machines, HWD single-head bending machines, HWSW Double Head Tube Benders, HWSG reduction and flaring machines and HWMG teeth grinding and pipe processing equipment.
Our products are mainly used in automobiles, motorcycles, bicycles, steel furniture, leisure products, air conditioning, plumbing, petrochemical, aerospace manufacturing, sanitary equipment, a variety of pipe profile cutting and bending and other fields.
