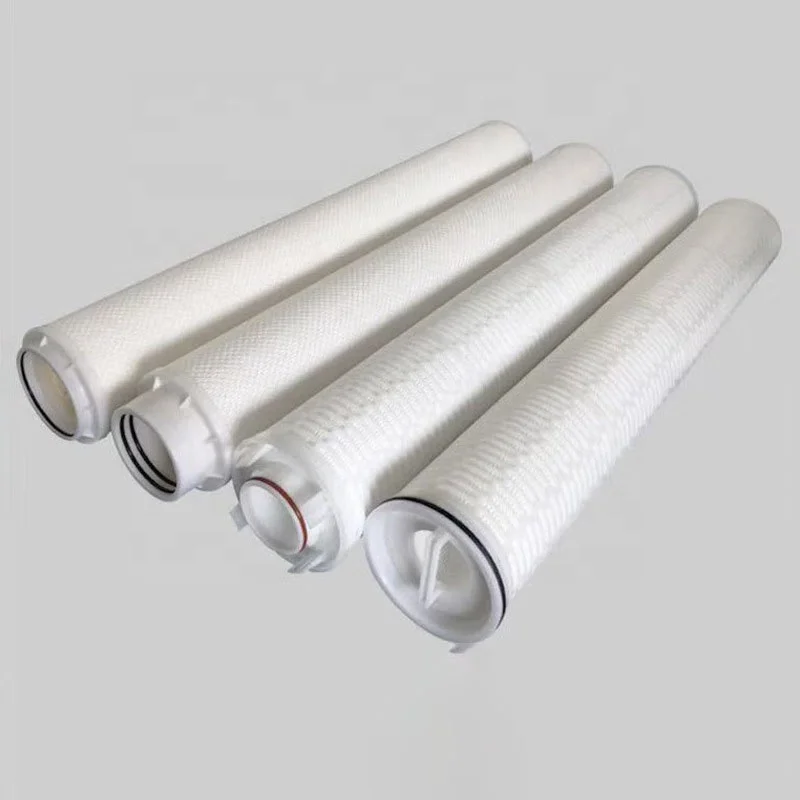

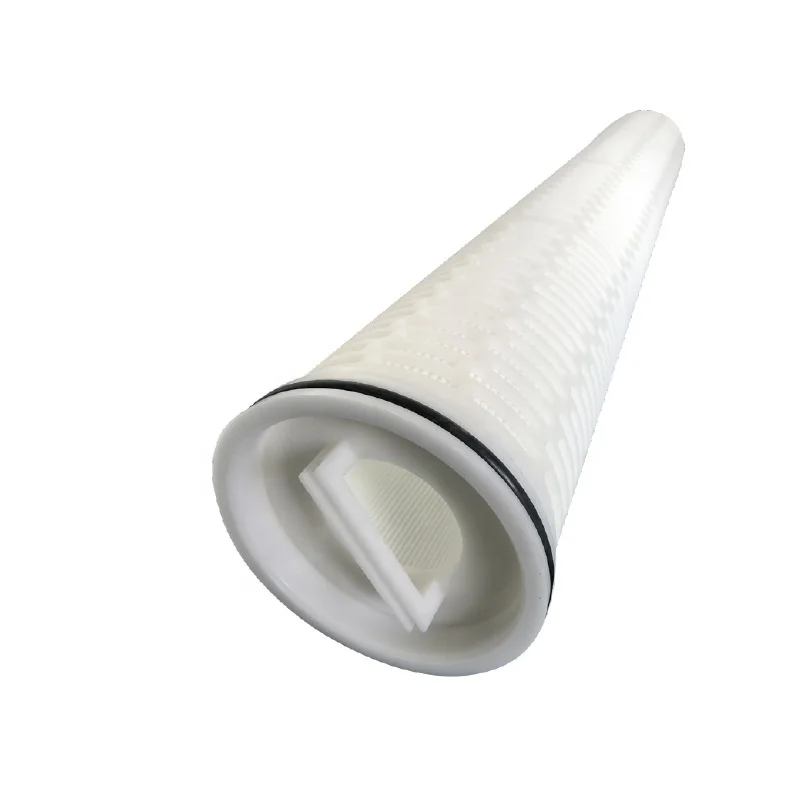

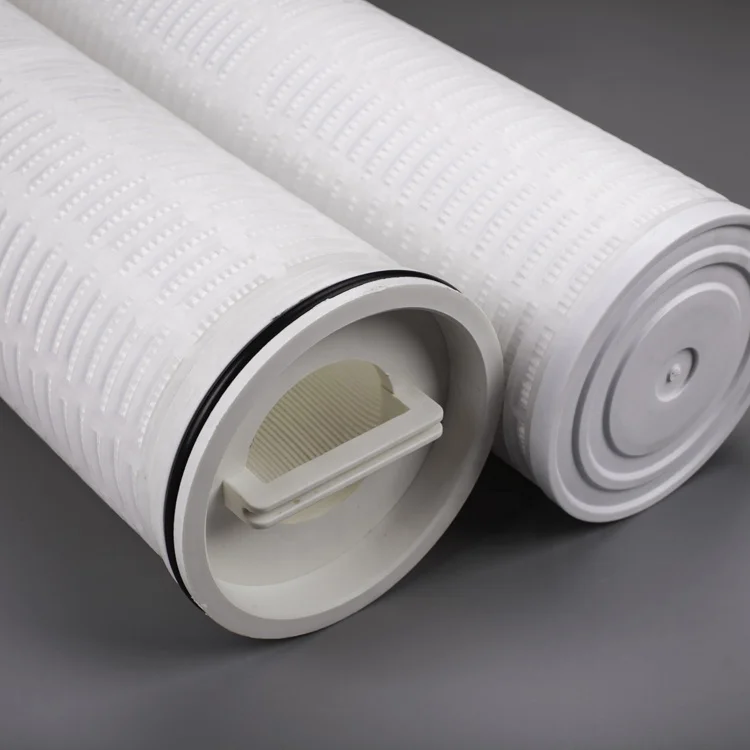

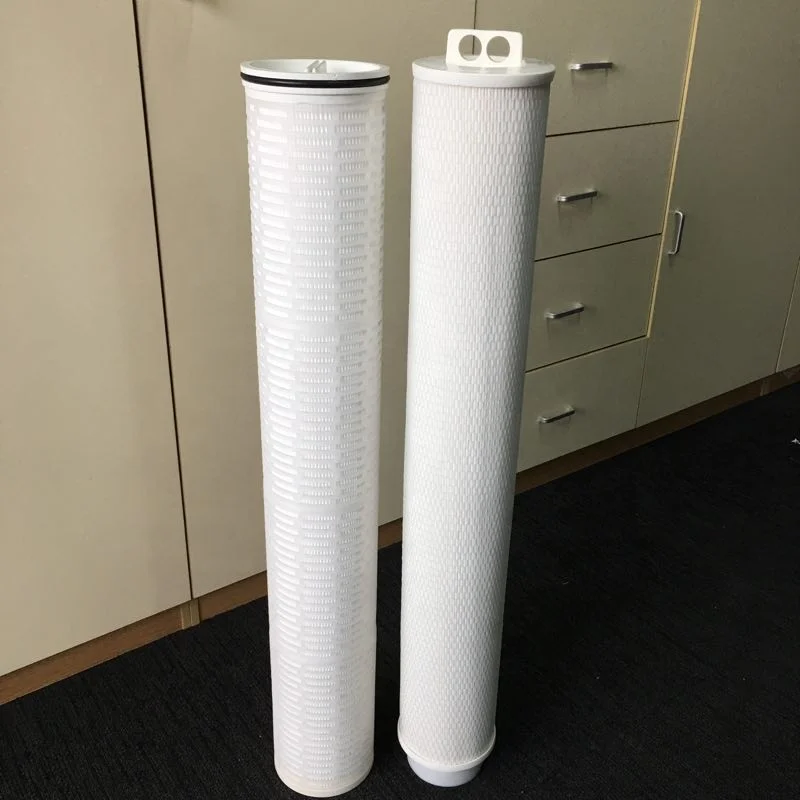

4.5 micron 40 inch water pleated high flow filter cartridge

Product Overview

Description





4.5 micron 40 inch water pleated high flow filter cartridge



Product Features:

• OD With 6 Inch/152mm, Inside To Outside Flow Configuration-All Contaminants Held Within The Single Open Ended Filter


• Deep Pleated Configuration, And Excellent Filtration Efficiency, Making Huge Surface Area And Long Service Life Reduced Maintenance Costs


• Especially For High Flow Liquid Filtration: RO Pre-Filtration, Seawater Desalination, Cooling Water, Chemical Raw Materials, Beverage, Biopharmaceutical, Solvents And Filtration Of Water


• Filters Are Manufactured, Flushed, Tested And Packaged In A Class 1,000 Clean Room Environment

Applications:

•


  Food and Beverage Industry





•


  Seawater Desalination





•


  Process Water and Waste Water Treatment and Industrial Water





•


  Cooling Water and RO Pre-filtration






Details:

Specification	Filter media	melt blown polypropylene
	Supporting Material	polypropylene
	End caps	polypropylene
	Center core	polypropylene
	Hardware	polypropylene
	Gasket/O-rings	Slicone
		Buna-N
		EPDM
	Length	20"
Dimentions	Outside Diameter	6"
	Specification can be customized
Performance	Retention ratings	1, 3, 4.5, 10, 20, 40um
	Max differential pressure	140℉(60℃)
	Recommended change out differential pressure	30psid(2.1bar)

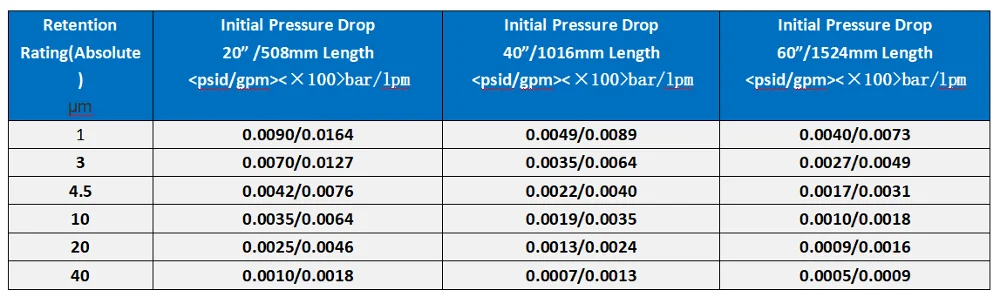

Retention Rating/Liquid Flow Rate vs. Initial Pressure Drop:

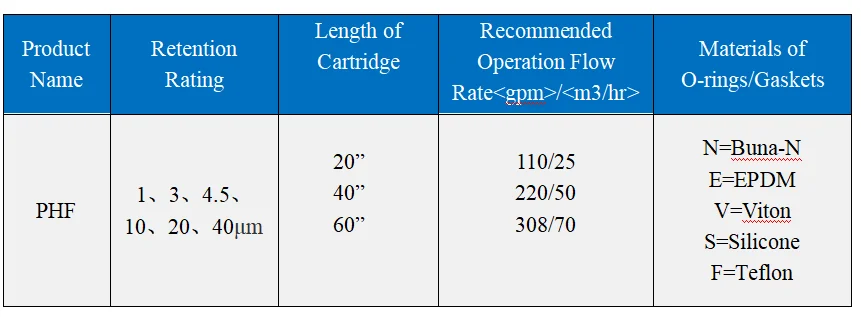

Ordering Information:



1. Q: Are you manufacturer ?

A:Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.

2.Q: What are your main products ?

A: Our products are Mirco pleated filter cartridges,high flow filter cartridges,depth-stack filter cartridges,pleated filter cartridges,carbon filter cartridges,melt blown filter cartridges,string wound filter cartridge,and so on.

3.Q: How to get a quotation ?

A: In order to send you our best price, please kindly inform us detailed product parameters.

4.Q: Could you provide free sample ?

A: Yes, we could provide free sample if the value not big,but the courier charge will be on your side.

5.Q: What’s your payment terms ?

A: Mainly accept T/T,L/C is also available if order amount big.Other payment terms can be further discussed.

6.Q: What is your delivery time ?

A:In normal condition, 20’container needs about 15-20days,40’’container needs about 30days.

7.Shipping :

If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,.



More details or other questions, pls do not hesitate to contact me!~
