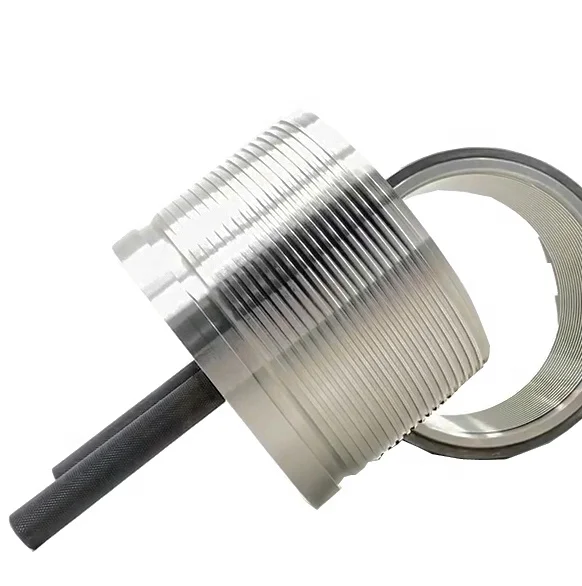

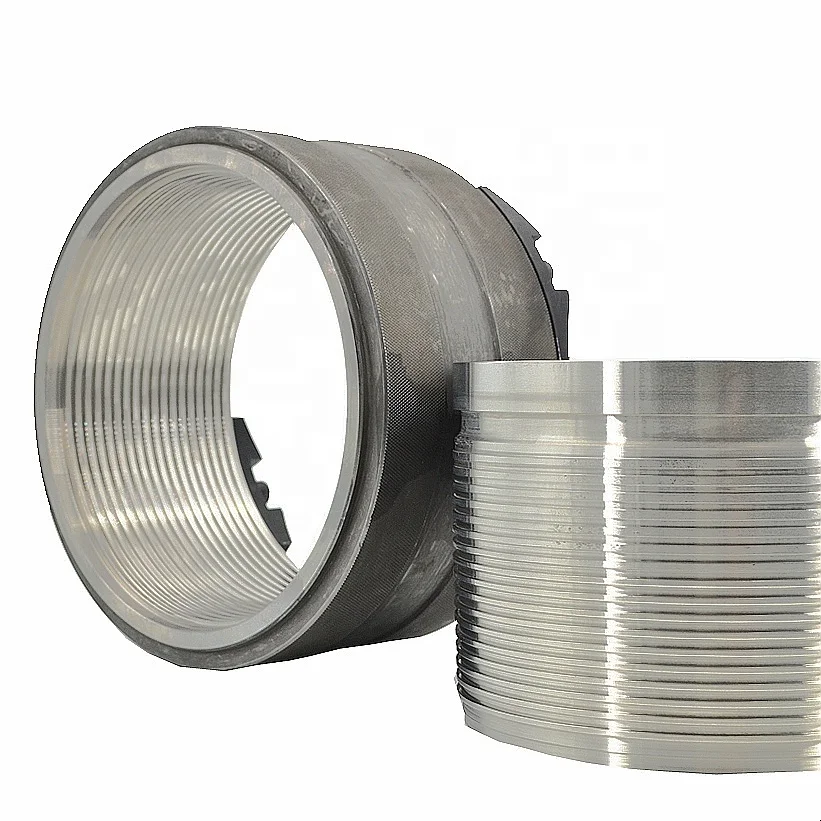

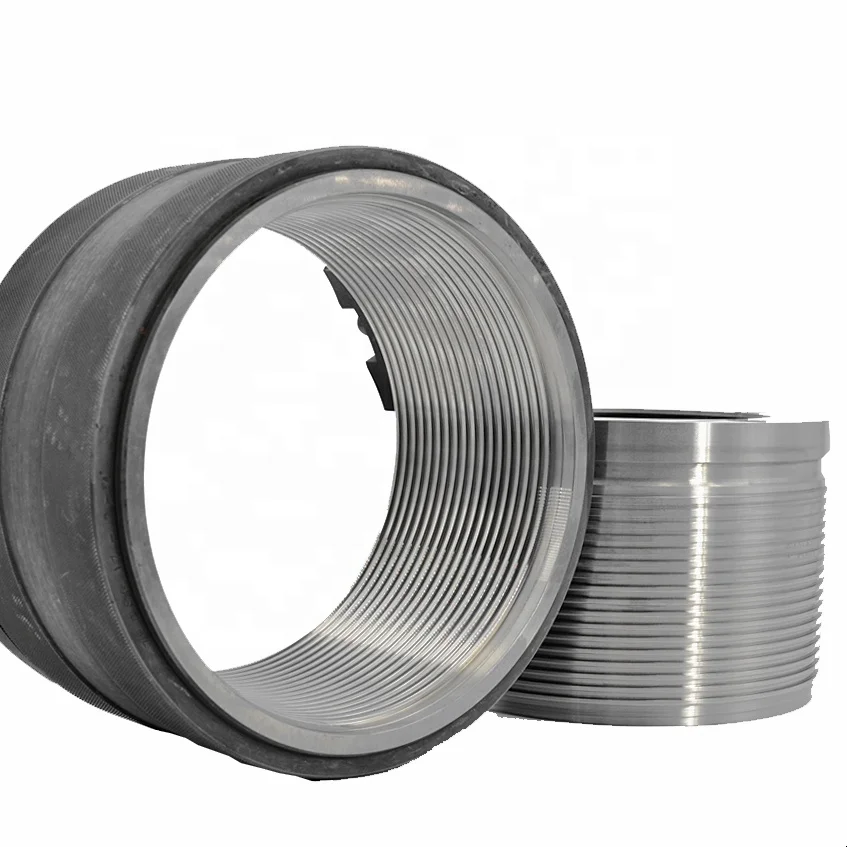

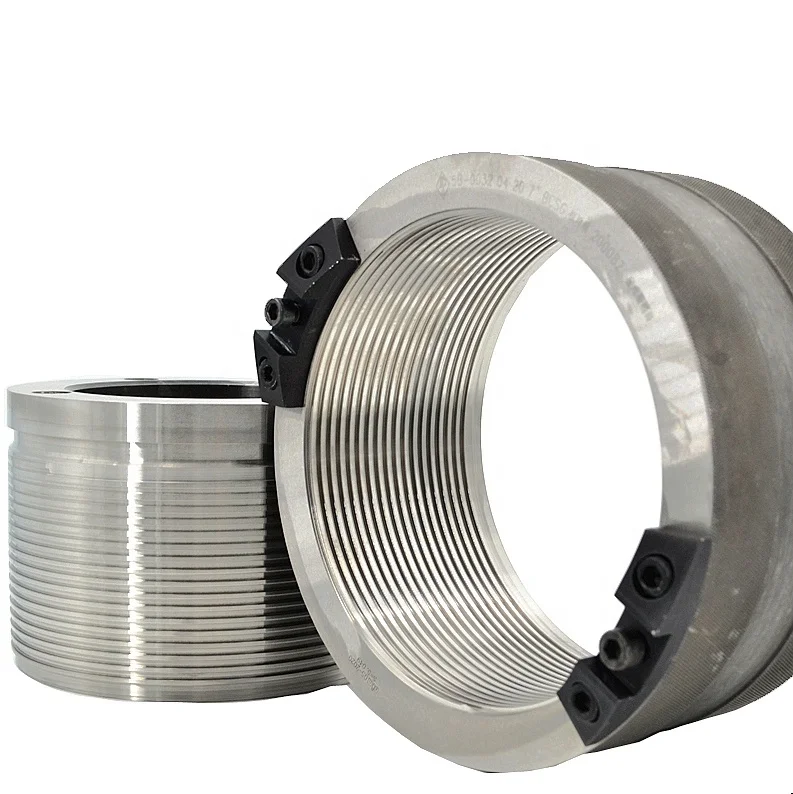

High Quality API Spec5B 7 BCSG Ring&Plug Working Thread Gauge, GCr15 API Spec5B Thread Gauge for Tubing Coupling Manufacturer
- Category: Gauges >>>
- Supplier: Wuxi Breit Precision Measuring Tools Co. Ltd.
Share on (11000000359376):
Product Overview
Description
Our Advantages
Wuxi Breit Precision measuring tools co., Ltd is a technical manufacturing enterprise produces API Spec5B, API Spec7-2, API Spec11B Master&Working&Taper thread gauges, ACME, STUB ACME, GOST,BUTT, NPT, UN,Tr, M series gauges.
API Certificate of Authority Baoji Thread Gages Co.,Ltd
API Spec5B-0032&API Spec7-2-0680
Manufacturing Technique
Technical expertise
Our company’s senior technical experts have 30 years of deep professional experience in thread gauge design, manufacturing, and manufacturing technique technical experts.
Customer praise
All kinds of Thread Gauge. We produce are sold to major oil producing areas in the world. Get praise from customers. Britain, India, Russia, Egypt and Ukraine have visited and studied the factory many times.
High-quality Raw Materials
The company needs hardness, wear resistance and long-term characteristics according to The gauge, after years of research. Use the
best quality GCr15 in China.
best quality GCr15 in China.
Products application
1 | Oilfield Tools Enterprise |
2 | Oilfield Services Company |
3 | OCTG Manufacture Factory |
4 | Oilfield Equippment Corporation |
5 | Oilfield Engineering Company |
6 | Oilfield inspection services company |
7 | Measure Technology Corporation |
8 | Measure Calibration Laboratory |
9 | Tubing Coupling Factory |
10 | Thread Gauge Manufacturing Plant |
Exhibition around the world
OTC exhibitions (USA)
NEFTGAZ exhibitions (Russia)
ADIPEC exhibitions (Abu Dhabi)
PRODUCT SPECIFICATIONS
API Spec Buttress Casing ( BCSG) Working&Master Thread Gauges / Standard API Spec5B :2017 | ||||||||||||
Style and Size (inch) | Outside Dia (inch) | Gauge Standoff (mm) | Pitch Dia at Length g from Vanish Point ( inch ) | TPI | TPF | GWS (kg) | ||||||
4-1/2" BCSG | 4.516 | 2.540 ± 0.381 | 4.454 | 5 | 1:16 | 10 | ||||||
5"BCSG | 5.016 | 5.080 ± 0.381 | 4.954 | 5 | 1:16 | 13 | ||||||
5-1/2" BCSG | 5.516 | 5.080 ± 0.381 | 5.454 | 5 | 1:16 | 15 | ||||||
6-5/8" BCSG | 6.641 | 5.080 ± 0.381 | 6.579 | 5 | 1:16 | 18 | ||||||
7" BCSG | 7.016 | 5.080 ± 0.381 | 6.954 | 5 | 1:16 | 18 | ||||||
7-5/8" BCSG | 7.641 | 5.080 ± 0.381 | 7.579 | 5 | 1:16 | 21 | ||||||
8-5/8" BCSG | 8.641 | 5.080 ± 0.381 | 8.579 | 5 | 1:16 | 26 | ||||||
9-5/8" BCSG | 9.641 | 5.080 ± 0.381 | 9.579 | 5 | 1:16 | 30 | ||||||
10-3/4" BCSG | 10.766 | 5.080 ± 0.381 | 10.704 | 5 | 1:16 | 33 | ||||||
11-3/4" BCSG | 11.766 | 5.080 ± 0.381 | 11.704 | 5 | 1:16 | 52 | ||||||
13-3/8" BCSG | 13.391 | 5.080 ± 0.381 | 13.329 | 5 | 1:16 | 63 | ||||||
16" BCSG | 16 | 4.445 ± 0.381 | 15.938 | 5 | 1:12 | 76 | ||||||
18-5/8" BCSG | 18.625 | 4.445 ± 0.381 | 18.563 | 5 | 1:12 | 95 | ||||||
20" BCSG | 20 | 4.445 ± 0.381 | 19.938 | 5 | 1:12 | 106 | ||||||
Successful Project
Project in USA
Project in IND
Project in MAS
Third-party calibration Certifications
The company produces various types of high-quality, high-precision gauges. Successfully passed the calibration test of various levels of calibration measurement units such as TGRI ,JSDG ,NIM.

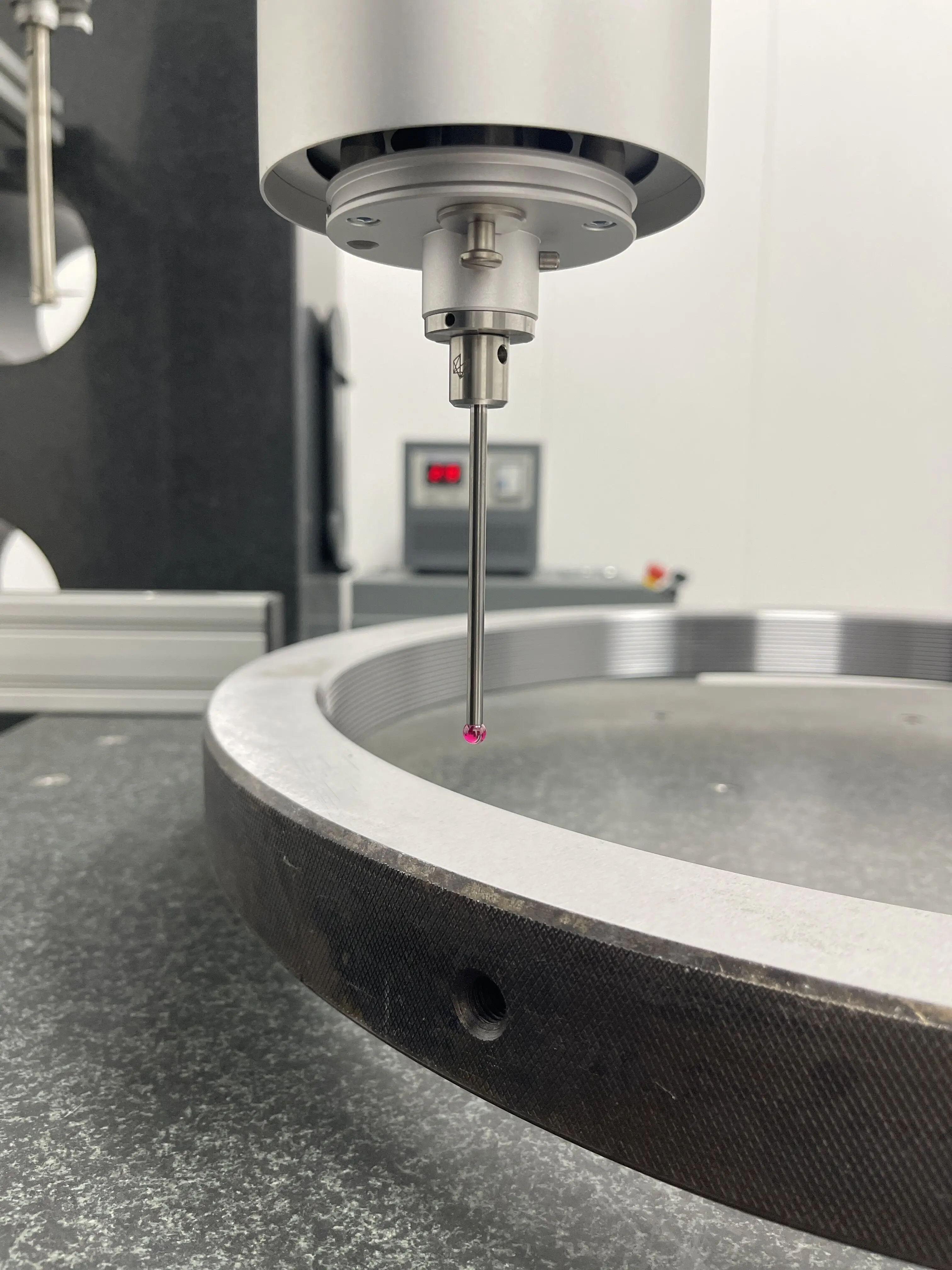

High precision calibration test

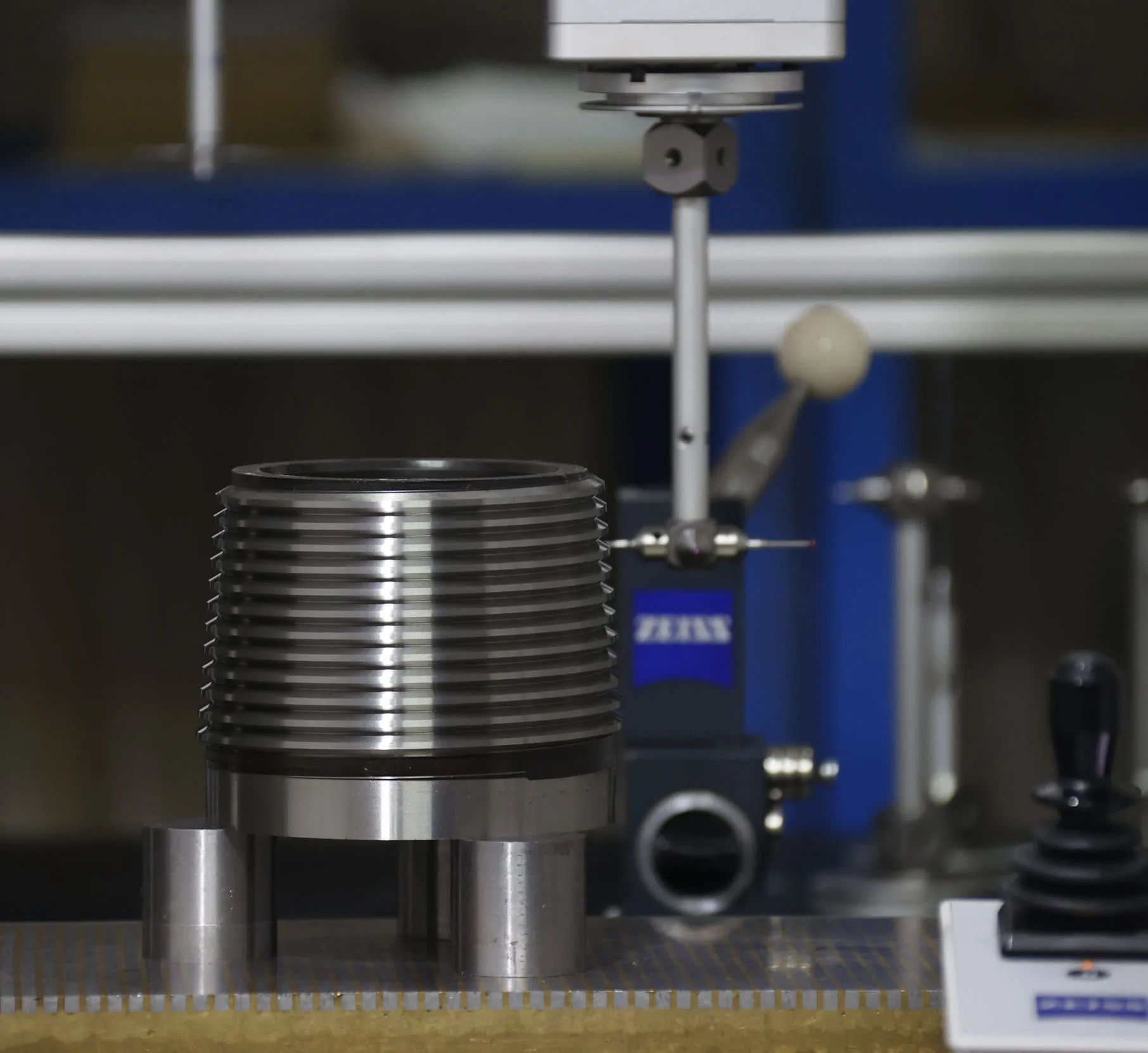

ZEISS Coordinate Measuring Machine. equipped with world-class professional precision measurement technology testing equipment HEXAGON high-precision GLOBAL S09.15.08 and HEXAGON GAGER 06.08.06 CMM
Packaging&Delivery

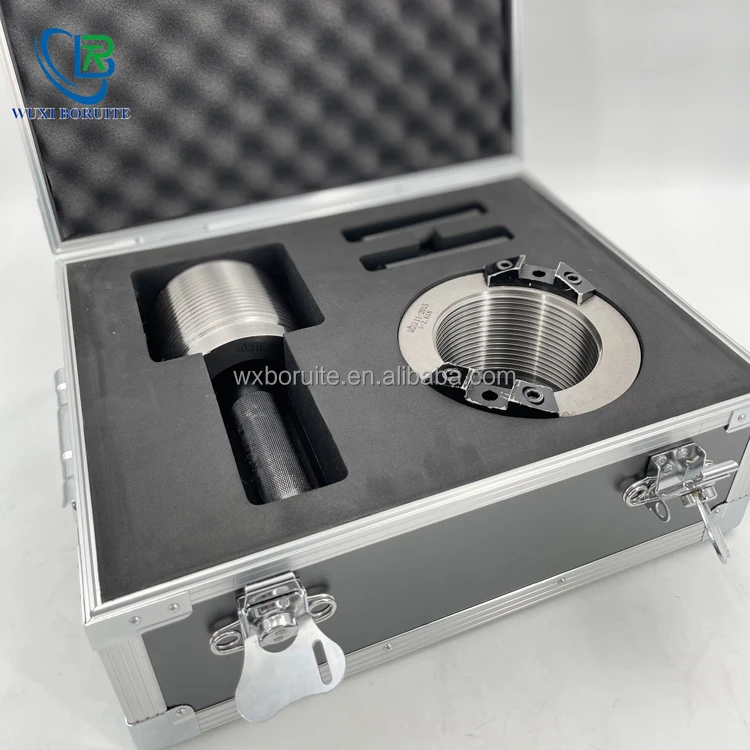

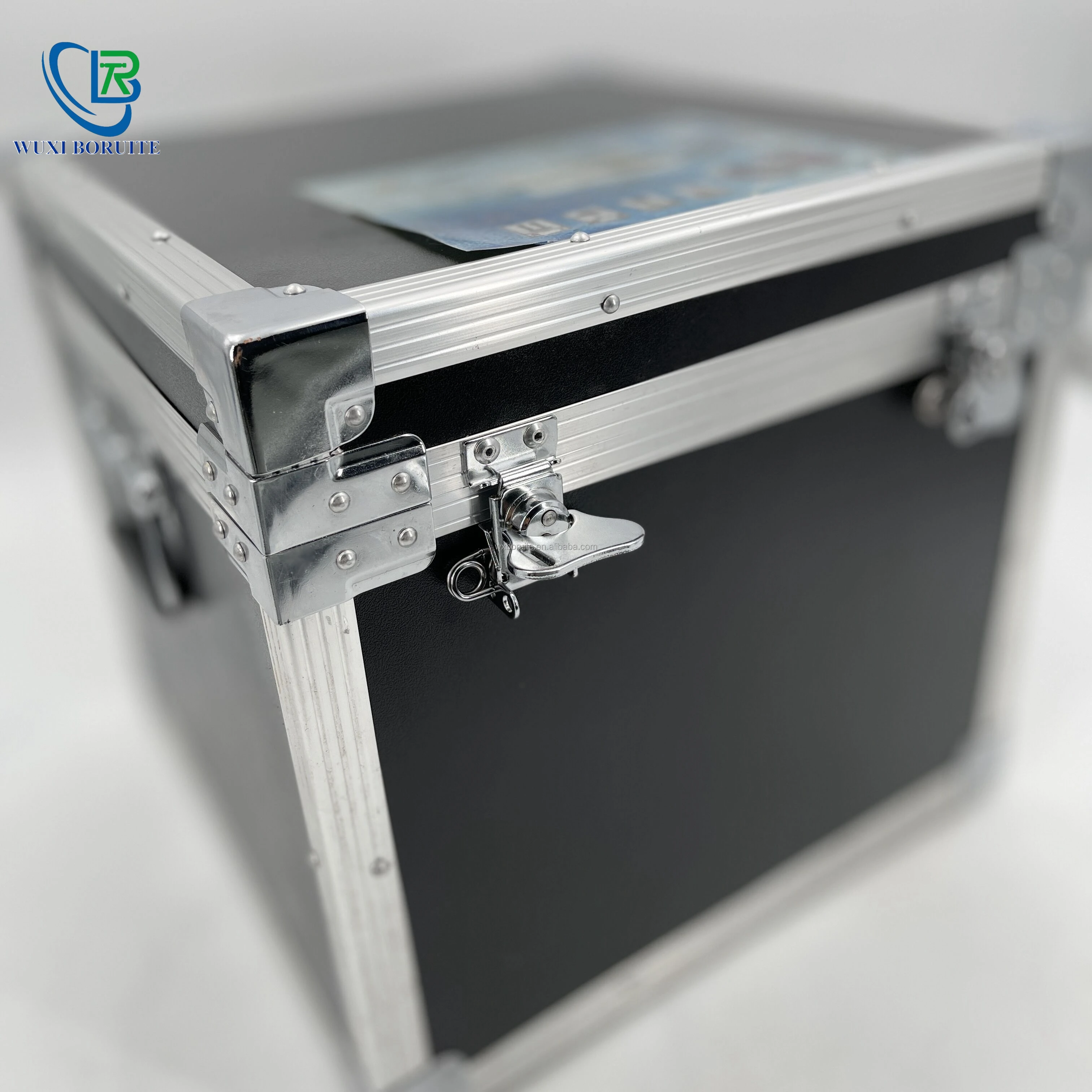

Aluminum alloy allframe box, anti-rust treatment, damping sponge.The Ring Gauge and Plug Gauge are placed separately.Air freight & TNT & DHL & FedEx. Safe, convenient and fast.
FAQ
ORDER INSTRUCTION:
When ordering, please provide more information for the following:
1. Type of Thread Form;
2. Size of Gauge; QTY ;
3. Decide master or working gauges ;
4. Ring or Plug or both; Box or Pin or both;
5. Decide Right hand or left hand, in case of API Spec 5B thread gauges.

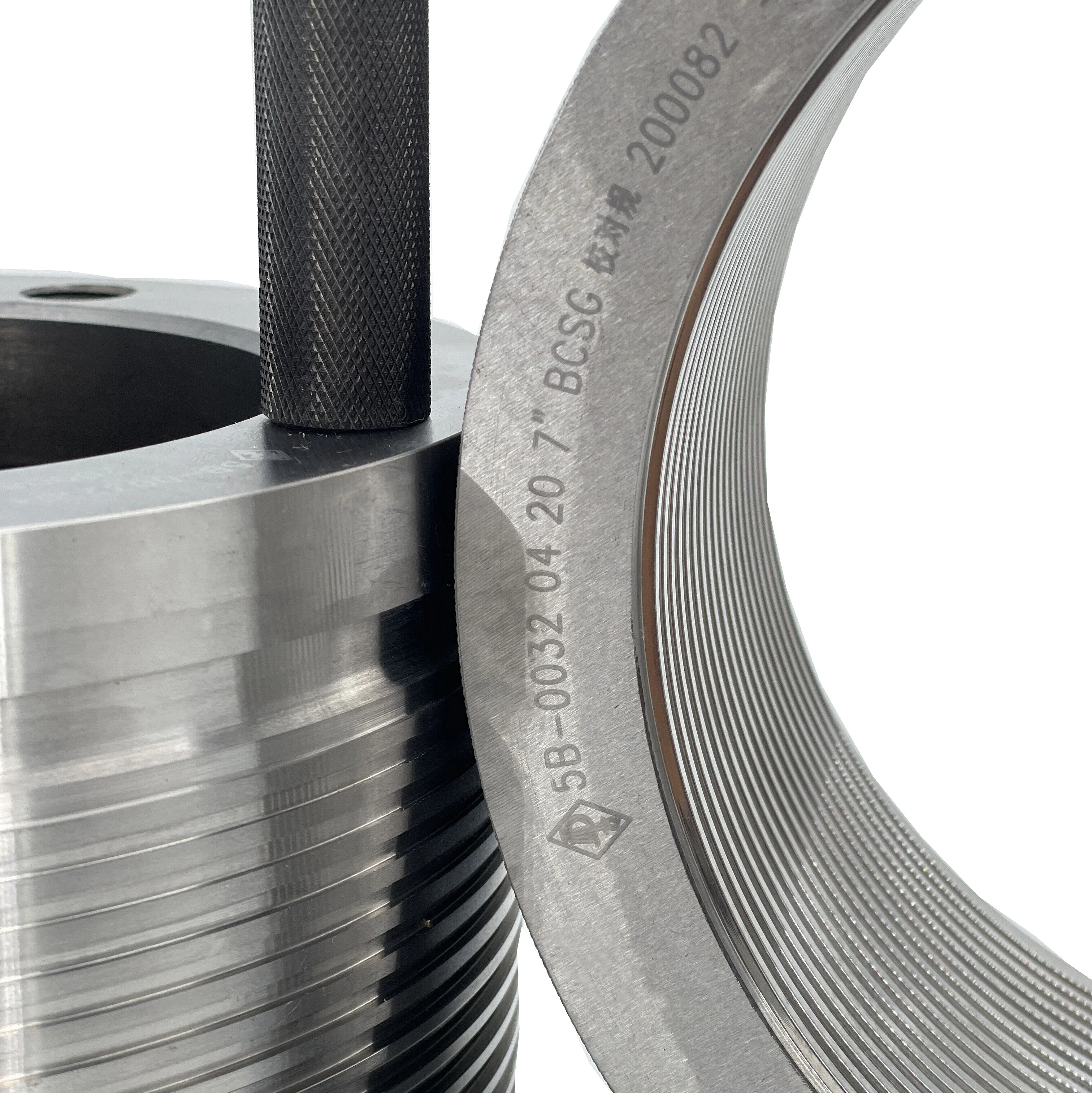

For example : API Spec5B 7" BCSG Ring and Plug Working Gauges ；QTY ;
When ordering, please provide more information for the following:
1. Type of Thread Form;
2. Size of Gauge; QTY ;
3. Decide master or working gauges ;
4. Ring or Plug or both; Box or Pin or both;
5. Decide Right hand or left hand, in case of API Spec 5B thread gauges.
For example : API Spec5B 7" BCSG Ring and Plug Working Gauges ；QTY ;
