Low Cost Radial Drill Press Radial Drill Press Machine Zq3040x13 Made in China Canada Provided 40 Automatic Bearing Morse 4 2000

Product Overview

Description



Configuration  features

Mechanical  transmission

Mechanical  clamping

Mechanical speed

Automatic  take-off  and  landing

Automatic  feed

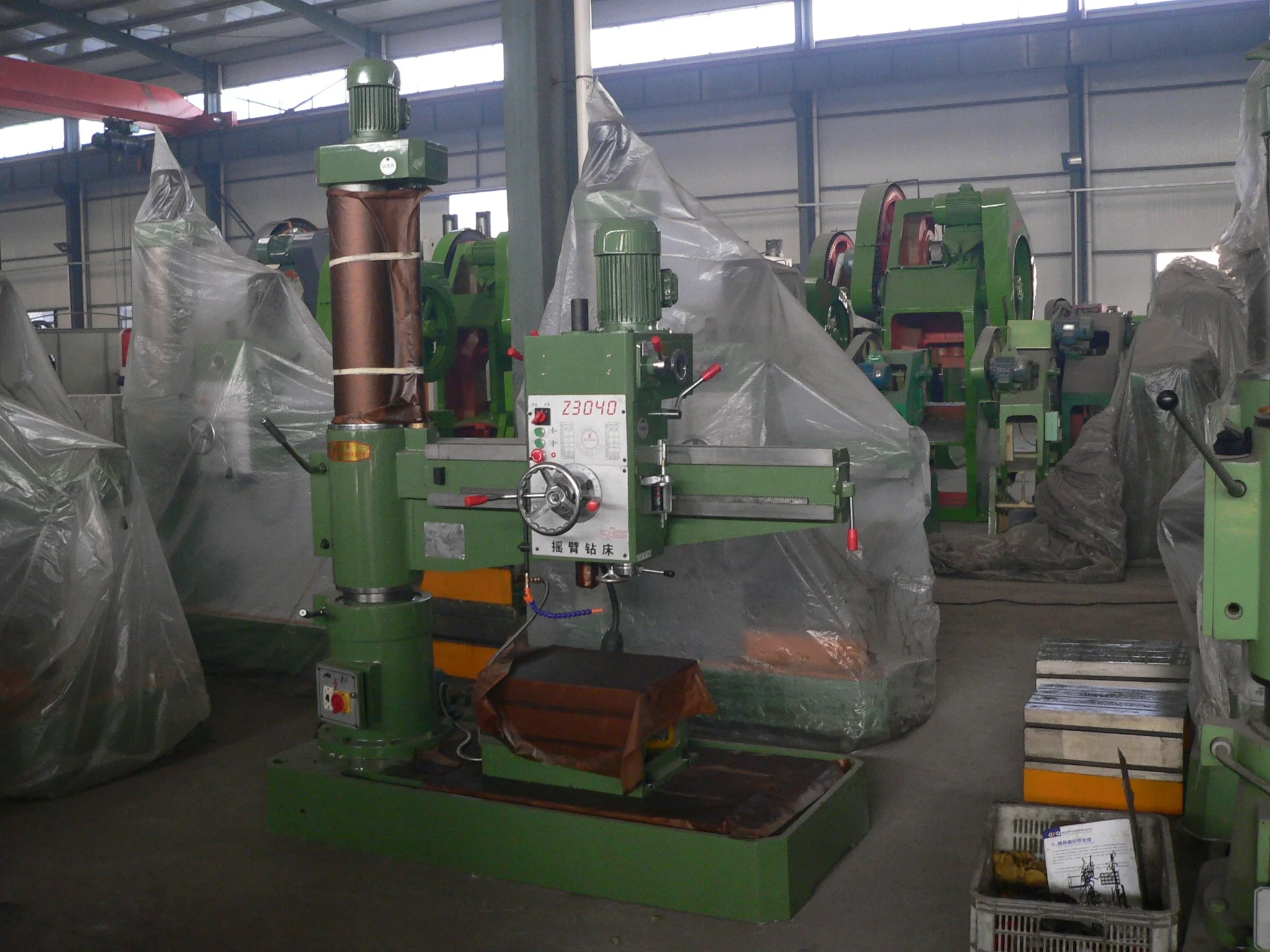

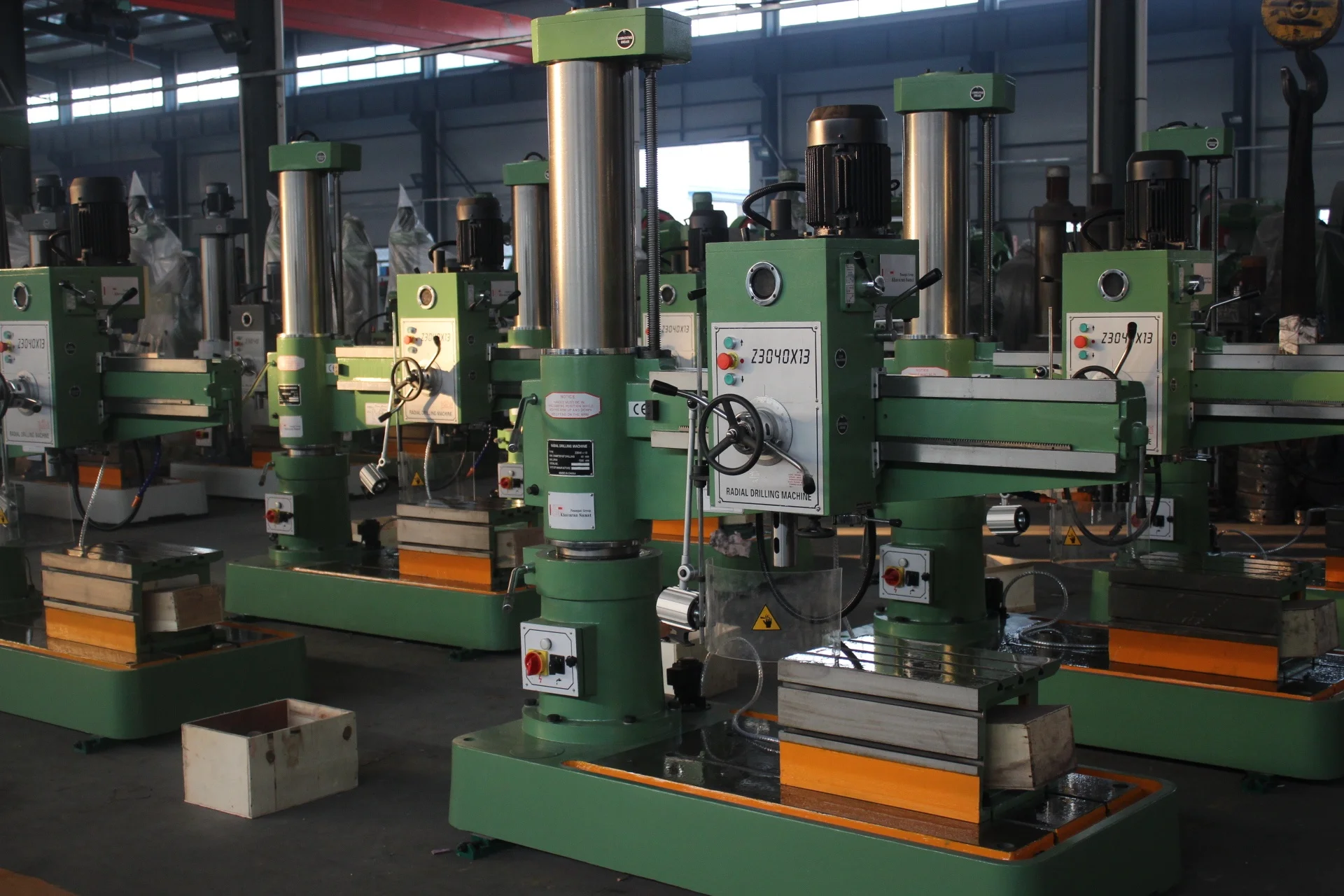

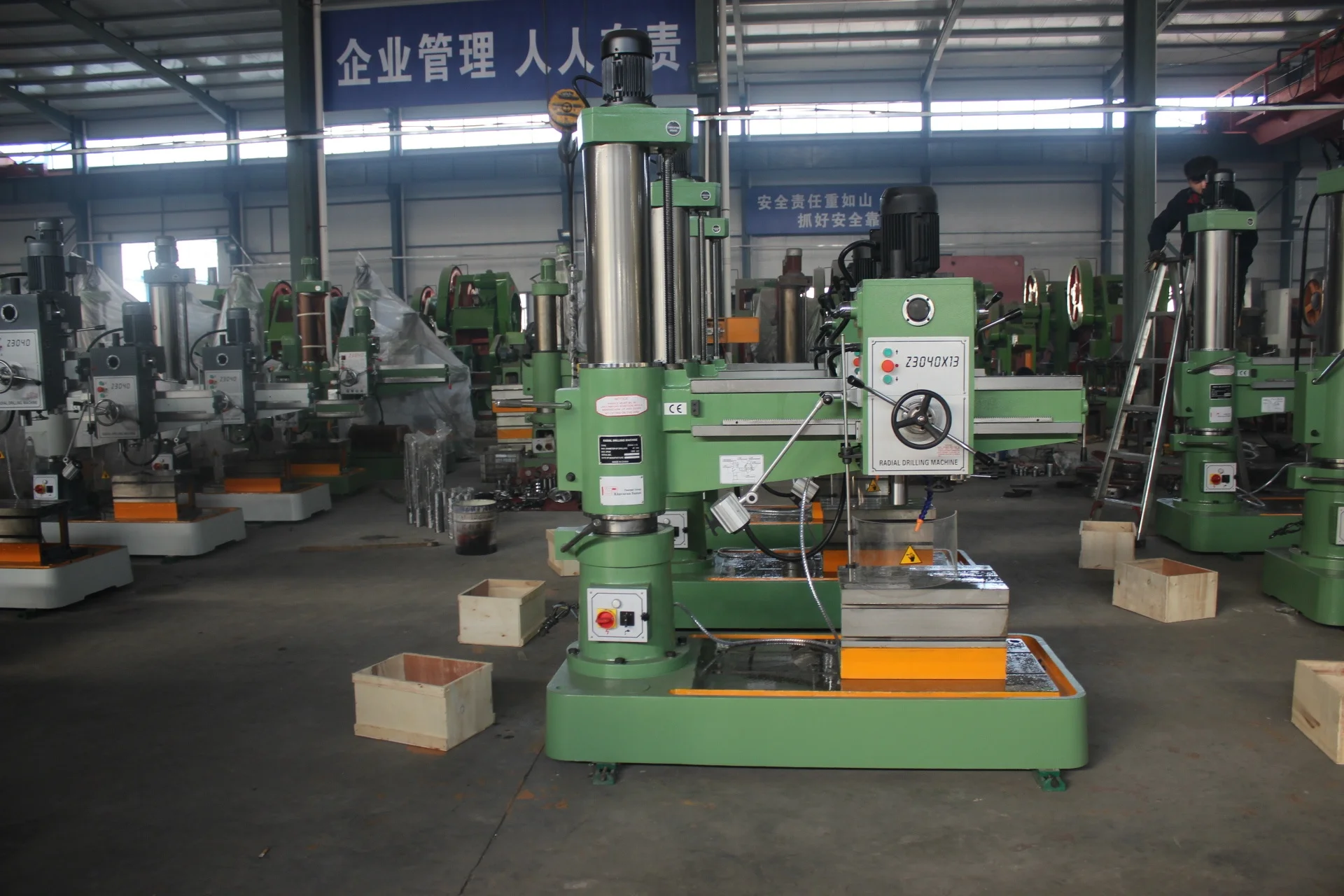

Product detail display



Technical  parameters

Specification	Units	ZQ3040×13
Max. drilling diameter	mm	Cast iron40\\Steel32
Distance spindle nose and work surface of base	mm	260-1400
Distance between spindle axis and column	mm	360-1400
Spindle travel	mm	200
Spindle taper	Morse	4
Range of spindle speeds	r/min	75-1200
Number of spindle speeds	step	6
Range of spindle feeds	mm/r	0.10-0.56
Number of spindle feeds	step	3
Rocker rotary angle	°	360
Motor power	kw	2.2
Movement motor power	kw	1.5
Machine weight	kg	2000
Overall dimension	mm	2000×800×2240







Product introduction

1.The main key pieces of high strength cast iron and special steel.

2.By the specialized equipment to ensure continuous processing, sophisticated infrastructure components.

3.Spindle positive, parking ( brake ), transmission, free action, with a handle control, operate more conveniently and quickly.

4.Rocker guide rail, the outer column surface, spindle, spindle sleeve and the inner and outer column rotary raceway are conducted quenching treatment, can maintain the stability of machine tool accuracy, prolongs the service life.

5.Have good safety protection device and the outer column protection.

6.The structure design and in the manufacturing process, but also adopted a series of effective measures, so that the precision of the machine tool durability and the service life of the whole machine are enlarging.

7.The new coating technology and the continuous improvement of appearance display style of the times.



Our Services

        Shandong Weili Heavy Industry is a professional machine products manufacture with 20 years experiences in China, We are the best manufacturer that you can trust in China.

1.Your inquiry will be replied in 24 hours

2.To offer free service within warranty

3.Technology Support Provide operation video for training

4.Professional after-sales service team

5.If you need to develop products with your own specification, we can help you to work it out.

6.Always be honest, never lie to customer, and never declare anything we don't have.



 Our Advantage

1.Weili Heavy Industry more than twenty years experience of machine tools.

2.Our company and products with TUV, SGS , ISO9001/9002 OR other authority approved

3.High reputation around the world

4.Overseas service and technology support

5.Competitive price with better quality, even the best

6.Strict test processing before shipment .

7.Overseas engineers available for problem solution.



Company Information

              Shandong Weili Heavy Industry Machine Tool Co., Ltd. is a professional machine tool manufacturing company.Located in Tengzhou Economic development zone. Company mainly engaged in milling machine, drilling machine, punching machine, hydraulic machine, shearing machine, bending machine and CNC machines ect. production. Company now has the fixed asset 95 million yuan, all machine tools in strict accordance with ISO9001 and CE international quality standard system of production.

           We attend many home and abroad exhibitions every year.Our customers are all over the world.We have our own proffessional testing center, there are 20 sets precise measuring instruments from England and United States.Each product must pass strict quality inspection before leave factory, ensure the quality of the product.

        Machine packaging use plywood case.Workbench and the guide surface rust-proof oil daub, and oil film paper cover.
