Hot Seeling Product Corn Starch Horizontal ffs Machine Good ffs Packing Machine Price
- Category: >>>
- Supplier: Durzerd Packaging Machinery Co. Ltd.
Share on (11000000392195):
Product Overview
Description
Model Series | FFS |
Packable Products | granules/ powders/flake particles |

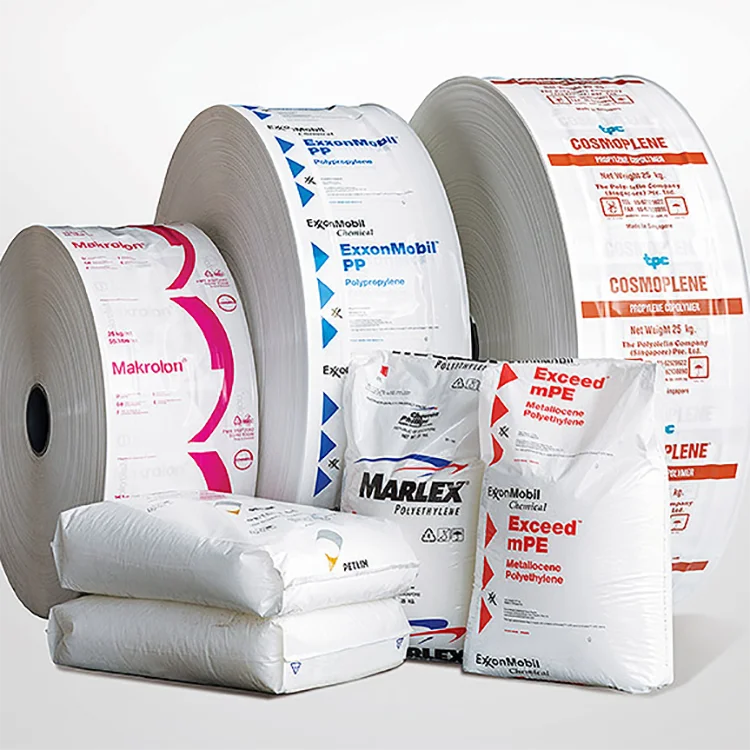

Bag Type | M-type PE packaging roll film, melt index>0.2, |
film thickness 140-180um±4% | |
Roll Film | Diameter of roll film≤1500mm, |
inner tube of roll film: 150mm (6 inches) | |
Sealing Method | Heat sealing |
Empty Bag Size | L(650-900mm), W(350-390mm) |
M Side Depth: (50-70mm)±3mm | |
Packaging Weight | 20-50 kg/bag |
Packaging Speed | 300~600 bags/h |
Power | 11 kW |
Air Consumption | 200 NL/min |
Equipment Size (L*W*H) | 5130 * 1800 * 2260 |
Brief Introduction:
The film bag automatic FFS packing machine can divide the cylindrical film roll into individual open mouth bags, and realize the functions of material bagging, heat sealing and finished product output.
Optional: automatic film changing mechanism.
The film bag automatic FFS packing machine can divide the cylindrical film roll into individual open mouth bags, and realize the functions of material bagging, heat sealing and finished product output.
Optional: automatic film changing mechanism.
Applications
The FFS packing machine is widely applied in chemical industry, nut, peanut, feed, grain, seed ,salt, sugar, pet foods and other Industries with plastic bag, etc.
·Compact structure, high degree of integration, saving space;
·Bag making, filling and sealing are completed in parallel to improve the packaging speed;
·Efficient and substantial increase the filling rate, servo technology to accurately control the bag length, reduce packaging costs;
·Instant high temperature fusion sealing technology, fast ultra-low temperature cooling and solidification technology, improve the quality of sealing;
·Advanced fieldbus technology, friendly man-machine interface, provide convenient visual parameter setting, intelligent system diagnosis and help function, the system is easy to use and easy to maintain;
·Bag making, filling and sealing are completed in parallel to improve the packaging speed;
·Efficient and substantial increase the filling rate, servo technology to accurately control the bag length, reduce packaging costs;
·Instant high temperature fusion sealing technology, fast ultra-low temperature cooling and solidification technology, improve the quality of sealing;
·Advanced fieldbus technology, friendly man-machine interface, provide convenient visual parameter setting, intelligent system diagnosis and help function, the system is easy to use and easy to maintain;

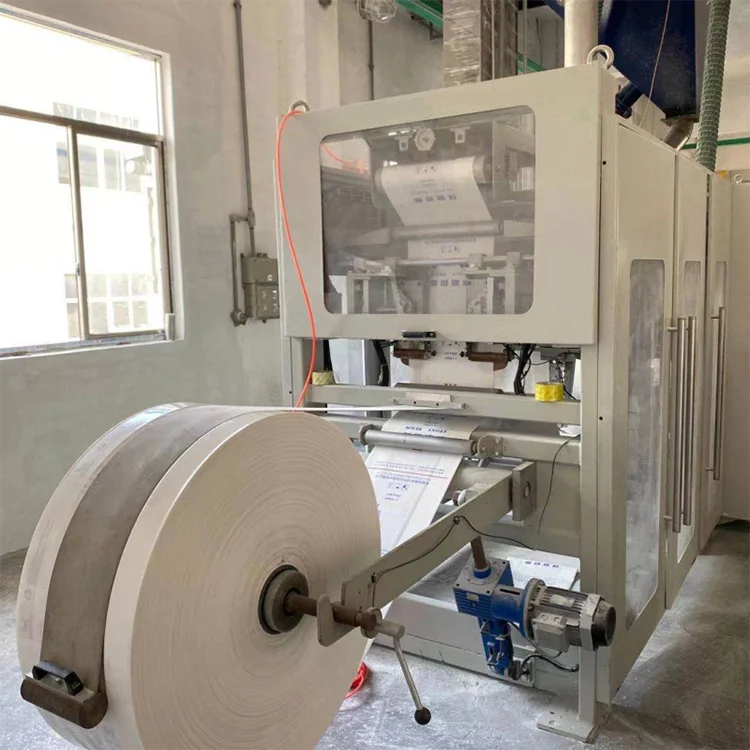

1.Roll Film Support
The air expansion shaft is installed at the inner hole of the roll film.The worm gear elevator controls the automatic lifting of the roll film, which is convenient for film change.

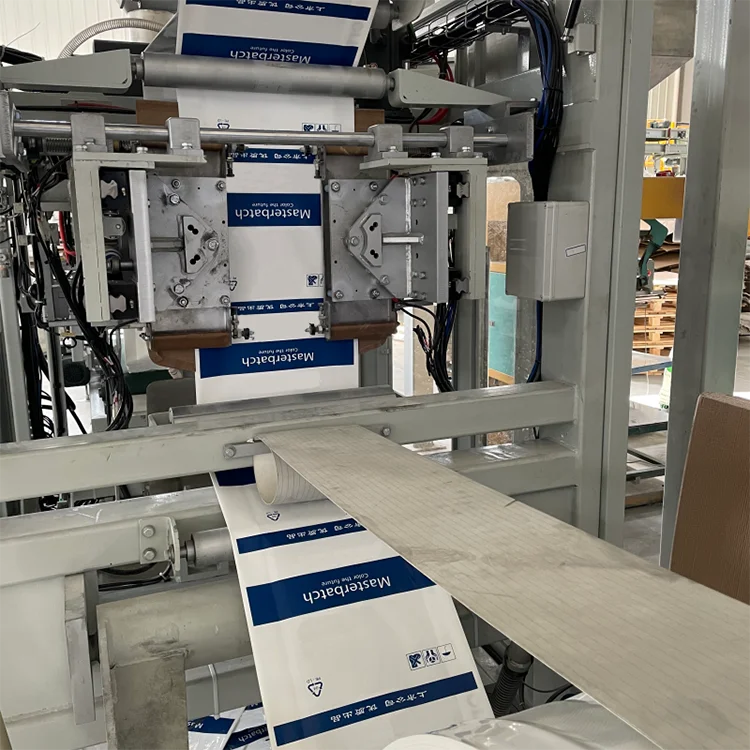

2.Corner Sealing
The corner sealing can be manually adjusted symmetrically to reach the different bag widths. The corner sealing temperature can be changed at any time as needed.
3.Bag Length Adjustment
The geared motor drives the screw to rotate, so that the center of the corner sealing is located at the junction of the bottom of the bag and the end of the bag to meet the adjustment range of bag length.
4.Convey Film and Make Bags
The film is sent as the specified bag length through the servo motor, ,and the cutter cut the bag from the roll film to complete the bag making, whose bottom is sealed.
5.Rotary Bag Delivery
Clamp the bag mouth and send the bag from the bottom-sealing film feeding mechanism to the bag opening mechanism.

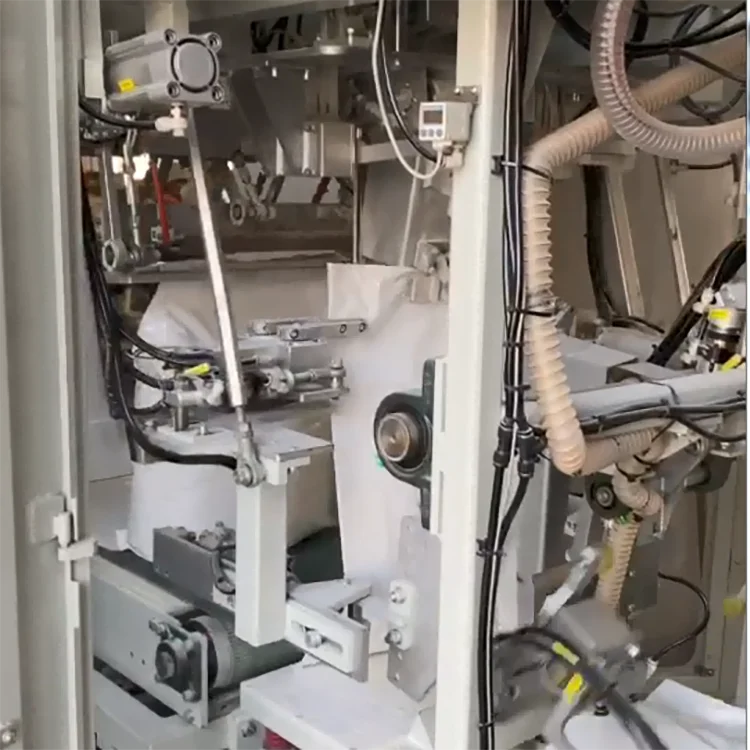

6.Open Bag
The vacuum sucker opens the bag mouth under the action of the vacuum pump.
7.Supply Bag
The bag supplying claw is inserted into the bag mouth, the bag opening cylinder expands the bag mouth, and then the bag mouth is sleeved on the material discharge port mechanism by air cylinder. The material discharge port mechanism clamps the bag mouth.
8.Filling
The material finished weighing is dropped from the platform net-weight scale into the bag. There are material blocker and a dust removal channel at the material discharge port, which can meet the requirements of clean packaging.
9.Swing Arm
The swing arm will flatten the mouth of the full bag, and send the full bag from the material discharge port to the sealing mechanism.
10.Mouth Sealing
The sealing mechanism clamps the bag mouth to seal.

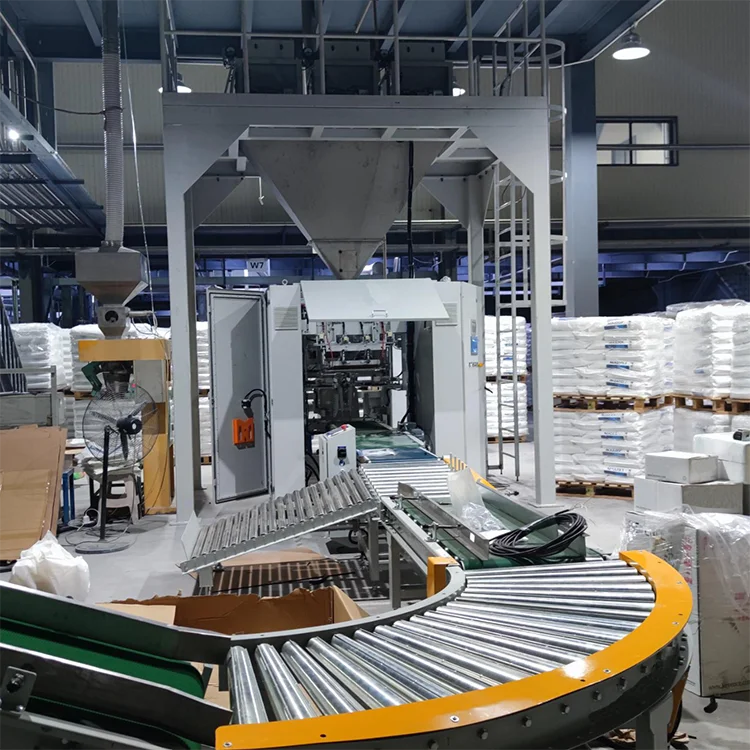

11.Vibration and Delivery
The vibrating mechanism is located below the material discharge port, which vibrates the material in the bag during the filling process, and makes the bag full, then transport the bag to the next station.
The air expansion shaft is installed at the inner hole of the roll film.The worm gear elevator controls the automatic lifting of the roll film, which is convenient for film change.
2.Corner Sealing
The corner sealing can be manually adjusted symmetrically to reach the different bag widths. The corner sealing temperature can be changed at any time as needed.
3.Bag Length Adjustment
The geared motor drives the screw to rotate, so that the center of the corner sealing is located at the junction of the bottom of the bag and the end of the bag to meet the adjustment range of bag length.
4.Convey Film and Make Bags
The film is sent as the specified bag length through the servo motor, ,and the cutter cut the bag from the roll film to complete the bag making, whose bottom is sealed.
5.Rotary Bag Delivery
Clamp the bag mouth and send the bag from the bottom-sealing film feeding mechanism to the bag opening mechanism.
6.Open Bag
The vacuum sucker opens the bag mouth under the action of the vacuum pump.
7.Supply Bag
The bag supplying claw is inserted into the bag mouth, the bag opening cylinder expands the bag mouth, and then the bag mouth is sleeved on the material discharge port mechanism by air cylinder. The material discharge port mechanism clamps the bag mouth.
8.Filling
The material finished weighing is dropped from the platform net-weight scale into the bag. There are material blocker and a dust removal channel at the material discharge port, which can meet the requirements of clean packaging.
9.Swing Arm
The swing arm will flatten the mouth of the full bag, and send the full bag from the material discharge port to the sealing mechanism.
10.Mouth Sealing
The sealing mechanism clamps the bag mouth to seal.
11.Vibration and Delivery
The vibrating mechanism is located below the material discharge port, which vibrates the material in the bag during the filling process, and makes the bag full, then transport the bag to the next station.
Q1: Are you a factory or a trading company?
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
