John Tools 1200mm manual tile cutter 48 inch top sigma tile cutter tools construction with 80cm big gauge other hand tools
- Category: >>>
- Supplier: Hangzhou John Hardware Tools Co. Ltd
Share on (11000000411006):
Product Overview
Description
Product Description

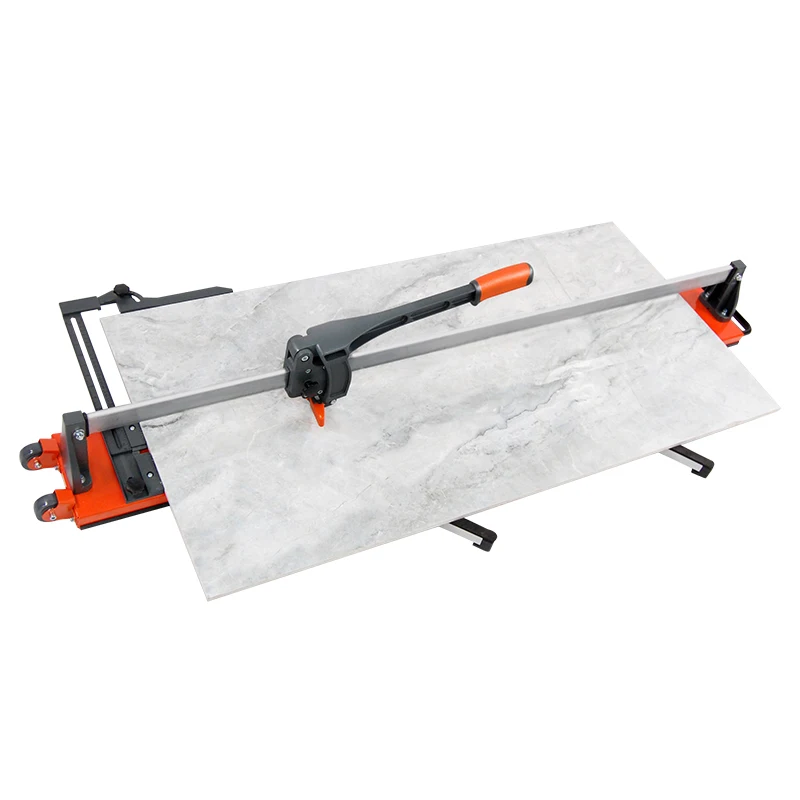

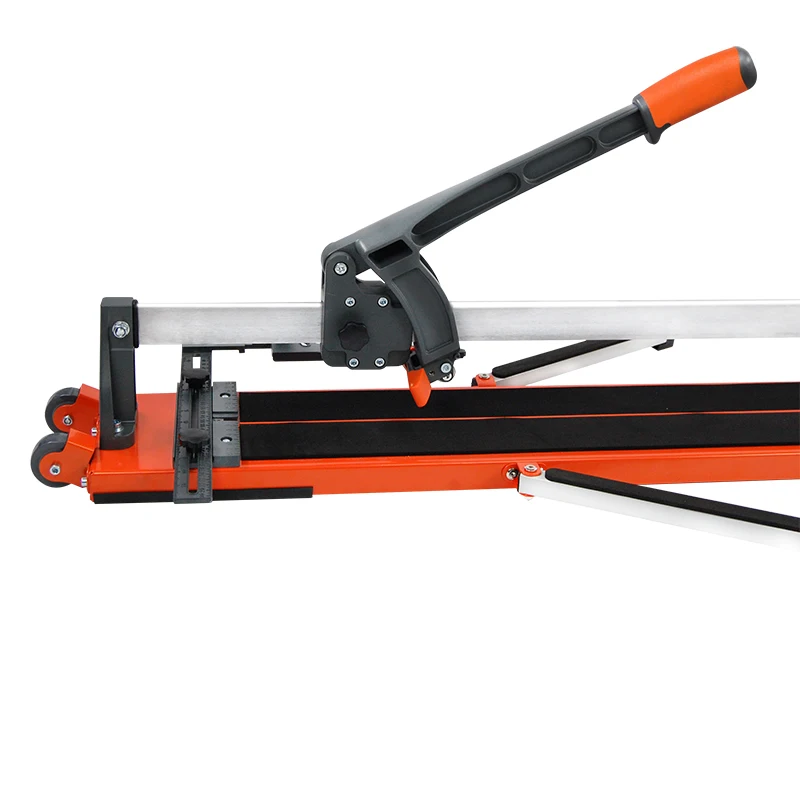

JOHN TOOLS 1200MM PROFESSIONAL TILE CUTTER
* Human-engineering big handle, the TPR grip is very soft.
* Width of metal base: 178mm
* Thickness of the base:1.8mm
* Max. working length: 1200mm
* Max. cutting tile thickness:16mm
* Iron bar strengthen to 12mm, will add $3.5

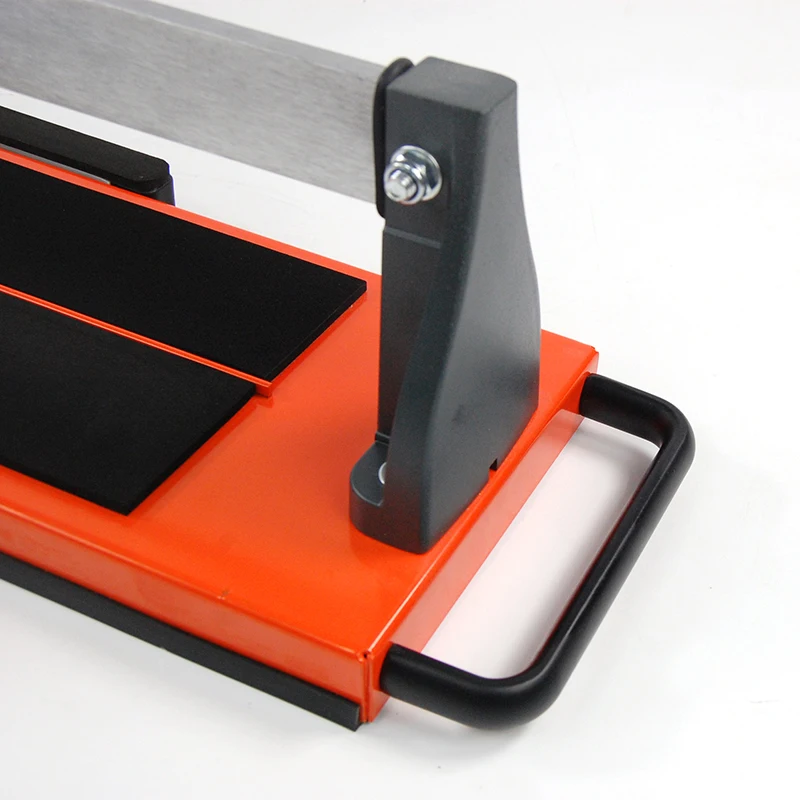

* Transfer wheels and handle , will add $3
* Simple and convenient replacement cutting wheel φ22* φ6*6mm with bearing.

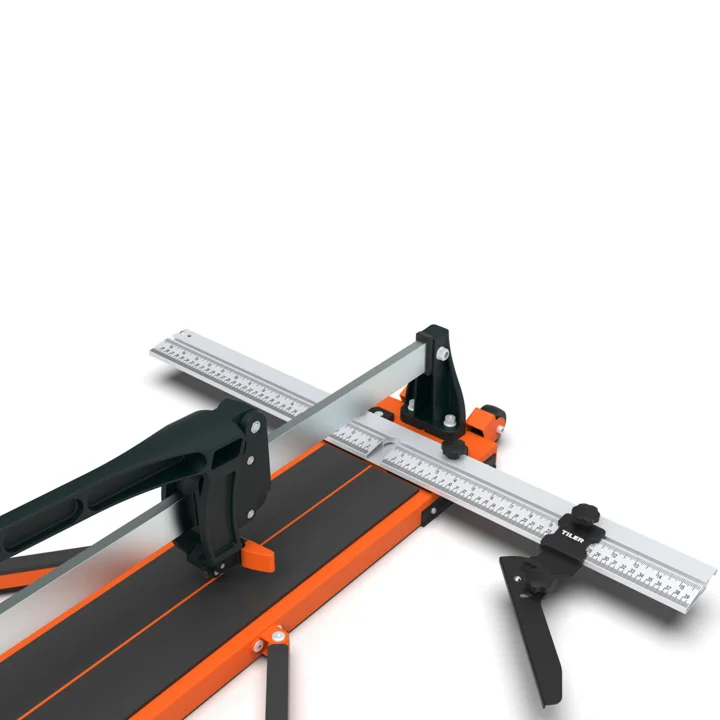

*80cm adjustable angle aluminium guide for straight & diagonal cuts.
* Cutting tolerance: within 1.0mm
* For tiles, porcelain ,ceramic, mosaics etc., all kinds of tiles
* Human-engineering big handle, the TPR grip is very soft.
* Width of metal base: 178mm
* Thickness of the base:1.8mm
* Max. working length: 1200mm
* Max. cutting tile thickness:16mm
* Iron bar strengthen to 12mm, will add $3.5
* Transfer wheels and handle , will add $3
* Simple and convenient replacement cutting wheel φ22* φ6*6mm with bearing.
*80cm adjustable angle aluminium guide for straight & diagonal cuts.
* Cutting tolerance: within 1.0mm
* For tiles, porcelain ,ceramic, mosaics etc., all kinds of tiles
Direction for use
使用说明
RIP CUT
1.Place the tile at the front edge against the front stop
2.Position the tile so the line of cut is directly over the scoring line,which is the line between the left and right pad.
3.Place the extension arms under the tile for the best possible support
4.Adjust the cutting guide by loosening the gauge and sliding it left or right to the desired cutting position,and lock the gauge
in place
MAKING THE CUT
1.Place the cutting wheel on the rear edge of the tile.
2.Slide the wheel forward by pushing the handle down with medium pressure,
scoring the tile surface glaze as the handle is pushed forward.
1.Place the tile at the front edge against the front stop
2.Position the tile so the line of cut is directly over the scoring line,which is the line between the left and right pad.
3.Place the extension arms under the tile for the best possible support
4.Adjust the cutting guide by loosening the gauge and sliding it left or right to the desired cutting position,and lock the gauge
in place
MAKING THE CUT
1.Place the cutting wheel on the rear edge of the tile.
2.Slide the wheel forward by pushing the handle down with medium pressure,
scoring the tile surface glaze as the handle is pushed forward.
Direction for use
使用说明

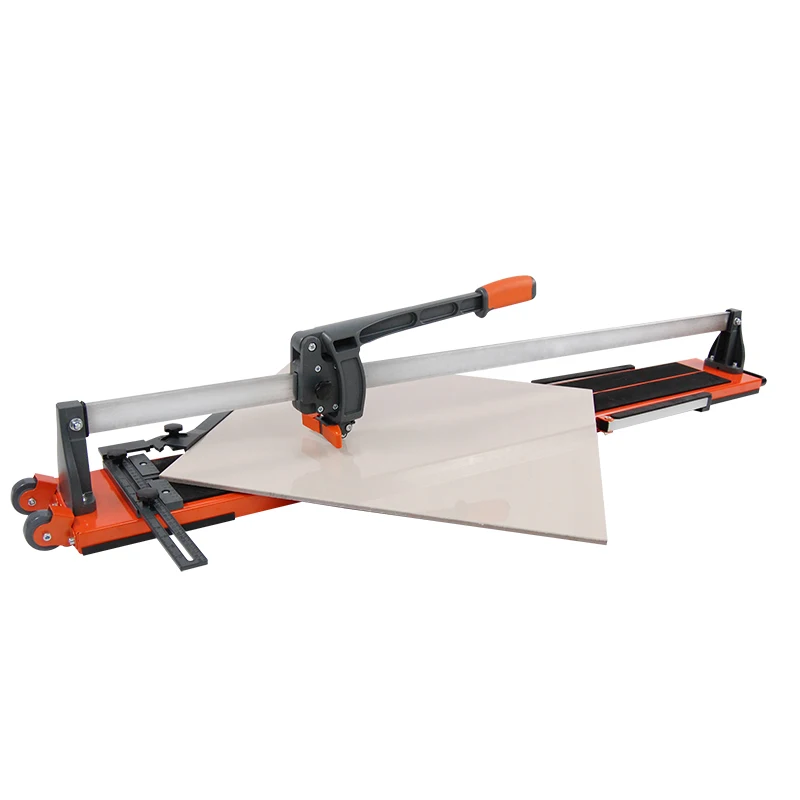

DIAGONAL CUT
The gauge can also assist in making diagonal cuts.
First loosen the gauge so it can move side to side to adjust to the size of the tile you are cutting. Then loosen the knob on the
angle guide dial to allow the tile to rest against the angle guide ,when the tile is positioned for a diagonal cut.
Tighten both knobs ,you are now ready to make the diagonal cut.
NOTE
It is important to make one continuous motion.scoring the surface only once per tile .
After scoring ,and without moving the tile ,position the handle so that the breaker bar is slightly in from the front edge of the
tile and front stop.
Apply increasing pressure on the handle until the tile snaps along the score line.
The gauge can also assist in making diagonal cuts.
First loosen the gauge so it can move side to side to adjust to the size of the tile you are cutting. Then loosen the knob on the
angle guide dial to allow the tile to rest against the angle guide ,when the tile is positioned for a diagonal cut.
Tighten both knobs ,you are now ready to make the diagonal cut.
NOTE
It is important to make one continuous motion.scoring the surface only once per tile .
After scoring ,and without moving the tile ,position the handle so that the breaker bar is slightly in from the front edge of the
tile and front stop.
Apply increasing pressure on the handle until the tile snaps along the score line.

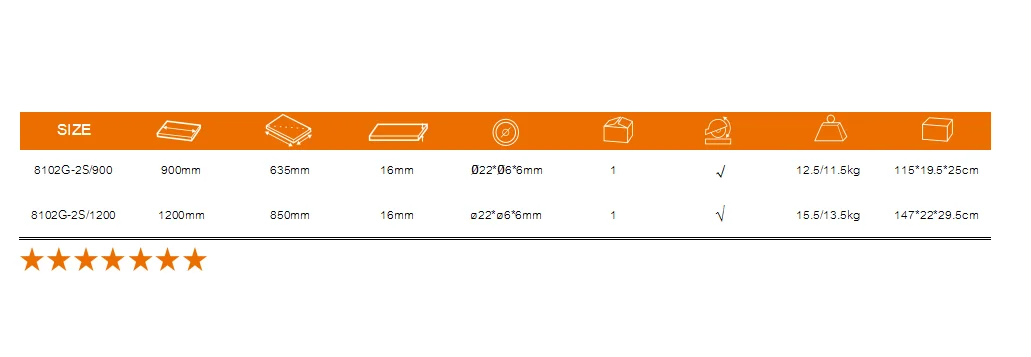

Size Information
Related Products
WHY CHOICE US ?
Company Introduction
Established in 1996，Hangzhou John Hardware Tools Co., Ltd is a professional manufacturer and exporter of energy-saving and environmental protective manual Tile cutters, Tiling tools,Flooring tools and Carpet tools.
The company has marketplaces covering more than 100 countries and regions on five continents, and has established strategic partnerships with internationally renowned enterprises such as HOMEDEPOT in the United States,KINGFISHER in UK,ADEO in France, OBI in Germany,TRUPER in Mexico,CTM in South Africa, and
Cencosud in South America.
The company has marketplaces covering more than 100 countries and regions on five continents, and has established strategic partnerships with internationally renowned enterprises such as HOMEDEPOT in the United States,KINGFISHER in UK,ADEO in France, OBI in Germany,TRUPER in Mexico,CTM in South Africa, and
Cencosud in South America.
Employees | Workshop | Assembly lines | Tile Cutter Output | Total sales |
230+ | 23310 m² | 7 | 1,500,000pcs | $30million+ |
