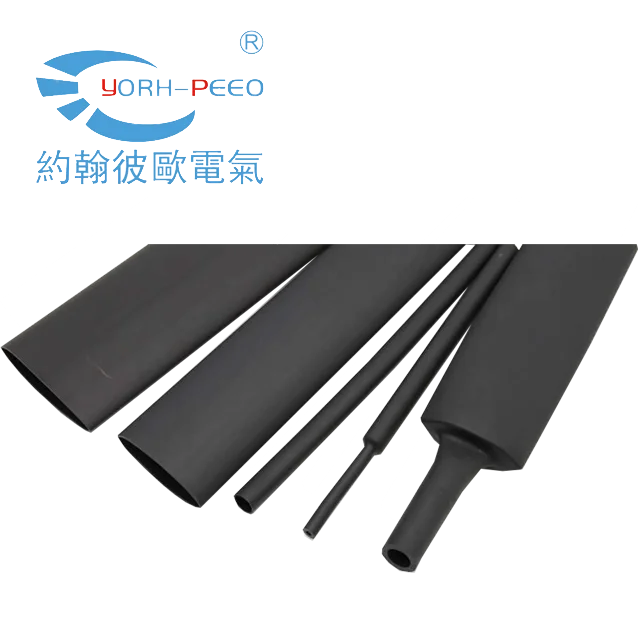

YORH PEEO 3:1 Flame Retardant Medium Wall Adhesive Lined Heat Shrink Tubing SBRSM
YORH-PEEO 3:1 Flame Retardant Medium Wall Adhesive Lined Heat Shrink Tubing SBRSM

YORH PEEO 3:1 Flame Retardant Medium Wall Adhesive Lined Heat Shrink Tubing SBRSM

Share on (11000000412439):


Price:

Quantity:


Product Overview

Description





SBRSM Features
* Manufactured of polyolefin and hot melt adhesive
* Diameter from 10.2mm(2/5”) to 230.0mm(10”)
* Color: black is the basic color. Other single colors can be also ordered
* Shrink ratio 3:1
* Continuous Operation temperature:-45℃ to 125℃
* Fully Shrink temperature: ≥125℃
* RoHS compliant
* Medium wall adhesive lined heat shrink tubing suitable for a variety of low voltage electrical and mechanical application, where lighter weight and greater flexibility are important
* Shrink tube seals and protects cable splices and terminations
* High resistance to impact and abrasion
* Thermoplastic adhesive liner for complete environmental protection and insulation




Item No
Size
Expanded
After Recovery
Standard Package
mm
Internal Diameter
Internal Diameter
Wall Thickness
Adhesive Thickness
Total Wall Thickness
(mm)
(mm)
(mm)
(mm)
(mm)
M/pc
SBRSM-10.2
10.2
10.2
3.0
1.40±0.20
0.35±0.15
1.75±0.30
1.22
SBRSM-16.0
16.0
16.0
5.0
1.50±0.20
0.40±0.15
1.90±0.30
1.22
SBRSM-19.1
19.1
19.1
5.6
2.00±0.20
0.45±0.15
2.45±0.40
1.22
SBRSM-25.0
25.0
25.0
8.0
2.00±0.20
0.45±0.15
2.45±0.40
1.22
SBRSM-28.0
28.0
28.0
9.0
2.00±0.20
0.50±0.20
2.60±0.40
1.22
SBRSM-35.0
35.0
35.0
10.2
2.20±0.20
0.78±0.20
2.70±0.40
1.22
SBRSM-38.1
38.1
38.1
12.0
2.20±0.20
0.50±0.20
2.70±0.40
1.22
SBRSM-43.2
43.2
43.2
1.7
2.20±0.25
0.50±0.21
2.70±0.40
1.22
SBRSM-52.1
52.1
52.1
16.0
2.30±0.25
0.50±0.22
2.80±0.45
1.22
SBRSM-55.0
55.0
55.0
16.0
2.30±0.25
0.50±0.23
2.80±0.45
1.22
SBRSM-63.0
63.0
63.0
19.0
2.50±0.25
0.50±0.24
3.00±0.45
1.22
SBRSM-75.0
75.0
75.0
22.0
2.60±0.25
0.50±0.25
3.00±0.45
1.22
SBRSM-85.0
85.0
85.0
25.0
2.80±0.35
0.50±0.26
3.30±0.45
1.22
SBRSM-95.0
95.0
95.0
29.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22
SBRSM-115.0
115.0
115.0
34.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22
SBRSM-140.0
140.0
140.0
42.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22
SBRSM-160.0
160.0
160.0
48.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22
SBRSM-180.0
180.0
180.0
58.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22
SBRSM-200.0
≥200.0
≥200.0
≤60.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22
SBRSM-230.0
≥230.0
≥230.0
≤69.0
3.10±0.45
0.60±0.26
3.70±0.50
1.22


Technical Data
Property
Test Method
Standard
Typical Performance
Tensile Strength (MPa)
ASTM D 2671
≥10.4
11.5
Elongation (%)
ASTM D 2671
≥300
450
Tensile strength after aging (MPa)
UL224 158℃X168hr
≥7.3
8.5
Elongation after aging (%)
UL224 158℃X168hr
≥200
350
Dielectric strength (kV/mm)
IEC 60243
≥15
17.5
Volume resistivity (Ω•cm)
IEC 60093
≥1X1014
2.5x1014
Flammability
ASTM D 2671B
Self-extinguish within 30s


Hot Melt Adhesive Property
Property
Test Method
Standard
Water Absorption
ASTM D570
≤0.2%
Softening Point (℃)
ASTM E28
95±5
Strength of pearing (PE)
ASTM D 1000
120N/25mm
Strength of pearing (AL)
ASTM D 1000
80N/25mm
















Q1:Do you have your own factory or just a trading company?                                                          A: We have our R&D, producing, marketing and trading team, more than 100 employees in total. With 7 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.

Q2: What's the delivery time?
A2: For bulk cargo, normally 7-15days after order and payment confirmation. If the order is full container load, the production time will be around 15-25 days.
In case of urgent need, delivery date can be advanced depends on your request.

Q3: What's your terms of payment?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4: Do you accept OEM or ODM?
A: Yes OEM and ODM are available. All legal Logo can be printed on the product.

Q5: Could you change the size for the customer?
A: Yes, sizes can be customized, for more details please contact us.

Q6: Do you provide free sample?
A: Yes, Sample can be provided with freight charge to be collected.

Q7: How about the after-sale service?
A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.

Q8: How to contact us?
A: Email: sunny_chen@yorhpeeo.com
Tel/wechat/whatsapp: 86 13127786980
