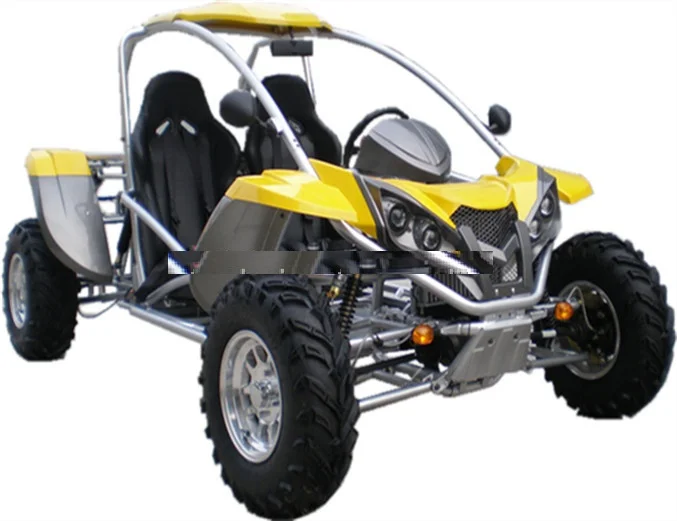

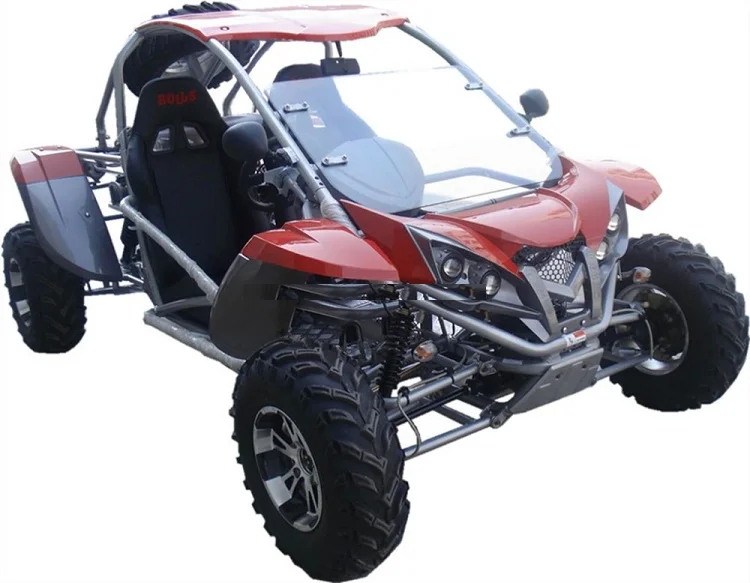

Brand New Right hand drive 500cc go kart /R.H.D off road Automatic 4x4 buggy (TKG500E A)
- Category: >>>
- Supplier: HARRED ICE MANUFACTURING
Share on (11000000413155):
Product Overview
Description
CF motor
Automatic drive
4x4/4x2
shaft transmission
color custom-built available
spec:
| Wheel base | 2340mm |
| Total net weight | 450kg |
| Rider | double |
| Engine Type | 500cc,single cylinder,4-stroke,water-cooled |
| Cylinder bore | 87.5mm |
| Pmax | 24km/6500r/min |
| Tmax | 38.8N.m/5500r/min |
| Start mode | electric |
| Power source | battery 12v 18HA |
| Fuse | 15A |
| Spark plug | DPR&EA-9 |
| Spark gas | 0.8-0.9mm |
| Lubrication | force and splash |
| Displacement | 493ML |
| Comperession ratio | 10:01 |
| Lgnition | CDI |
| Top speed | 80km/h |
| Starting | 15s |
| Parking trig | mechanical lock |
| Fuel | RQ-90(leasdless) |
| Lubricate oil brand | SAE15w-40/SF |
| Gas tank capacity | 16L |
| Engine oil capacity | 2.2L |
| Headlight | 12v35w |
| Taillight | 12v21w/5w |
| Climb capacity | 18` |
| Distance between wheels | front:1340mm;rear:1340mm |
| Seat distance | 450mm |
| front brake | hydraulic disc brake by foot control |
| rear brake | hydraulic disc brake by foot control |
| front tyre | 25x8-12 |
| rear tyre | 25x10-12 |
| Transmission | shaft |
| Packing method | stury iron frame add carton |
| Carton dimensions | 3000*1680*880mm |
| Conveyance | Qty20`/6 ; Qty40`hq/12 |
| Color | red,yellow,orange,bule,silver,black,white |
| Wheel hub | aluminum |
| Front/rear tire | road tire,cross-country tire |
| Rearview mirror | with EC,or without EC |

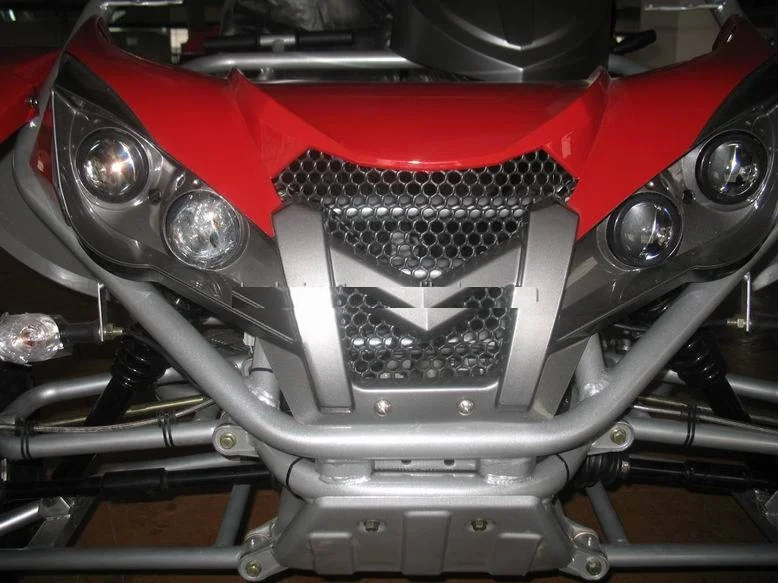

| Headlight | four hedalighs with EC |
| Frame | steel tube |
| front suspension | double A arm |
| rear suspension | swing type |
